معرفی
ماسفت 100 ولت 62 آمپر نوع N با پکیج PDFN5x6-8
N-CH MOSFET 100V, 62A with PDFN5x6-8 Package
Specifications
- Package/Case: PDFN5x6-8
- Vds - Drain - Source Breakdown Voltage: 100V
- Id - Continuous Drain Current: 62A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 5.3mΩ
- Pd - Power Dissipation: 41W
- Qg - Gate Charge: 56.1nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات E100N6P0HL1

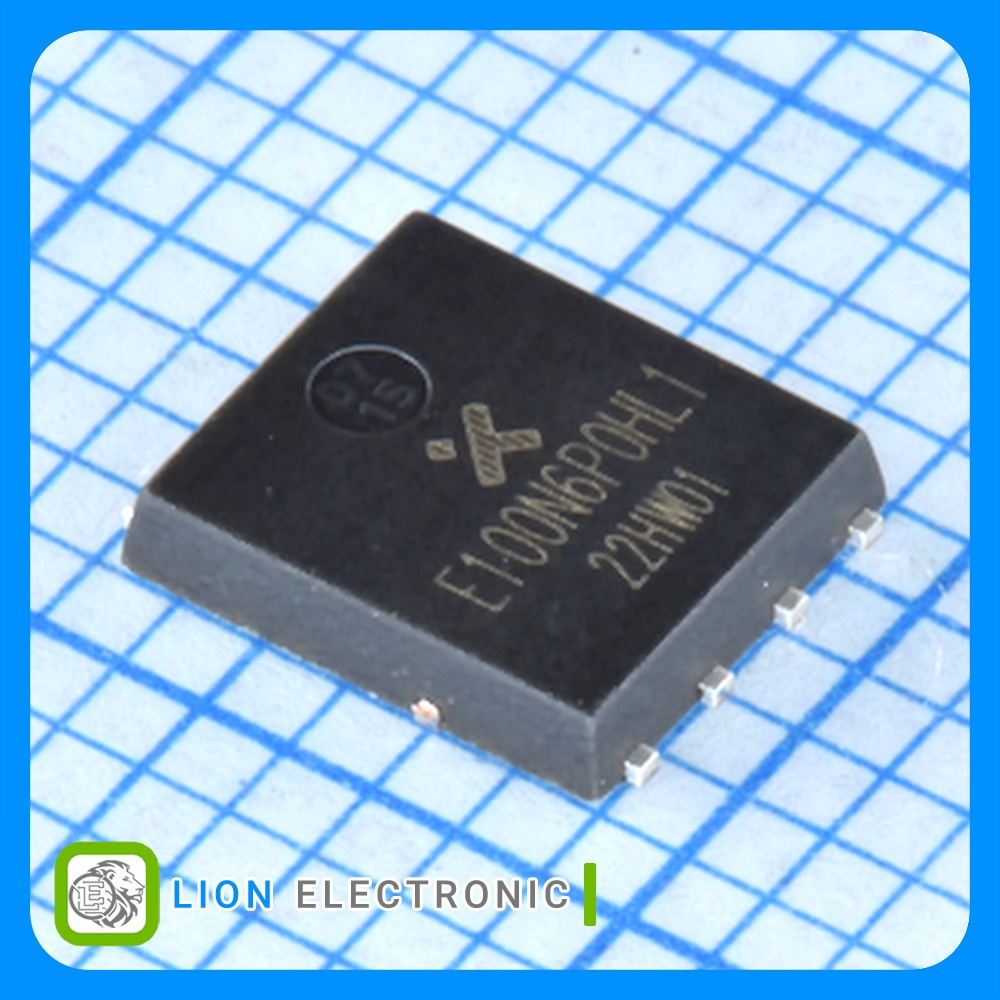

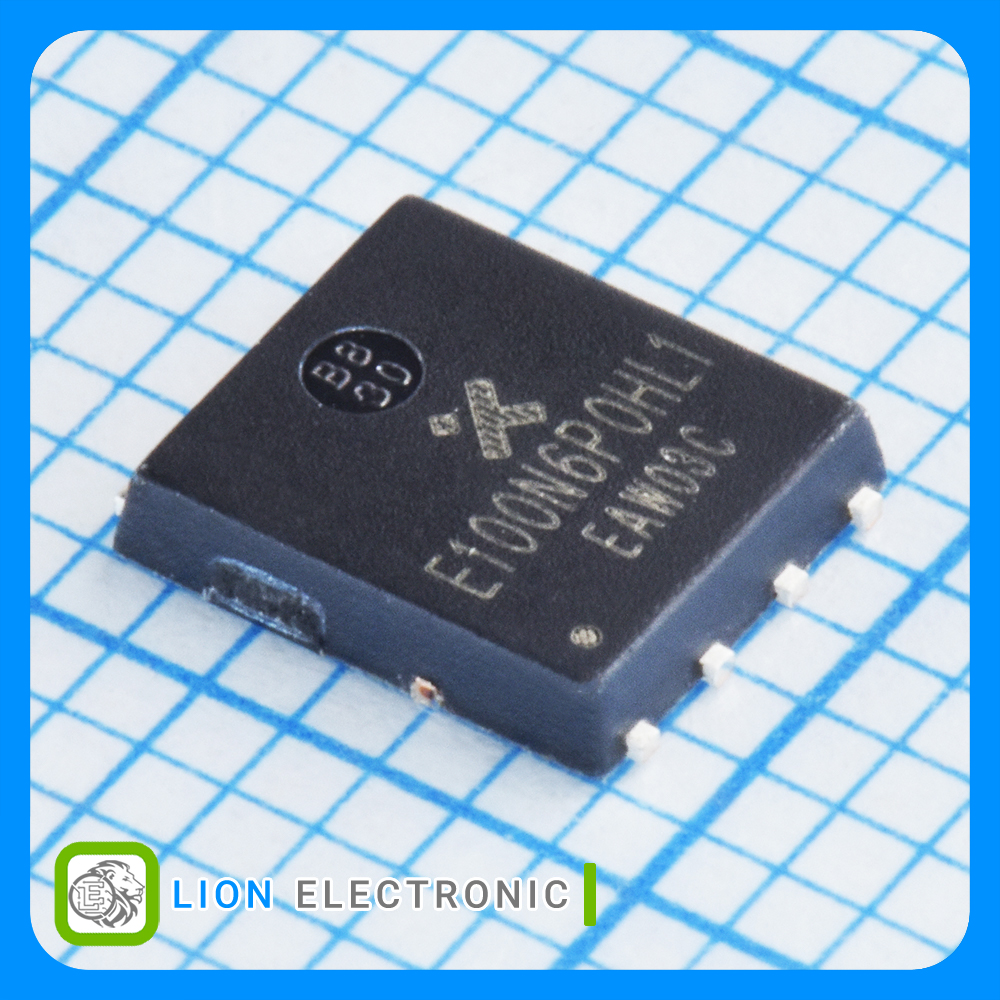

E100N6P0HL1
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
100V
Vds - Drain - Source Breakdown Voltage
1V
Vgs th - Gate - Source Threshold Voltage
5.3mΩ
Rds On - Drain - Source Resistance
DFN-8
Package-Case
56.1nC
Qg - Gate Charge
41W
Pd - Power Dissipation
62A
Id - Continuous Drain Current
