MS9708
MS9708
Part Number
6462
Lion Part
Datasheet
Hangzhou Ruimeng Tech Manufacture
مبدل دیجیتال به آنالوگ MS9708 با دقت 8 بیت 1 کاناله با اینترفیس موازی با نرخ نمونهبرداری 125MS/s، پرسرعت و کممصرف با پکیج TSSOP-28

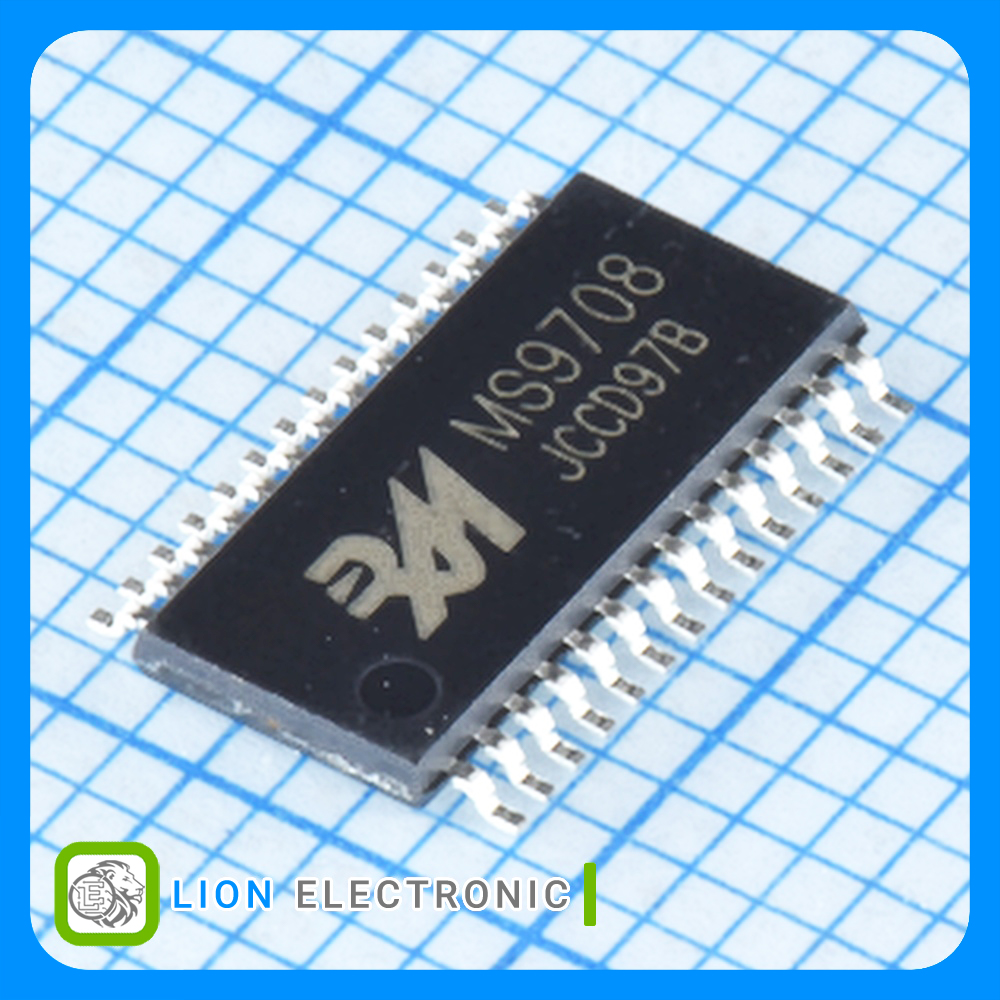

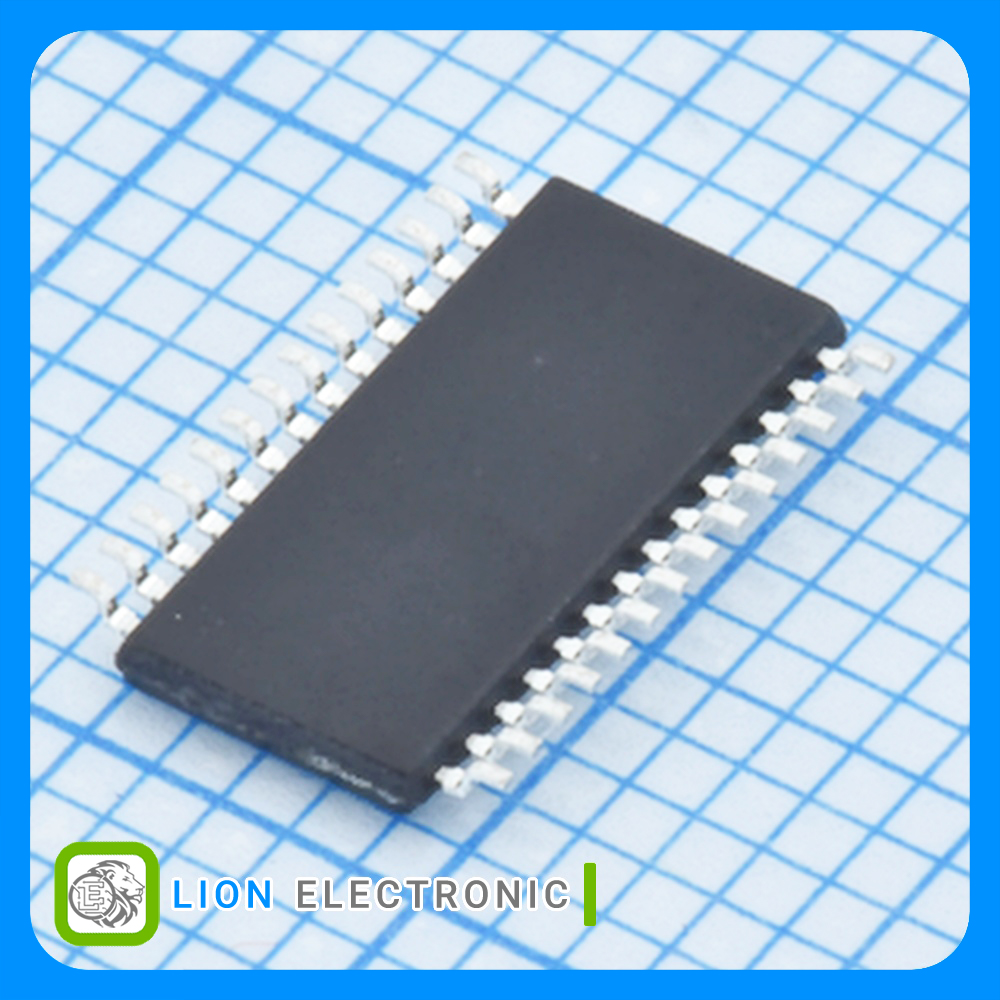

MS9708 DAC 8bit 1-Channel with Parallel Interface and 125MS/s Sampling Rate, High-Speed and Low Power Dissipation, with TSSOP-28 Package
معرفی
مبدل دیجیتال به آنالوگ MS9708 با دقت 8 بیت 1 کاناله با اینترفیس موازی با نرخ نمونهبرداری 125MS/s، پرسرعت و کممصرف با پکیج TSSOP-28
MS9708 DAC 8bit 1-Channel with Parallel Interface and 125MS/s Sampling Rate, High-Speed and Low Power Dissipation, with TSSOP-28 Package
Specifications
- Number of Channels: 1
- Resolution: 8bit
- Sampling Rate: 125MS/s
- Settling time: 35ns
- Interface Type: Parallel
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.7V
- Mounting Style: SMD/SMT
- Package/Case: TSSOP-28
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات MS9708
MS9708
Part Number
1
Number of Channels
8bit
Resolution
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
35ns
Settling time
5.5V
Supply Voltage - Max
2.7V
Supply Voltage - Min
125MS/s
Sampling Rate
Parallel
Interface Type
TSSOP-28
Package-Case
