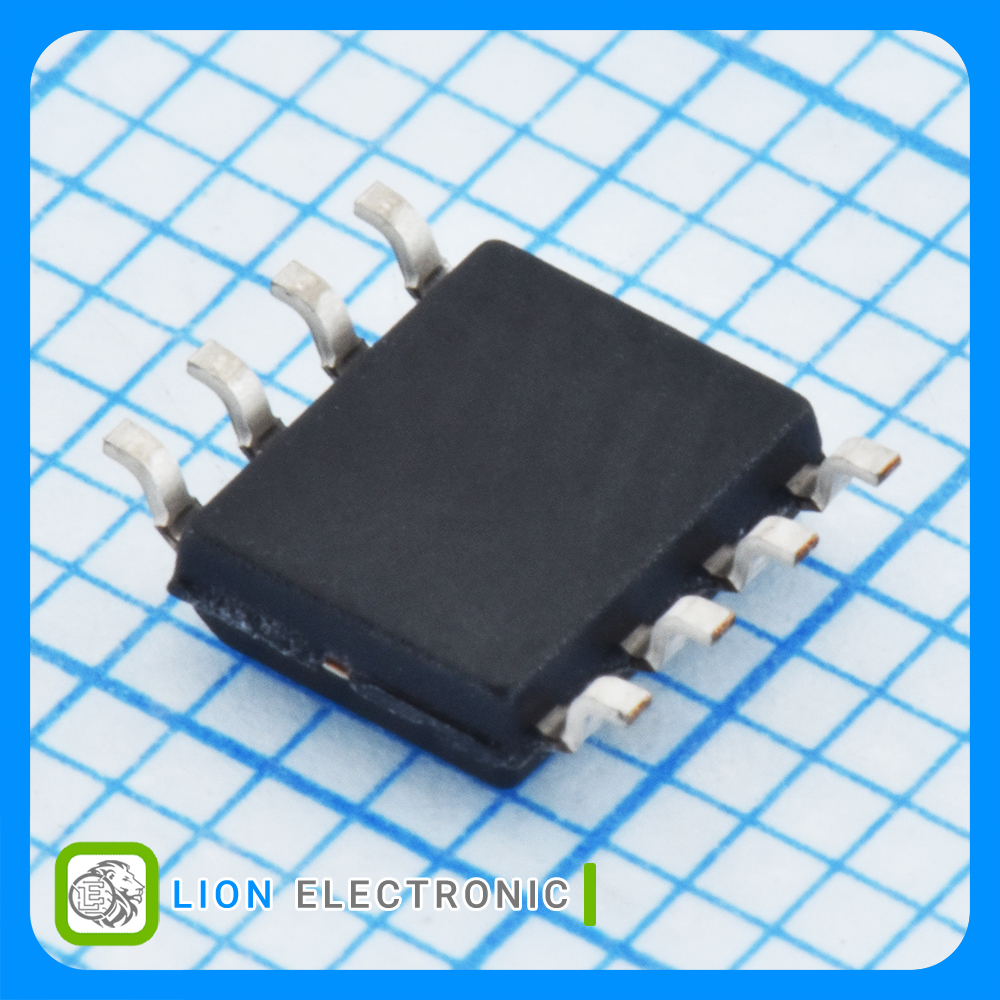

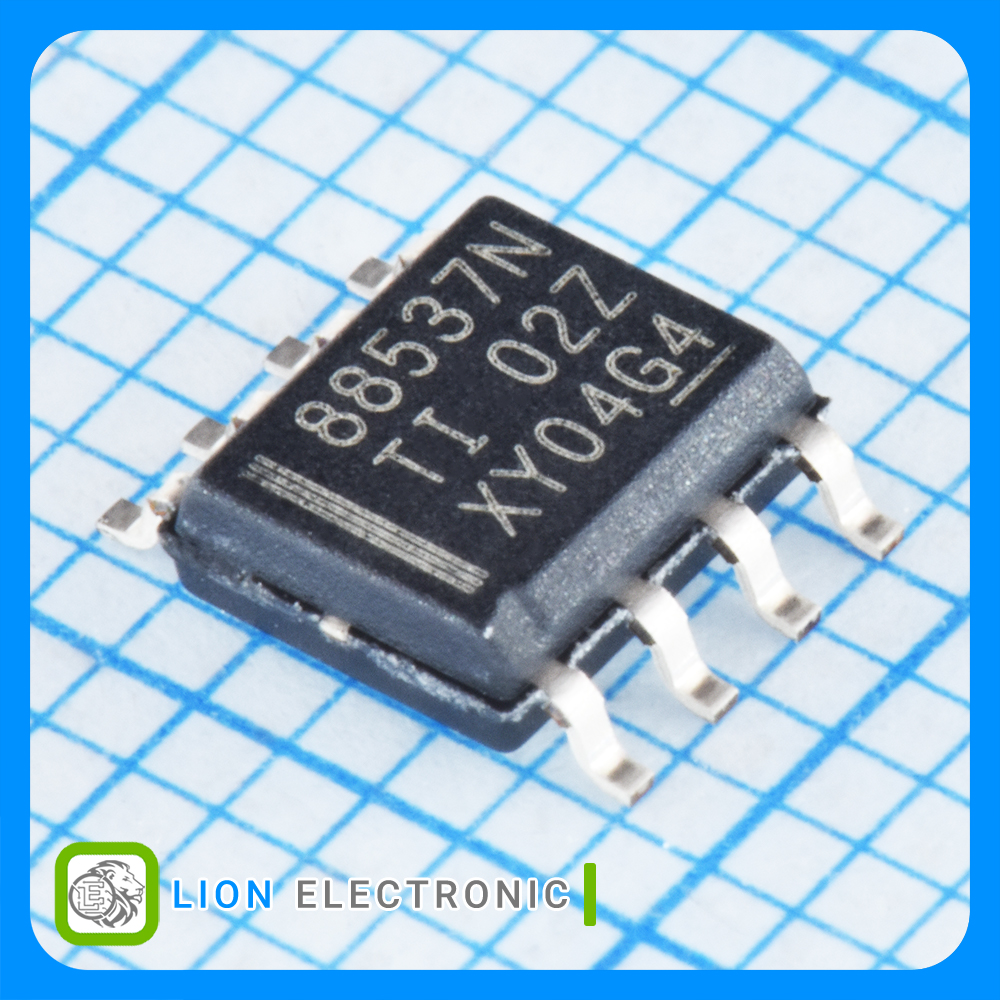

CSD88537ND
CSD88537ND
Part Number
6632
Lion Part
Datasheet
Texas Instruments Manufacture
ماسفت 60 ولت 16 آمپر نوع N با پکیج SOIC-8
MOSFET 60V, 16A with SOIC-8 Package
معرفی
ماسفت 60 ولت 16 آمپر نوع N با پکیج SOIC-8
MOSFET 60V, 16A with SOIC-8 Package
Specifications
- Package/Case: SOIC-8
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 16A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 2
- Vgs th - Gate - Source Threshold Voltage: 3V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 12.5mΩ
- Pd - Power Dissipation: 2.1W
- Qg - Gate Charge: 14nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات CSD88537ND
CSD88537ND
Part Number
2
Number of Channels
Enhancement
Channel Mode
N-Channel
Transistor Polarity
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
60V
Vds - Drain - Source Breakdown Voltage
3V
Vgs th - Gate - Source Threshold Voltage
14nC
Qg - Gate Charge
12.5mΩ
Rds On - Drain - Source Resistance
2.1W
Pd - Power Dissipation
16A
Id - Continuous Drain Current
SOIC-8
Package-Case
