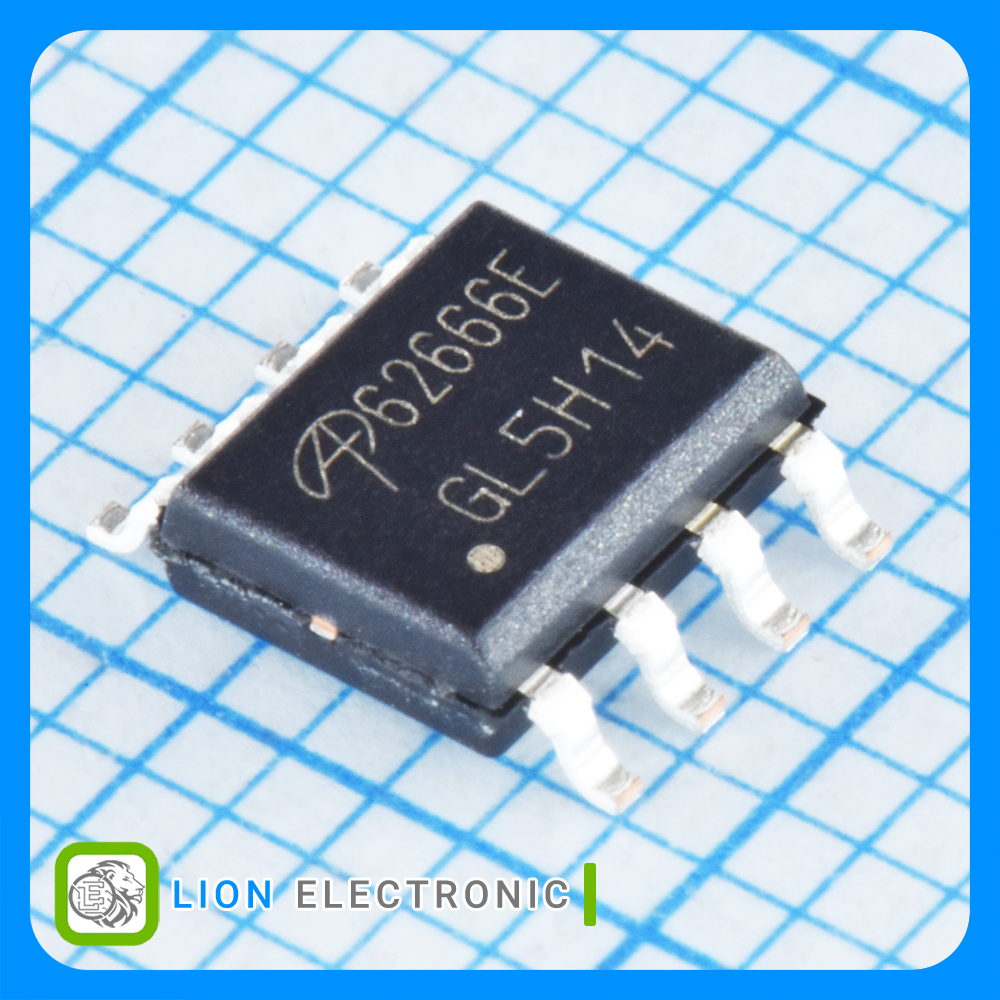

AOSD62666E
AOSD62666E
Part Number
6633
Lion Part
Datasheet
Alpha & Omega Semiconductor Manufacture
ماسفت 60 ولت 9.5 آمپر نوع N با پکیج SOIC-8
MOSFET 60V, 9.5A with SOIC-8 Package
معرفی
ماسفت 60 ولت 9.5 آمپر نوع N با پکیج SOIC-8
MOSFET 60V, 9.5A with SOIC-8 Package
Specifications
- Package/Case: SOIC-8
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 9.5A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 2
- Vgs th - Gate - Source Threshold Voltage: 1.2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 12mΩ
- Pd - Power Dissipation: 2.5W
- Qg - Gate Charge: 13.5nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات AOSD62666E
AOSD62666E
Part Number
Enhancement
Channel Mode
2
Number of Channels
N-Channel
Transistor Polarity
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
60V
Vds - Drain - Source Breakdown Voltage
1.2V
Vgs th - Gate - Source Threshold Voltage
13.5nC
Qg - Gate Charge
12mΩ
Rds On - Drain - Source Resistance
2.5W
Pd - Power Dissipation
9.5A
Id - Continuous Drain Current
SOIC-8
Package-Case
