کانکتور پیکوبلید 1.25 میلیمتر 9 پین زاویه 90 درجه سیم به برد

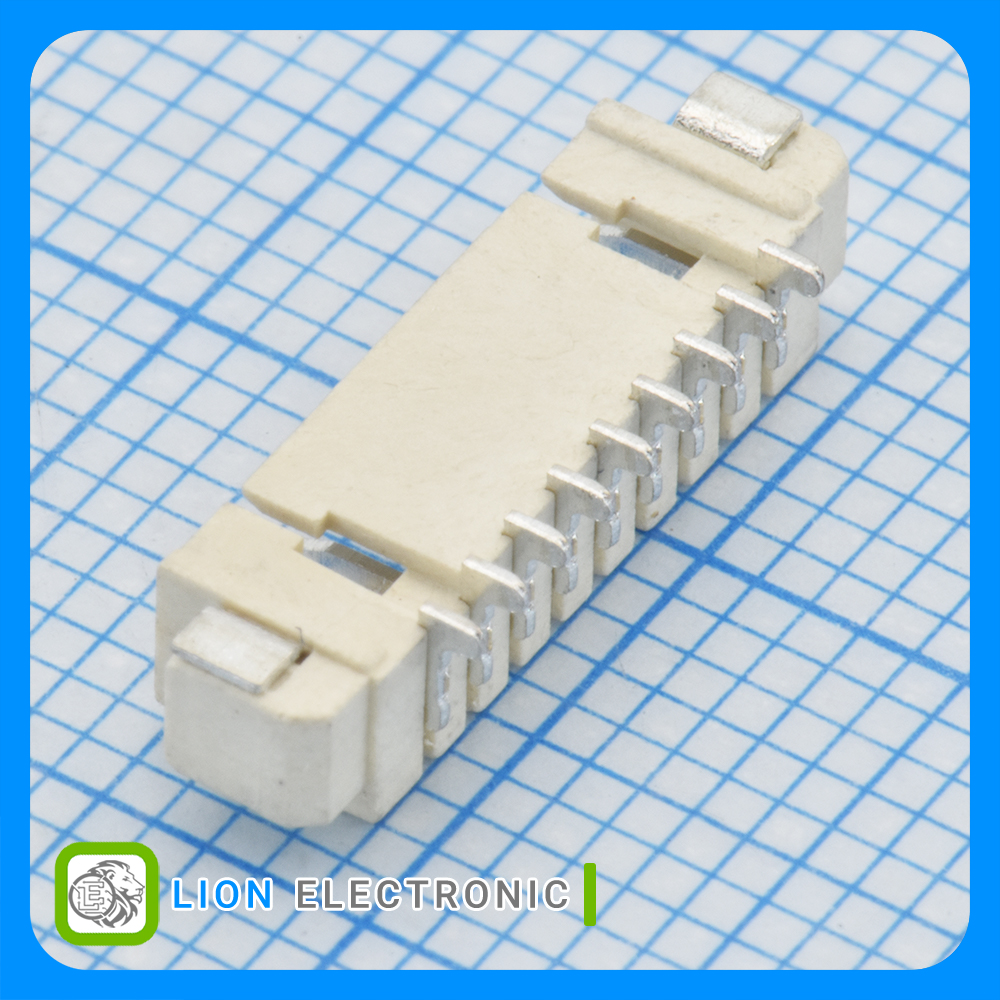

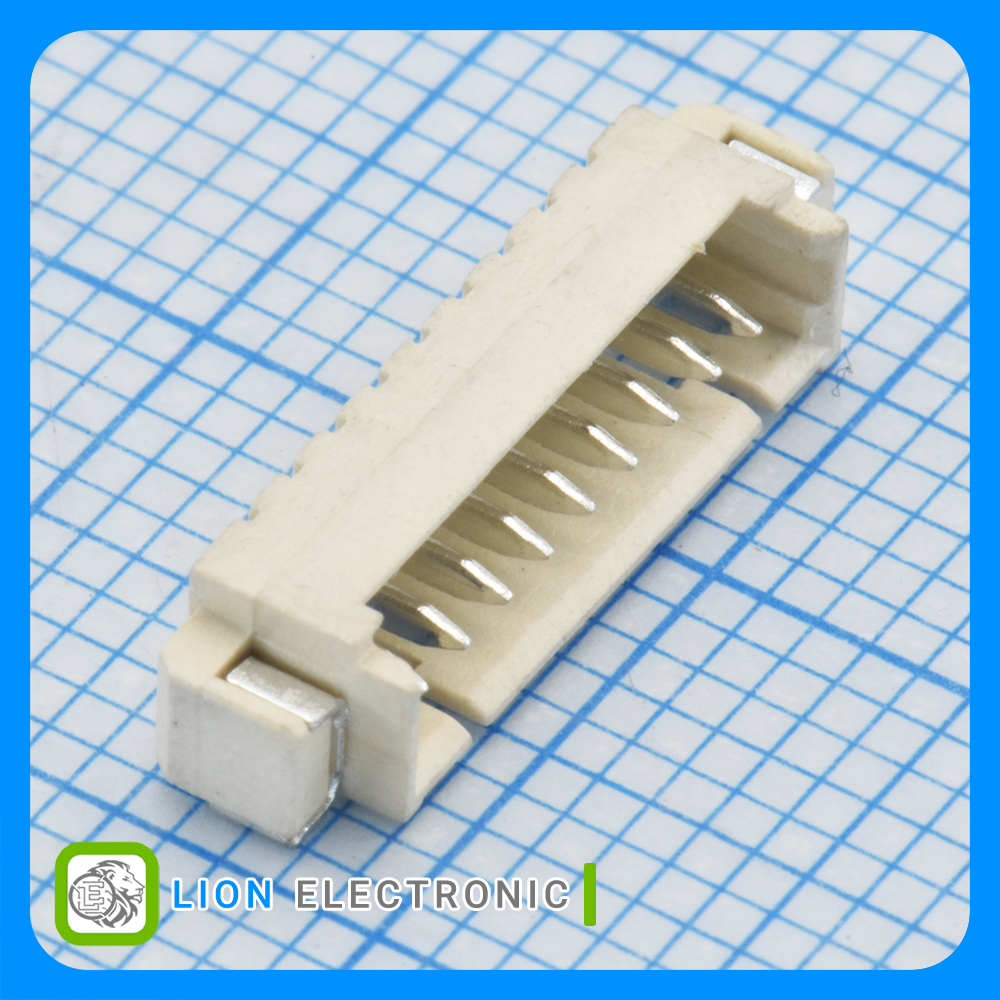

1x9P PicoBlade Connector 1.25mm, 9 Position with Right Angle, Wire To Board
Specifications
- Number of Positions: 9 Position
- Pitch: 1.25mm
- Voltage Rating: 125V
- Current Rating: 1A
- Termination style: SMD/SMT
- Mounting Angle: Right Angle
- Minimum Operating Temperature: -25C
- Maximum Operating Temperature: +85C
مشخصات 1.25-9P WT
1.25-9P WT
Part Number
---
Packaging
Right Angle
Mounting Angle
SMD/SMT
Termination style
1.25mm
Pitch
125V
Voltage Rating
9 Position
Number of Positions
+85C
Maximum Operating Temperature
-25C
Minimum Operating Temperature
1A
Current Rating
