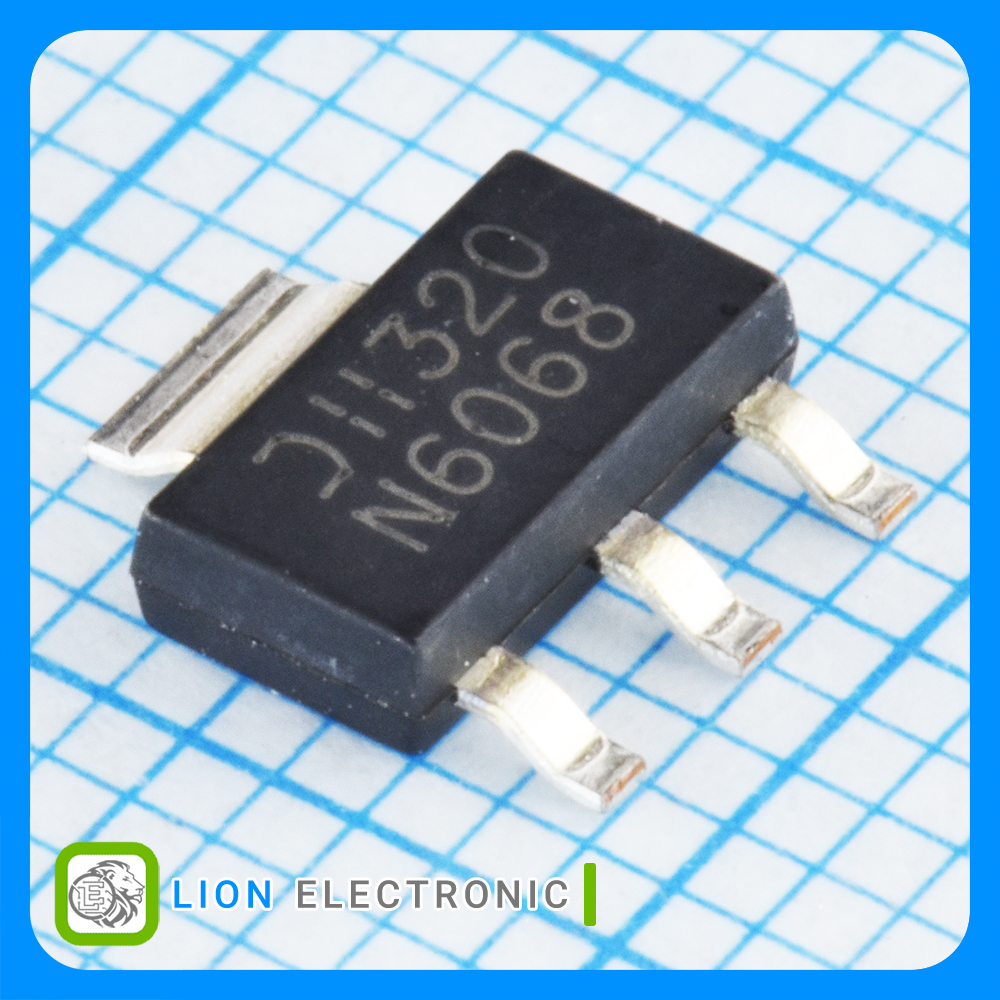

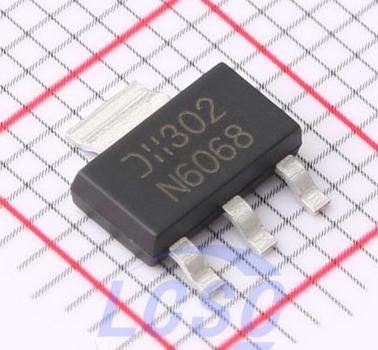

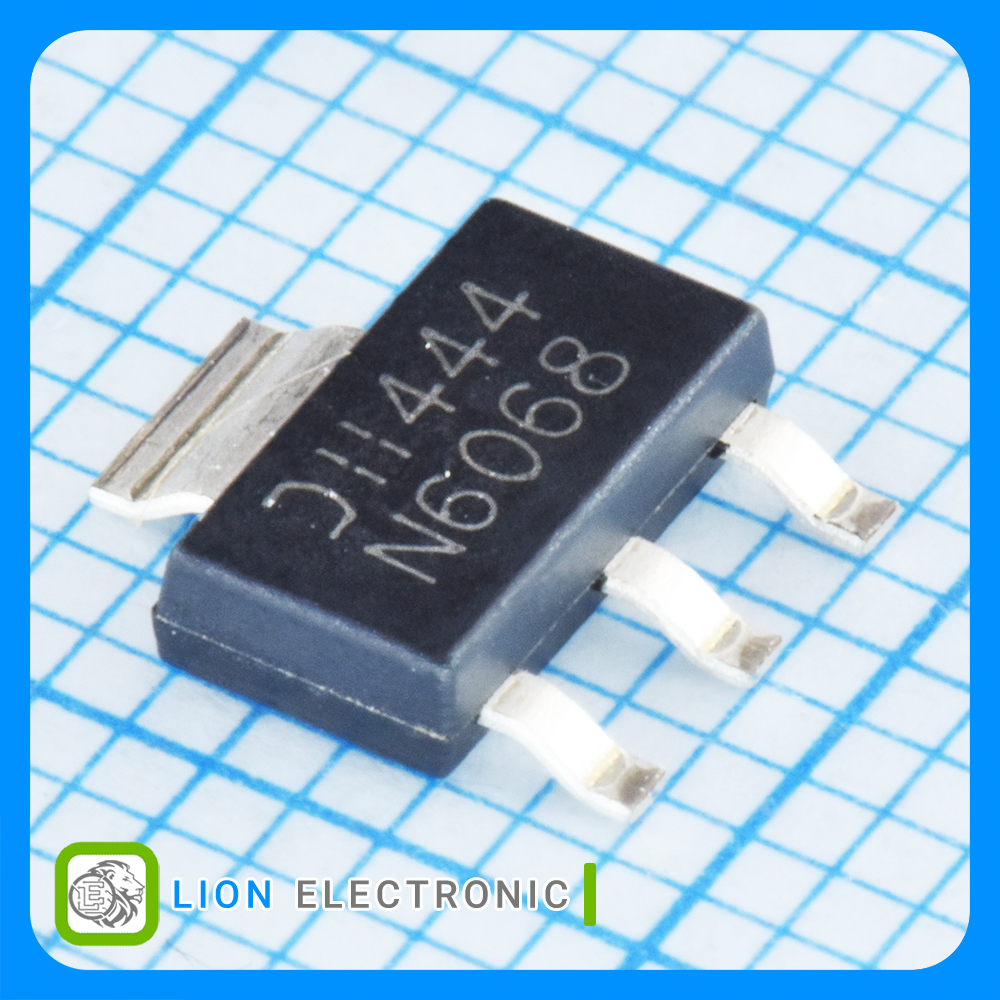

DMN6068SE
DMN6068SE
Part Number
6790
Lion Part
Datasheet
Diodes Incorporated Manufacture
ماسفت 60 ولت 5.6 آمپر نوع N با پکیج SOT-223
MOSFET 60V, 5.6A with SOT-223 Package
معرفی
ماسفت 60 ولت 5.6 آمپر نوع N با پکیج SOT-223
MOSFET 60V, 5.6A with SOT-223 Package
Specifications
- Package/Case: SOT-223
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 5.6A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 100mΩ , 68mΩ
- Pd - Power Dissipation: 3.7W
- Qg - Gate Charge: 5.55nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات DMN6068SE
DMN6068SE
Part Number
1
Number of Channels
Enhancement
Channel Mode
N-Channel
Transistor Polarity
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
60V
Vds - Drain - Source Breakdown Voltage
1V
Vgs th - Gate - Source Threshold Voltage
3.7W
Pd - Power Dissipation
5.6A
Id - Continuous Drain Current
5.55nC
Qg - Gate Charge
100mΩ , 68mΩ
Rds On - Drain - Source Resistance
SOT-223
Package-Case
