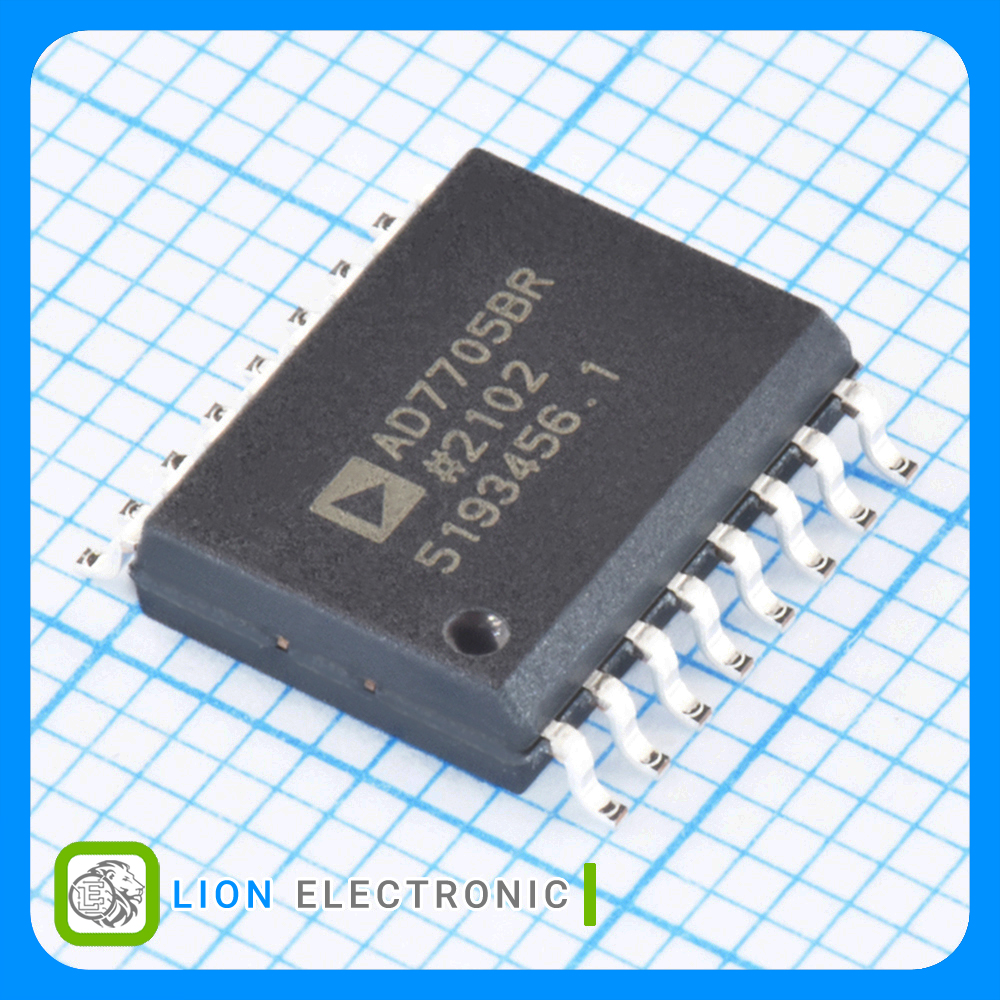

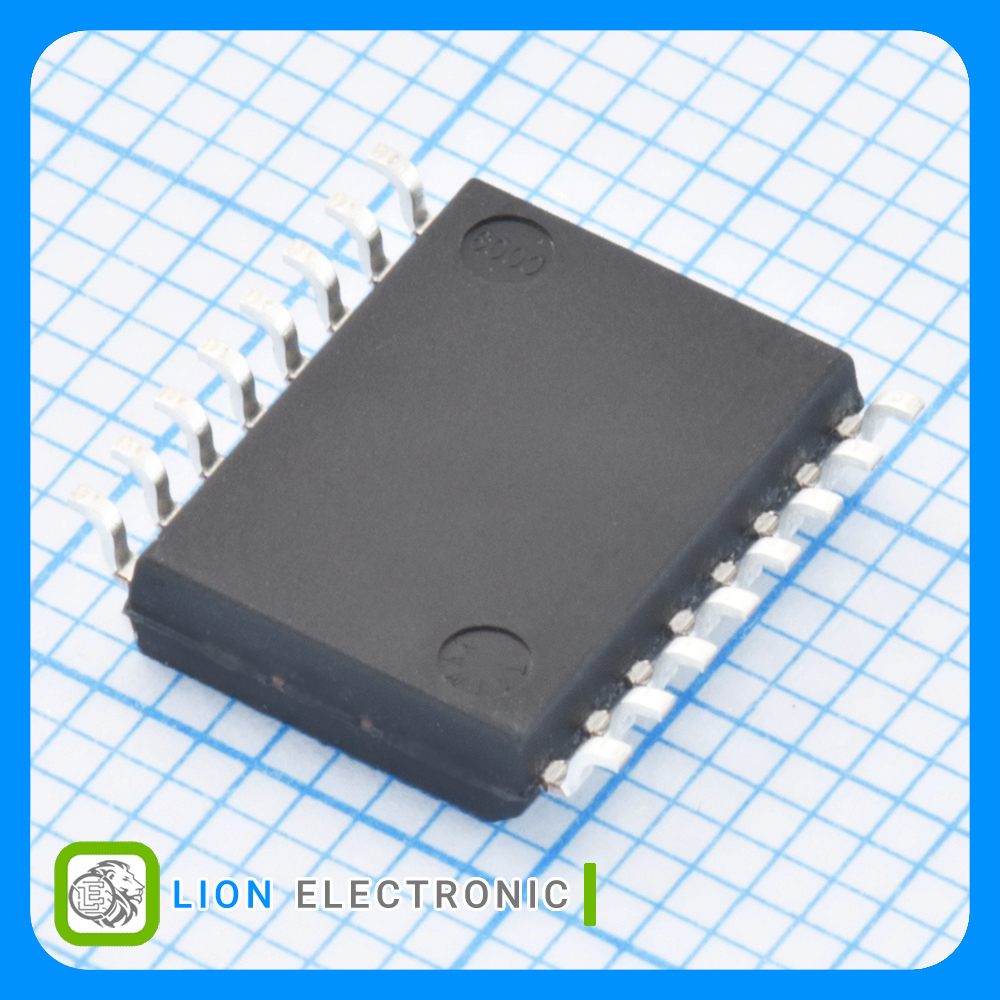

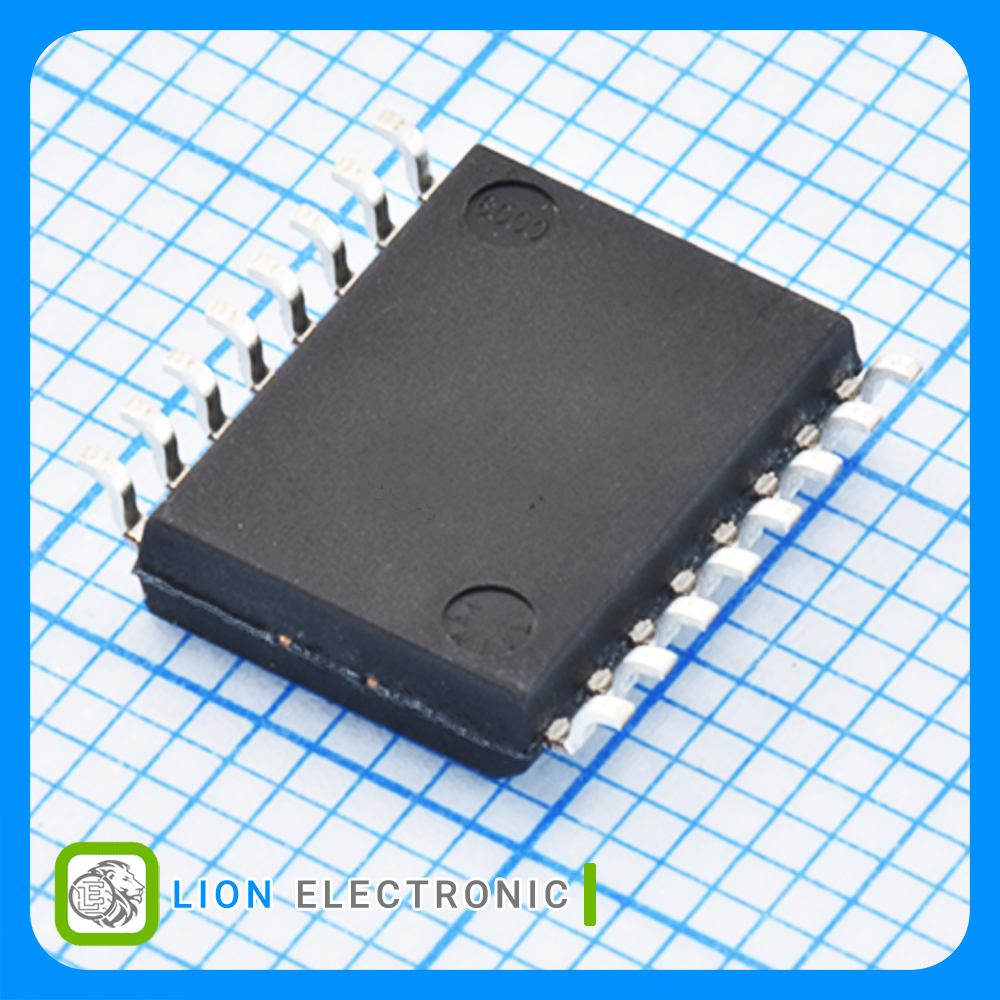

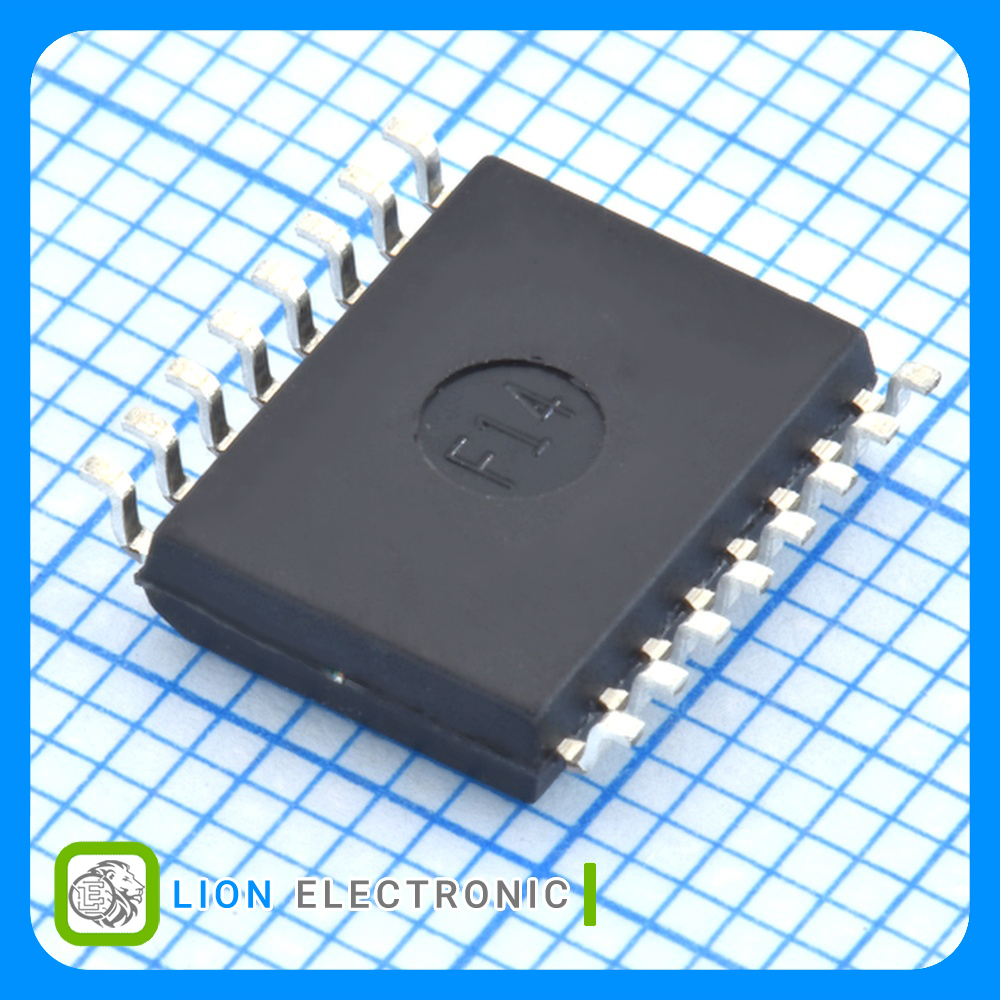

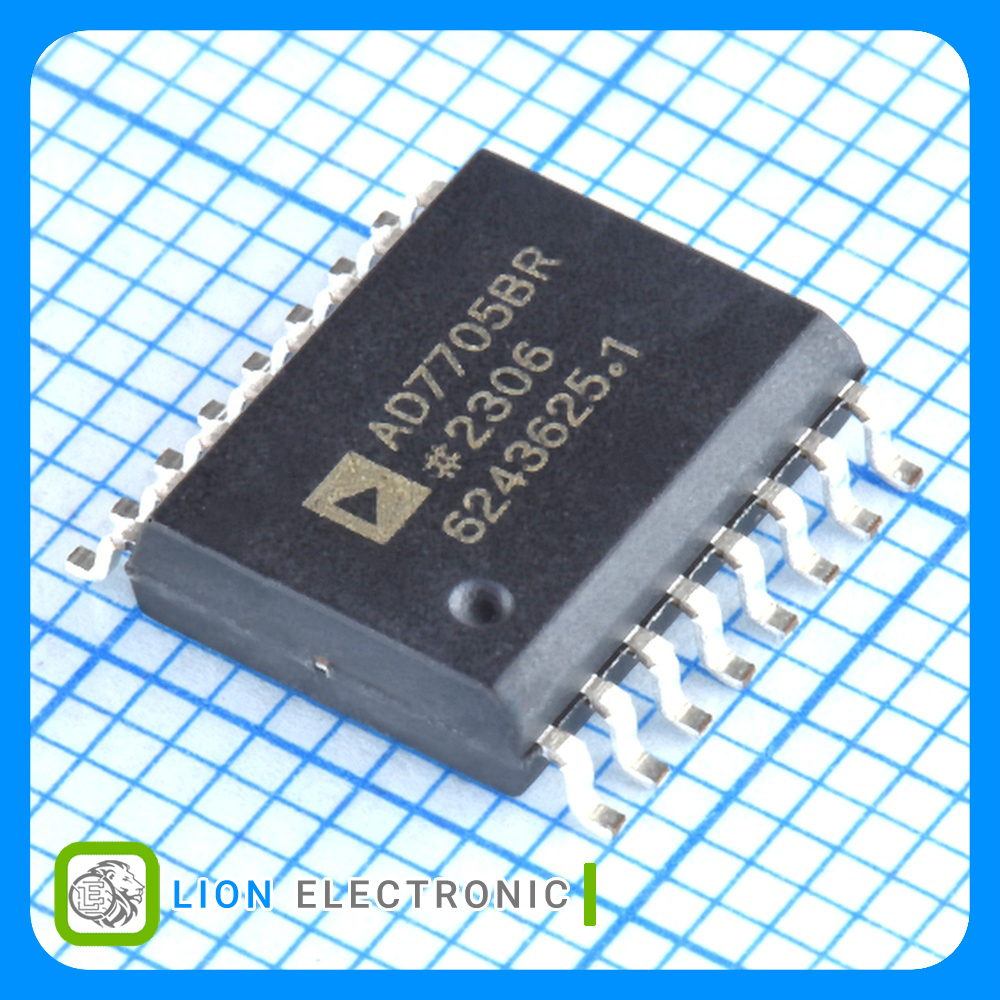

AD7705BRZ
AD7705BRZ
Part Number
685
Lion Part
Datasheet
Analog Devices Manufacture
مبدل آنالوگ به دیجیتال 16 بیت 2 کاناله دیفرانسیلی با نرخ نمونهبرداری 500S/s (500SPS) و رابط 3-Wire, SPI، معماری دلتا سیگما، مصرف 1 میلیوات با پکیج SOIC-16
ADC 16bit, 2 Channels with 500S/s (500SPS) and 3-Wire, SPI Interface, Differential Inputs, Sigma-Delta ADC, 1mW with SOIC-16 Package
معرفی
مبدل آنالوگ به دیجیتال 16 بیت 2 کاناله دیفرانسیلی با نرخ نمونهبرداری 500S/s (500SPS) و رابط 3-Wire, SPI، معماری دلتا سیگما، مصرف 1 میلیوات با پکیج SOIC-16
ADC 16bit, 2 Channels with 500S/s (500SPS) and 3-Wire, SPI Interface, Differential Inputs, Sigma-Delta ADC, 1mW with SOIC-16 Package
Specifications
- Number of Channels: 2
- Interface Type: 3-Wire, SPI
- Resolution: 16bit
- Sampling Rate: 500S/s
- SNR - Signal to Noise Ratio: 116dB
- Analog Supply Voltage: 2.7 - 3.3V
- Digital Supply Voltage: 2.7V to 3.3V
- Input Type: Differential
- Architecture: Sigma-Delta
- Mounting Style: SMD/SMT
- Package/Case: SOIC-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات AD7705BRZ
AD7705BRZ
Part Number
2
Number of Channels
Differential
Input Type
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
16bit
Resolution
Sigma-Delta
Architecture
2.7 - 3.3V
Analog Supply Voltage
+85C
Maximum Operating Temperature
500S/s
Sampling Rate
3-Wire, SPI
Interface Type
2.7V to 3.3V
Digital Supply Voltage
116dB
SNR - Signal to Noise Ratio
SOIC-16
Package-Case
