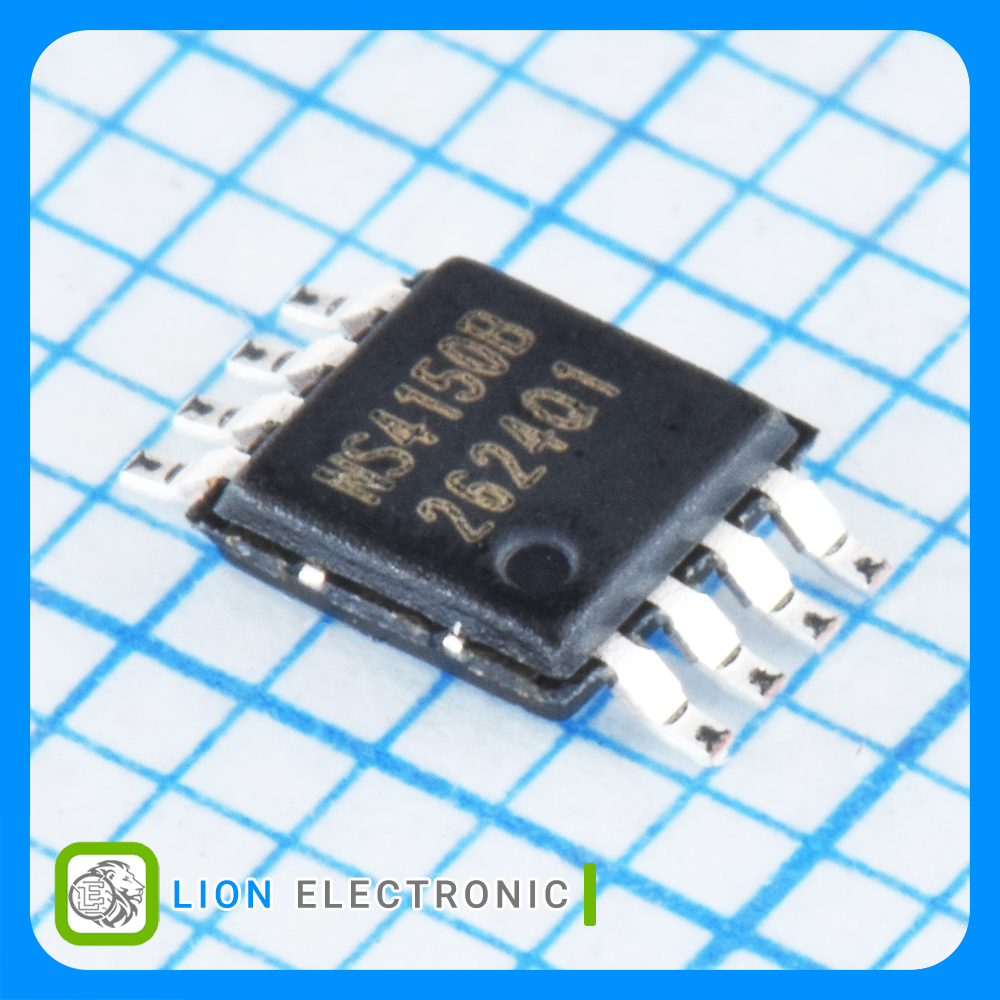

NS4150B
NS4150B
Part Number
6874
Lion Part
Datasheet
Shenzhen Nsiway Tech Manufacture
تقویتکننده توان صدا مونو کلاس D 3 وات با امپدانس بار 4 اهم با پکیج MSOP-8
Audio Power Amplifier 3W, Mono Class-D with 4Ω Load Impedance with MSOP-8 Package
معرفی
تقویتکننده توان صدا مونو کلاس D 3 وات با امپدانس بار 4 اهم با پکیج MSOP-8
Audio Power Amplifier 3W, Mono Class-D with 4Ω Load Impedance with MSOP-8 Package
Specifications
- Type: Mono
- Input Type: Differential
- Output Power: 3W
- Audio - Load Impedance: 4Ω
- Class: Class-D
- THD Plus Noise: 10% to 15%
- Supply Voltage - Min: 2.2V
- Supply Voltage - Max: 5V
- Mounting Style: SMD/SMT
- Package/Case: MSOP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tape&Reel
مشخصات NS4150B
NS4150B
Part Number
Class-D
Class
Differential
Input Type
4Ω
Audio - Load Impedance
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
Tape&Reel
Packaging
+85C
Maximum Operating Temperature
10% to 15%
THD Plus Noise
5V
Supply Voltage - Max
3W
Output Power
2.2V
Supply Voltage - Min
Mono
Type
MSOP-8
Package-Case
