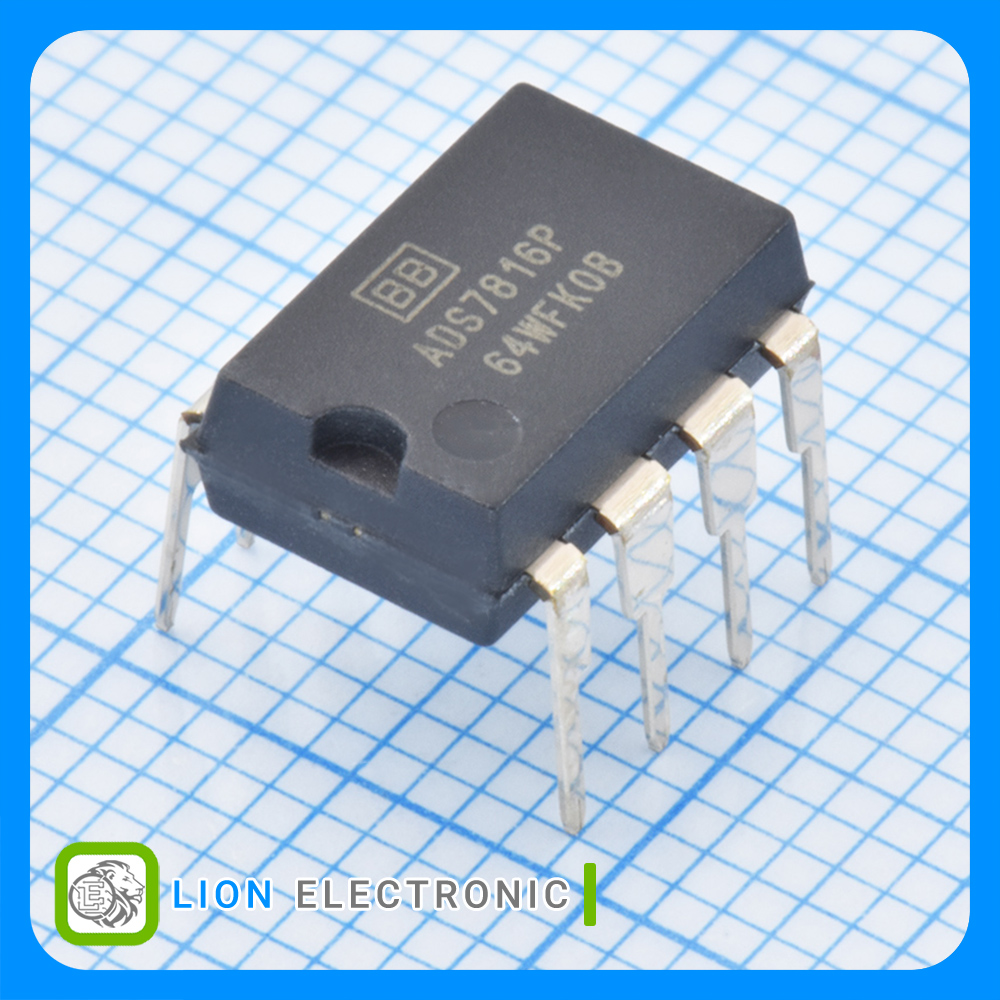

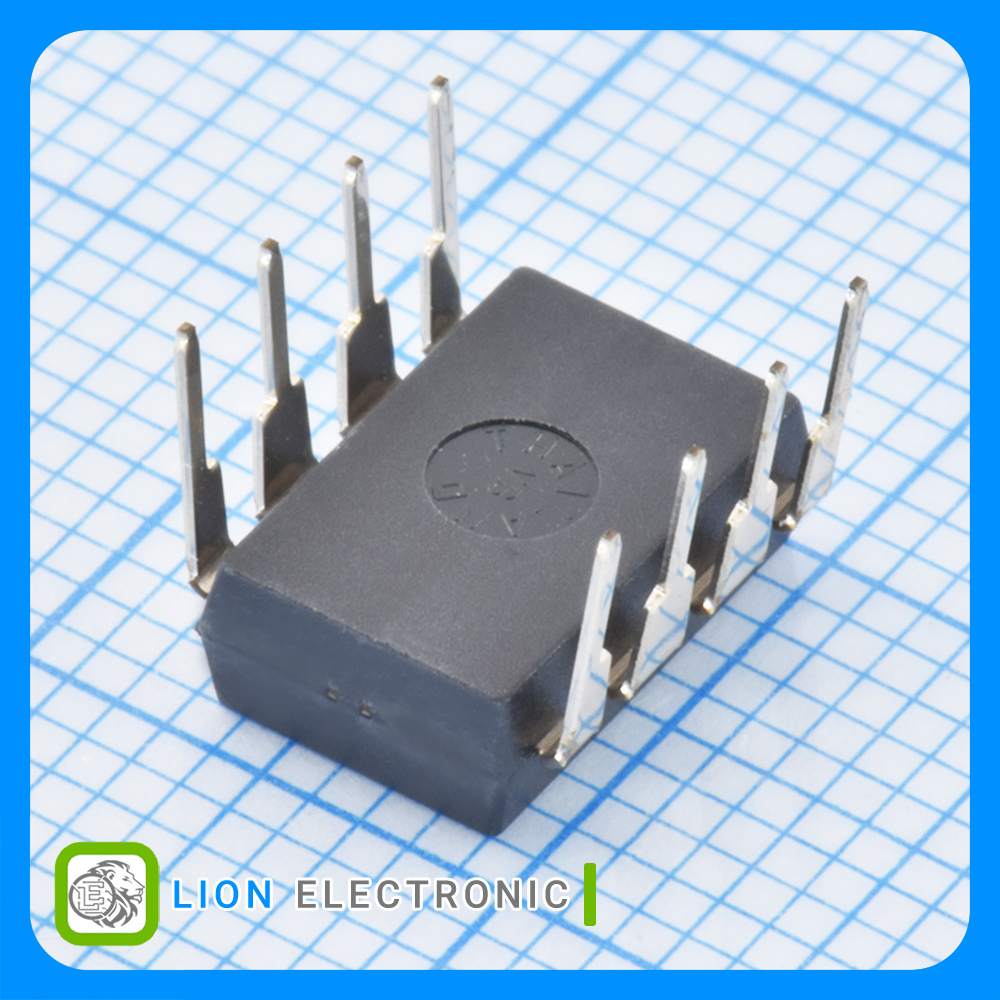

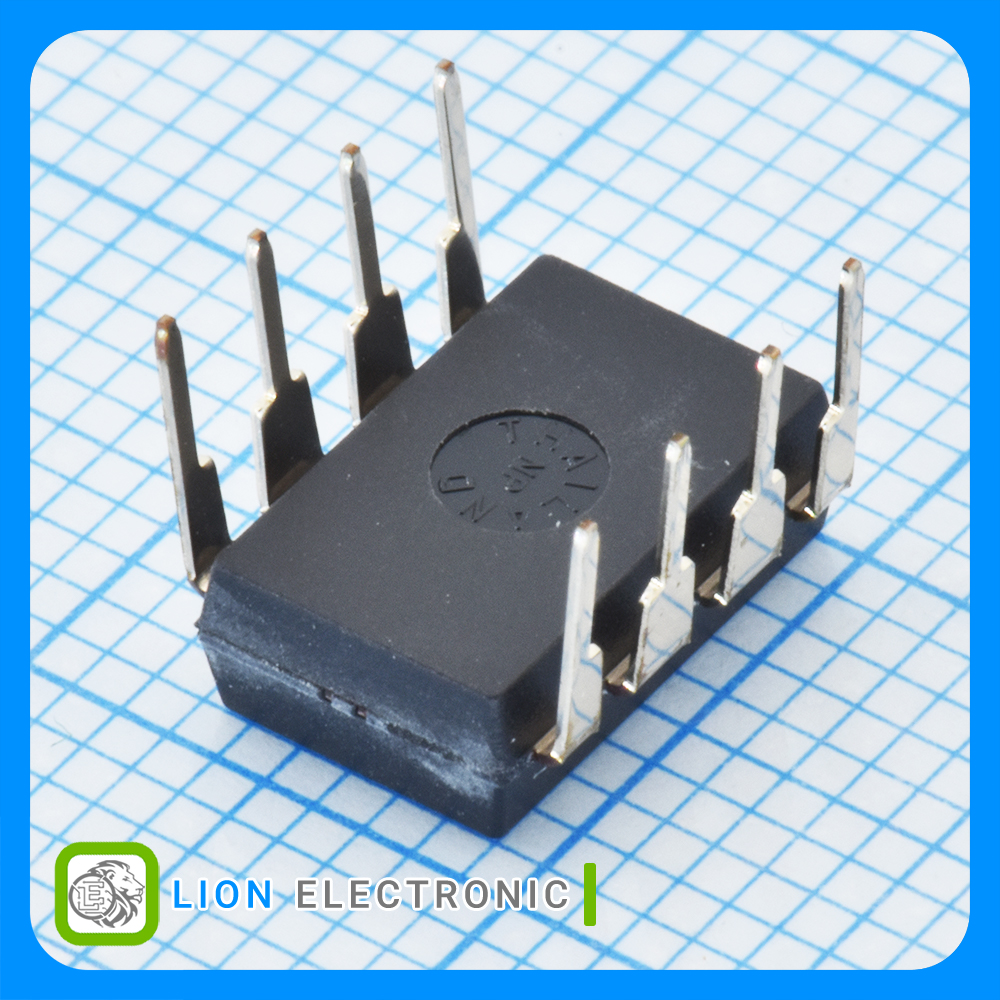

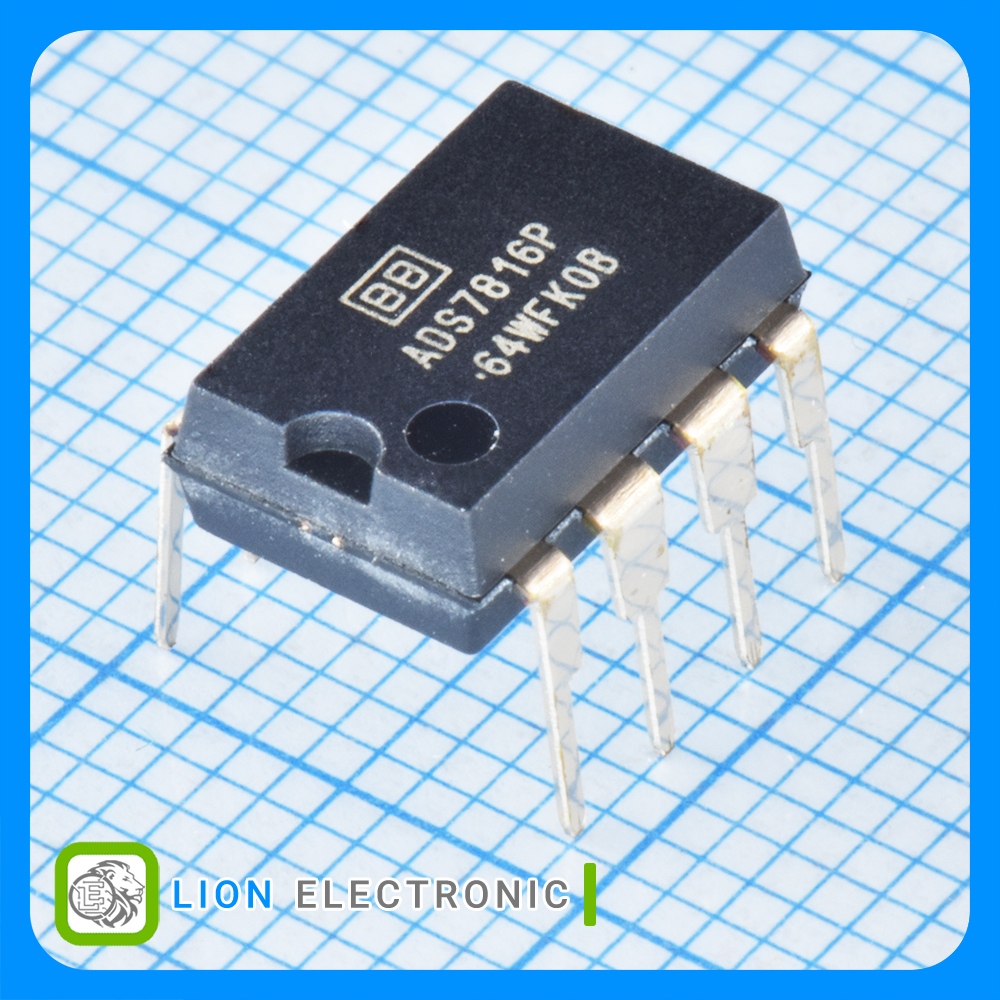

ADS7816P
ADS7816P
Part Number
688
Lion Part
Datasheet
Burr Brown/Texas Instrument Manufacture
مبدل آنالوگ به دیجیتال 12 بیت 1 کاناله با نرخ نمونهبرداری 200kS/s (200 کیلو سمپل در ثانیه) و رابط 3-Wire, SPI، مصرف توان پایین، پرسرعت با پکیج DIP-8
ADC 12bit, 1 Channel with 200kS/s and 3-Wire, SPI Interface, High Speed Micro Power Sampling Analog-To-Digital Converter with DIP-8 Package
معرفی
مبدل آنالوگ به دیجیتال 12 بیت 1 کاناله با نرخ نمونهبرداری 200kS/s (200 کیلو سمپل در ثانیه) و رابط 3-Wire, SPI، مصرف توان پایین، پرسرعت با پکیج DIP-8
ADC 12bit, 1 Channel with 200kS/s and 3-Wire, SPI Interface, High Speed Micro Power Sampling Analog-To-Digital Converter with DIP-8 Package
Specifications
- Number of Channels: 1
- Interface Type: 3-Wire, SPI
- Resolution: 12bit
- Sampling Rate: 200kS/s
- SNR - Signal to Noise Ratio: 72dB
- Analog Supply Voltage: 4.5 - 5.25V
- Digital Supply Voltage: 4.5V to 5.25V
- Input Type: Differential
- Architecture: SAR
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات ADS7816P
ADS7816P
Part Number
1
Number of Channels
12bit
Resolution
Differential
Input Type
-40C
Minimum Operating Temperature
SAR
Architecture
Tube
Packaging
+85C
Maximum Operating Temperature
Through Hole
Mounting Style
72dB
SNR - Signal to Noise Ratio
3-Wire, SPI
Interface Type
4.5 - 5.25V
Analog Supply Voltage
4.5V to 5.25V
Digital Supply Voltage
200kS/s
Sampling Rate
DIP-8
Package-Case
