LXWCONN
معرفی
کانکتور برد به برد 40 پین 2 ردیفه با فاصله پایه 0.4 میلیمتر زاویه صاف ارتفاع 1.14 میلیمتر

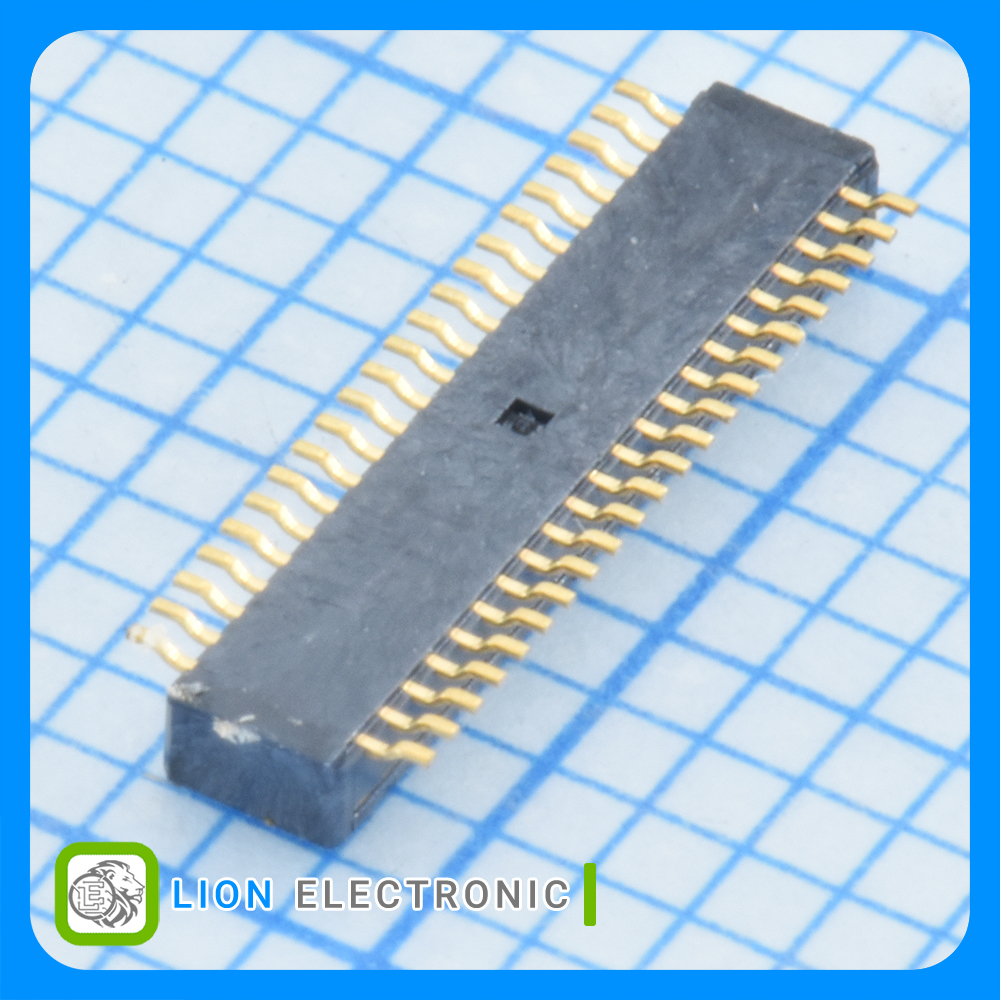

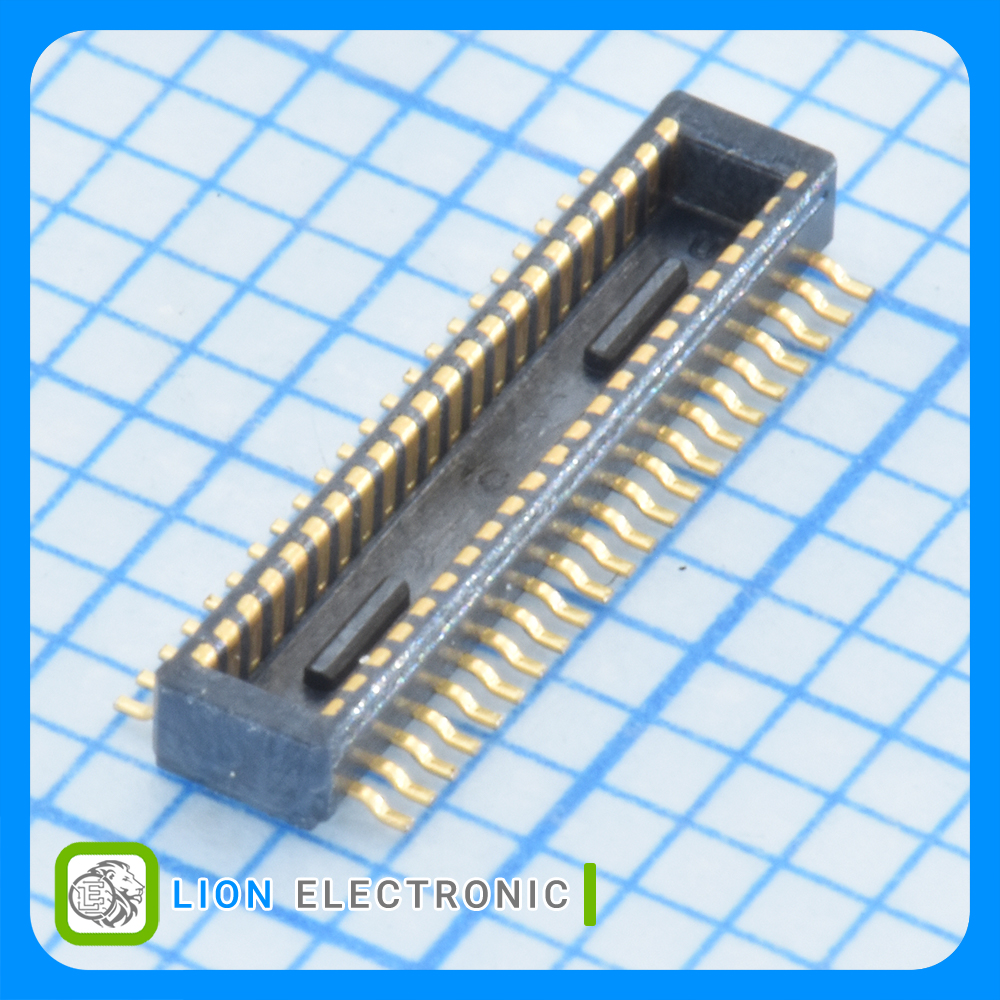

Board to Board Connector 40 Position, 2 Row with 0.4mm Pitch Straight Height 1.14mm
Specifications
- Number of Rows: 2 Row
- Number of Positions: 40 Position
- Pitch: 0.4mm
- Voltage Rating: 30V
- Current Rating: 300mA
- Height: 1.14mm
- Termination style: SMD/SMT
- Mounting Angle: Straight
- Minimum Operating Temperature: -35C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات LBF11-G40P-B0R01
LBF11-G40P-B0R01
Part Number
2 Row
Number of Rows
Straight
Mounting Angle
0.4mm
Pitch
30V
Voltage Rating
SMD/SMT
Termination style
1.14mm
Height
Reel
Packaging
-35C
Minimum Operating Temperature
300mA
Current Rating
+85C
Maximum Operating Temperature
40 Position
Number of Positions
