LBF15-G100S-B0R02
LXWCONN
معرفی
کانکتور مزانین (برد به برد) 100 پین 2 ردیفه با گام 0.4 میلیمتر عمودی نوع لبهای ارتفاع 1.45 میلیمتر

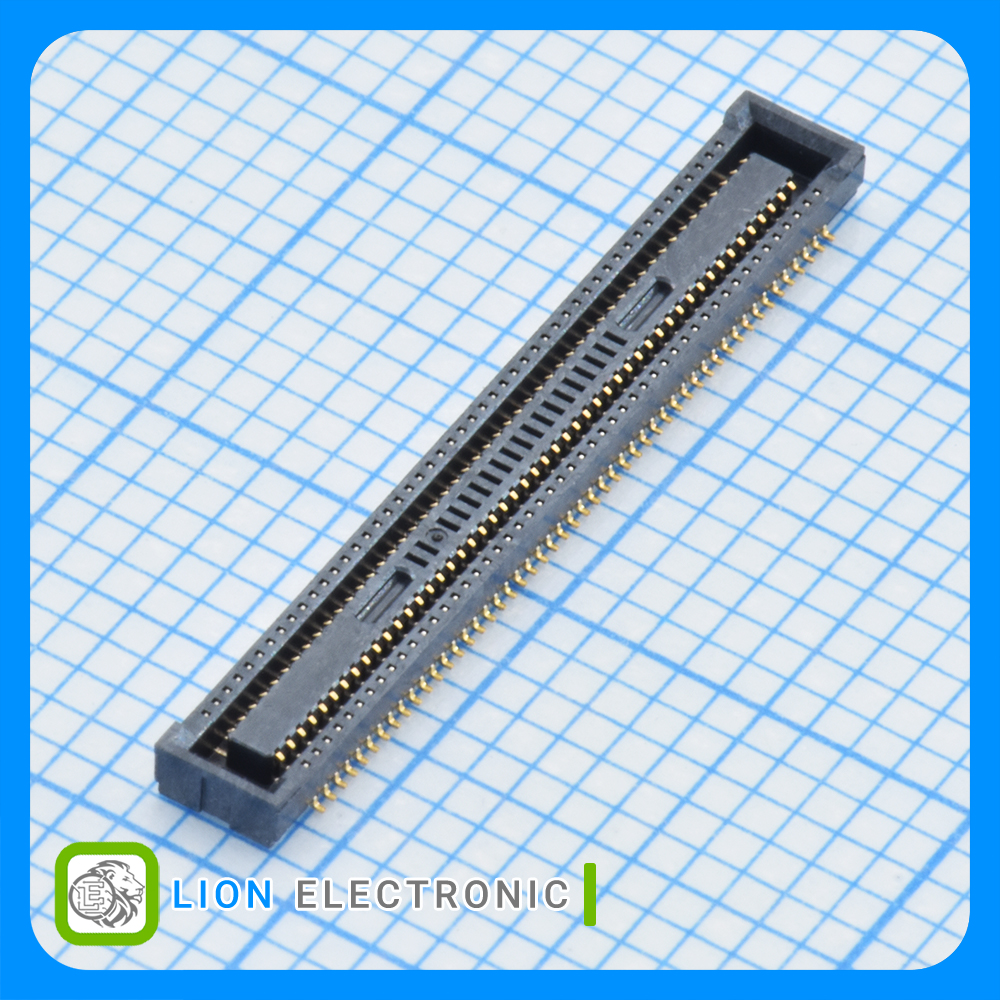

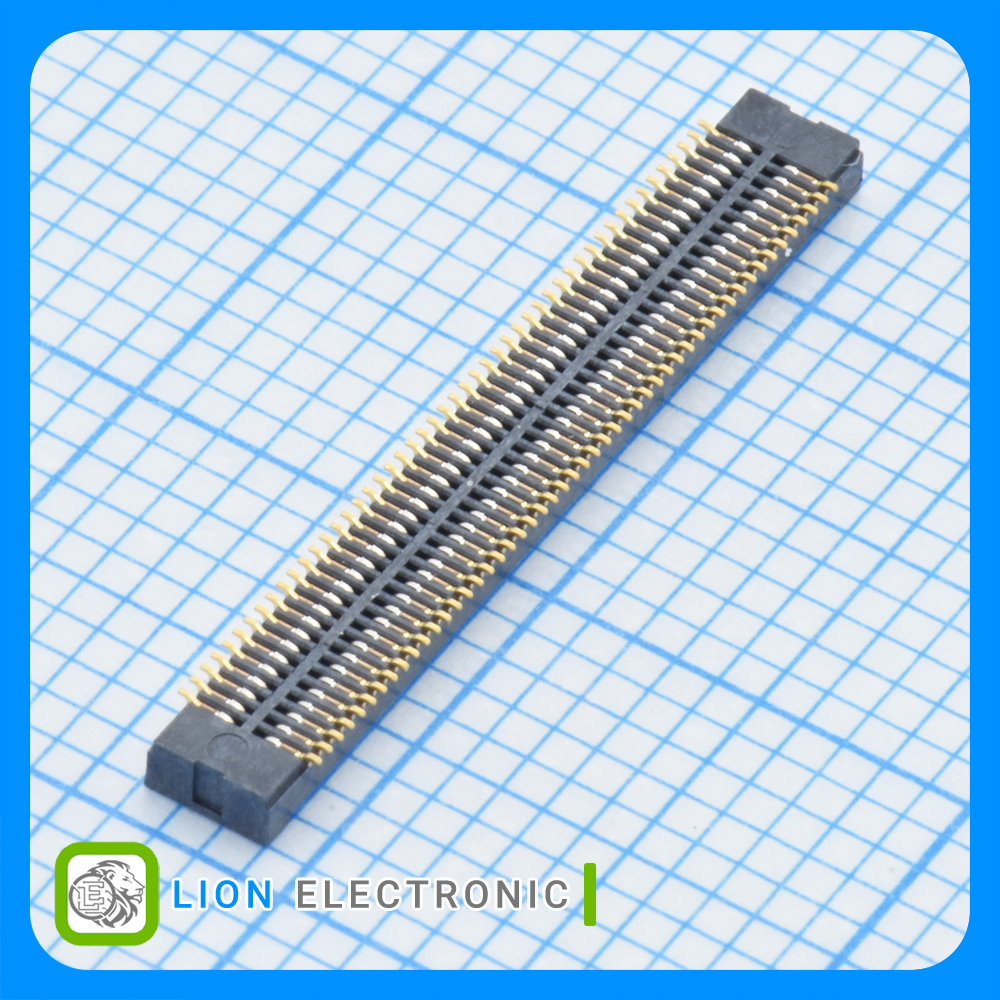

Mezzanine (Board to Board) Connector 100P, 2 Row, 0.4mm Pitch, Vertical Edge Type, Height 1.45mm
Specifications
- Number of Rows: 2 Row
- Number of Positions: 100 Position
- Pitch: 0.4mm
- Voltage Rating: 30V
- Current Rating: 300mA
- Height: 1.45mm
- Termination style: SMD/SMT
- Mounting Angle: Straight
- Minimum Operating Temperature: -35C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات LBF15-G100S-B0R02
LBF15-G100S-B0R02
Part Number
2 Row
Number of Rows
Straight
Mounting Angle
0.4mm
Pitch
30V
Voltage Rating
SMD/SMT
Termination style
Reel
Packaging
-35C
Minimum Operating Temperature
300mA
Current Rating
+85C
Maximum Operating Temperature
100 Position
Number of Positions
1.45mm
Height
