کانکتور FFC/FPC 12 پین با گام 0.5mm، اتصال یکطرفه/عمودی SMD با قفل کشویی

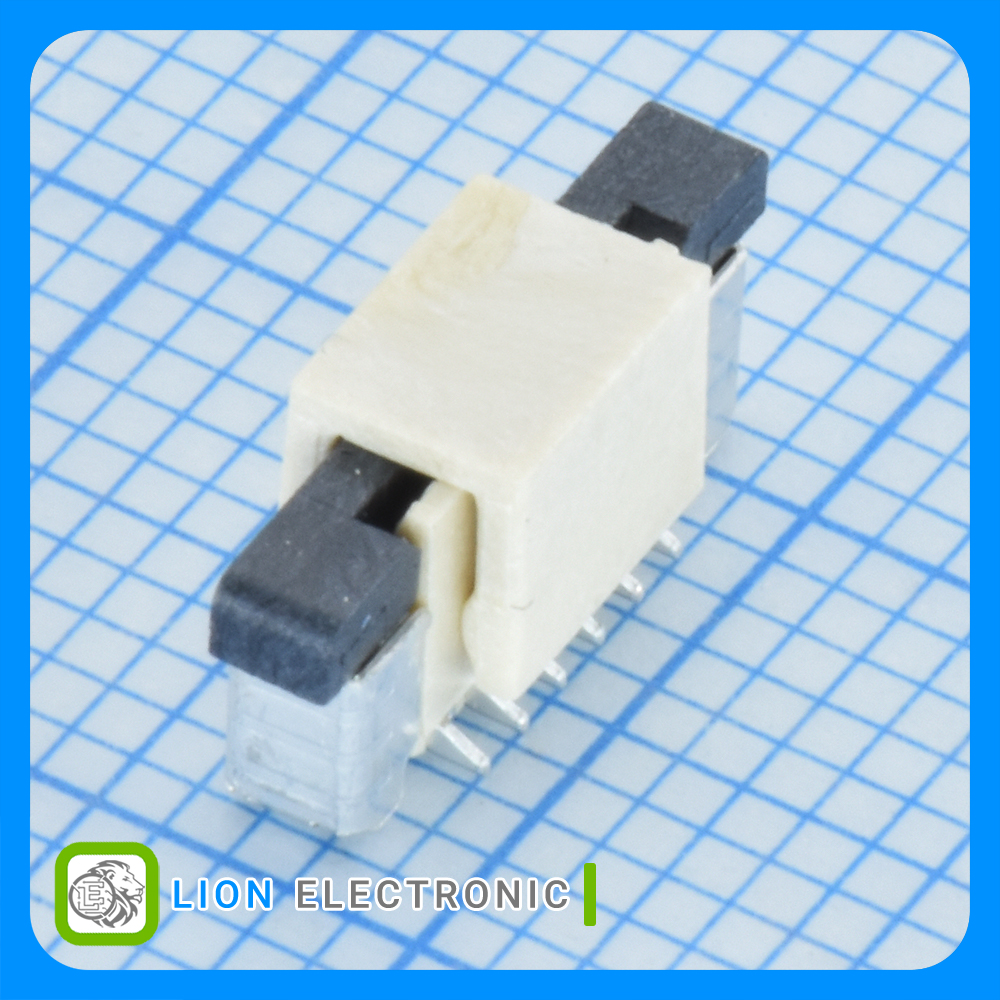

FFC/FPC Connector 12P, 0.5mm Pitch, Single-side Contact/Vertical SMD, with Slide Lock
Specifications
- Number of Positions: 12 Position
- Pitch: 0.5mm
- Mounting Angle: Straight
- Termination style: SMD/SMT
- Minimum Operating Temperature: -20C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات 0.5K-A-12PB-RXW
0.5K-A-12PB-RXW
Part Number
---
Locking Type
---
Contact Location
Straight
Mounting Angle
0.5mm
Pitch
Reel
Packaging
SMD/SMT
Termination style
+85C
Maximum Operating Temperature
-20C
Minimum Operating Temperature
12 Position
Number of Positions
