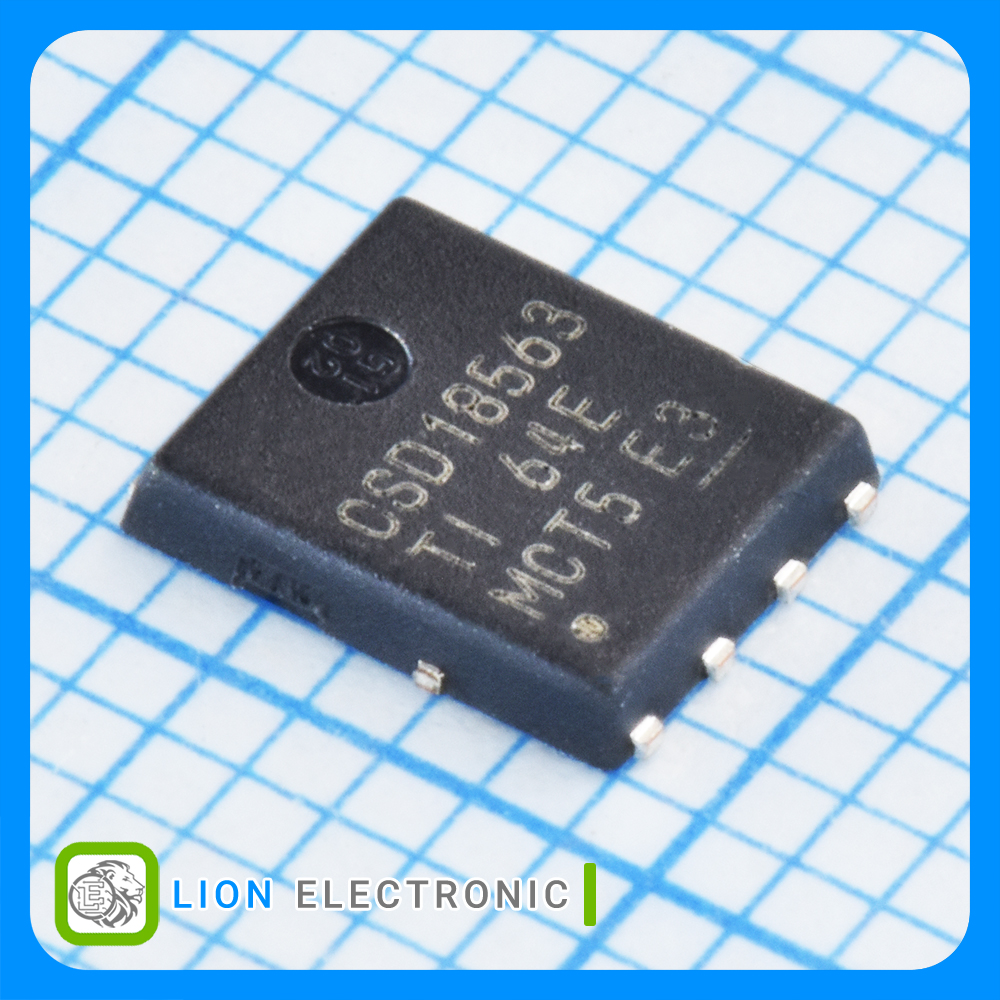

CSD18563Q5A
CSD18563Q5A
Part Number
7026
Lion Part
Datasheet
Texas Instruments Manufacture
ماسفت 60 ولت 100 آمپر نوع N با پکیج SON-8 (5x6)

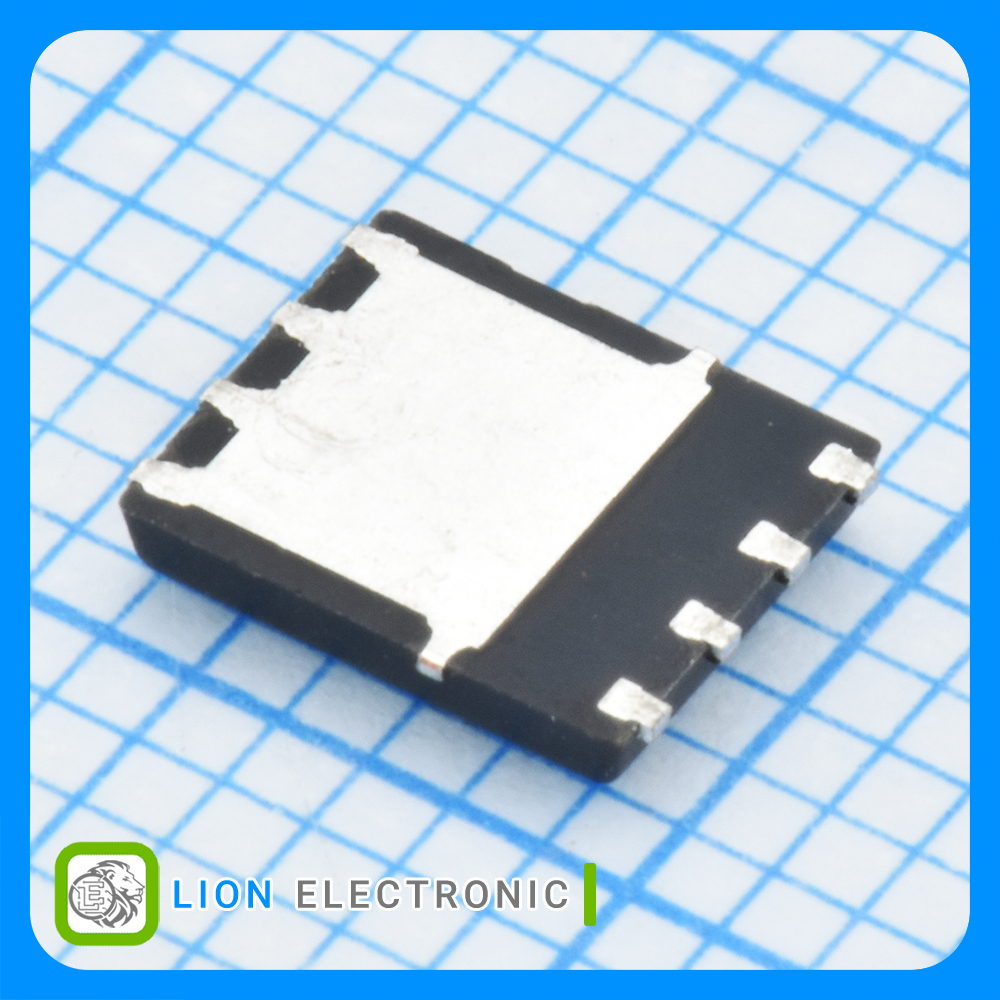

N-CH MOSFET 60V, 100A with SON-8 (5x6) Package
معرفی
ماسفت 60 ولت 100 آمپر نوع N با پکیج SON-8 (5x6)
N-CH MOSFET 60V, 100A with SON-8 (5x6) Package
Specifications
- Package/Case: SON-8
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 100A
- Transistor Polarity: N-Channel
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 5.7mΩ
- Pd - Power Dissipation: 116W
- Qg - Gate Charge: 15nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tape&Reel
مشخصات CSD18563Q5A
CSD18563Q5A
Part Number
---
Channel Mode
1
Number of Channels
N-Channel
Transistor Polarity
-55C
Minimum Operating Temperature
SMD/SMT
Mounting Style
Tape&Reel
Packaging
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
60V
Vds - Drain - Source Breakdown Voltage
2V
Vgs th - Gate - Source Threshold Voltage
15nC
Qg - Gate Charge
100A
Id - Continuous Drain Current
116W
Pd - Power Dissipation
5.7mΩ
Rds On - Drain - Source Resistance
SON-8
Package-Case
