MOT
معرفی

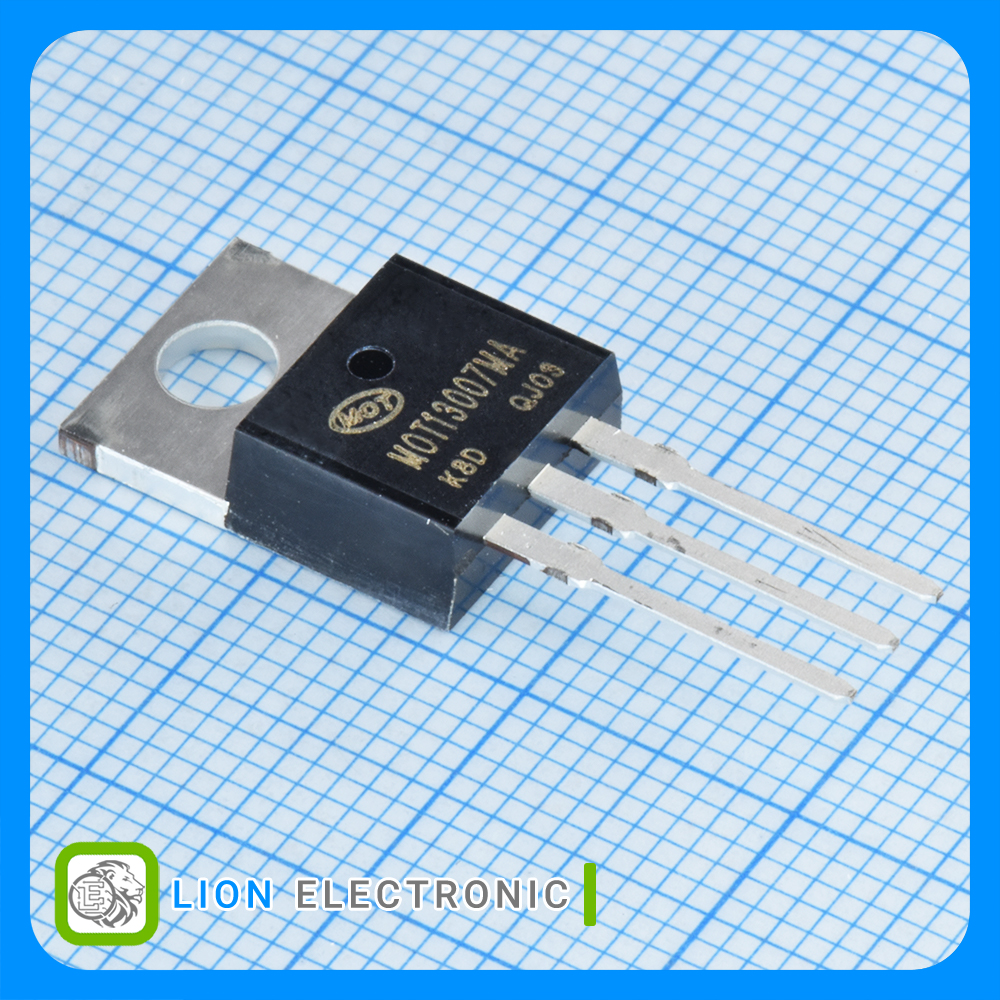

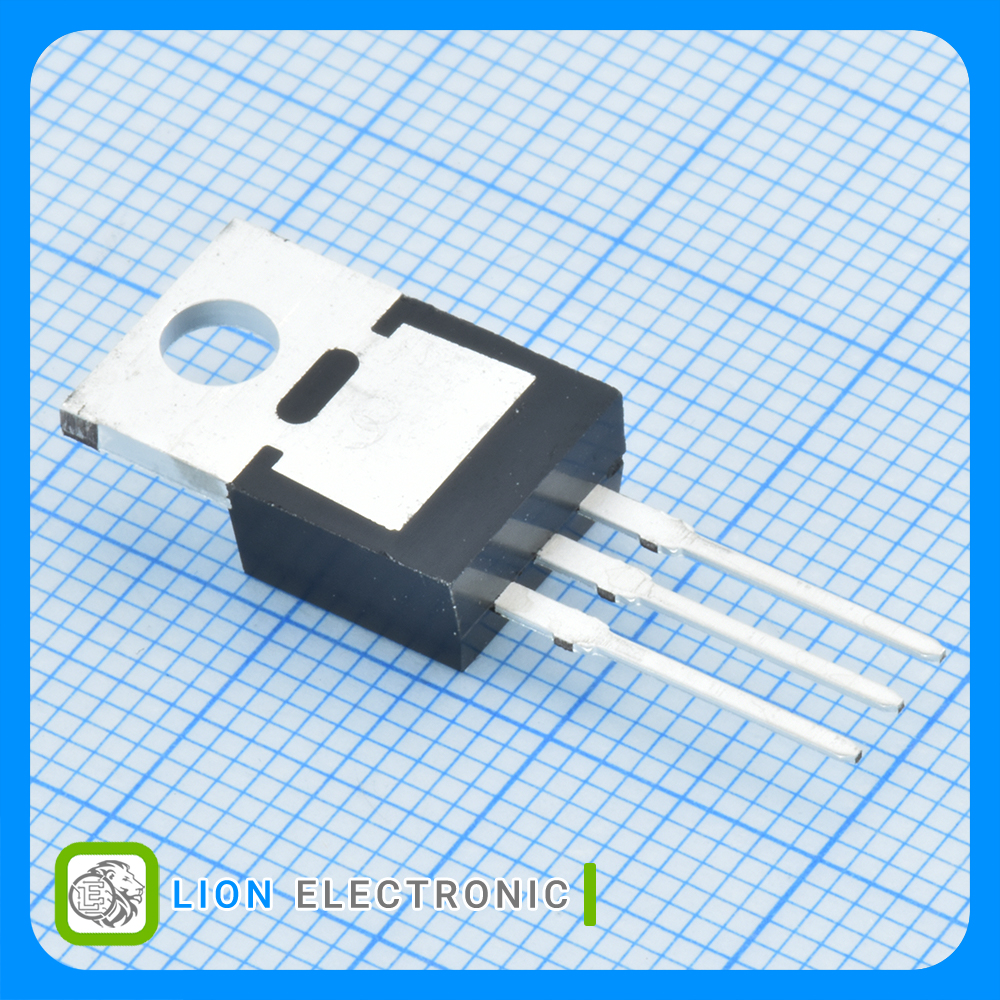

ترانزیستور NPN 400 ولت 8 آمپر با پکیج TO-220-3
BJT NPN 400V, 8A with TO-220-3 Package
Specifications
- Transistor Polarity: NPN
- Configuration: Single
- Collector - Emitter Voltage VCEO Max: 400V
- Maximum DC Collector Current: 8A
- Gain Bandwidth Product fT: 4MHz
- Pd - Power Dissipation: 75W
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات MOT13007MA
MOT13007MA
Part Number
-65C
Minimum Operating Temperature
4MHz
Gain Bandwidth Product fT
Reel
Packaging
Through Hole
Mounting Style
+150C
Maximum Operating Temperature
400V
Collector - Emitter Voltage VCEO Max
8A
Maximum DC Collector Current
Single
Configuration
75W
Pd - Power Dissipation
TO-220-3
Package-Case
