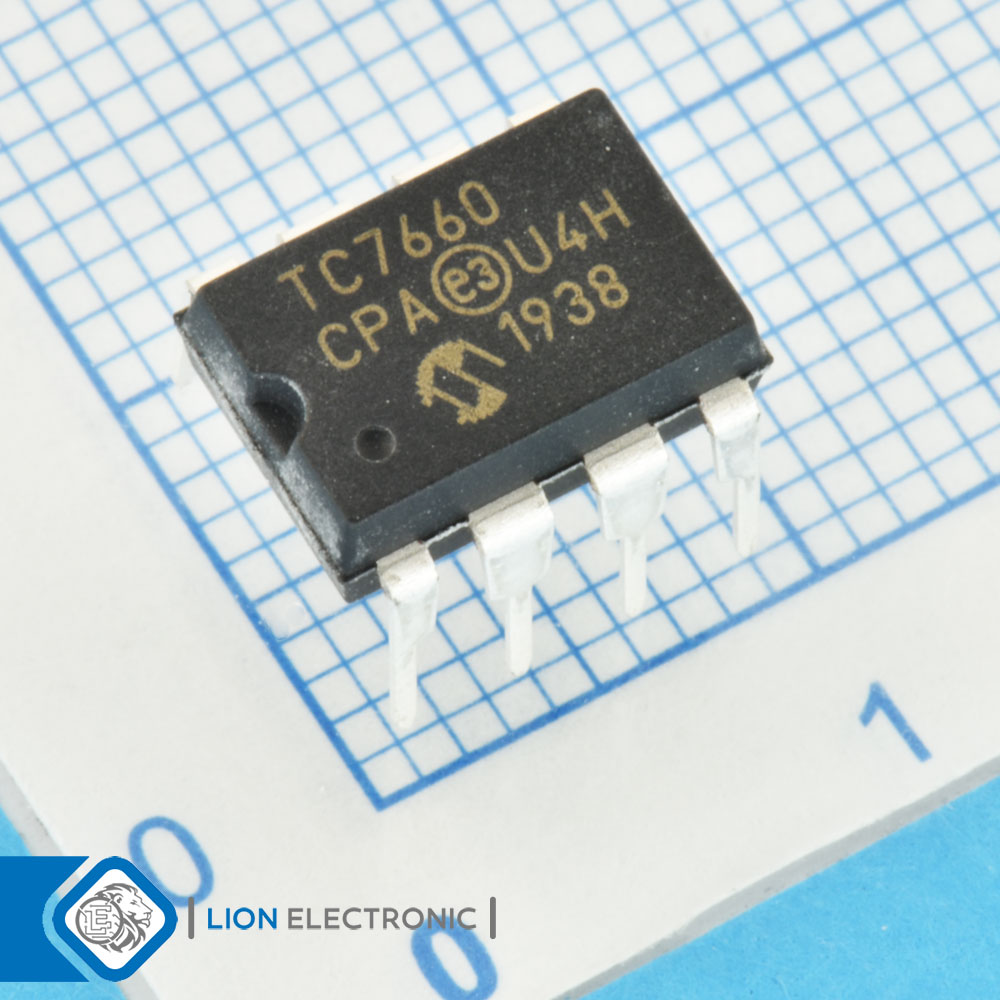

TC7660CPA
TC7660CPA
Part Number
804
Lion Part
Datasheet
Microchip Technology Manufacture
رگولاتور سوئیچینگ منفی، مبدل پمپ شارژ ورودی 6.1 تا 10 ولت 1.5 تا 10 ولت جریان خروجی 20 میلیآمپر با پکیج PDIP-8
Negative Switching Regulator, Charge Pump DC-to-DC Voltage Converter 6.1V-10V Input, 1.5V-10V, 20mA Output with PDIP-8 Package
معرفی
رگولاتور سوئیچینگ منفی، مبدل پمپ شارژ ورودی 6.1 تا 10 ولت 1.5 تا 10 ولت جریان خروجی 20 میلیآمپر با پکیج PDIP-8
Negative Switching Regulator, Charge Pump DC-to-DC Voltage Converter 6.1V-10V Input, 1.5V-10V, 20mA Output with PDIP-8 Package
Specifications
- Switching Frequency: 10kHz
- Number of Outputs: 1
- Output Voltage: Adjustable
- Output Current: 20mA
- Input Voltage Min: 6.1V
- Input Voltage Max: 10V
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Tube
مشخصات TC7660CPA
TC7660CPA
Part Number
Adjustable
Output Voltage
N/A
Synchronous Rectification
1
Number of Outputs
10kHz
Switching Frequency
+70C
Maximum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
0C
Minimum Operating Temperature
10V
Input Voltage Max
20mA
Output Current
Inverting
Topology
6.1V
Input Voltage Min
DIP-8
Package-Case
