SS8050DBU
SS8050DBU
Part Number
147
Lion Part
Datasheet
ON Semiconductor Manufacture
ترانزیستور NPN با ولتاژ 25 ولت و جریان 1.5 آمپر با پکیج TO-92-3

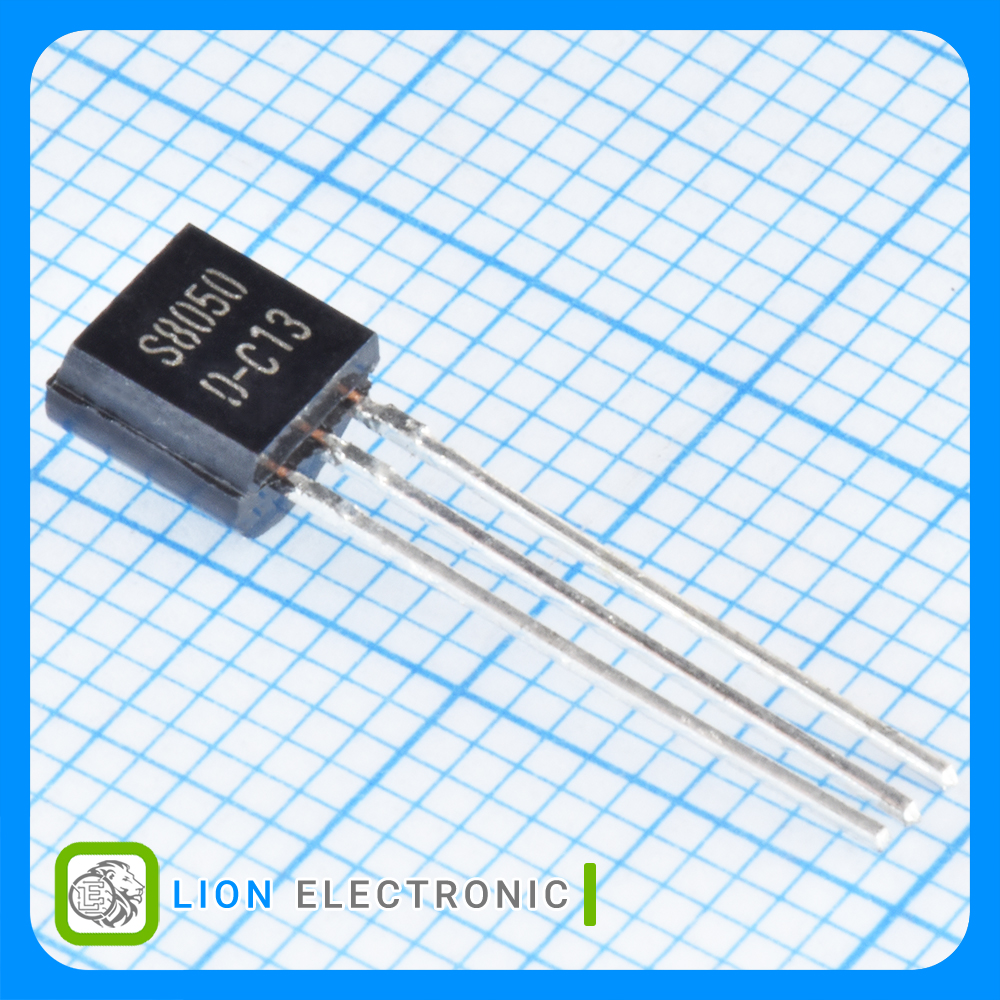

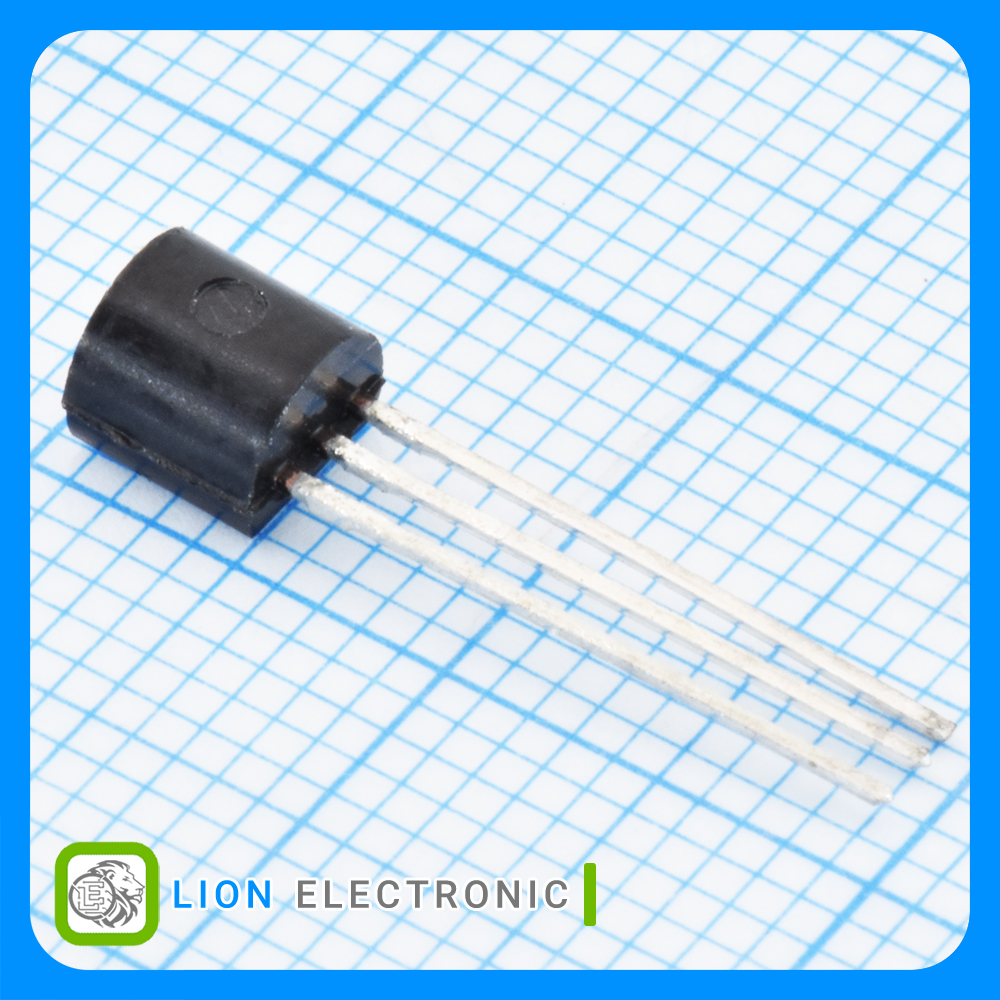

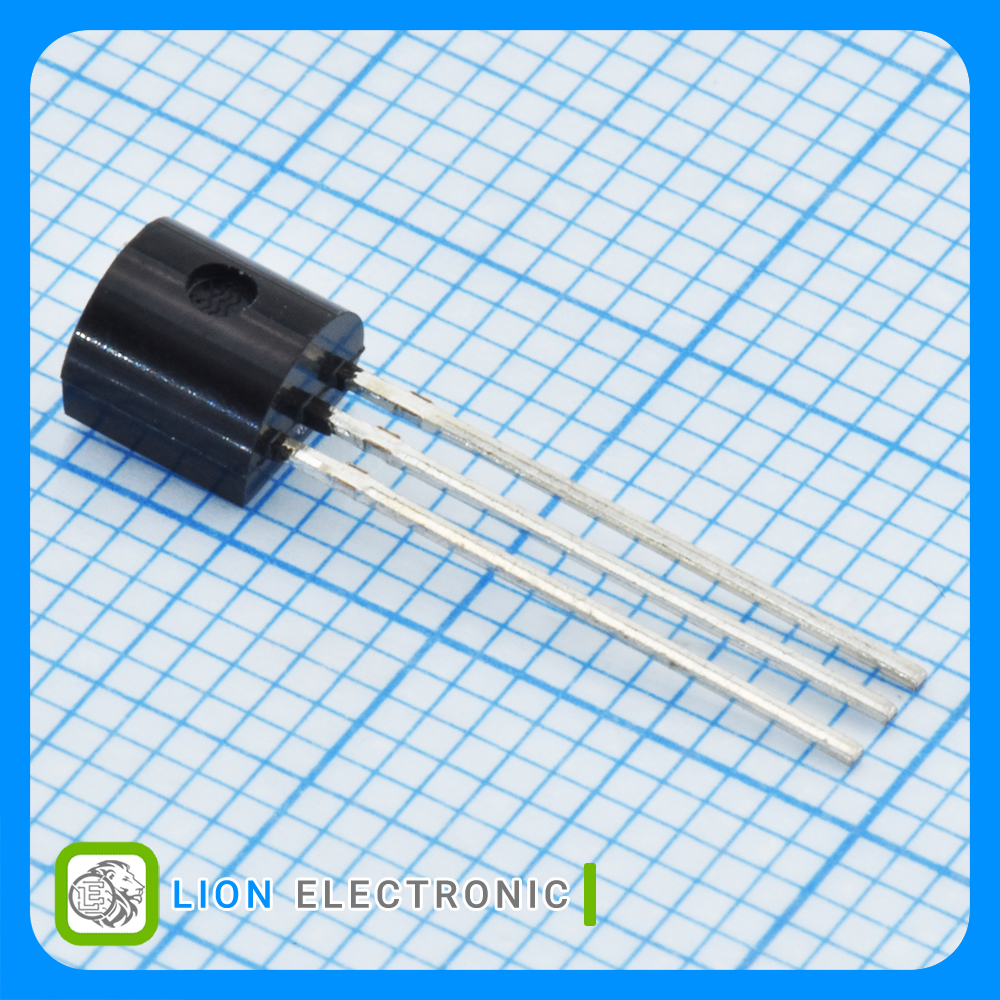

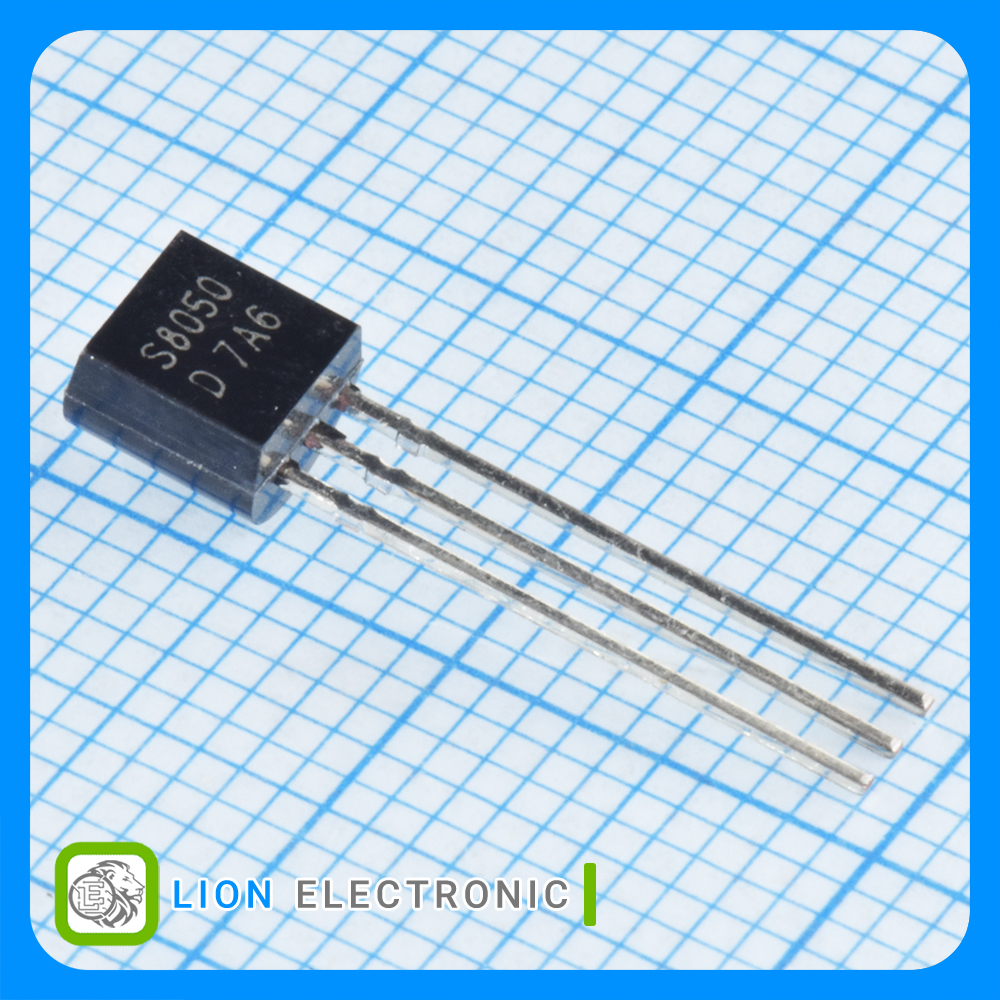

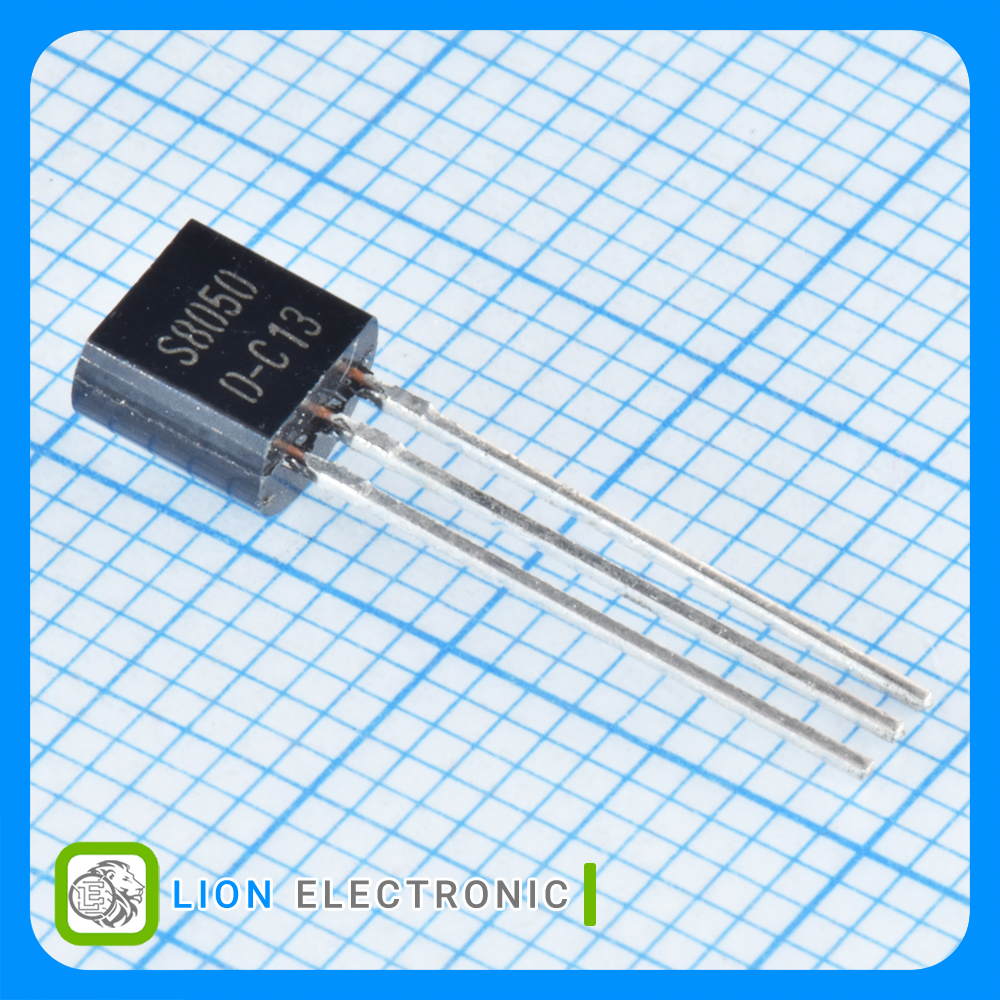

BJT NPN 25V, 1.5A with TO-92-3 Package
معرفی
ترانزیستور NPN با ولتاژ 25 ولت و جریان 1.5 آمپر با پکیج TO-92-3
BJT NPN 25V, 1.5A with TO-92-3 Package
Specifications
- Transistor Polarity: NPN
- Configuration: Single
- Collector - Emitter Voltage VCEO Max: 25V
- Maximum DC Collector Current: 1.5A
- Gain Bandwidth Product fT: 100MHz
- Pd - Power Dissipation: 1W
- Mounting Style: Through Hole
- Package/Case: TO-92 (SOT-54)
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Bulk
مشخصات SS8050DBU
SS8050DBU
Part Number
-65C
Minimum Operating Temperature
Bulk
Packaging
100MHz
Gain Bandwidth Product fT
Through Hole
Mounting Style
25V
Collector - Emitter Voltage VCEO Max
+150C
Maximum Operating Temperature
1.5A
Maximum DC Collector Current
Single
Configuration
1W
Pd - Power Dissipation
TO-92
Package-Case
