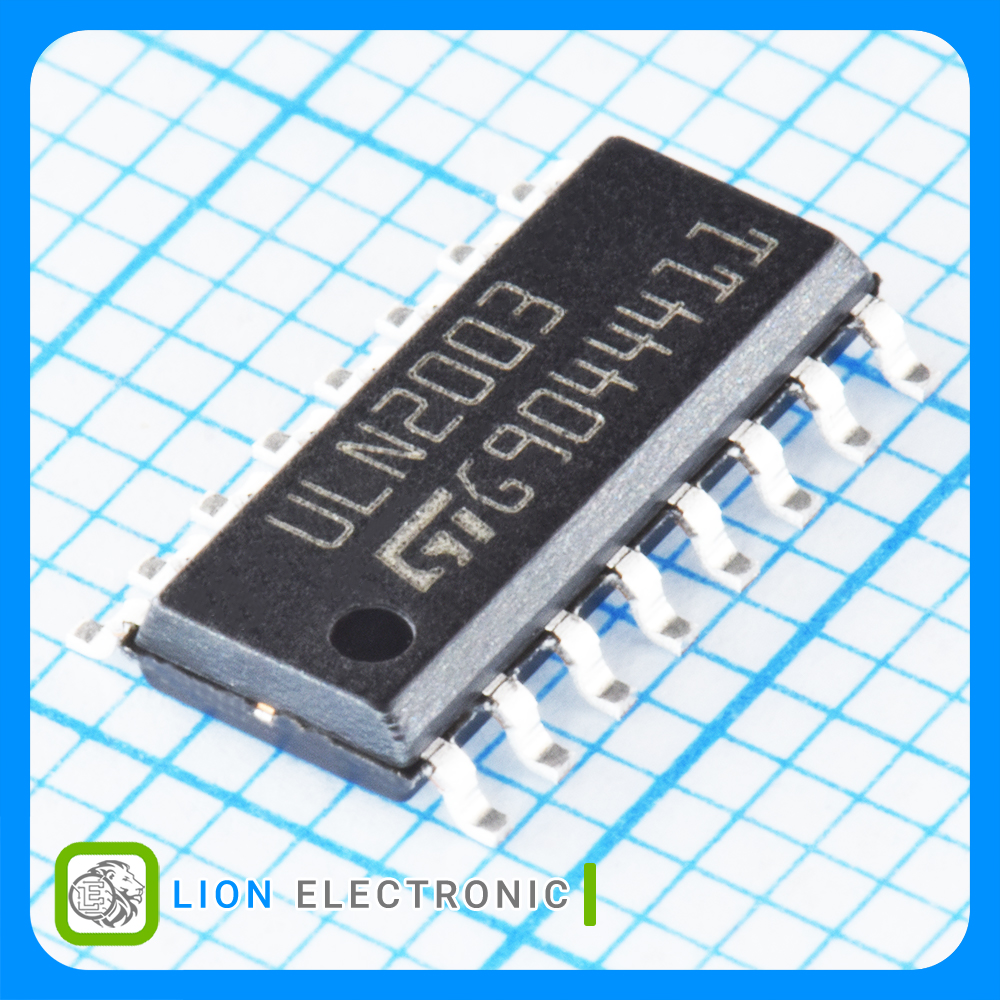

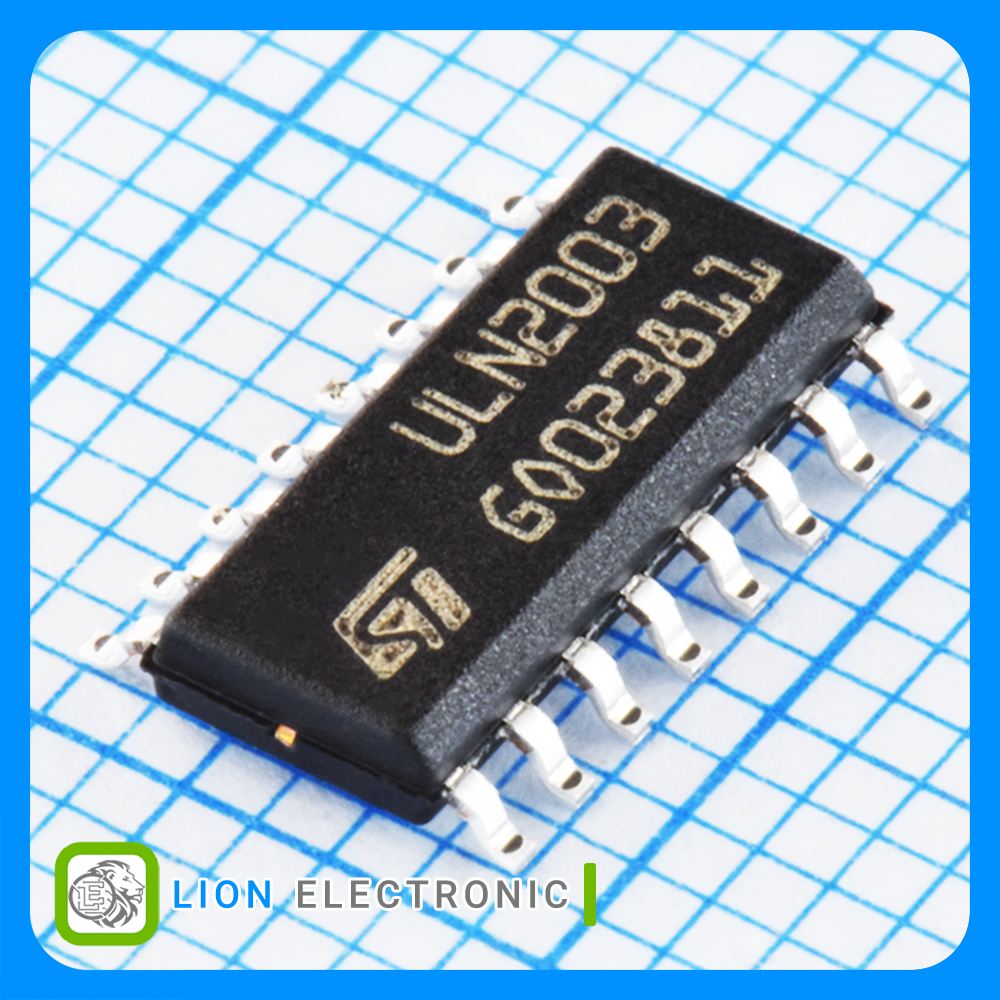

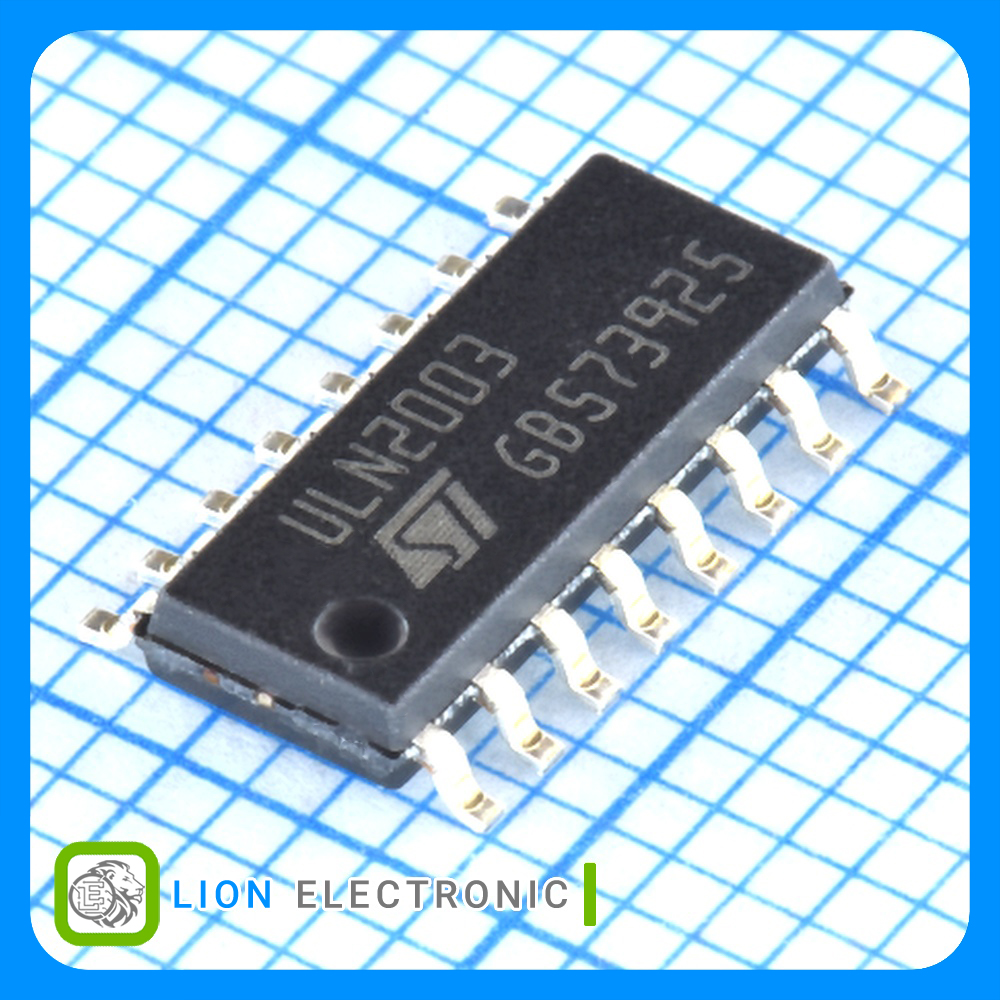

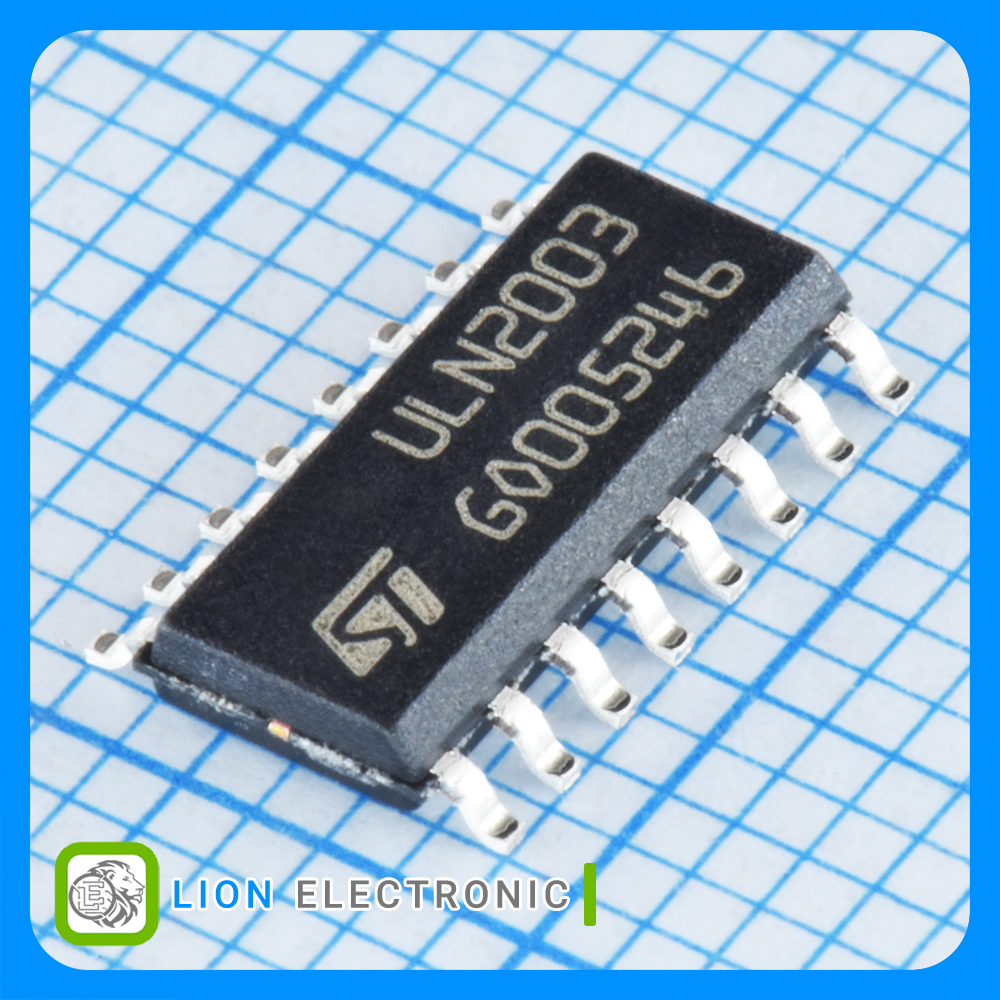

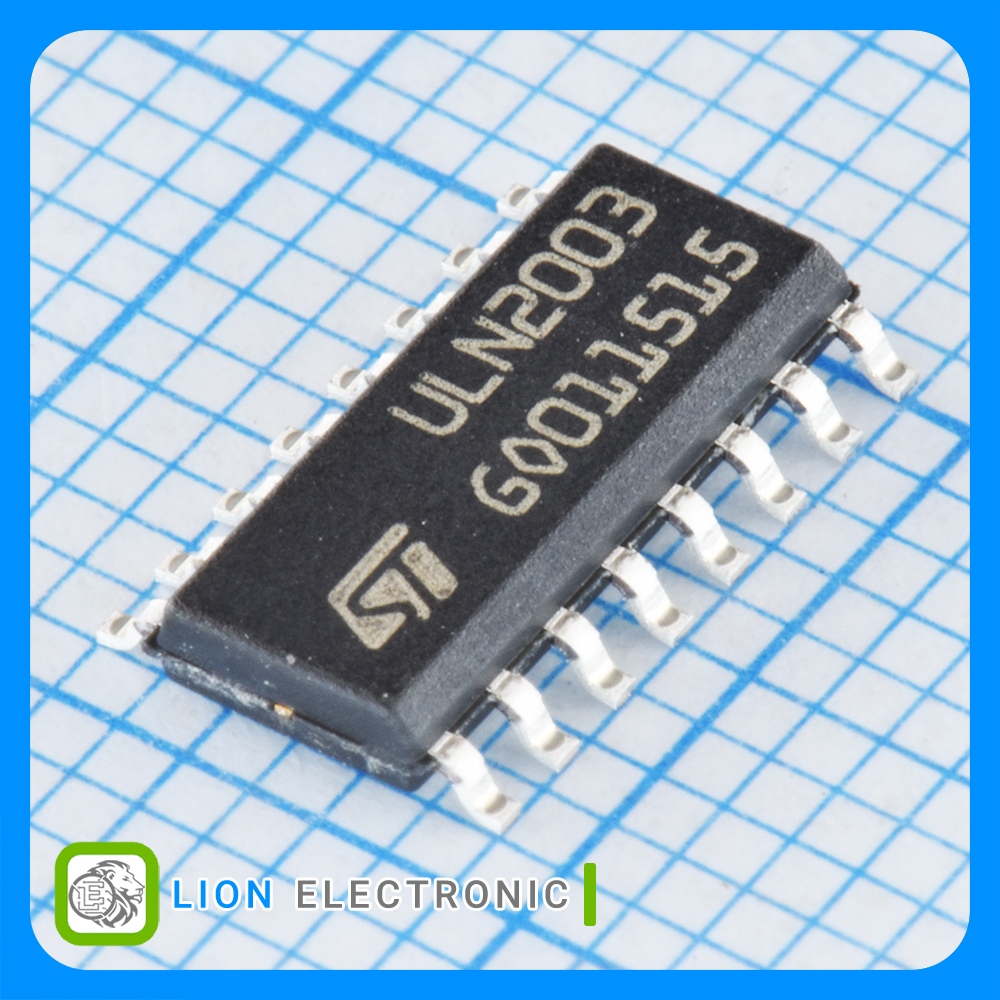

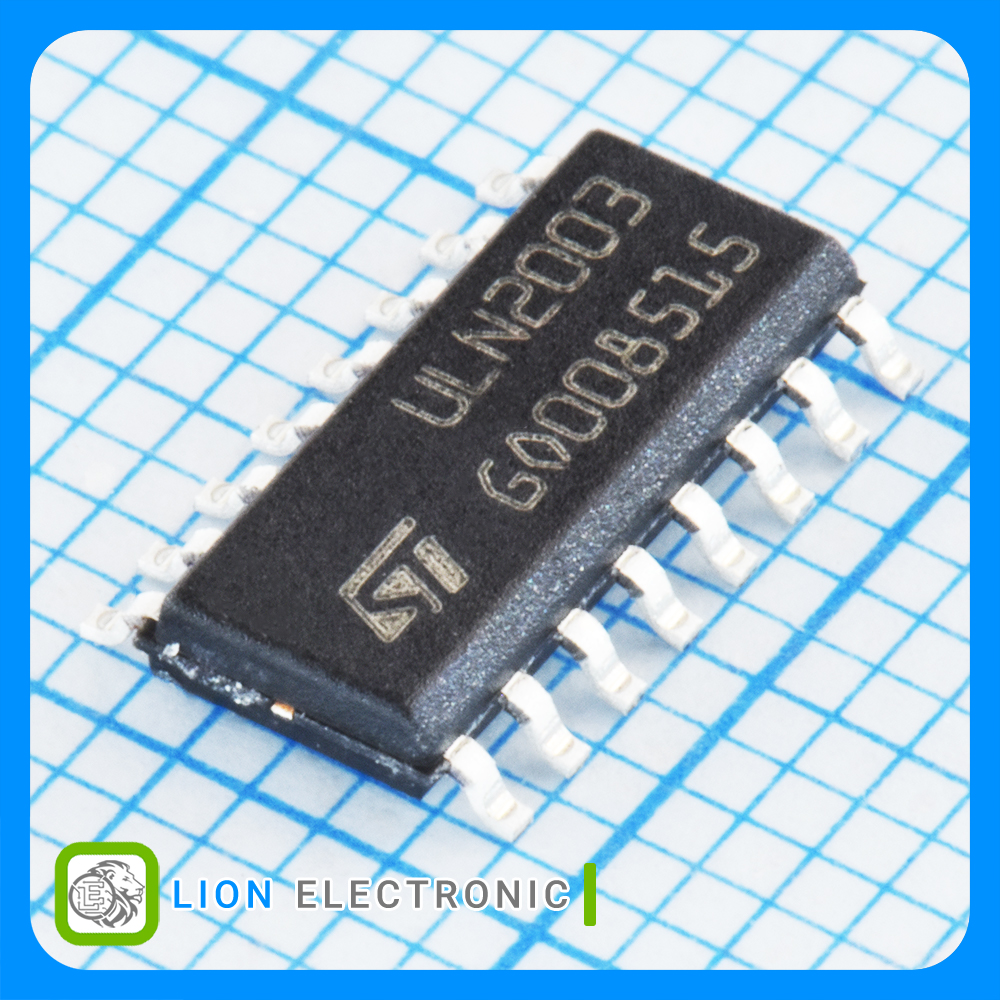

ULN2003D1013TR
ULN2003D1013TR
Part Number
1506
Lion Part
Datasheet
STMicroelectronics Manufacture
ترانزیستور NPN دارلینگتون آرایه 7 تایی 50 ولت 0.5 آمپر (500 میلیآمپر) با پکیج SO-16 (SOIC-16)

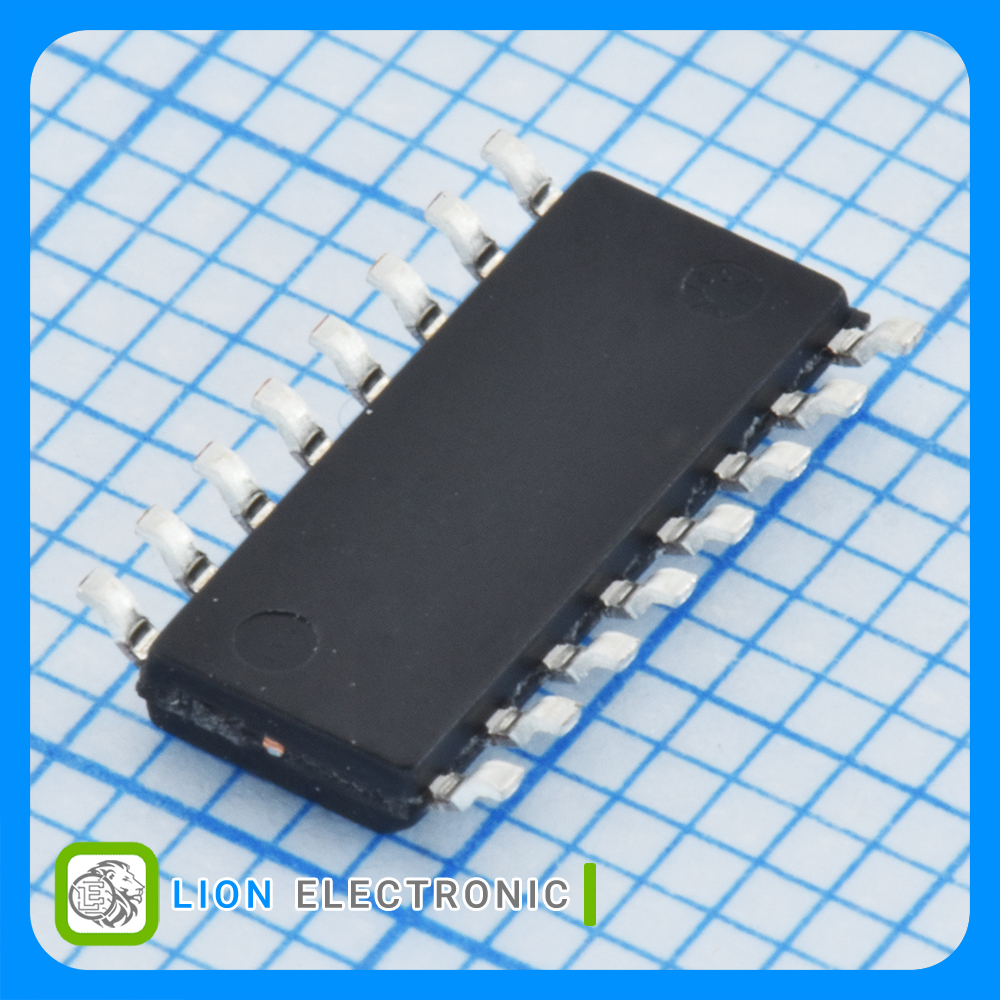

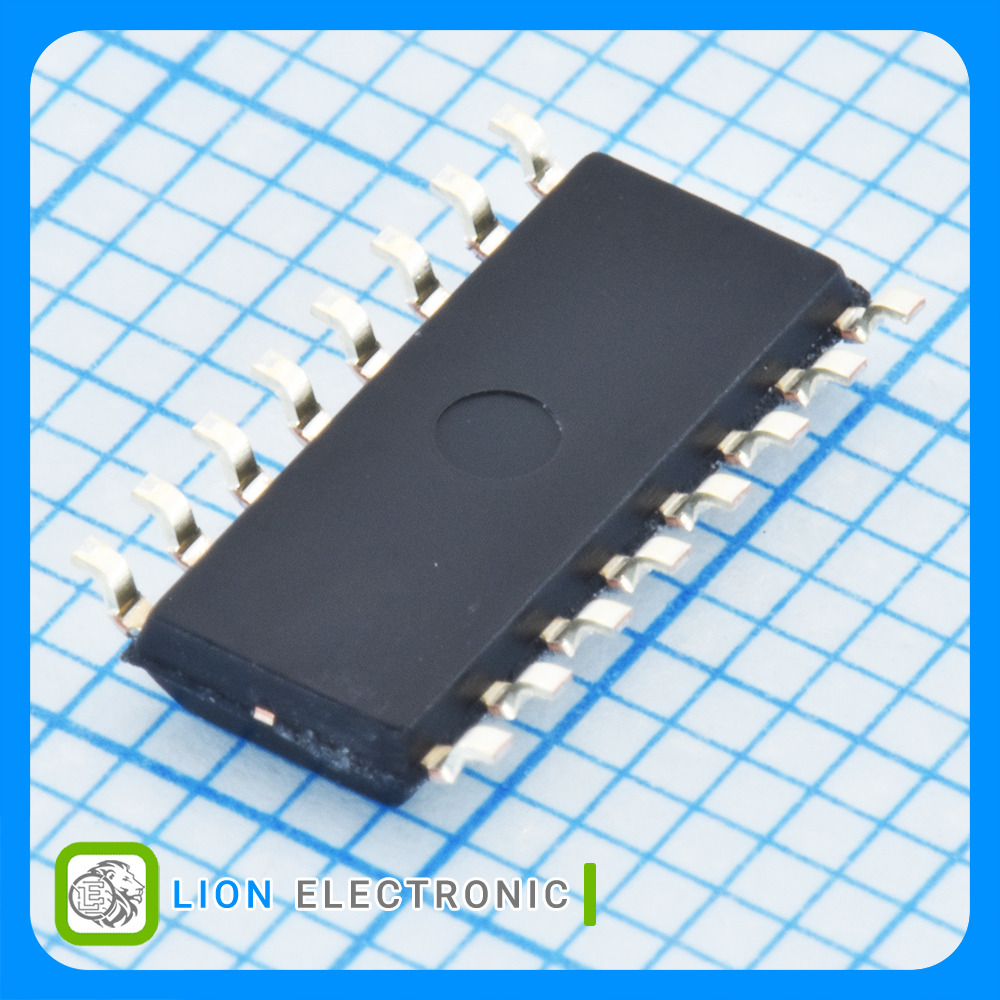

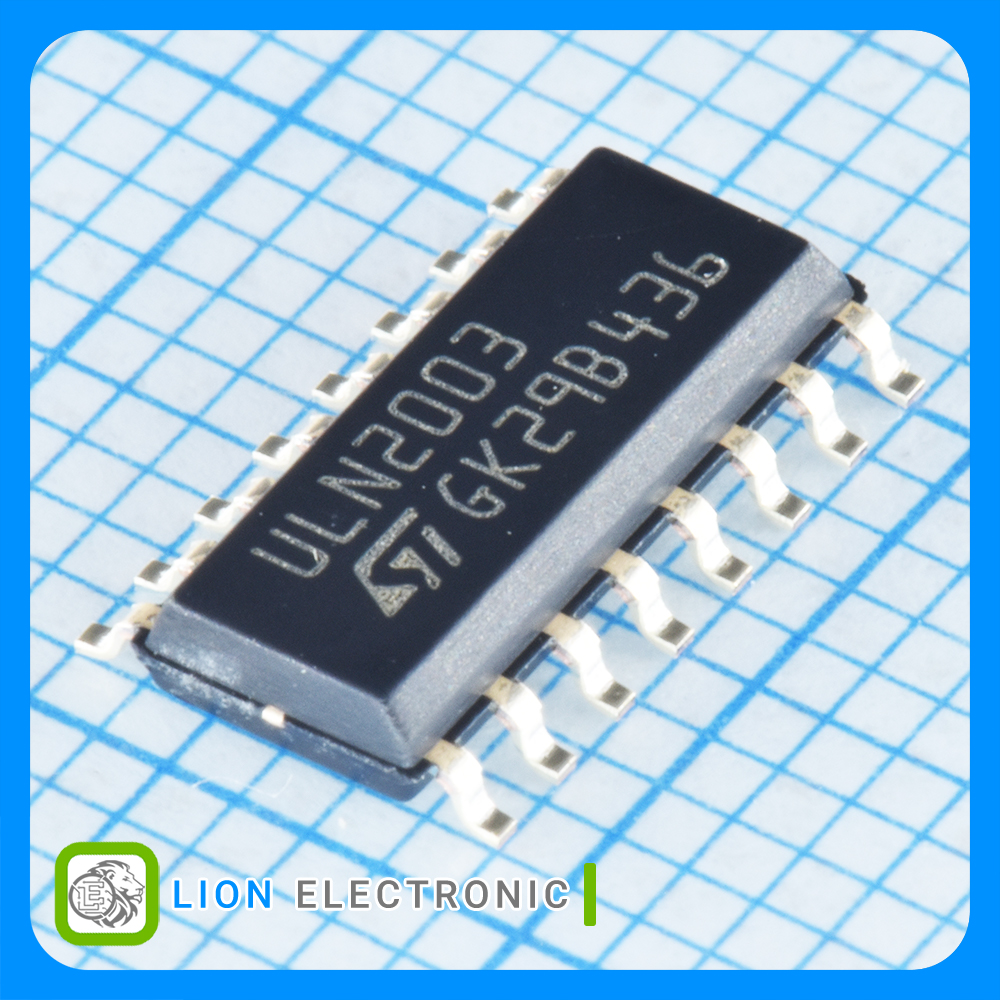

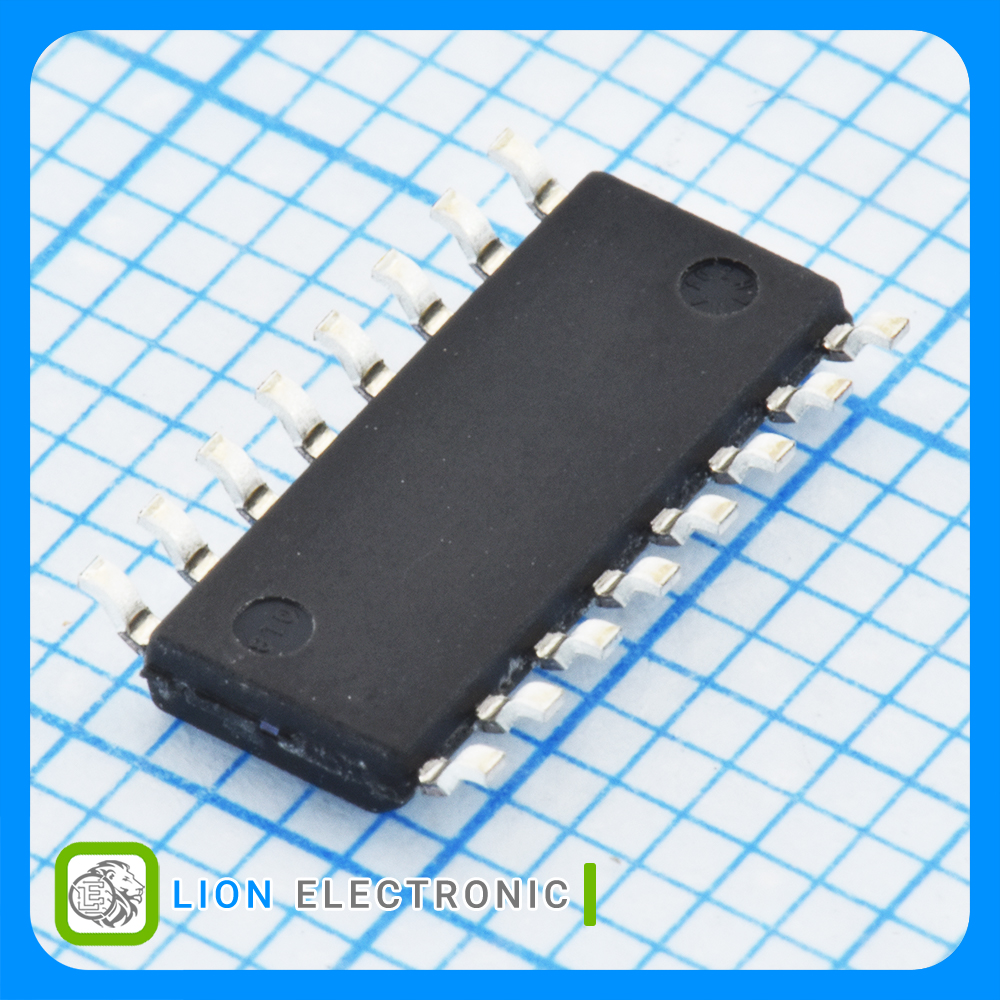

Darlington Transistors Seven NPN Array 50V, 0.5A (500mA) with SO-16 (SOIC-16) Package
معرفی
ترانزیستور NPN دارلینگتون آرایه 7 تایی 50 ولت 0.5 آمپر (500 میلیآمپر) با پکیج SO-16 (SOIC-16)
Darlington Transistors Seven NPN Array 50V, 0.5A (500mA) with SO-16 (SOIC-16) Package
Specifications
- Transistor Polarity: NPN
- Configuration: Array 7
- Collector - Emitter Voltage VCEO Max: 50V
- Maximum DC Collector Current: 500mA
- Pd - Power Dissipation: 1W
- Mounting Style: SMD/SMT
- Package/Case: SOIC-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات ULN2003D1013TR
ULN2003D1013TR
Part Number
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
Array 7
Configuration
50V
Collector - Emitter Voltage VCEO Max
500mA
Maximum DC Collector Current
N/A
Gain Bandwidth Product fT
1W
Pd - Power Dissipation
SOIC-16
Package-Case
