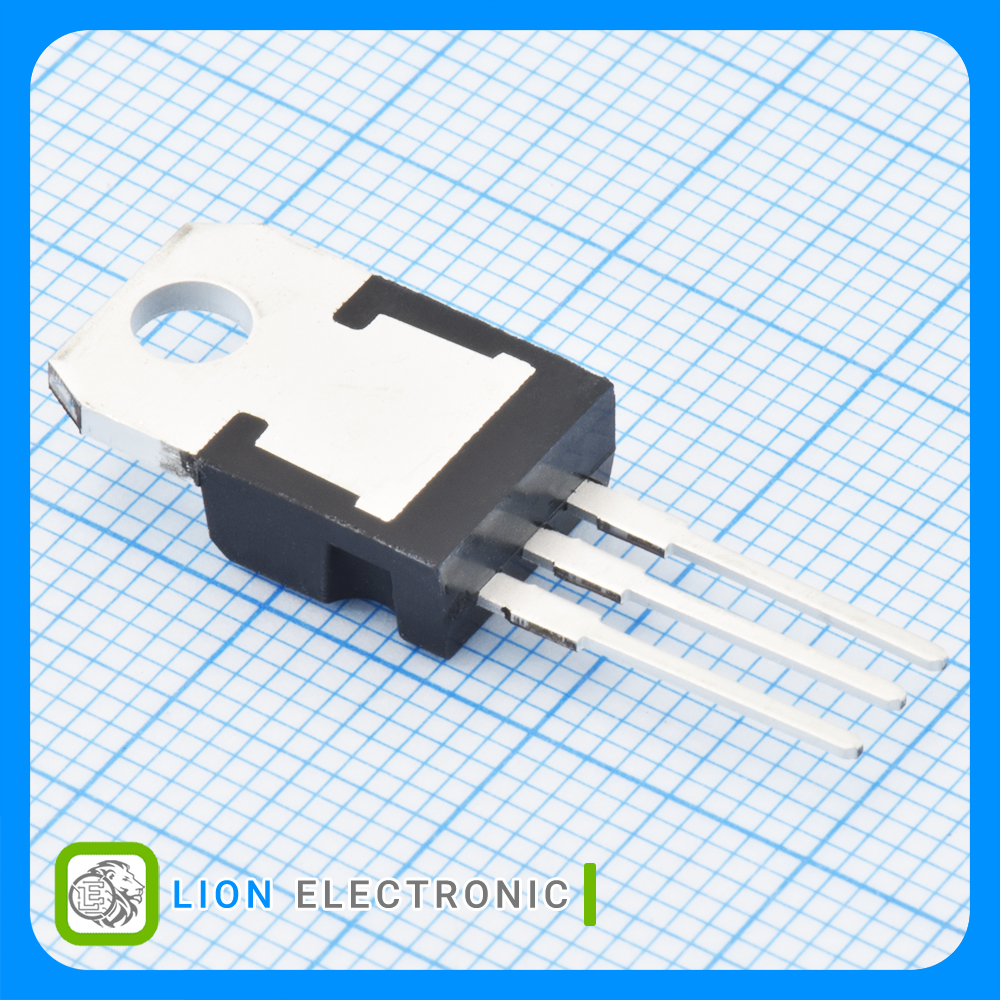

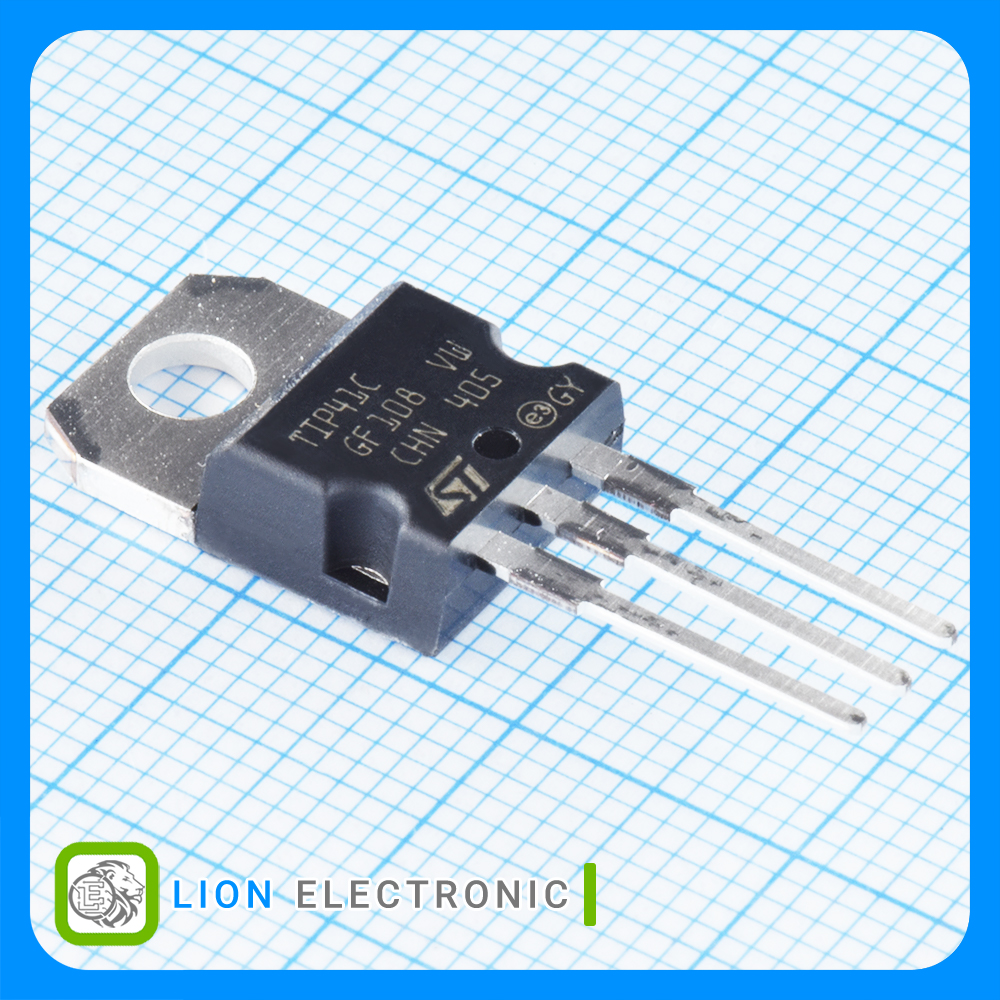

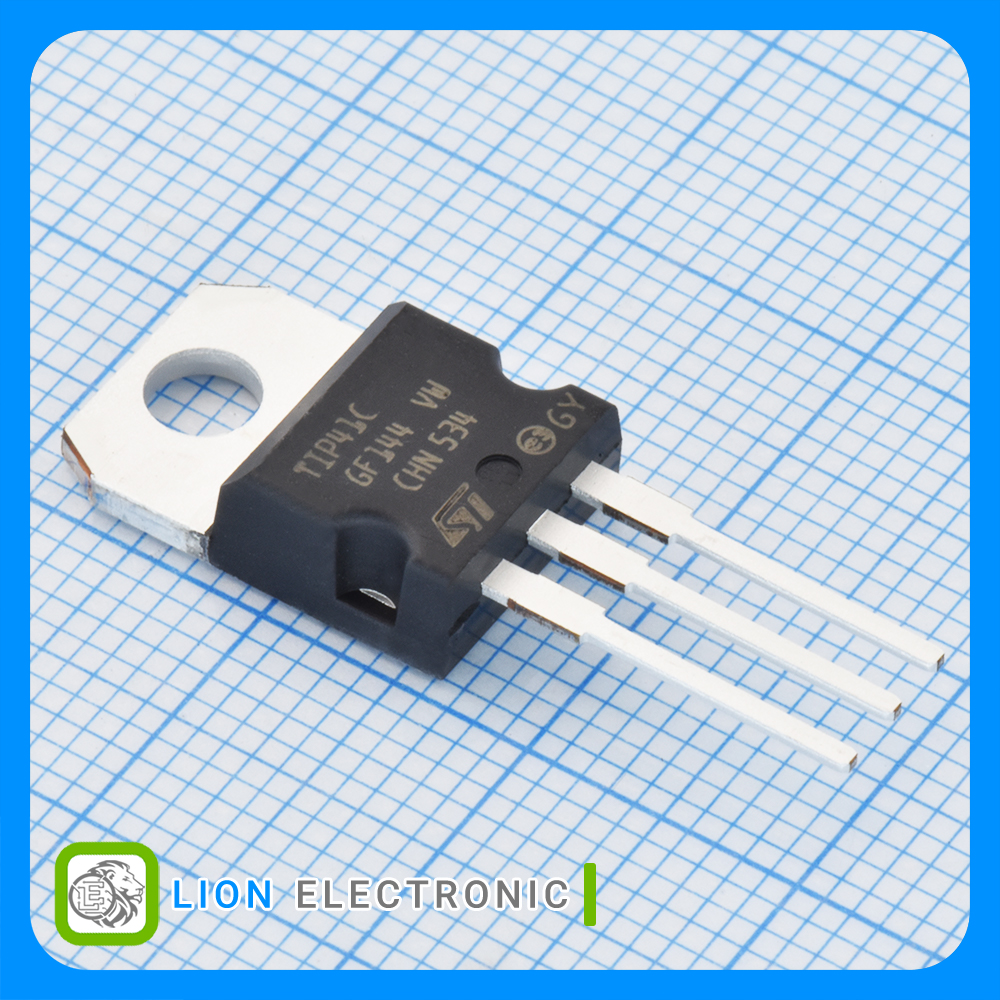

TIP41C
TIP41C
Part Number
176
Lion Part
Datasheet
STMicroelectronics Manufacture
ترانزیستور NPN با ولتاژ 100 ولت و جریان 6 آمپر با پکیج TO-220-3
BJT NPN 100V, 6A with TO-220-3 Package
معرفی
ترانزیستور NPN با ولتاژ 100 ولت و جریان 6 آمپر با پکیج TO-220-3
BJT NPN 100V, 6A with TO-220-3 Package
Specifications
- Transistor Polarity: NPN
- Configuration: Single
- Collector - Emitter Voltage VCEO Max: 100V
- Maximum DC Collector Current: 6A
- Gain Bandwidth Product fT: 2MHz
- Pd - Power Dissipation: 65W
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات TIP41C
TIP41C
Part Number
2MHz
Gain Bandwidth Product fT
-65C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
+150C
Maximum Operating Temperature
100V
Collector - Emitter Voltage VCEO Max
Single
Configuration
6A
Maximum DC Collector Current
65W
Pd - Power Dissipation
TO-220
Package-Case
