TDK
معرفی

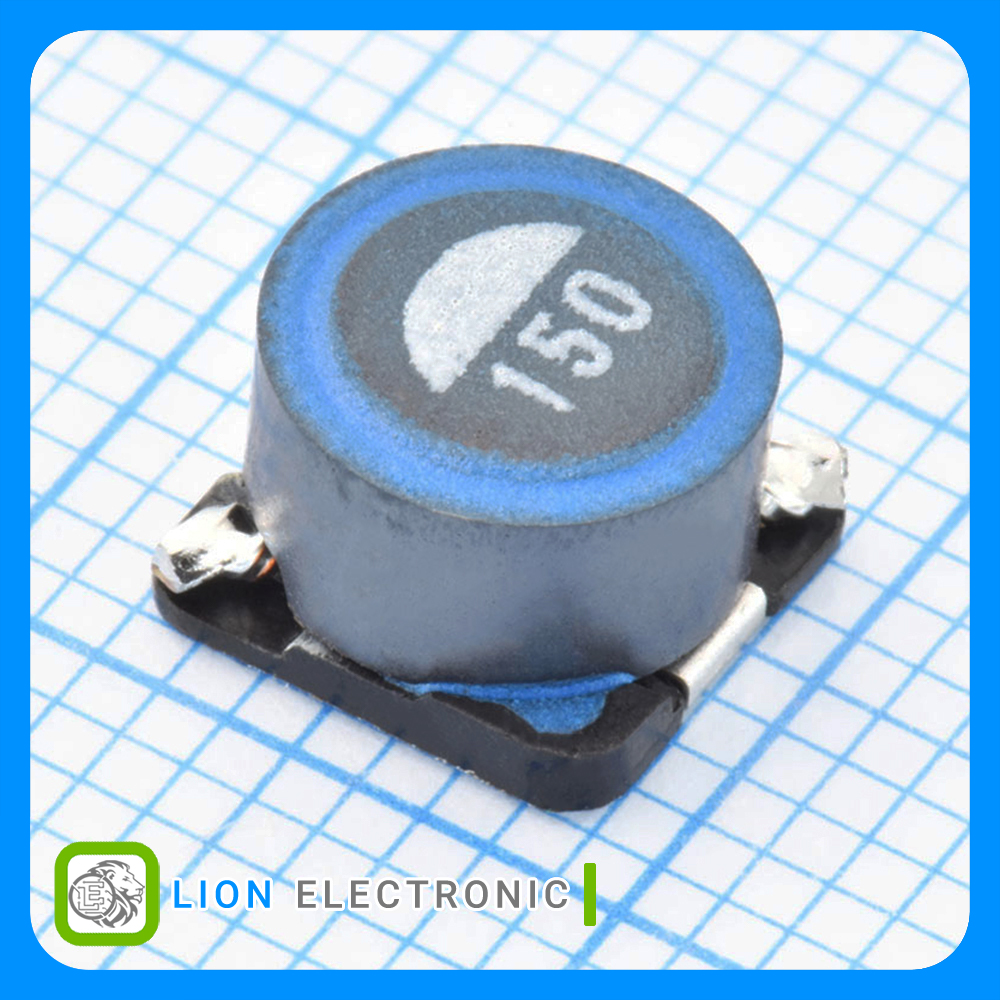

سلف 15 میکروهانری با جریان اشباع 1.1 آمپر و مقاومت DC 52mΩ سایز 7.0 x 7.0mm
Inductor 15uH, 1.1A with 52mΩ and 7.0 x 7.0mm Package
Specifications
- Shielding: Shielded
- Inductance: 15uH
- Saturation Current: 1.1A
- Maximum DC Resistance: 52mΩ
- Termination style: SMD/SMT
- Package/Case: 7.0 x 7.0mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات سلف SLF7045T-150M1R1-PF
سلف SLF7045T-150M1R1-PF
Part Number
Ferrite
Core Material
Shielded
Shielding
SMD/SMT
Termination style
Reel
Packaging
-40C
Minimum Operating Temperature
PCB Mount
Mounting Style
+105C
Maximum Operating Temperature
7.0 x 7.0mm
Package-Case
15uH
Inductance
52mΩ
Maximum DC Resistance
1.1A
Saturation Current
