TDK
معرفی
سلف 150 میکروهانری با جریان اشباع 880 میلیآمپر و مقاومت DC برابر 190 میلیاهم سایز 12.5x12.5mm

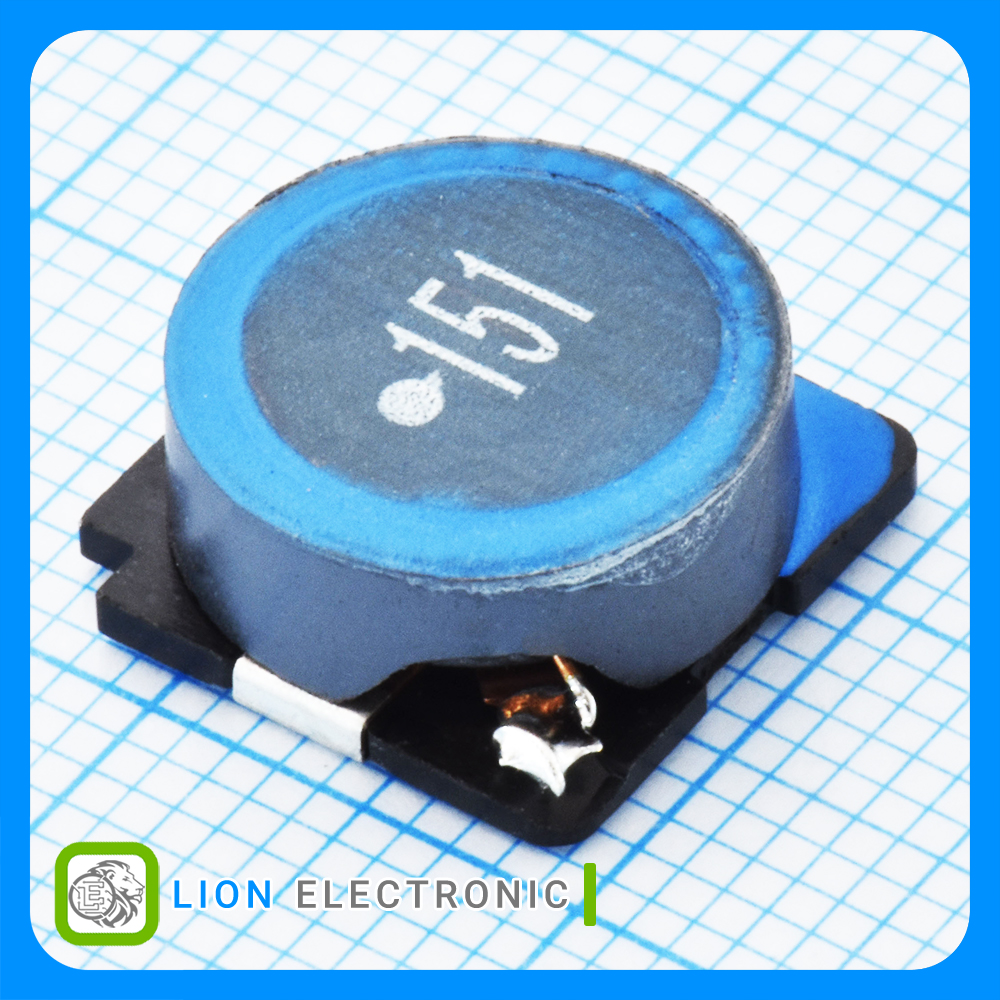

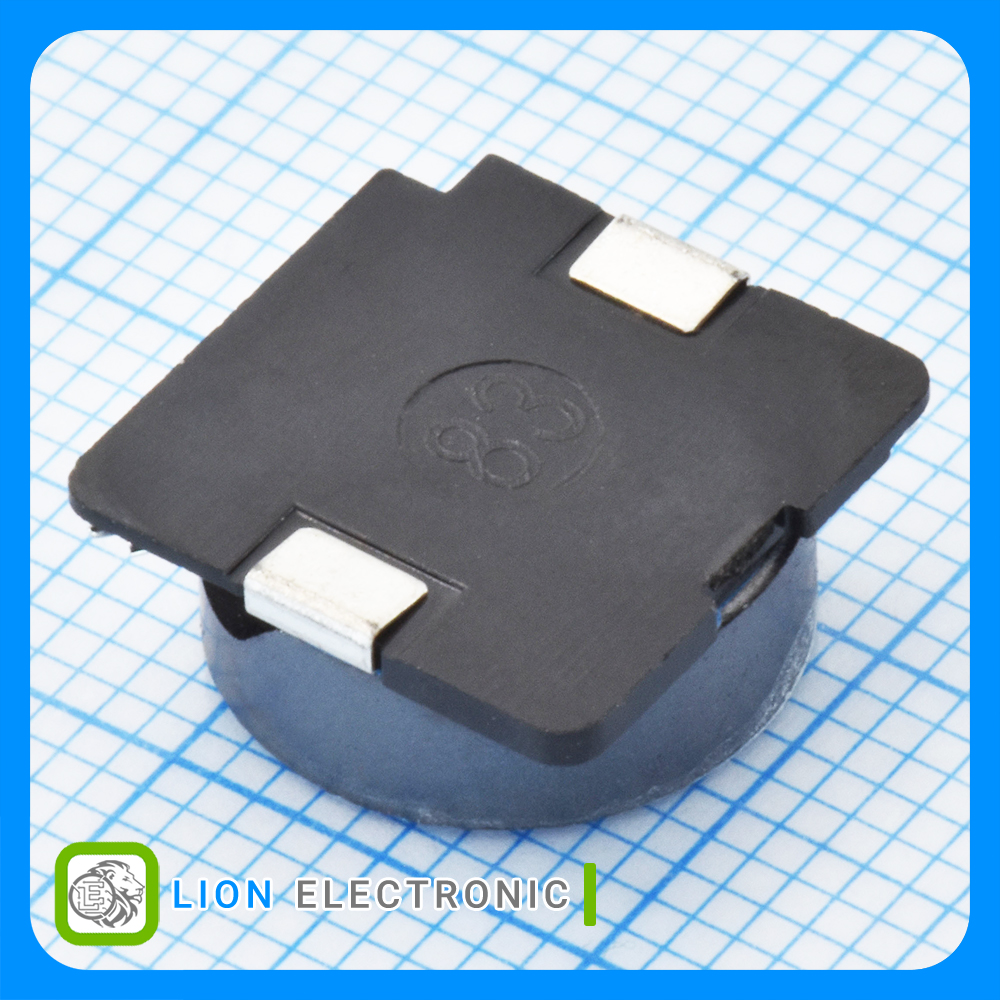

Inductor 150uH, 880mA with 190mΩ and 12.5 x 12.5mm Package
Specifications
- Shielding: Shielded
- Inductance: 150uH
- Saturation Current: 880mA
- Maximum DC Resistance: 190mΩ
- Termination style: SMD/SMT
- Package/Case: 12.5 x 12.5mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات سلف SLF12555T-151MR88-PF

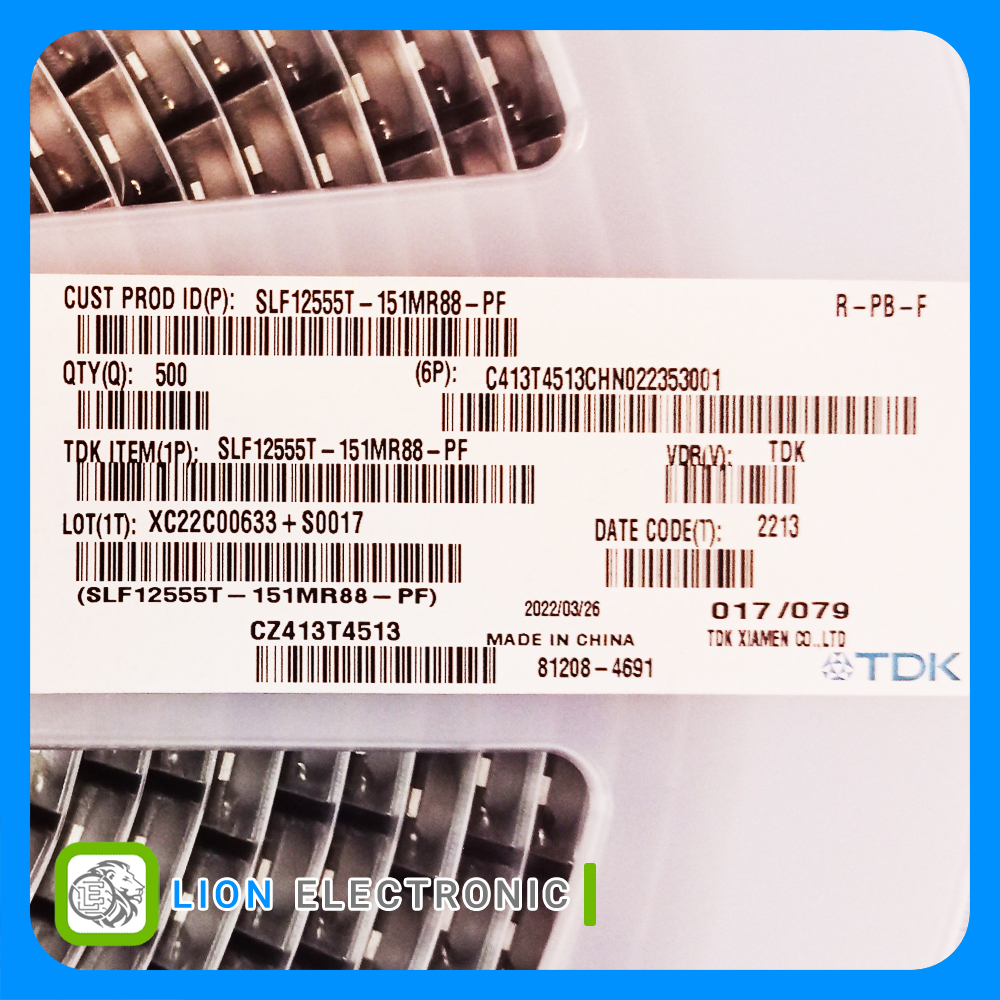

سلف SLF12555T-151MR88-PF
Part Number
Shielded
Shielding
Ferrite
Core Material
SMD/SMT
Termination style
Reel
Packaging
-40C
Minimum Operating Temperature
PCB Mount
Mounting Style
+105C
Maximum Operating Temperature
12.5 x 12.5mm
Package-Case
150uH
Inductance
880mA
Saturation Current
190mΩ
Maximum DC Resistance
