INANBO-T24-ILI9325-V12
INANBO
معرفی
نمایشگر LCD / TFT با اندازه 2.4 اینچ رزولوشن 240x320 با رابط موازی و کنترلر ILI9325 (دارای تاچ مقاومتی)

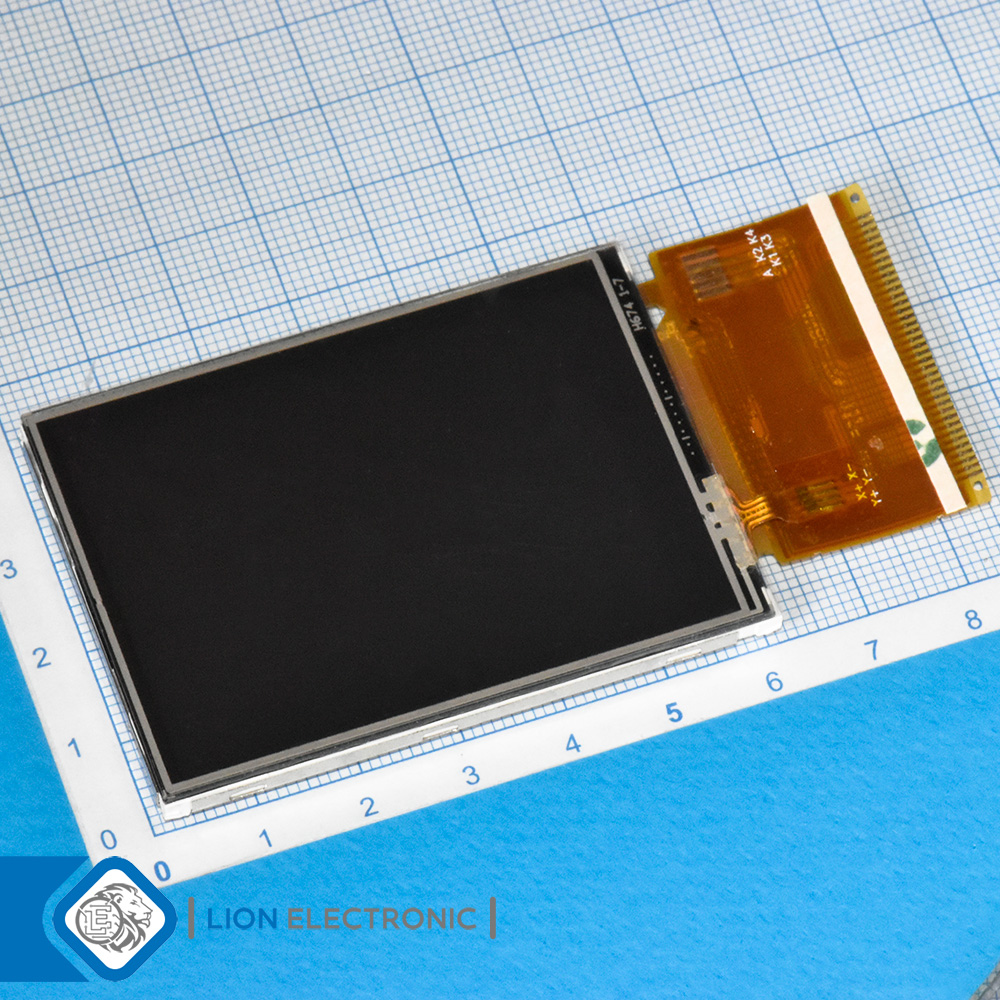

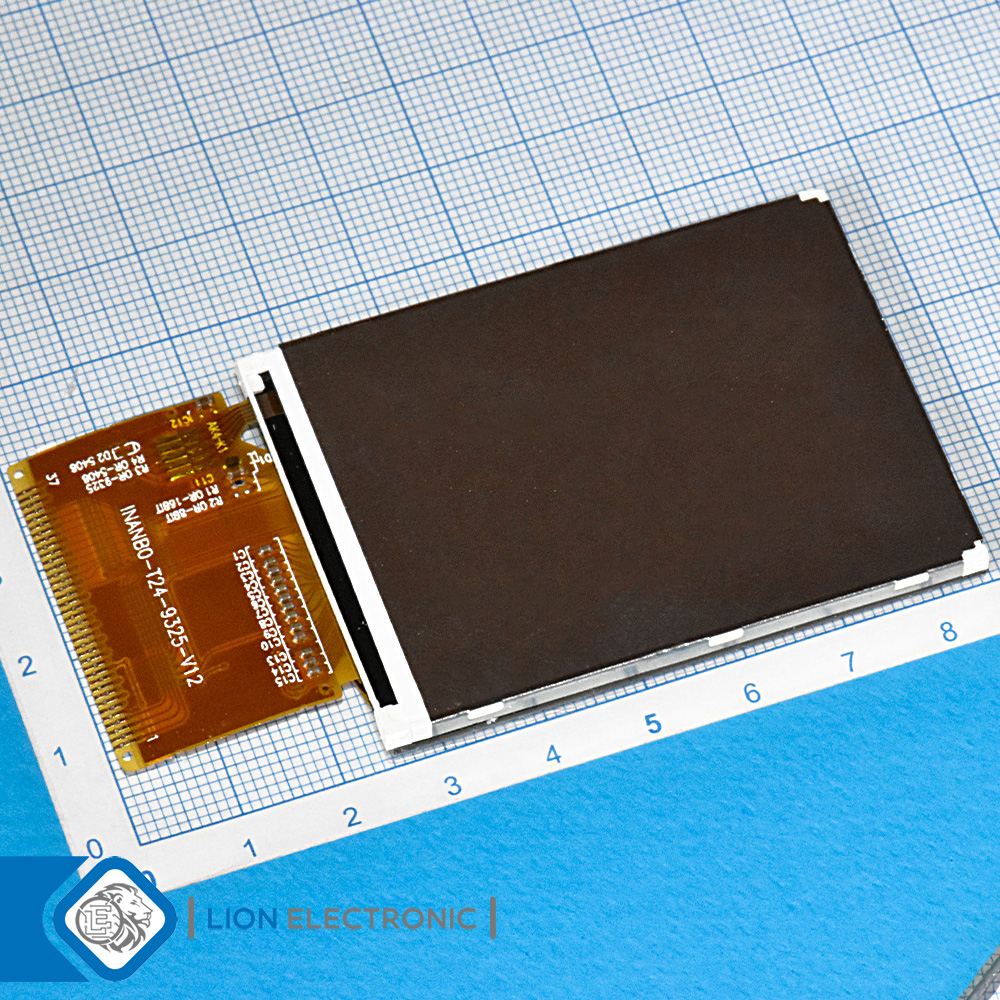

LCD TFT Display 2.4 inch, 240 x 320 with Parallel Interface, ILI9325 Controller, With Resistive Touch Panel
Specifications
- Product: TFT Display
- Interface Type: Parallel
- Controller Type: ILI9325
- Display mode: Normally White, Transmissive
- Number of Pins: 37
- Resolution: 240 x 320
- Operating Supply Voltage: 2.5 - 3.3V
- Touch Panel: Yes
- Backlighting: Yes
- Display Size - inch: 2.4
- Viewing Area - W x H: 36.7mm x 48.9mm
- Modules Size - W x H x T: 42.7mm x 60.2mm
- Packaging: Tray
مشخصات نمایشگر(LCD) INANBO-T24-ILI9325-V12
نمایشگر(LCD) INANBO-T24-ILI9325-V12
Part Number
Yes
Backlighting
ILI9325
Controller Type
Yes
Touch Panel
Normally White, Transmissive
Display mode
37
Number of Pins
Tray
Packaging
2.4
Display Size - inch
36.7mm x 48.9mm
Viewing Area - W x H
42.7mm x 60.2mm
Modules Size - W x H x T
240 x 320
Resolution
2.5 - 3.3V
Operating Supply Voltage
TFT Display
Product
Parallel
Interface Type
