DE1E3KX222MA5BA01
DE1E3KX222MA5BA01
Part Number
2308
Lion Part
Datasheet
Murata Manufacturing Manufacture
خازن ایمنی سرامیکی عدسی Y1 با ظرفیت 2.2 نانوفاراد 250 ولت AC تلرانس 20% فاصله پایه 10 میلیمتر

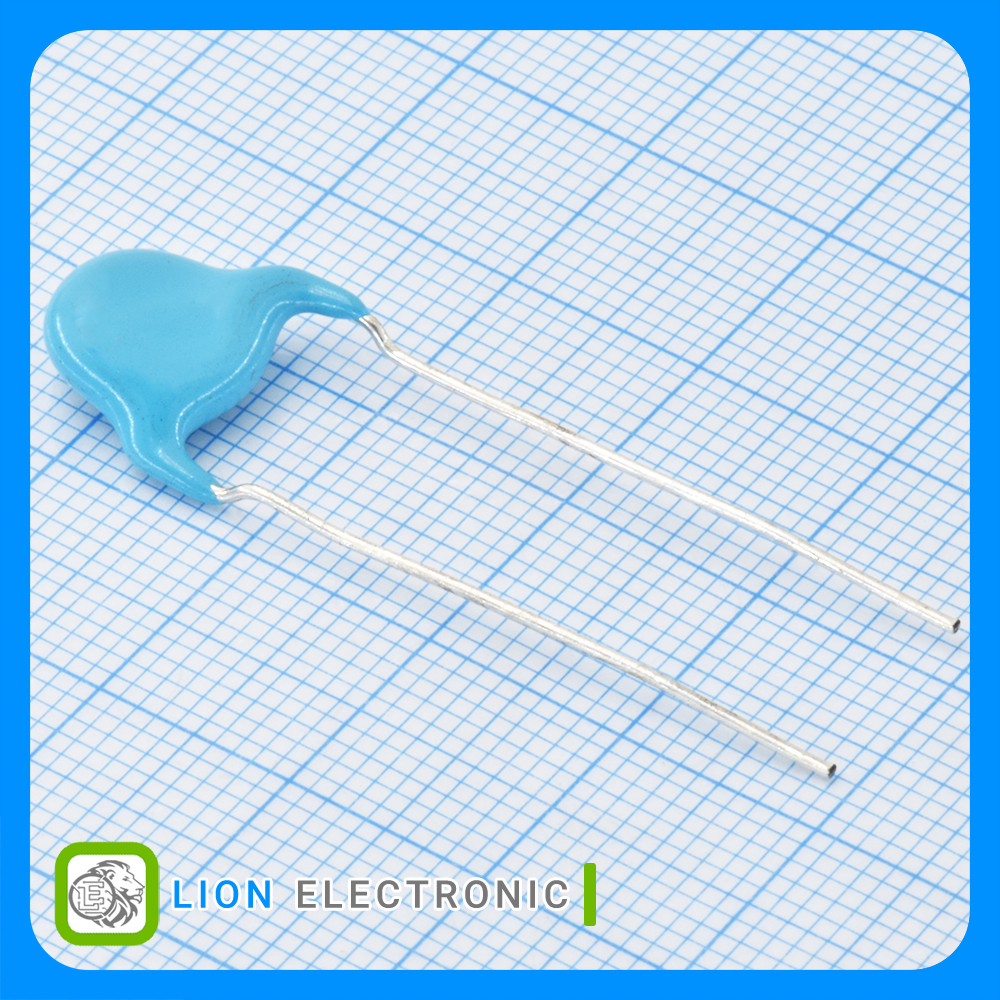

Safety Ceramic Disc Capacitor Y1 2.2nF, 250 VAC with 20% Tolerance, 10mm Lead Spacing
معرفی
خازن ایمنی سرامیکی عدسی Y1 با ظرفیت 2.2 نانوفاراد 250 ولت AC تلرانس 20% فاصله پایه 10 میلیمتر
Safety Ceramic Disc Capacitor Y1 2.2nF, 250 VAC with 20% Tolerance, 10mm Lead Spacing
Specifications
- Safety Rating: Y1
- Capacitance: 2.2nF
- Voltage Rating AC: 250 VAC
- Dielectric: E
- Tolerance: 20%
- Termination style: Through Hole
- Lead Spacing: 10mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
مشخصات DE1E3KX222MA5BA01
DE1E3KX222MA5BA01
Part Number
---
Lead Style
---
Packaging
Y1
Safety Rating
E
Dielectric
250 VAC
Voltage Rating AC
10mm
Lead Spacing
-40C
Minimum Operating Temperature
Through Hole
Termination style
20%
Tolerance
+125C
Maximum Operating Temperature
N/A
Voltage Rating DC
2.2nF
Capacitance
Safety Ceramic Disc Capacitors
Product Type
