STE
معرفی
خازن ایمنی X1Y1 با ظرفیت 1 نانوفاراد 500 ولت AC تلرانس 20% فاصله پایه 10 میلیمتر، سایز 8.1x5.5 میلیمتر
Safety Capacitor X1Y1 1nF, 500VAC with 20% Tolerance, 10mm Lead Spacing, 8.1x5.5mm
Specifications
- Safety Rating: X1Y1
- Capacitance: 1nF
- Voltage Rating AC: 500VAC
- Tolerance: -20%, +20%
- Termination style: SMD/SMT
- Lead Spacing: 10mm
- Lead Style: Gull-Wing
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tape
مشخصات SMDY13222Y5U102M0

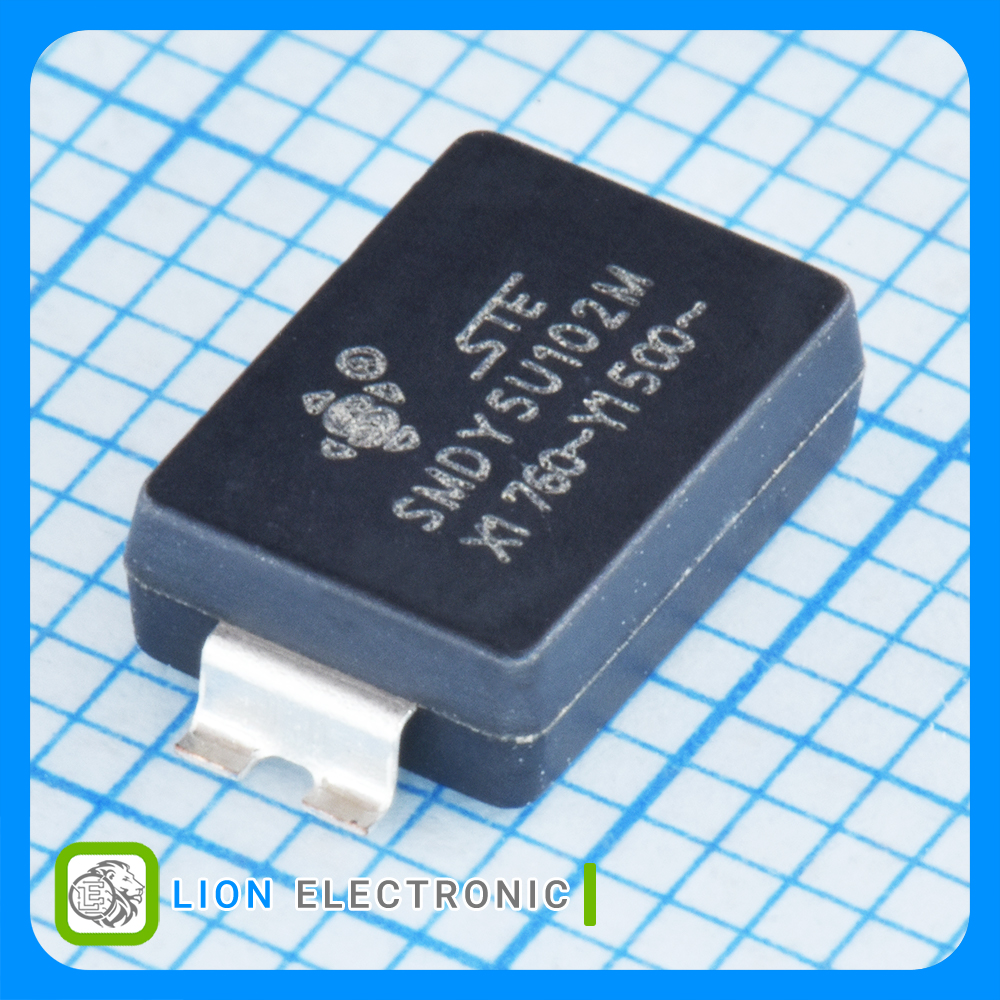

SMDY13222Y5U102M0
Part Number
---
Dielectric
---
Voltage Rating DC
Gull-Wing
Lead Style
-20%, +20%
Tolerance
X1Y1
Safety Rating
10mm
Lead Spacing
SMD/SMT
Termination style
-40C
Minimum Operating Temperature
Tape
Packaging
500VAC
Voltage Rating AC
+125C
Maximum Operating Temperature
1nF
Capacitance
