TDK
معرفی
خازن ایمنی X2 از نوع MKP با ظرفیت 10 نانوفاراد 305 ولت AC تلرانس 20% فاصله پایه 10 میلیمتر

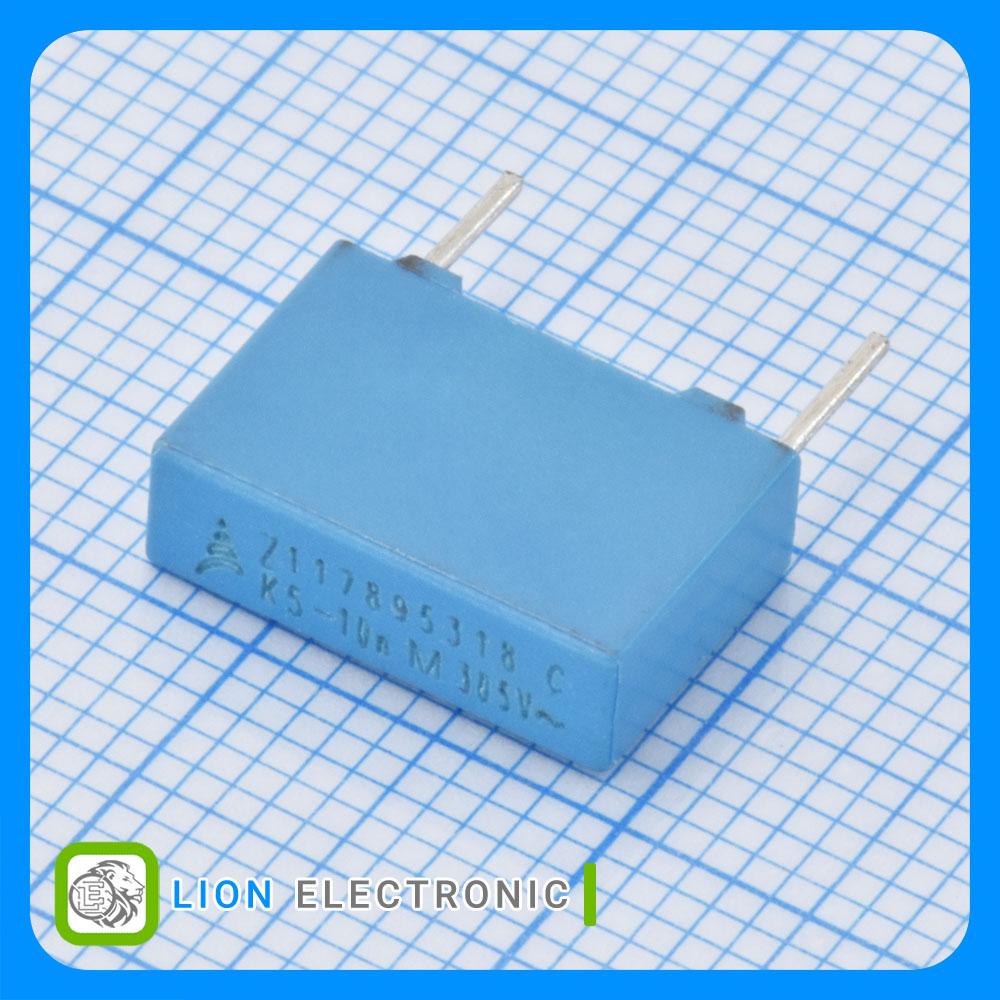

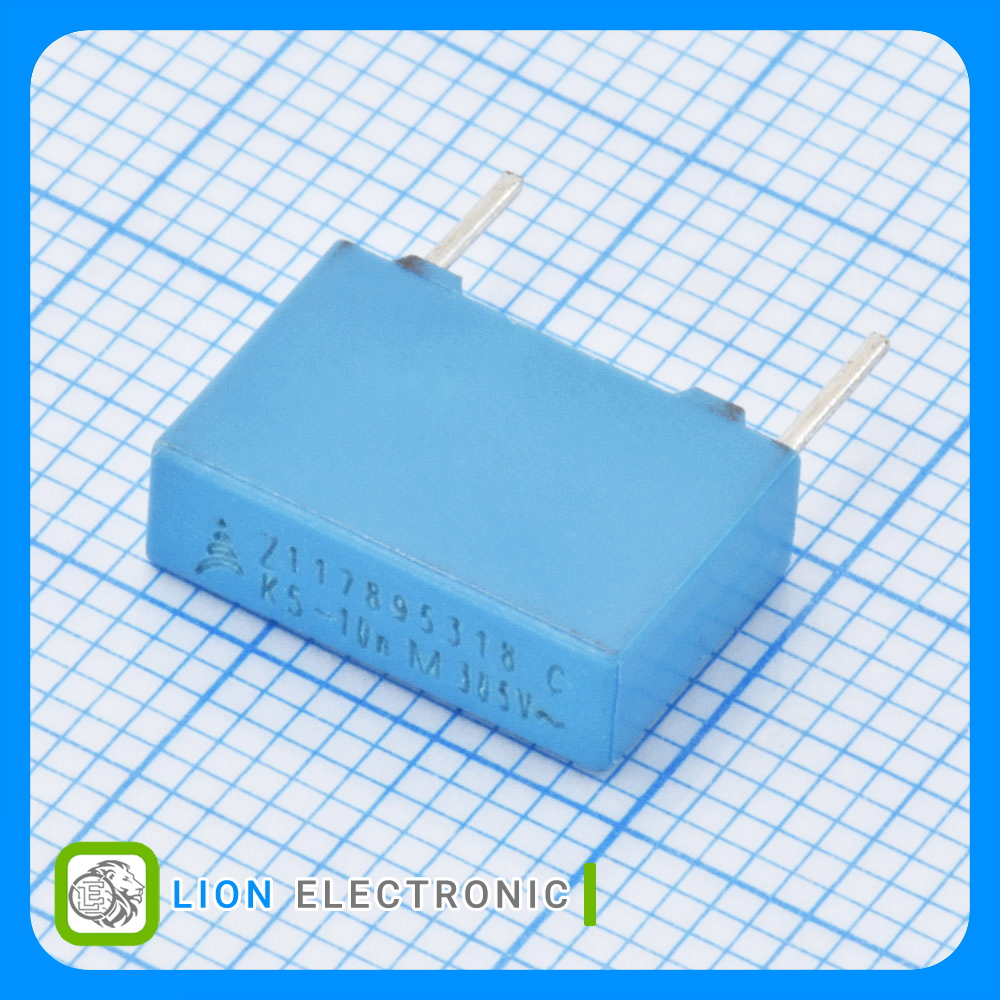

Safety Capacitor X2 MKP 10nF, 305VAC with 20% Tolerance, 10mm Lead Spacing
Specifications
- Safety Rating: X2
- Capacitance: 10nF
- Voltage Rating AC: 305VAC
- Voltage Rating DC: 630VDC
- Dielectric: Polypropylene(PP)
- Tolerance: 20%
- Termination style: Through Hole
- Lead Spacing: 10mm
- Lead Style: Straight
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +110C
- Packaging: Bulk
مشخصات خازن B32921C3103M

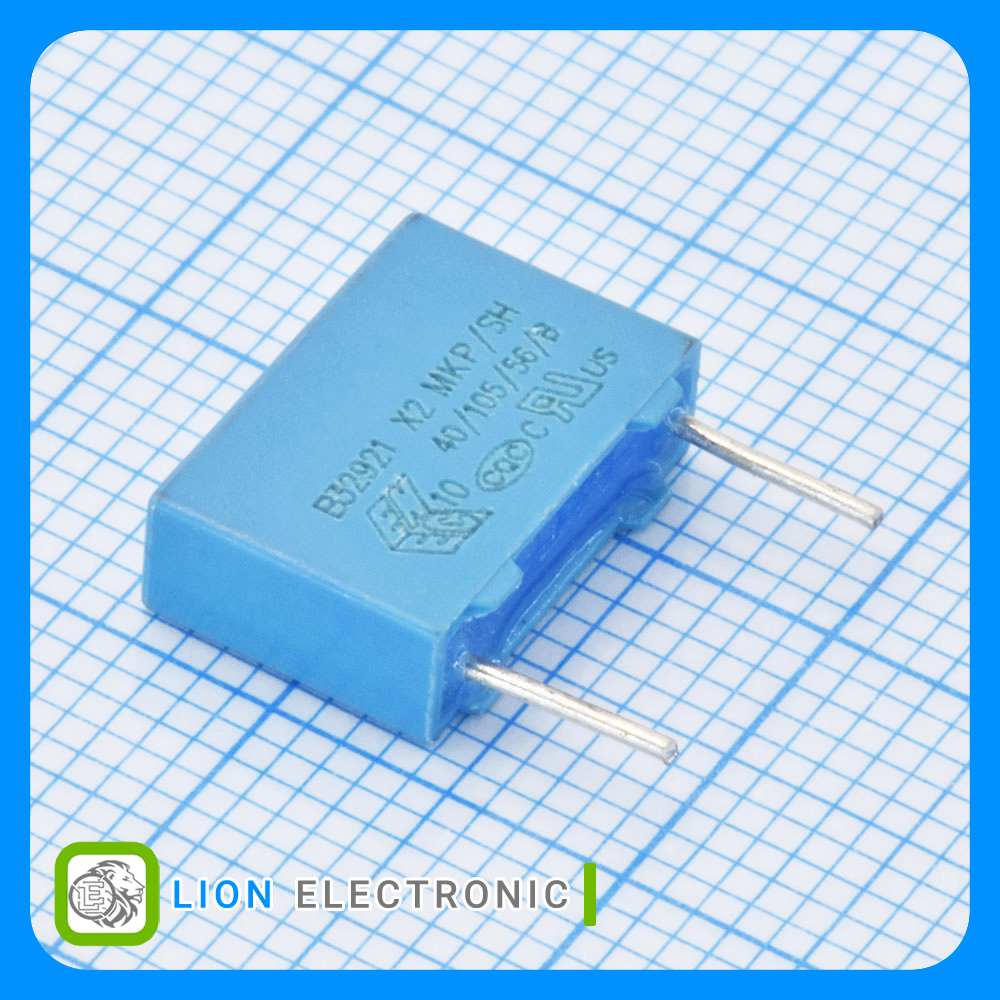

خازن B32921C3103M
Part Number
X2
Safety Rating
Straight
Lead Style
Bulk
Packaging
Polypropylene(PP)
Dielectric
10mm
Lead Spacing
305VAC
Voltage Rating AC
-40C
Minimum Operating Temperature
Through Hole
Termination style
20%
Tolerance
+110C
Maximum Operating Temperature
630VDC
Voltage Rating DC
10nF
Capacitance
