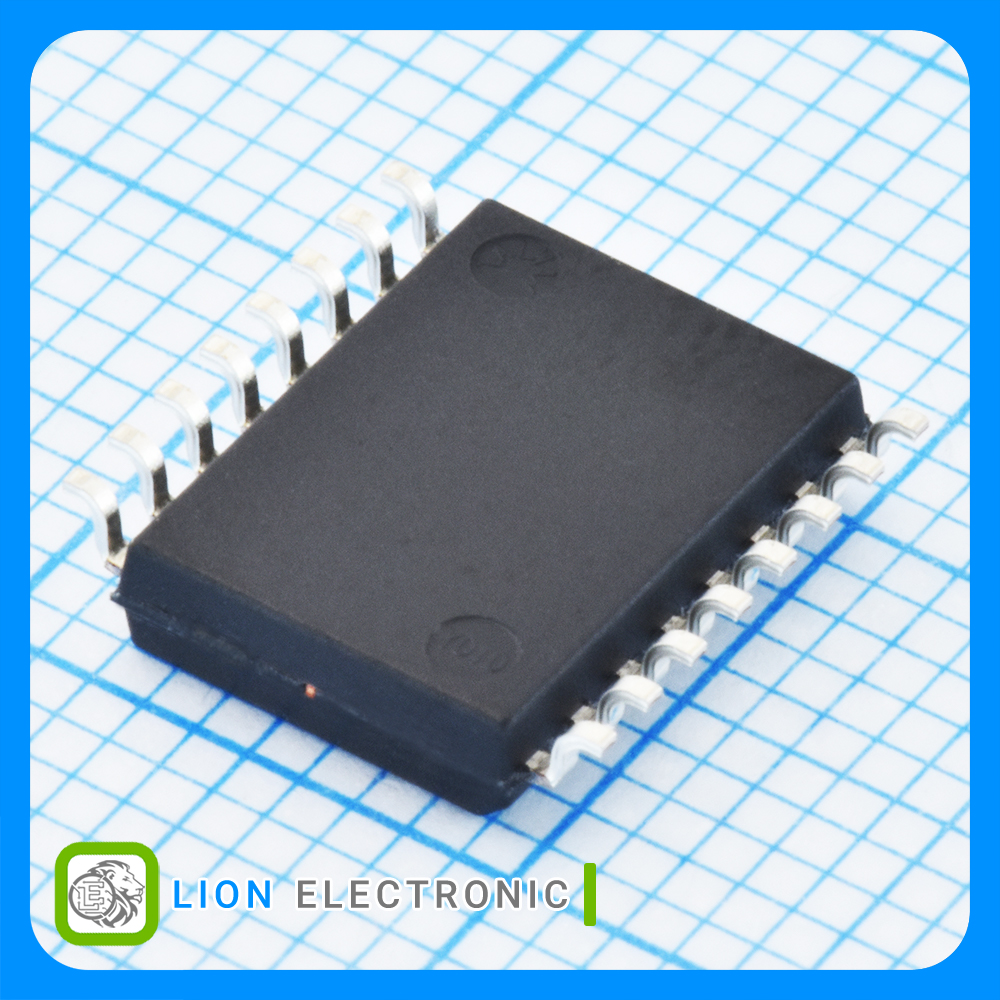

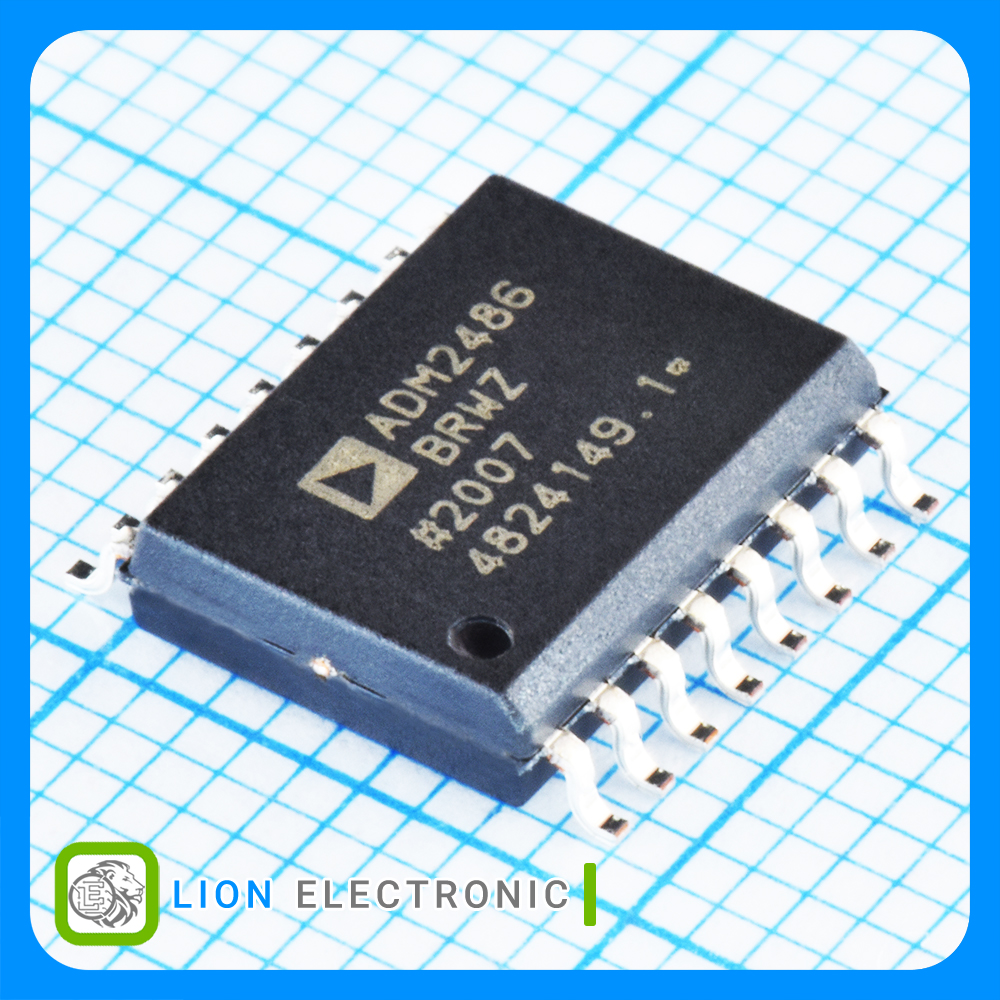

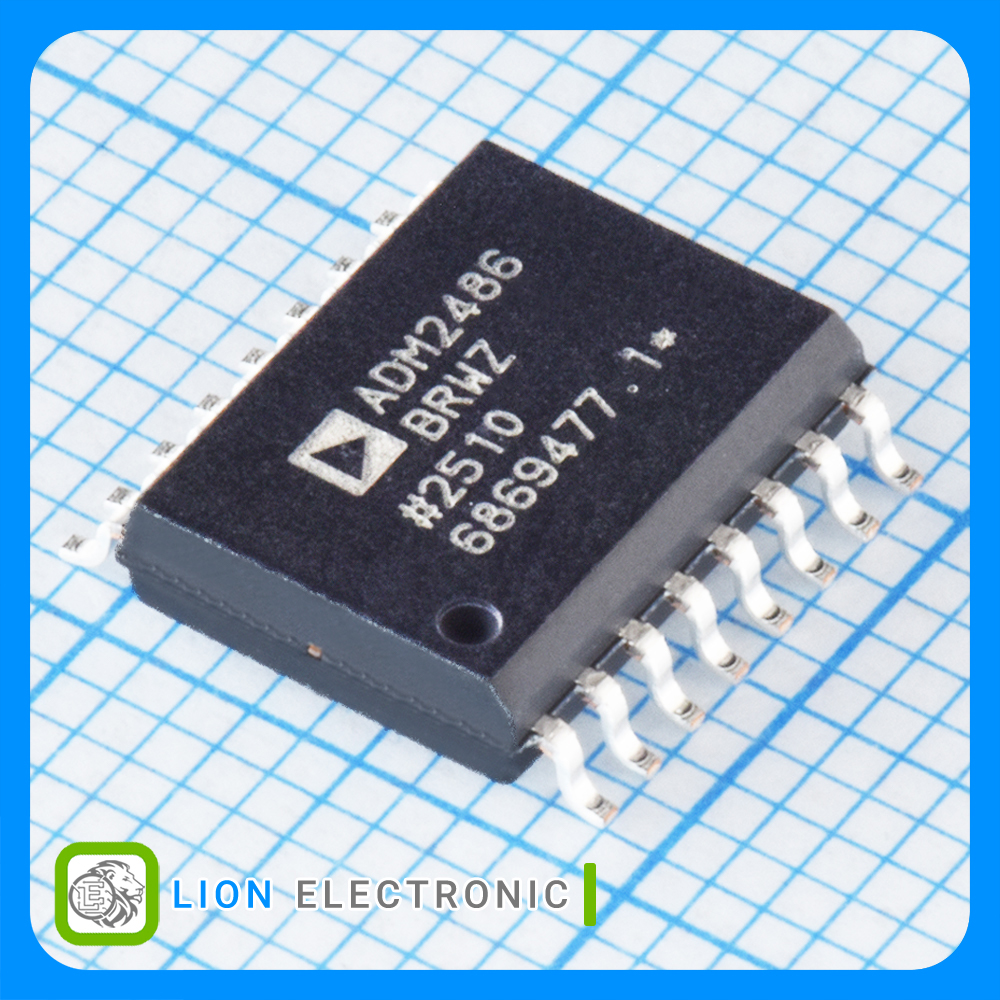

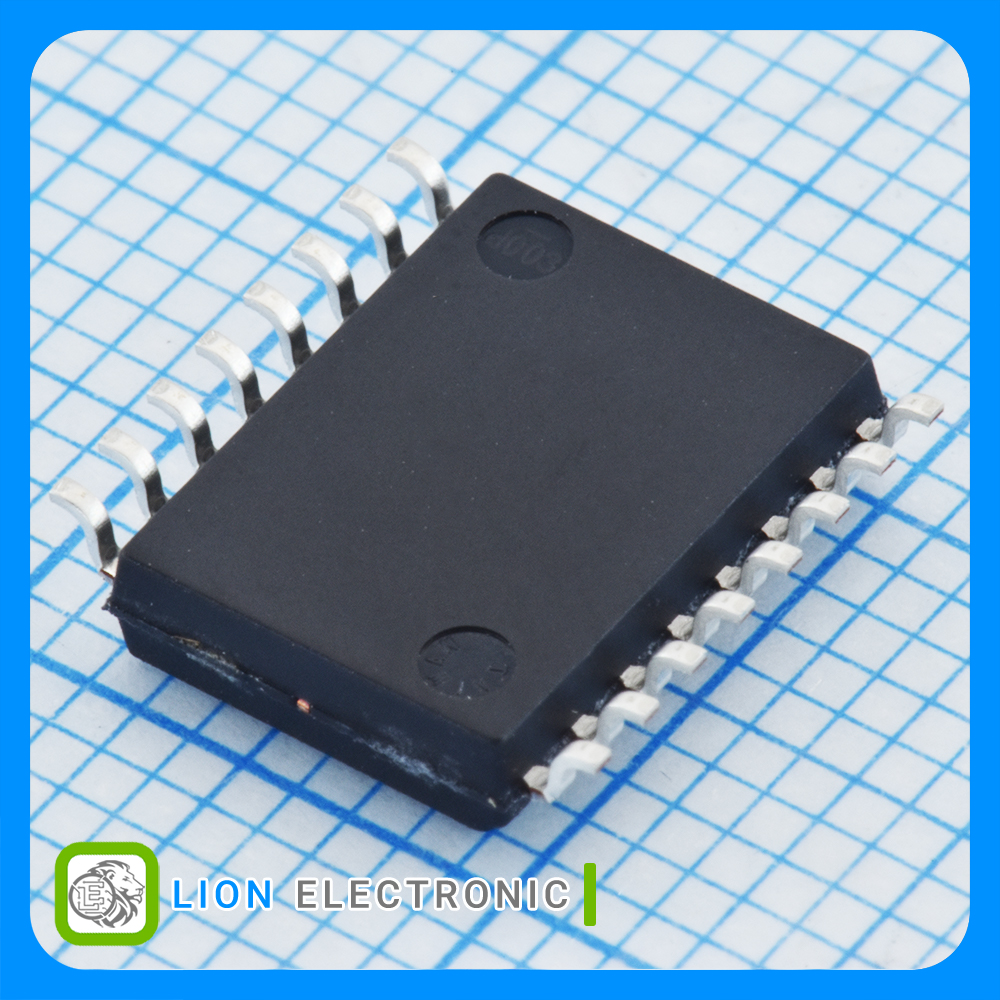

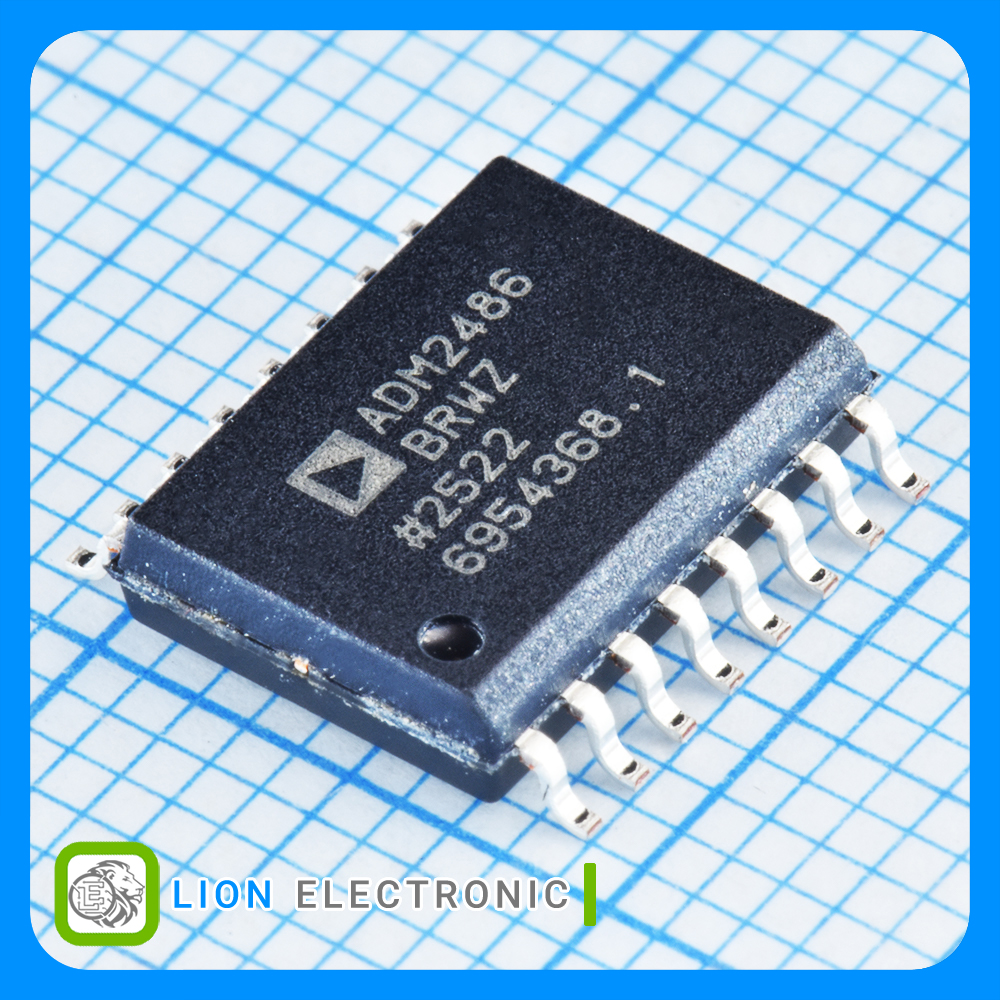

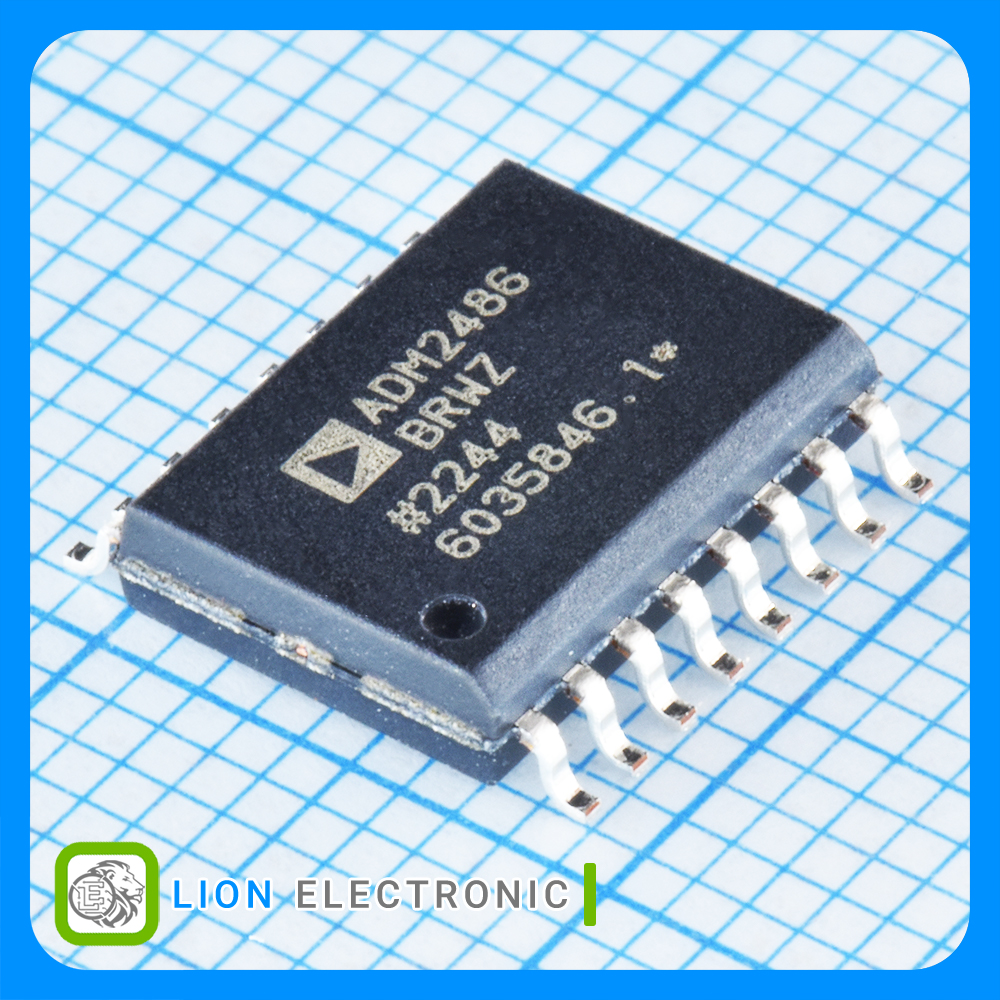

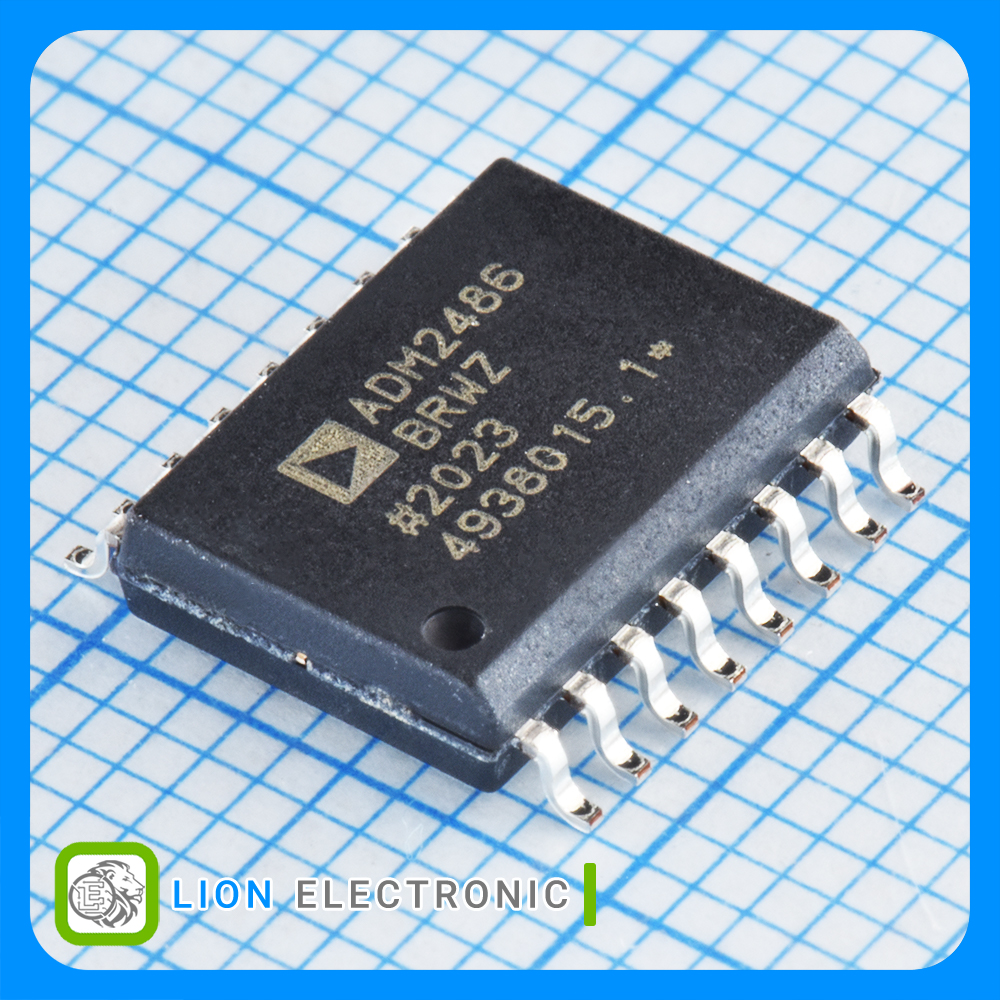

ADM2486BRWZ
ADM2486BRWZ
Part Number
2448
Lion Part
Datasheet
Analog Devices Manufacture
ایزولاتور ترنسیور RS-485 نیمهدوطرفه با ولتاژ کاری 3 یا 5 ولت و سرعت 20 مگابیت بر ثانیه با پکیج SOIC-16
Isolated RS-485 Transceiver, Half Duplex, 3V or 5V Operating Voltage, 20Mb/s, High Speed fail-safe iCoupler with SOIC-16 Package
معرفی
ایزولاتور ترنسیور RS-485 نیمهدوطرفه با ولتاژ کاری 3 یا 5 ولت و سرعت 20 مگابیت بر ثانیه با پکیج SOIC-16
Isolated RS-485 Transceiver, Half Duplex, 3V or 5V Operating Voltage, 20Mb/s, High Speed fail-safe iCoupler with SOIC-16 Package
Specifications
- Product Type: Isolated RS-485 Interface IC
- Number of Drivers: 1
- Number of Receivers: 1
- Data Rate: 20Mb/s
- Duplex: Half Duplex
- Function: Transceiver
- Supply Voltage - Min: 2.7V
- Supply Voltage - Max: 5.5V
- Operating Supply Current: 3mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات ADM2486BRWZ
ADM2486BRWZ
Part Number
Bidirectional
Polarity
1
Number of Drivers
1
Number of Channels
1
Number of Receivers
Half Duplex
Duplex
Magnetic Coupling
Isolation Type
2.5kVrms
Isolation Voltage
-40C
Minimum Operating Temperature
Tube
Packaging
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
45ns
Propagation Delay Time
Transceiver
Function
5.5V
Supply Voltage - Max
20Mb/s
Data Rate
2.7V
Supply Voltage - Min
Isolated RS-485 Interface IC
Product Type
3mA
Operating Supply Current
SOIC-16
Package-Case
