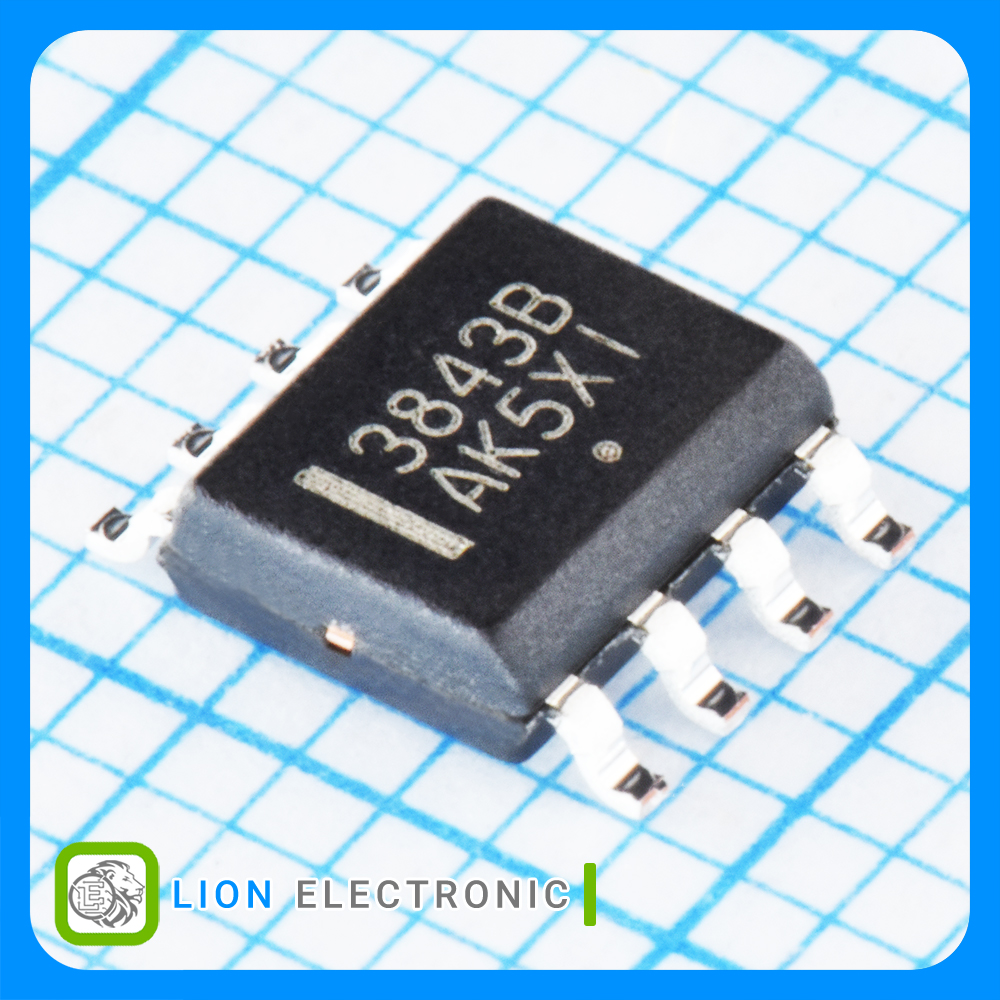

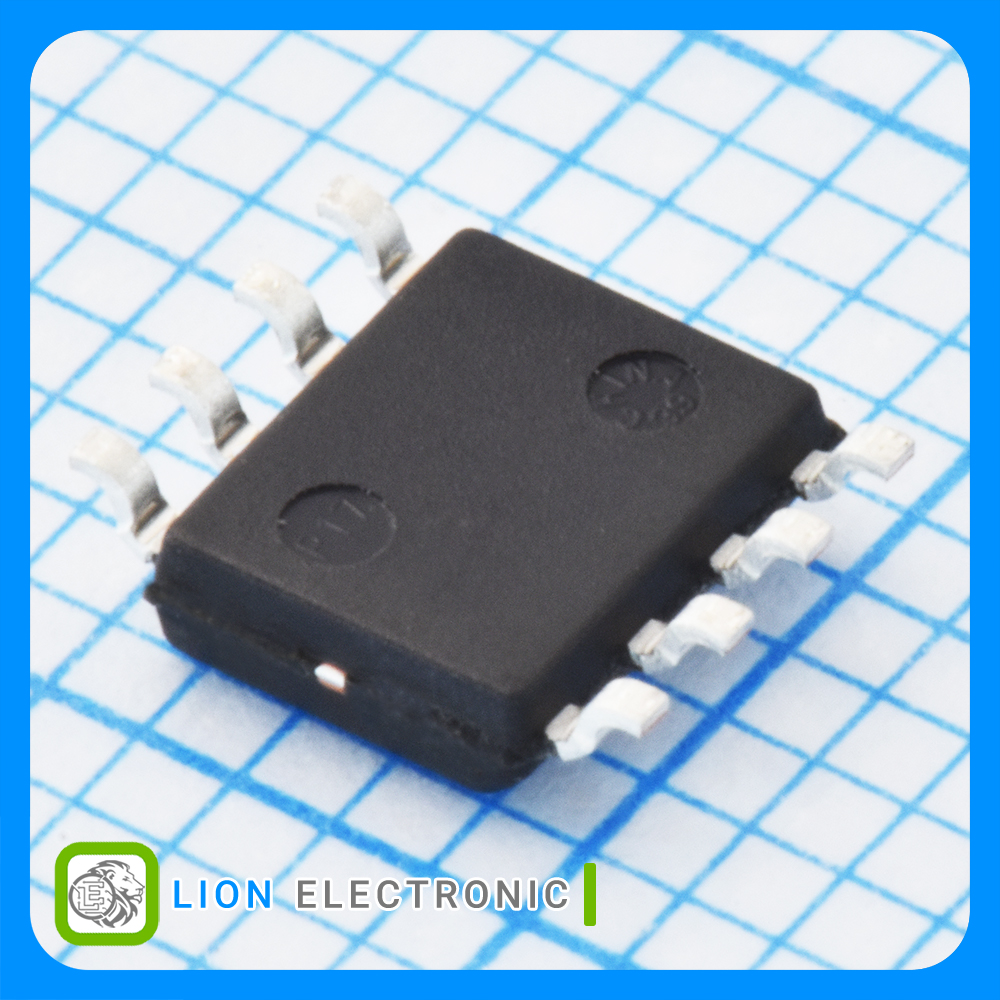

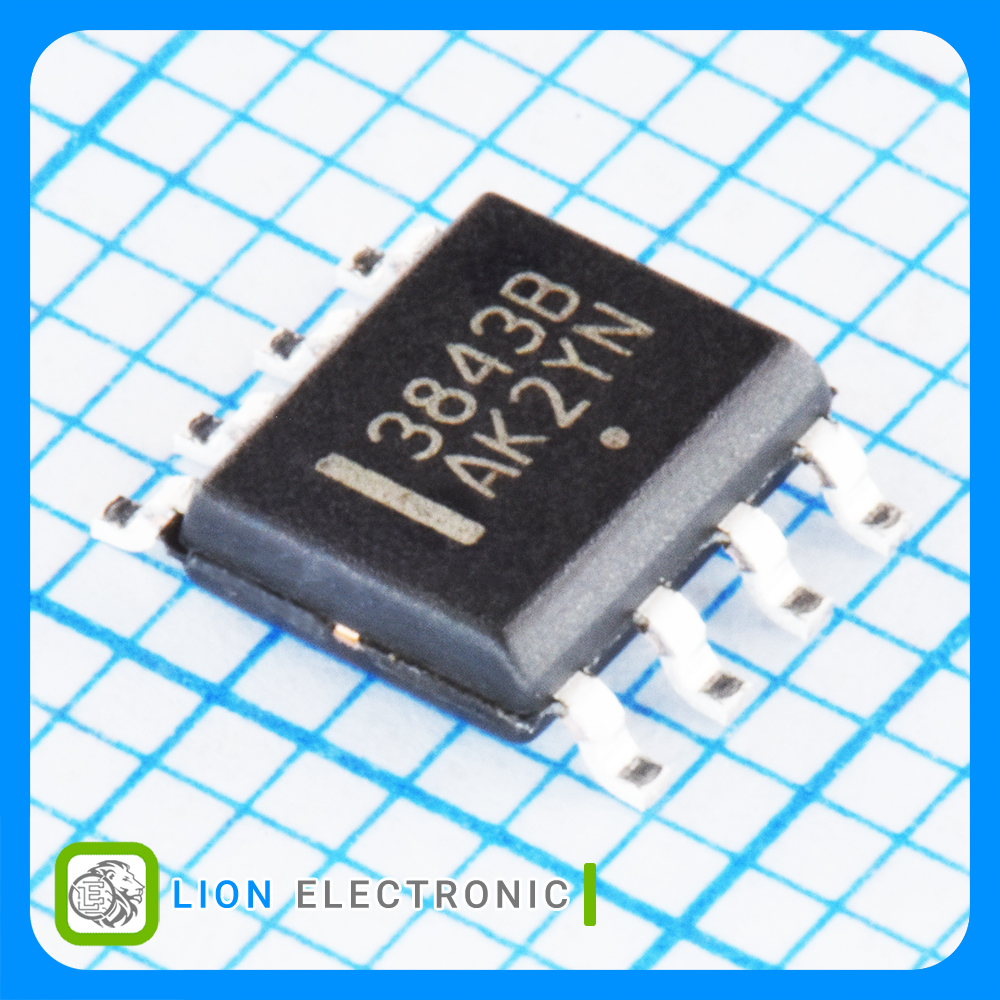

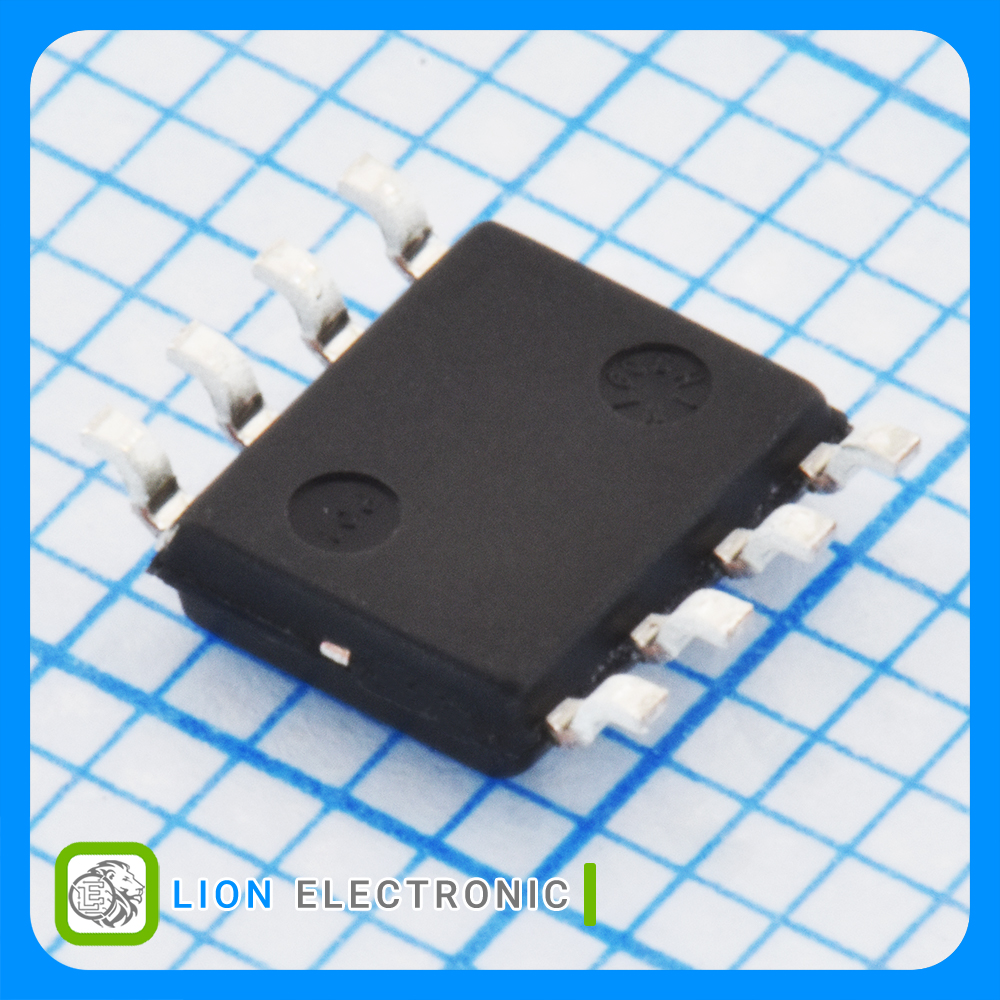

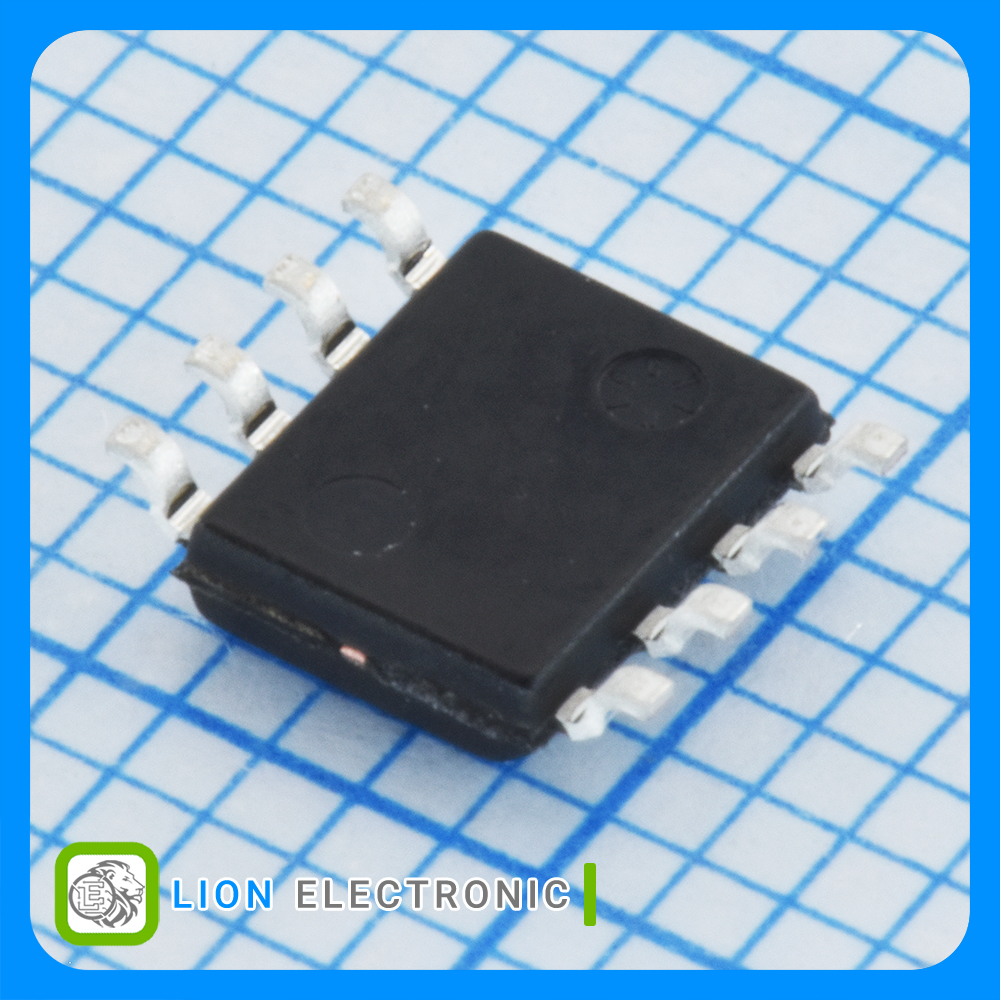

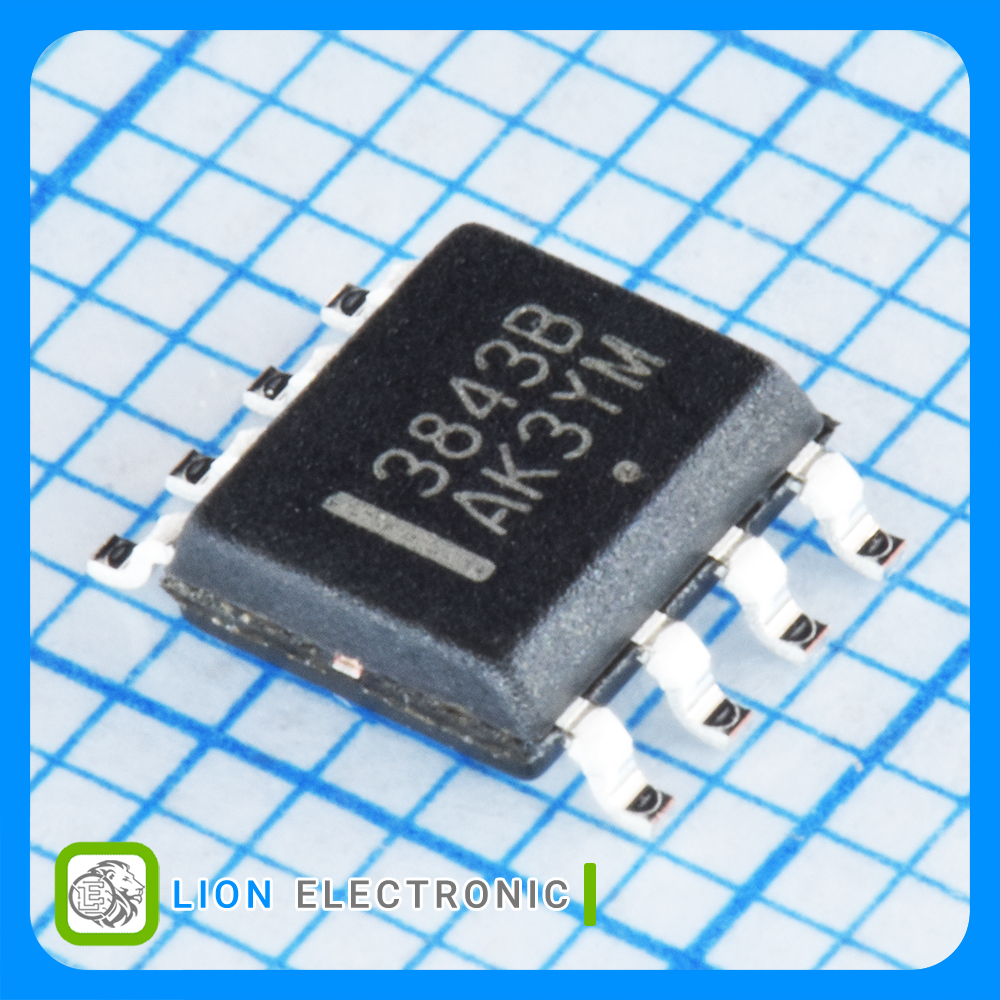

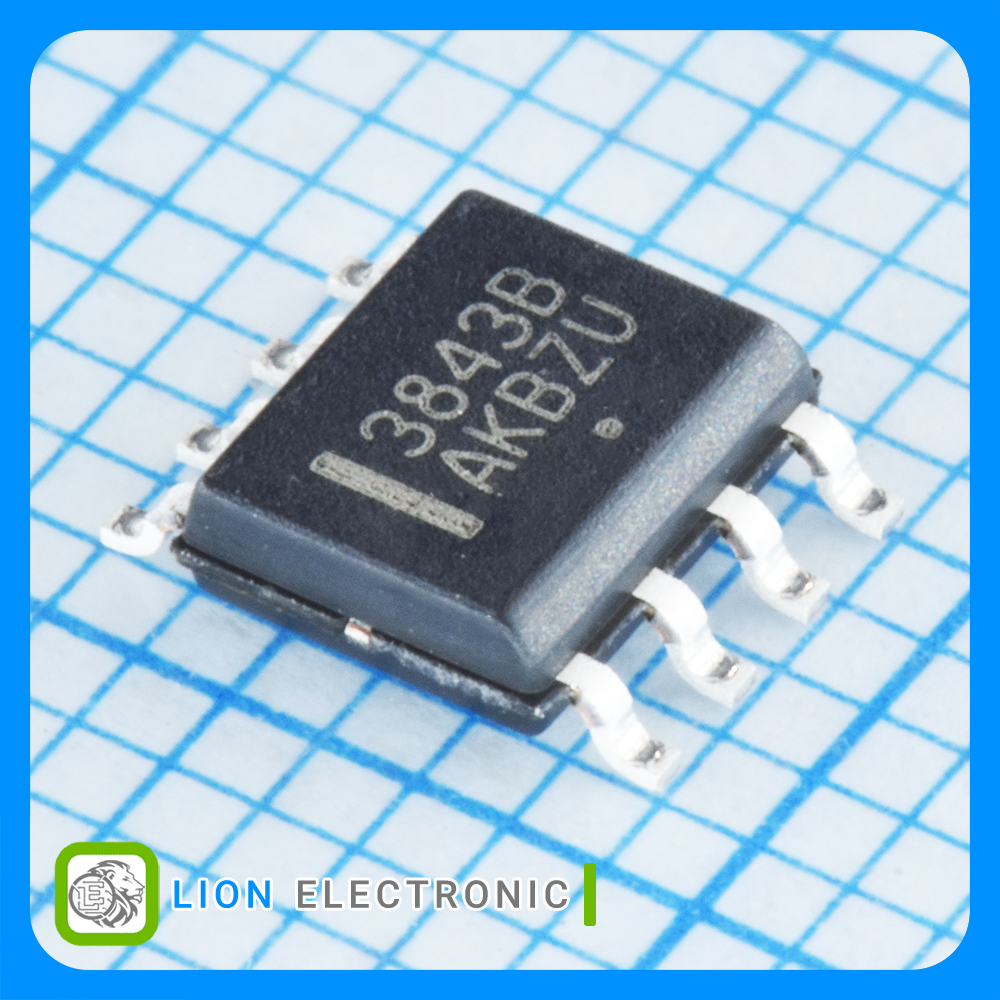

UC3843BD1 ON
UC3843BD1 ON
Part Number
2468
Lion Part
Datasheet
ON Semiconductor Manufacture
کنترلر PWM 15 ولت فرکانس 500 کیلوهرتز توپولوژی Boost, فلایبک, Forward با پکیج SOIC-8
PWM Controller 15V, 500kHz Boost, Flyback, Forward with SOIC-8 Package
معرفی
کنترلر PWM 15 ولت فرکانس 500 کیلوهرتز توپولوژی Boost, فلایبک, Forward با پکیج SOIC-8
PWM Controller 15V, 500kHz Boost, Flyback, Forward with SOIC-8 Package
Specifications
- Topology: Boost, Flyback, Forward
- Input Voltage: 15V
- Number of Outputs: 1
- Output Voltage: 0.1 - 13.5V
- Switching Frequency: 500kHz
- Duty Cycle - Max: 96%
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Tube
مشخصات UC3843BD1 ON
UC3843BD1 ON
Part Number
1
Number of Outputs
+70C
Maximum Operating Temperature
Boost, Flyback, Forward
Topology
Tube
Packaging
SMD/SMT
Mounting Style
0C
Minimum Operating Temperature
96%
Duty Cycle - Max
0.1 - 13.5V
Output Voltage
15V
Input Voltage
500kHz
Switching Frequency
SOIC-8
Package-Case
