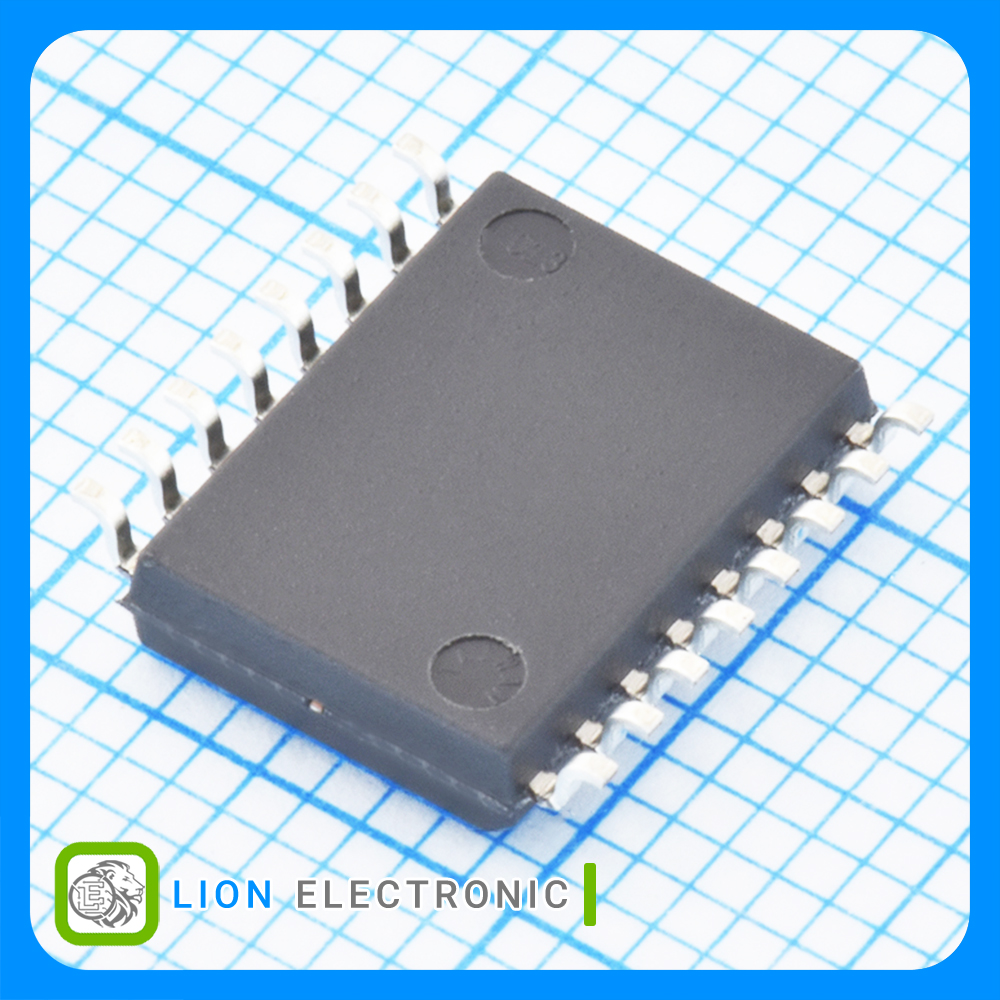

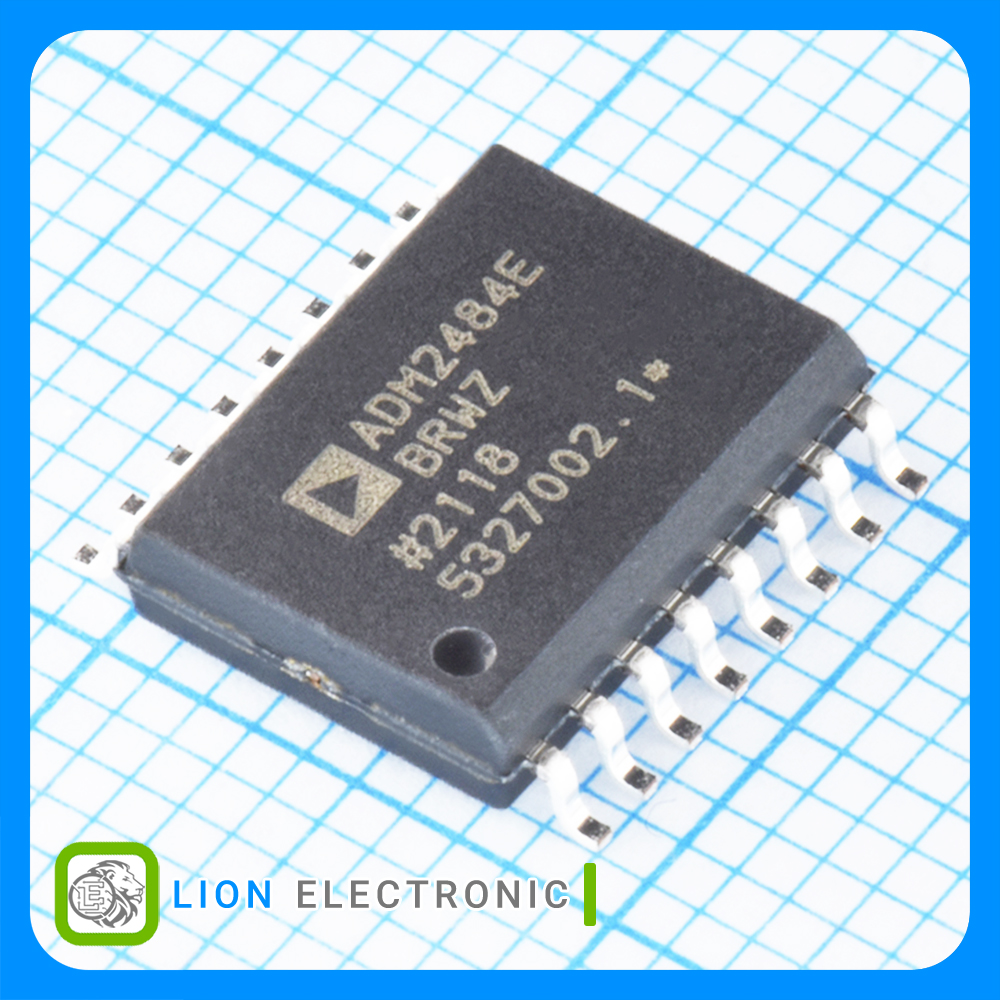

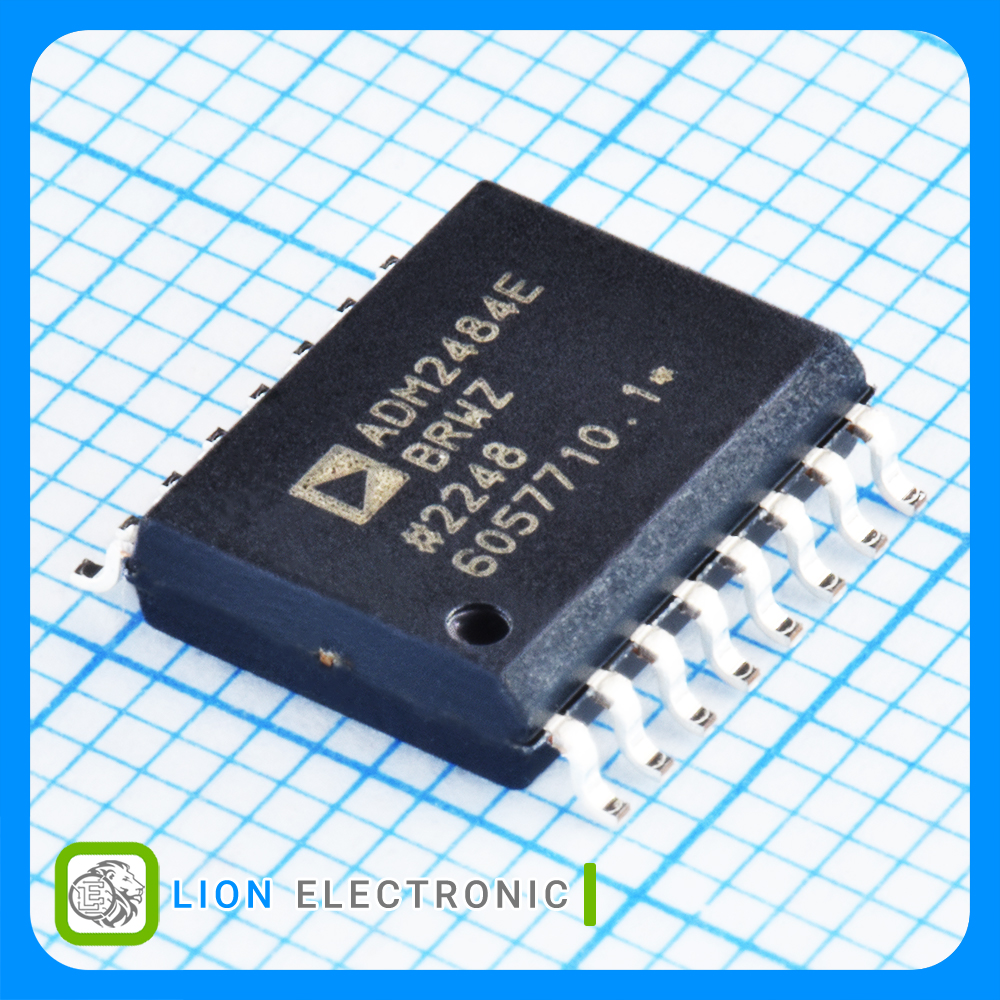

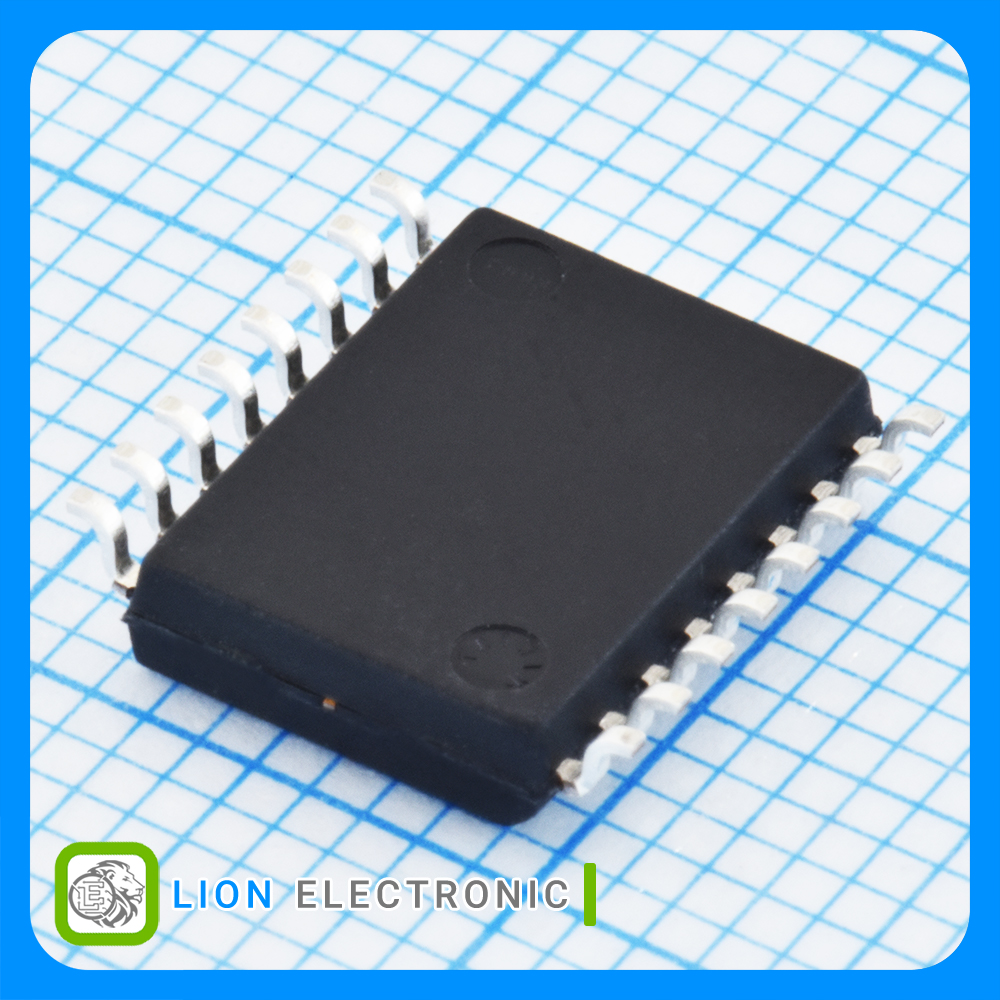

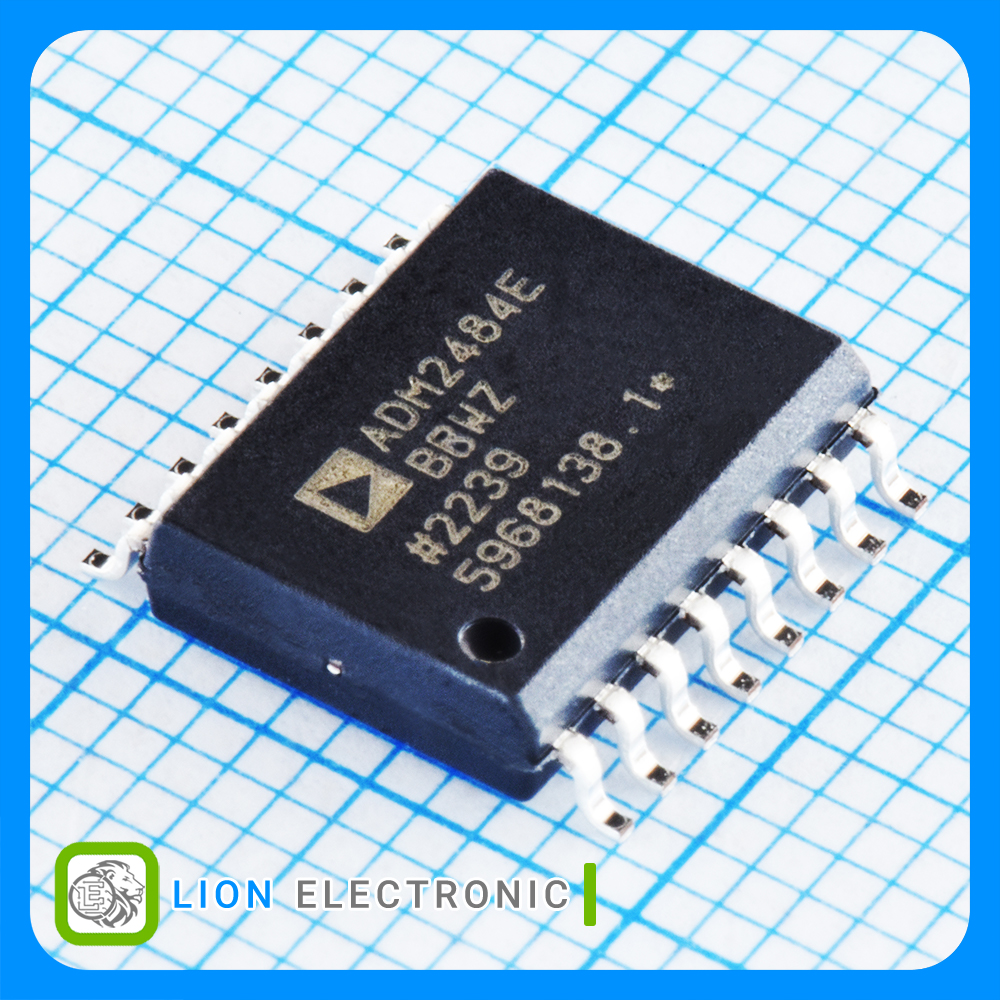

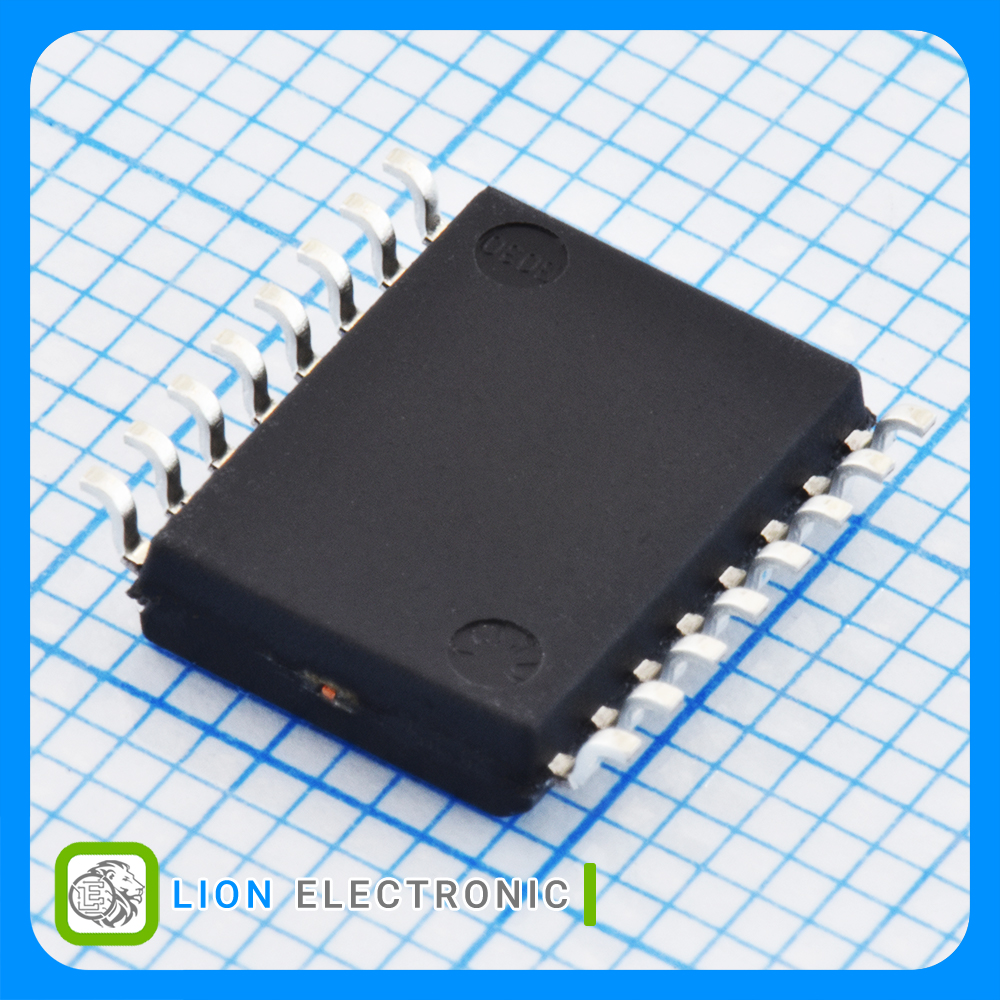

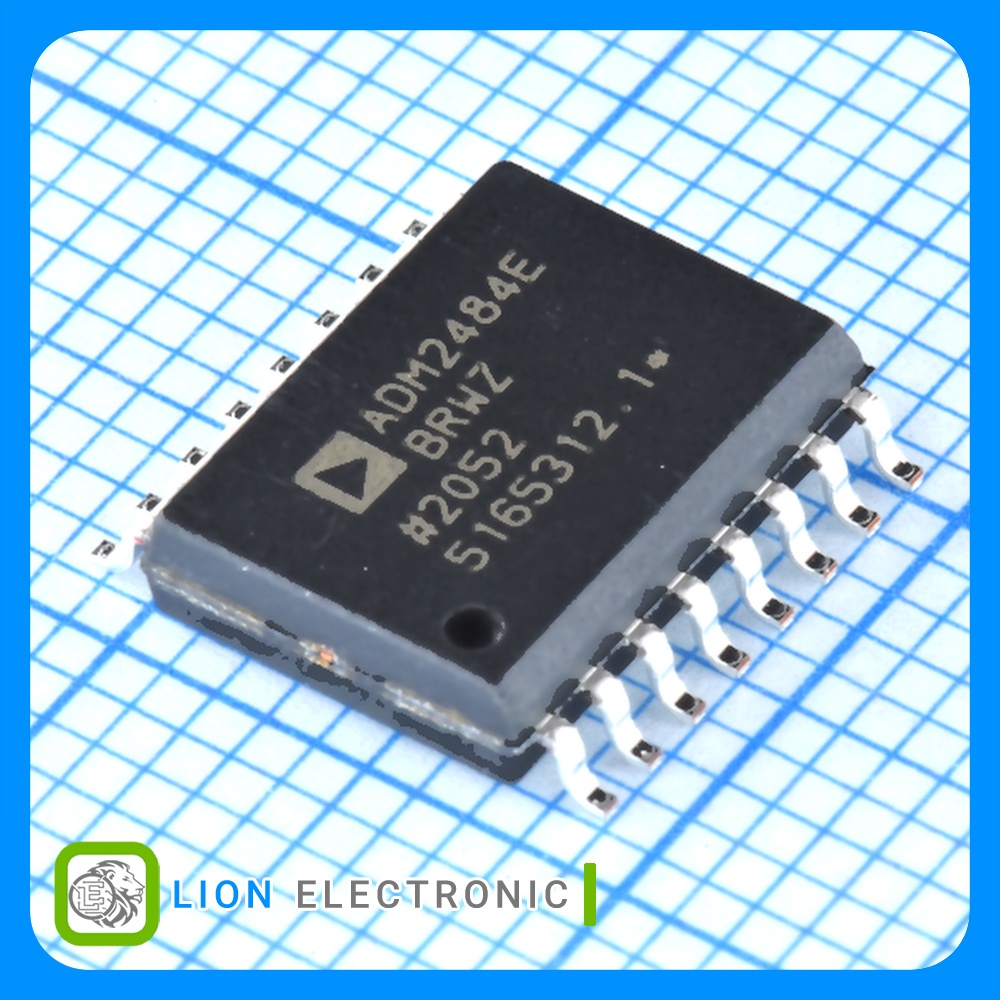

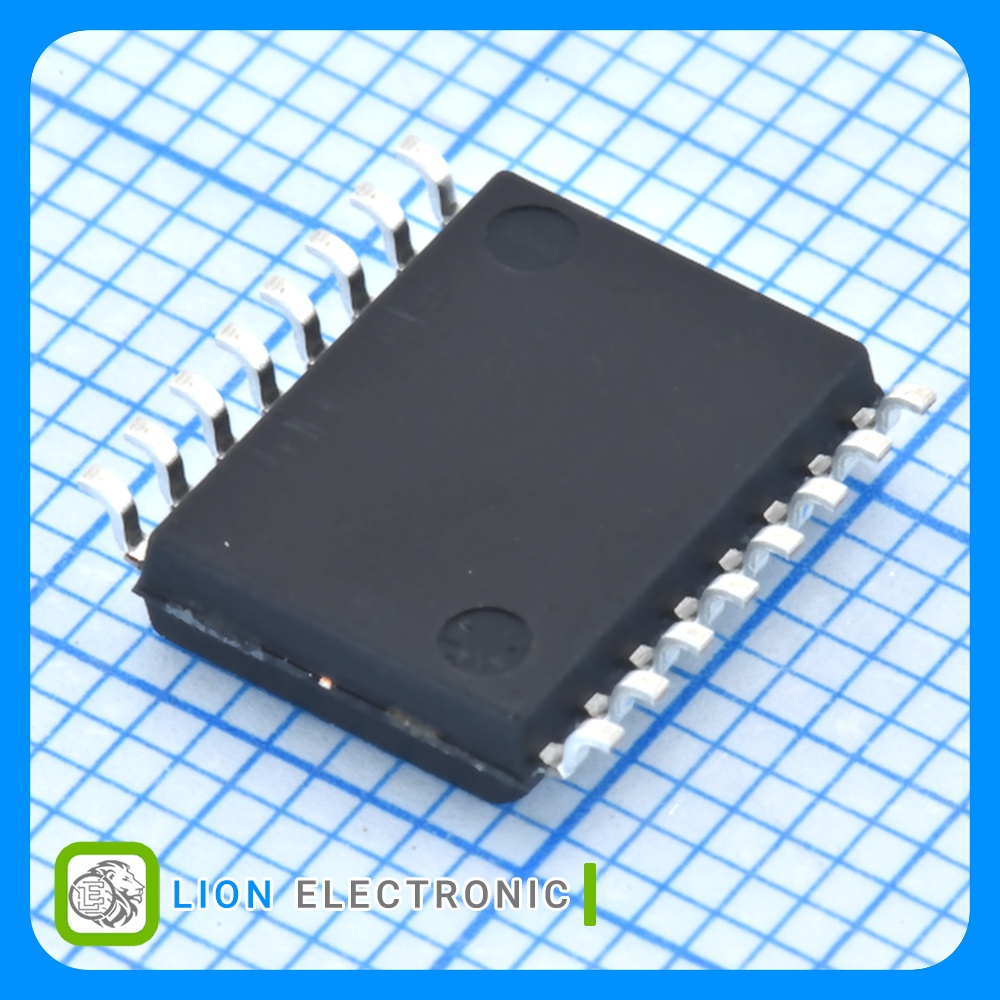

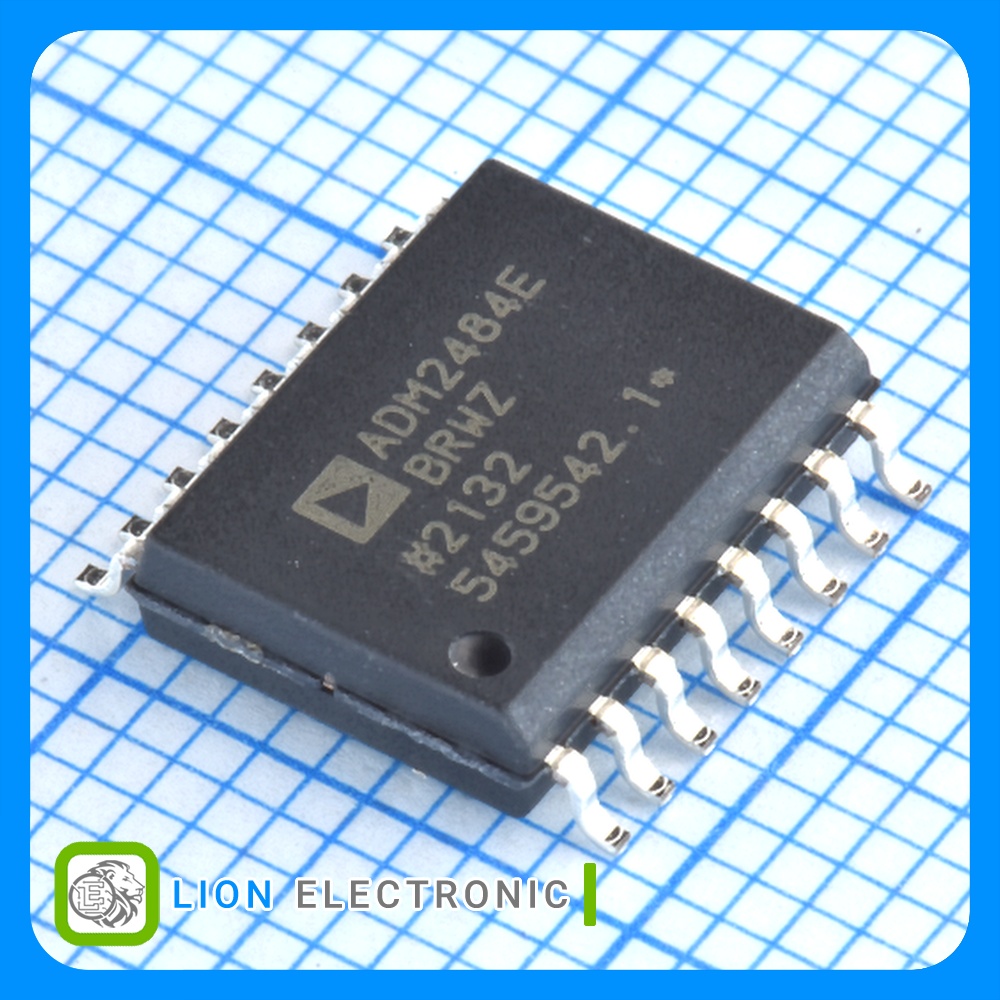

ADM2484EBRWZ
ADM2484EBRWZ
Part Number
2623
Lion Part
Datasheet
Analog Devices Manufacture
مبدل ترنسیور RS-485 , RS-422 ایزوله 500kb/s تمام/نیمهدوطرفه با تغذیه 3 تا 5.5 ولت و ولتاژ ایزولاسیون 5000 ولت و تحمل ESD تا 15 کیلوولت با پکیج SOIC-16
5kV Signal Isolated, ESD Protected, Thermal & short-circuit protection, EMI-sensitive, 500kbps, Full/Half Duplex RS-485/RS-422 Isolated Transceiver, 3V to 5.5V with SOIC-16 Package
معرفی
مبدل ترنسیور RS-485 , RS-422 ایزوله 500kb/s تمام/نیمهدوطرفه با تغذیه 3 تا 5.5 ولت و ولتاژ ایزولاسیون 5000 ولت و تحمل ESD تا 15 کیلوولت با پکیج SOIC-16
5kV Signal Isolated, ESD Protected, Thermal & short-circuit protection, EMI-sensitive, 500kbps, Full/Half Duplex RS-485/RS-422 Isolated Transceiver, 3V to 5.5V with SOIC-16 Package
Specifications
- Product Type: Isolated RS-485 Interface IC
- Number of Drivers: 1
- Number of Receivers: 1
- Data Rate: 500kb/s
- Duplex: Full/Half Duplex
- Function: Transceiver
- Supply Voltage - Min: 3V
- Supply Voltage - Max: 5.5V
- Operating Supply Current: 2mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات ADM2484EBRWZ
ADM2484EBRWZ
Part Number
1
Number of Drivers
1
Number of Receivers
Full/Half Duplex
Duplex
Galvanic Isolation
Isolation Type
3
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
Unidirectional
Polarity
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
Transceiver
Function
5kVrms
Isolation Voltage
500kb/s
Data Rate
5.5V
Supply Voltage - Max
700ns
Propagation Delay Time
3V
Supply Voltage - Min
Isolated RS-485 Interface IC
Product Type
2mA
Operating Supply Current
SOIC-16
Package-Case
