Fenghua
معرفی
سلف 22 نانوهانری با حداکثر جریان اشباع 300 میلیآمپر و مقاومت DC 600 میلیاهم سایز 0603

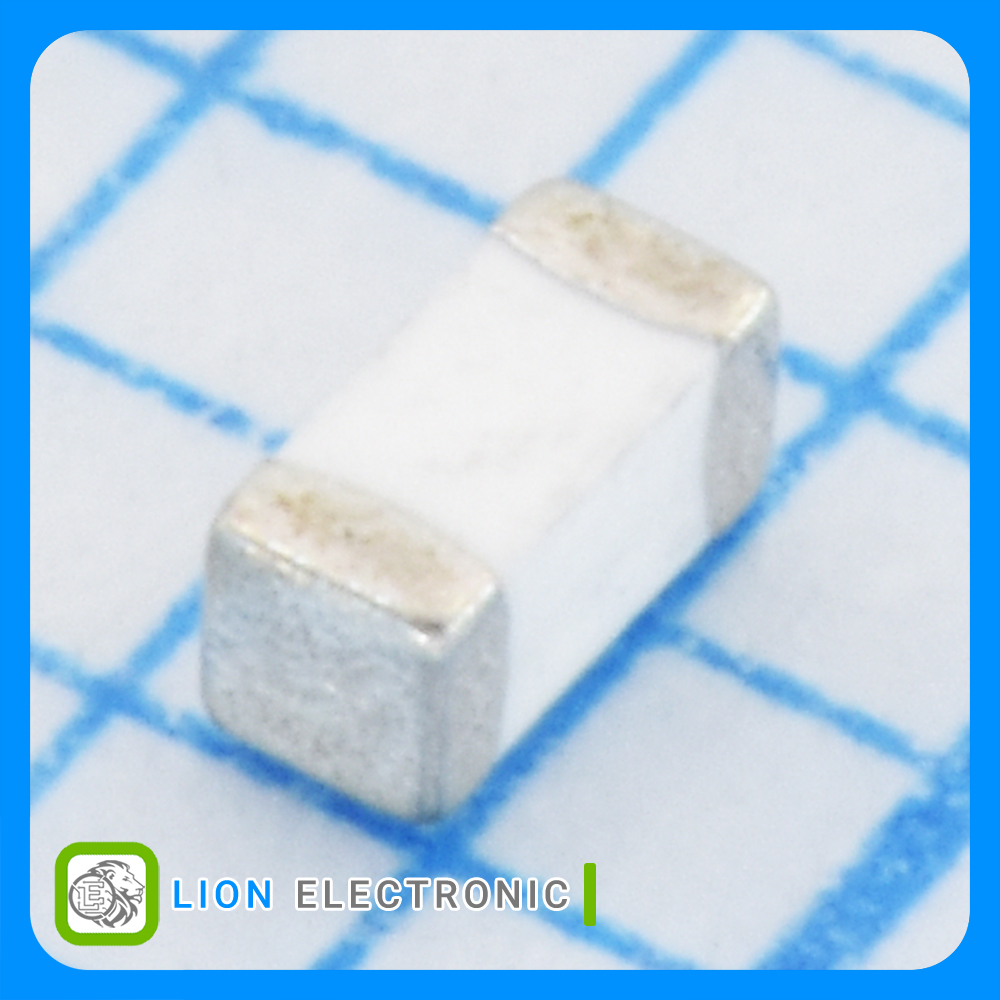

Inductor 22nH, 300mA with 600mΩ and 0603 Package
Specifications
- Shielding: Unshielded
- Inductance: 22nH
- Saturation Current: 300mA
- Maximum DC Resistance: 600mΩ
- Termination style: SMD/SMT
- Package/Case: 0603(1608 metric)
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات سلف VHF160808H22NJT
سلف VHF160808H22NJT
Part Number
22nH
Inductance
Unshielded
Shielding
SMD/SMT
Termination style
Reel
Packaging
-40C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
300mA
Saturation Current
0603(1608 metric)
Package-Case
600mΩ
Maximum DC Resistance
