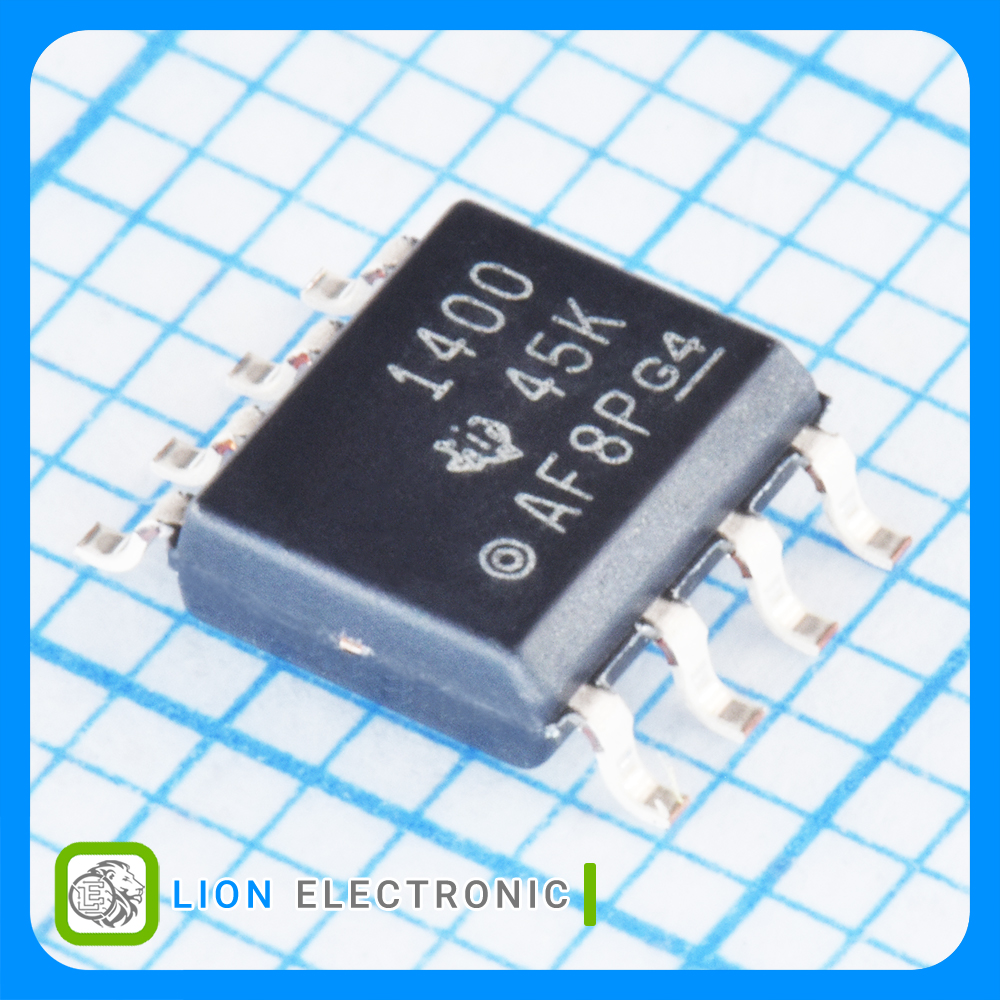

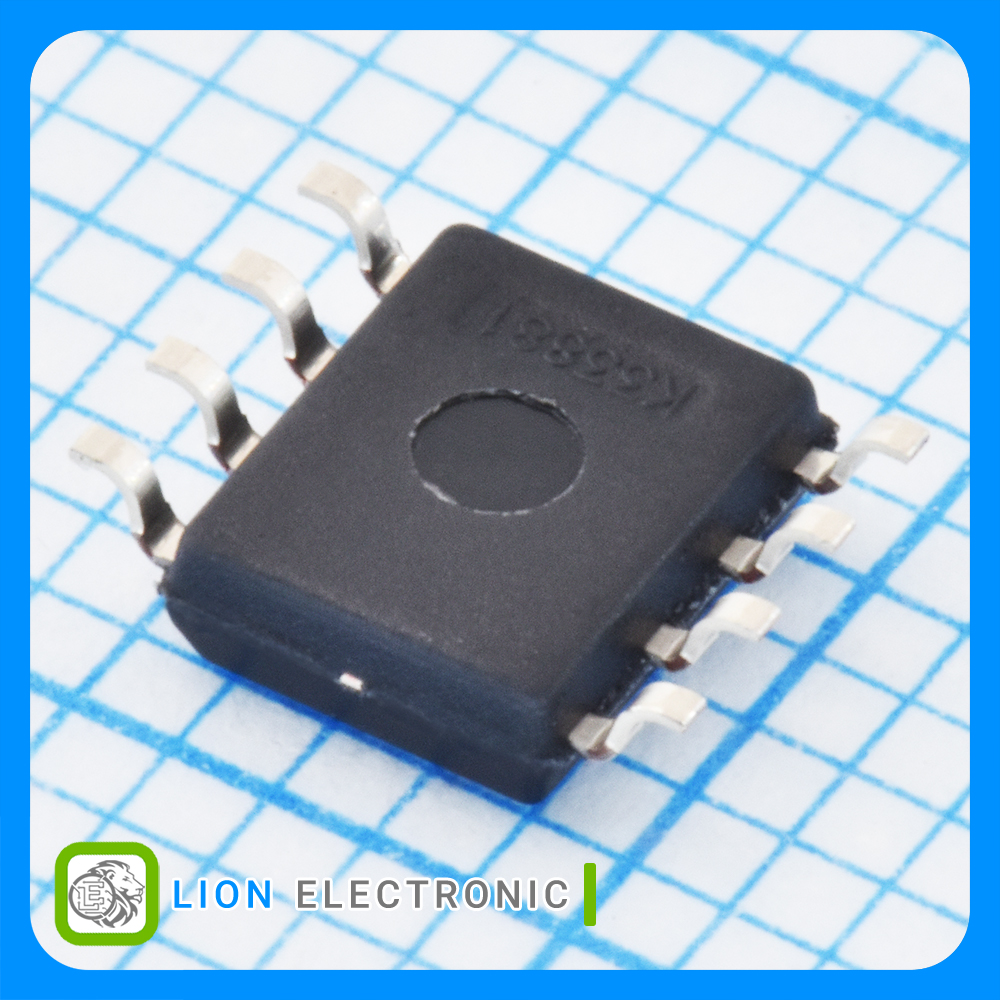

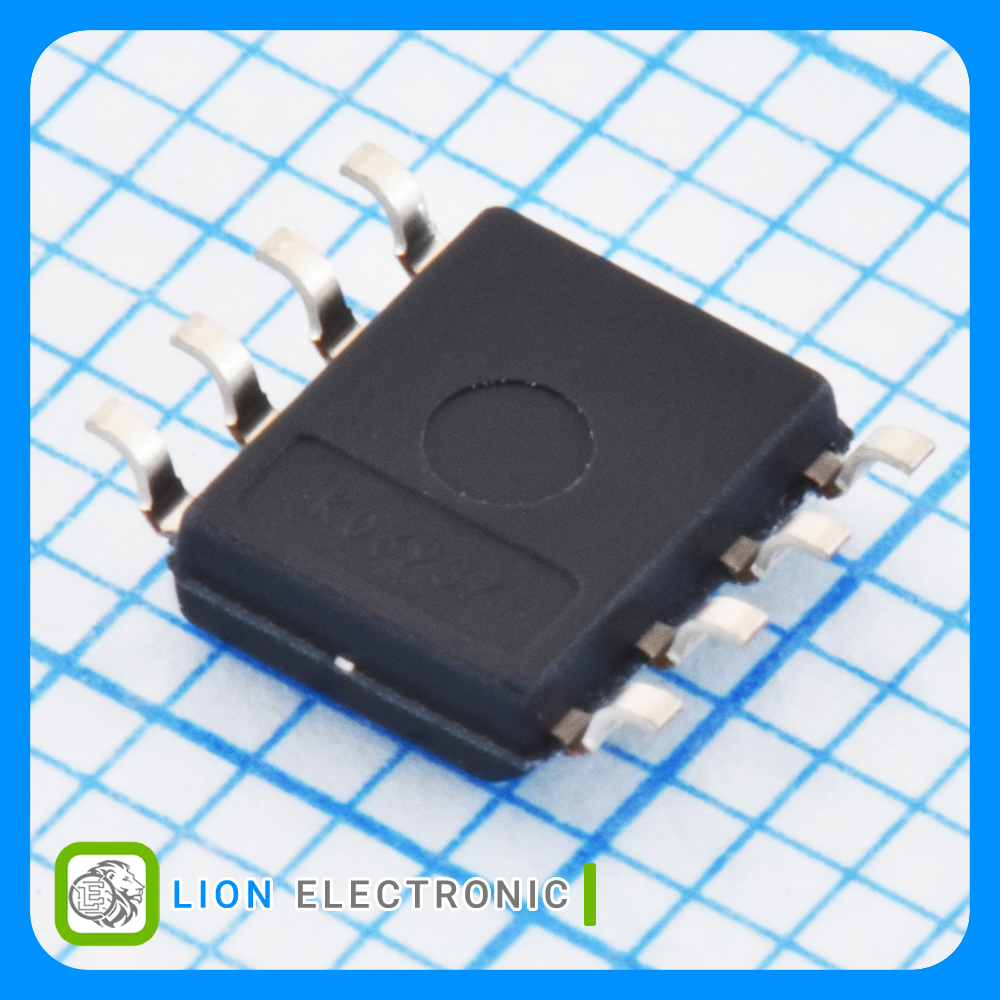

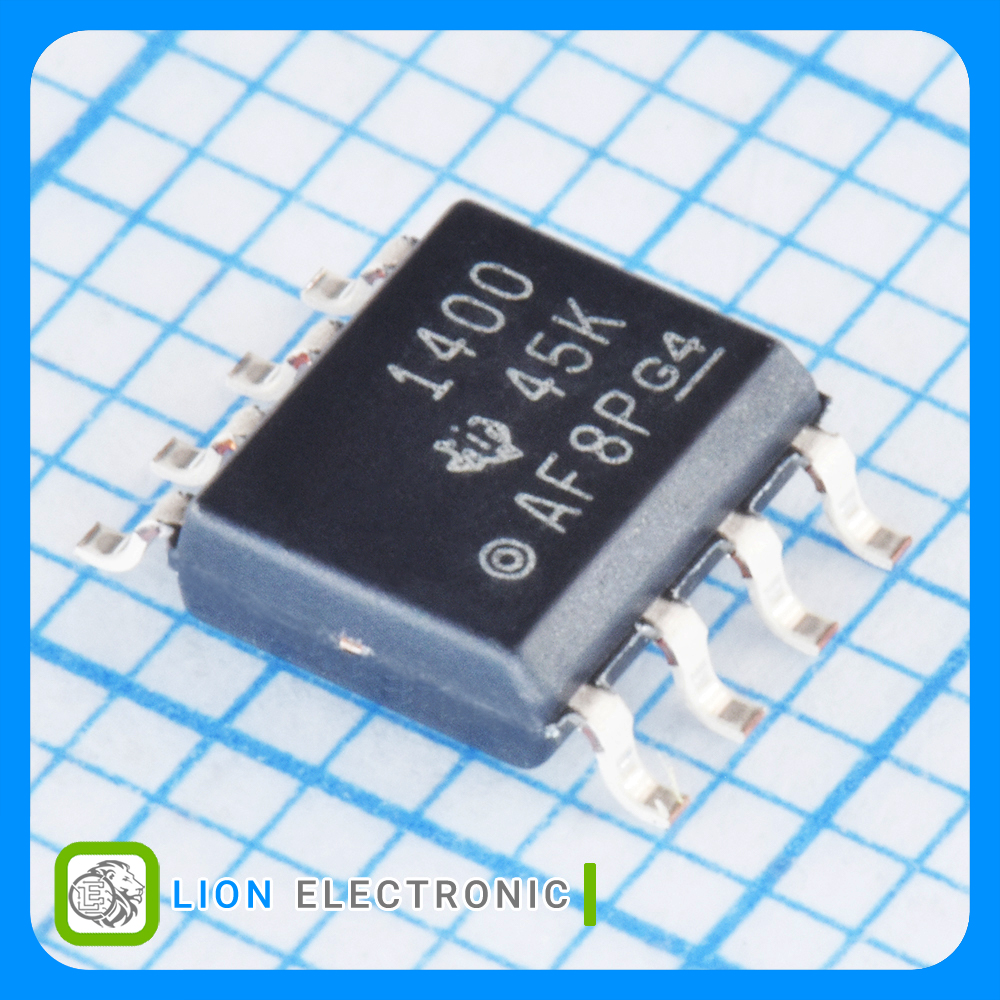

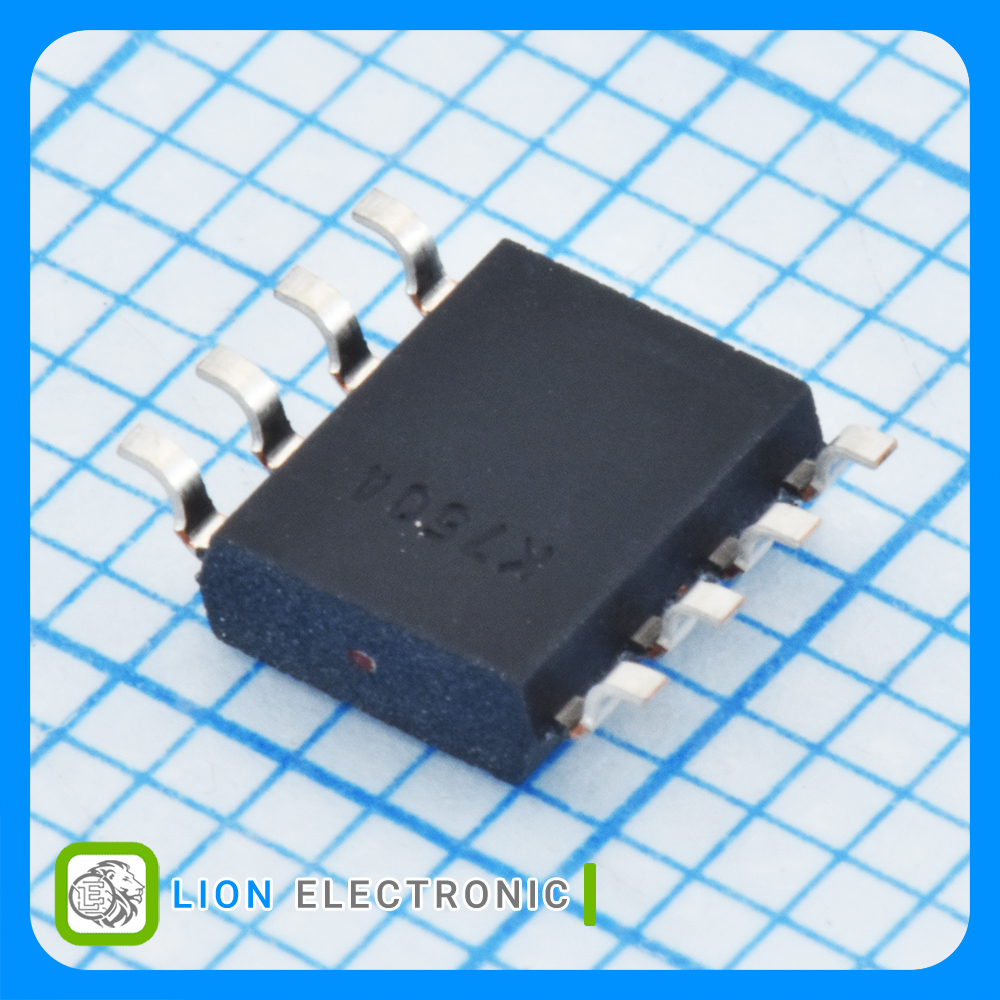

THVD1400DR
THVD1400DR
Part Number
3031
Lion Part
Datasheet
Texas Instruments Manufacture
ترنسیور RS-422/RS-485 500kb/s نیمه‌دوطرفه با تغذیه 3 تا 5.5 ولت، برآورده‌کننده یا فراتر از الزامات استاندارد TIA/EIA-485A با محافظت ESD +/با ولتاژ -8 کیلوولت با پکیج SOIC-8
RS-422/RS-485 Transceiver 500kb/s, Half Duplex, 3V to 5.5V, Meets or Exceeds the Requirements of the TIA/EIA-485A Standard with +/-8kV IEC ESD Protection, with SOIC-8 Package
معرفی
ترنسیور RS-422/RS-485 500kb/s نیمه‌دوطرفه با تغذیه 3 تا 5.5 ولت، برآورده‌کننده یا فراتر از الزامات استاندارد TIA/EIA-485A با محافظت ESD +/با ولتاژ -8 کیلوولت با پکیج SOIC-8
RS-422/RS-485 Transceiver 500kb/s, Half Duplex, 3V to 5.5V, Meets or Exceeds the Requirements of the TIA/EIA-485A Standard with +/-8kV IEC ESD Protection, with SOIC-8 Package
Specifications
- Product Type: RS-422/RS-485 Interface IC
- Number of Drivers: 1
- Number of Receivers: 1
- Data Rate: 500kb/s
- Duplex: Half Duplex
- Function: Transceiver
- Supply Voltage - Min: 3V
- Supply Voltage - Max: 5.5V
- Operating Supply Current: 1.7mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آیسی رابط(RS-422/RS-485) THVD1400DR

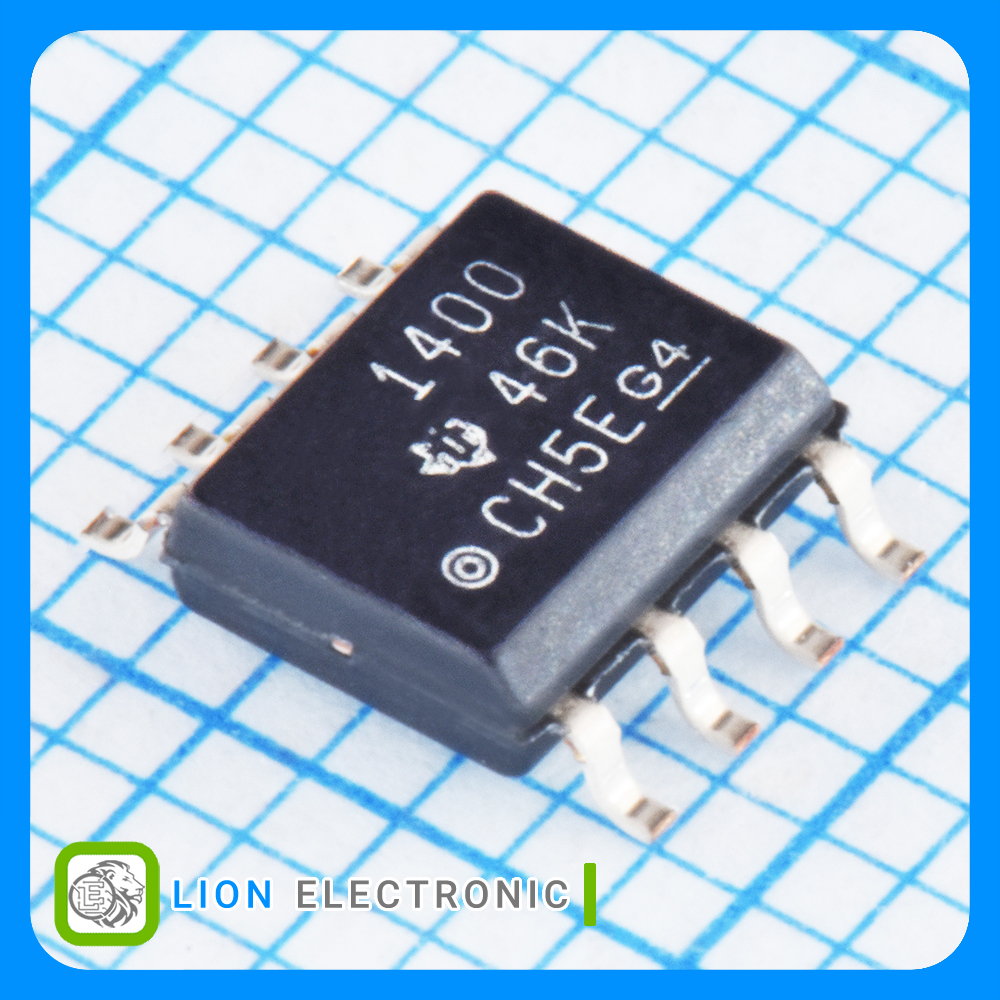

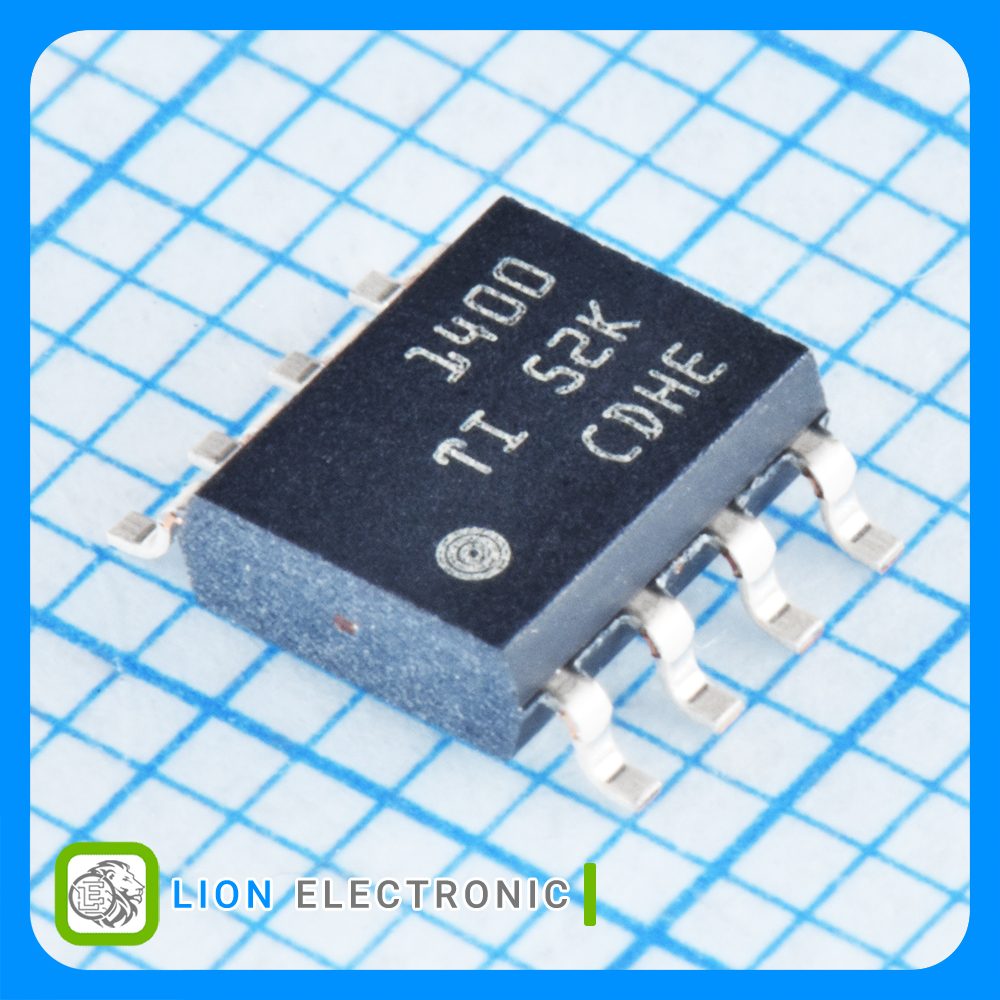

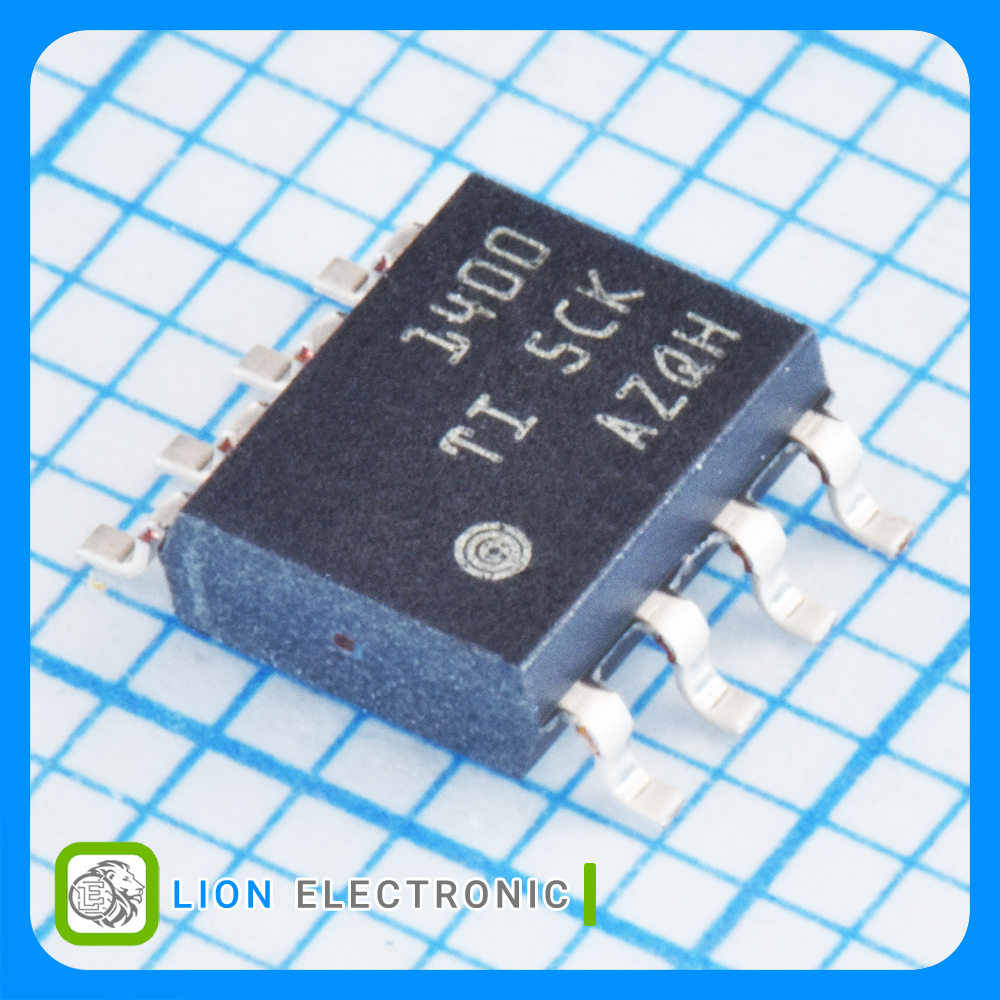

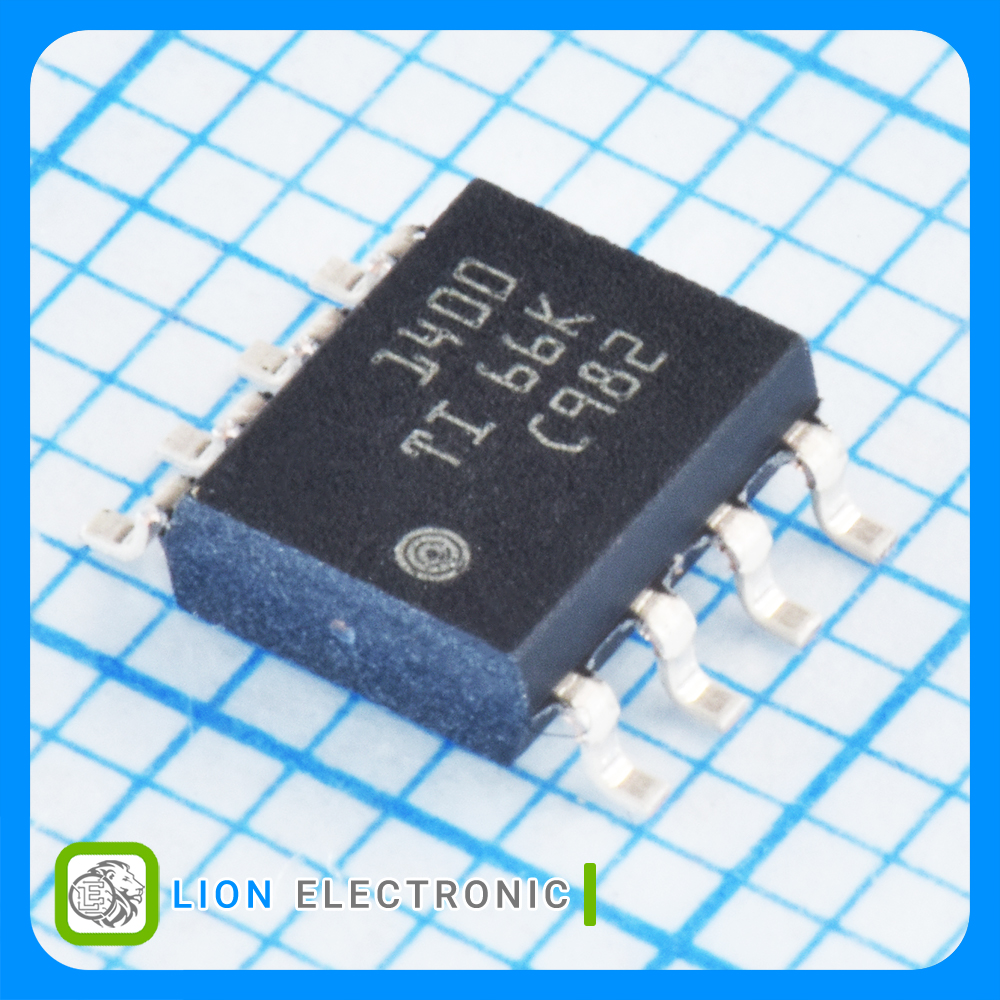

آیسی رابط(RS-422/RS-485) THVD1400DR
Part Number
1
Number of Drivers
1
Number of Receivers
Half Duplex
Duplex
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
Transceiver
Function
500kb/s
Data Rate
+125C
Maximum Operating Temperature
5.5V
Supply Voltage - Max
3V
Supply Voltage - Min
RS-422/RS-485 Interface IC
Product Type
1.7mA
Operating Supply Current
SOIC-8
Package-Case
