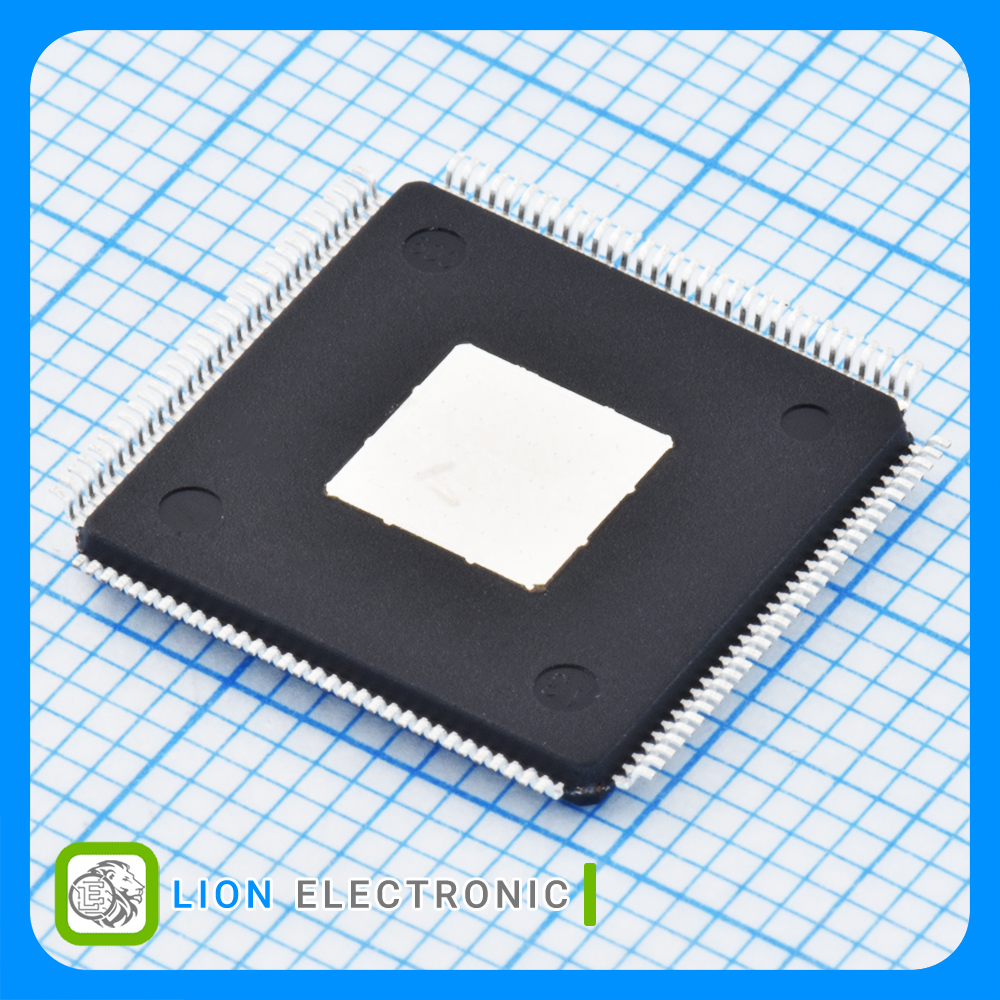

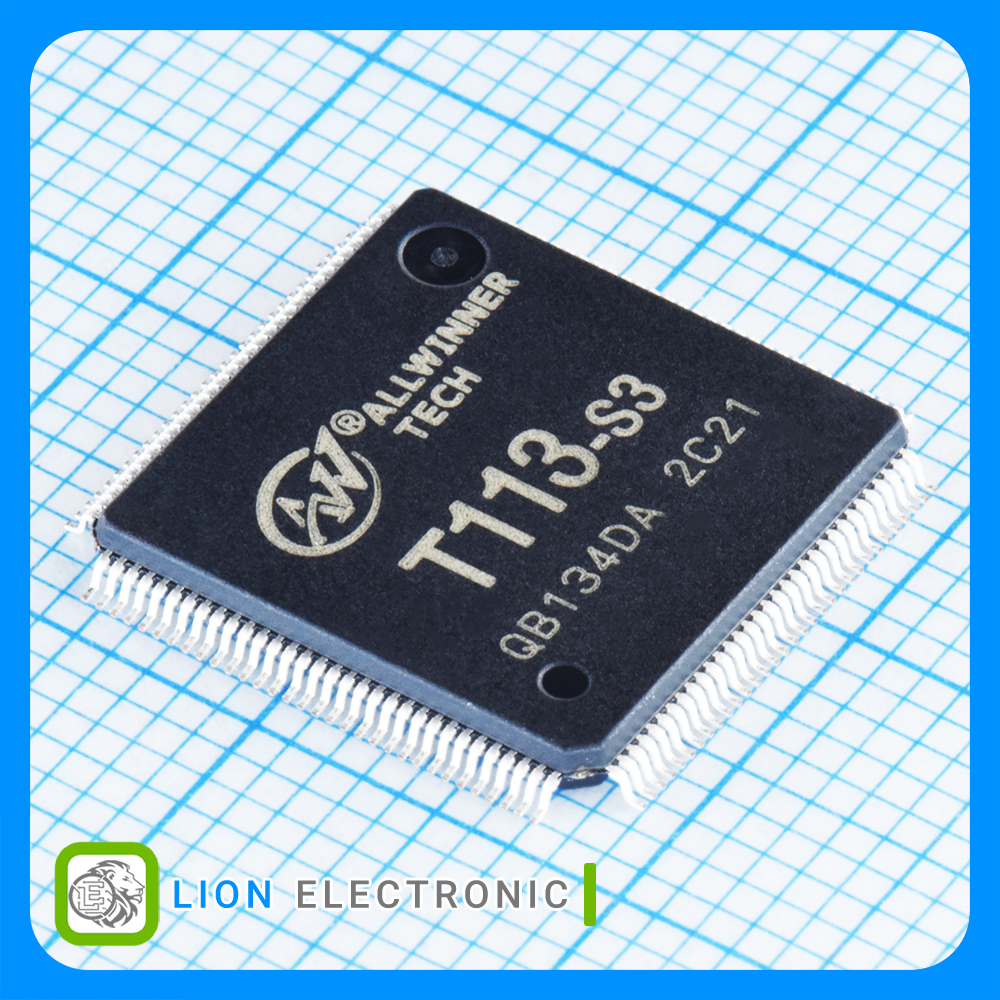

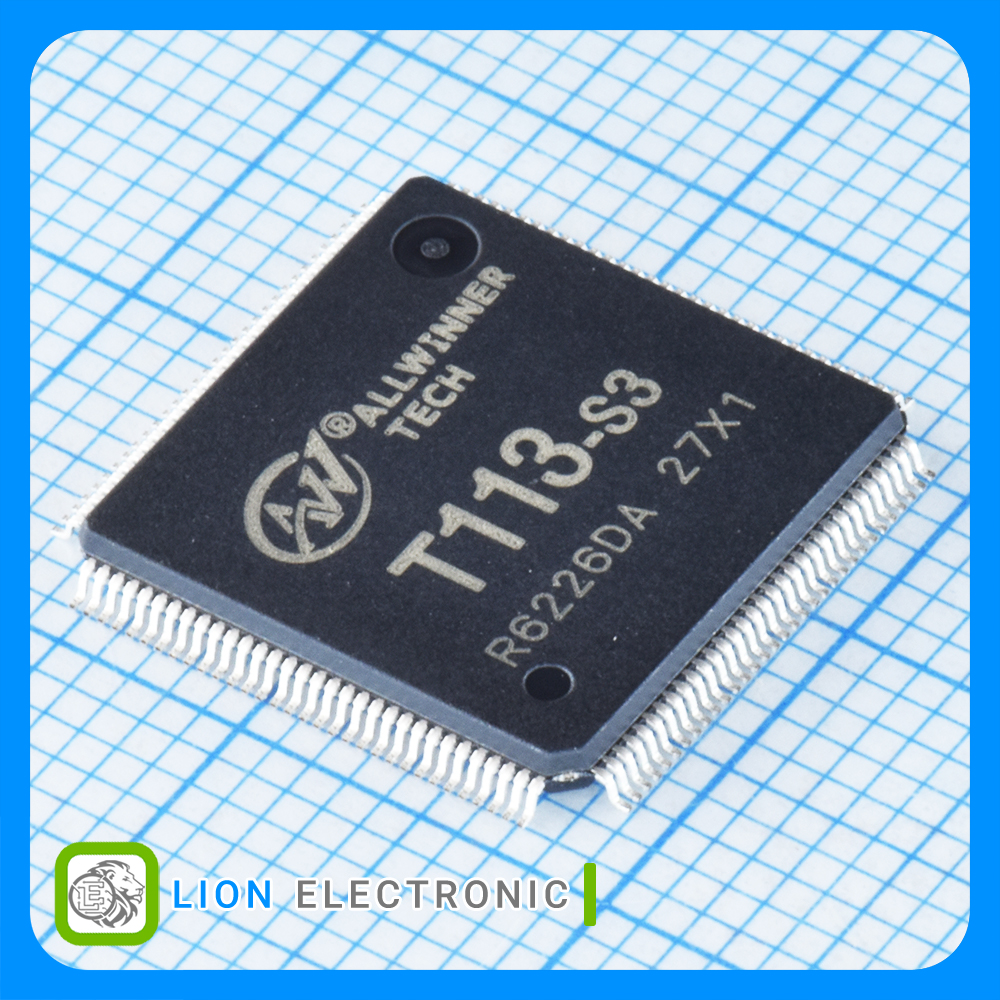

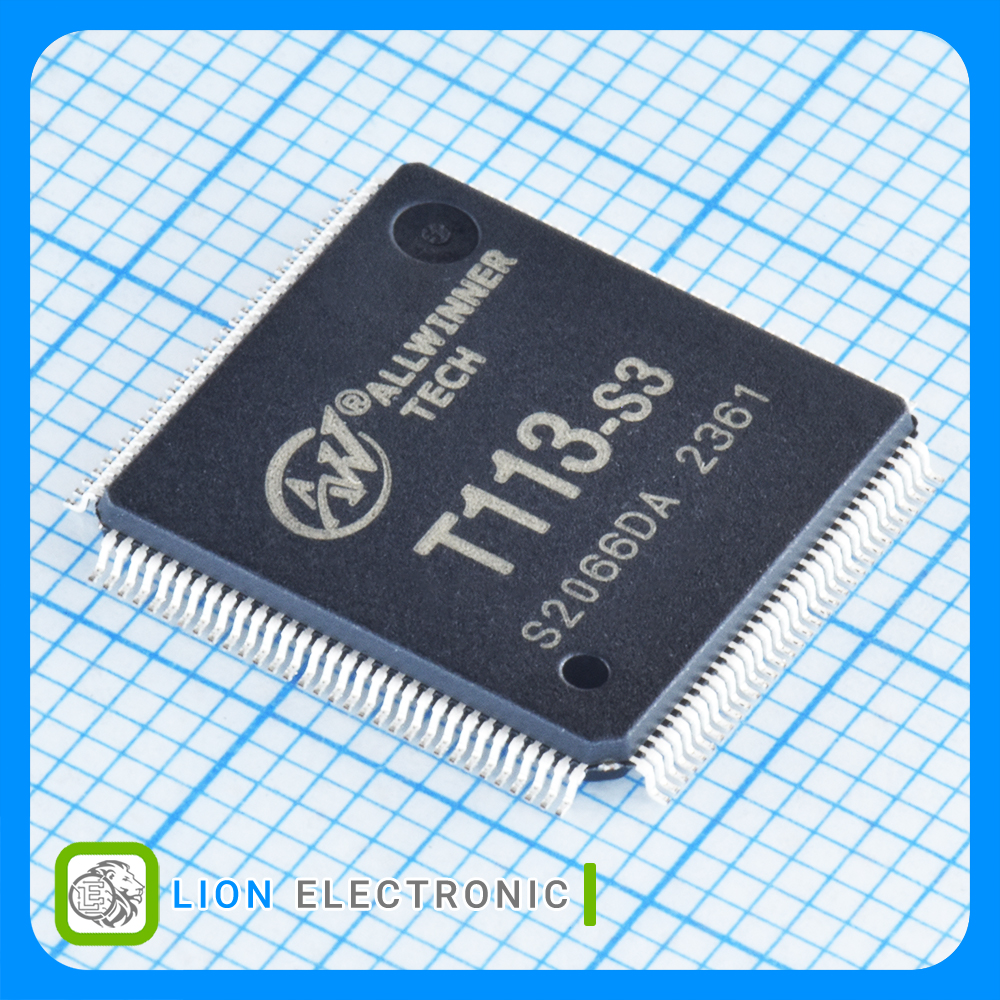

T113-S3
T113-S3
Part Number
3098
Lion Part
Datasheet
Allwinner Tech Manufacture
تراشه SoC با هسته دو هستهای ARM Cortex-A7 + HiFi4 DSP فرکانس 1.2 گیگاهرتز با رم 128 مگابایت DDR3 با پکیج LQFP-128
SoC with Dual-core ARM Cortex-A7 + HiFi4 DSP Core, 1.2GHz with 128MB DDR3 RAM with LQFP-128 Package
معرفی
تراشه SoC با هسته دو هستهای ARM Cortex-A7 + HiFi4 DSP فرکانس 1.2 گیگاهرتز با رم 128 مگابایت DDR3 با پکیج LQFP-128
SoC with Dual-core ARM Cortex-A7 + HiFi4 DSP Core, 1.2GHz with 128MB DDR3 RAM with LQFP-128 Package
Specifications
- Core: Dual-core ARM Cortex-A7 + HiFi4 DSP
- Number of I/Os: 102
- Data RAM Size: 128MB DDR3
- Data Bus Width: 32bit
- Maximum Clock Frequency: 1.2GHz
- Operating Supply Voltage: 5V
- Mounting Style: SMD/SMT
- Package/Case: LQFP-128
- Minimum Operating Temperature: -25C
- Maximum Operating Temperature: +85C
- Packaging: Tray
مشخصات T113-S3
T113-S3
Part Number
32bit
Data Bus Width
Tray
Packaging
SMD/SMT
Mounting Style
-25C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
Dual-core ARM Cortex-A7 + HiFi4 DSP
Core
N/A
Program Memory Size
1.2GHz
Maximum Clock Frequency
128MB DDR3
Data RAM Size
102
Number of I-Os
LQFP-128
Package-Case
5V
Operating Supply Voltage
