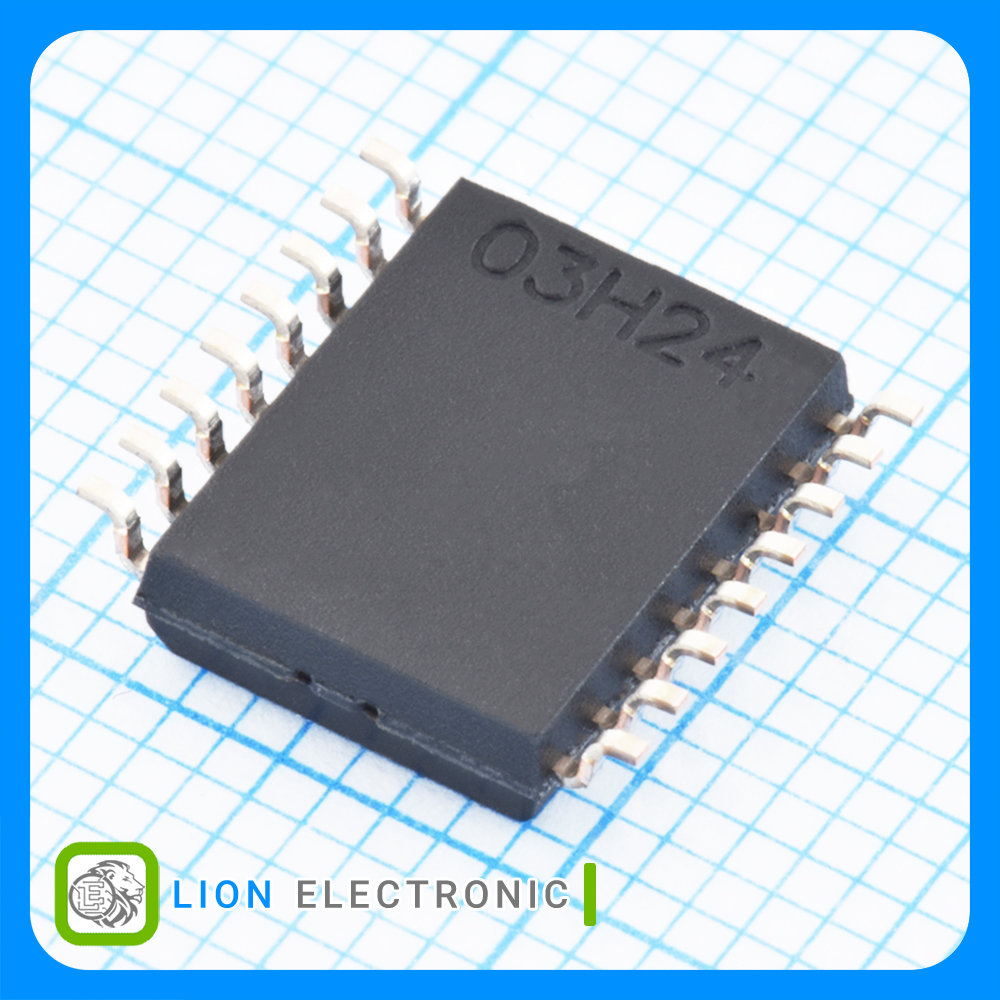

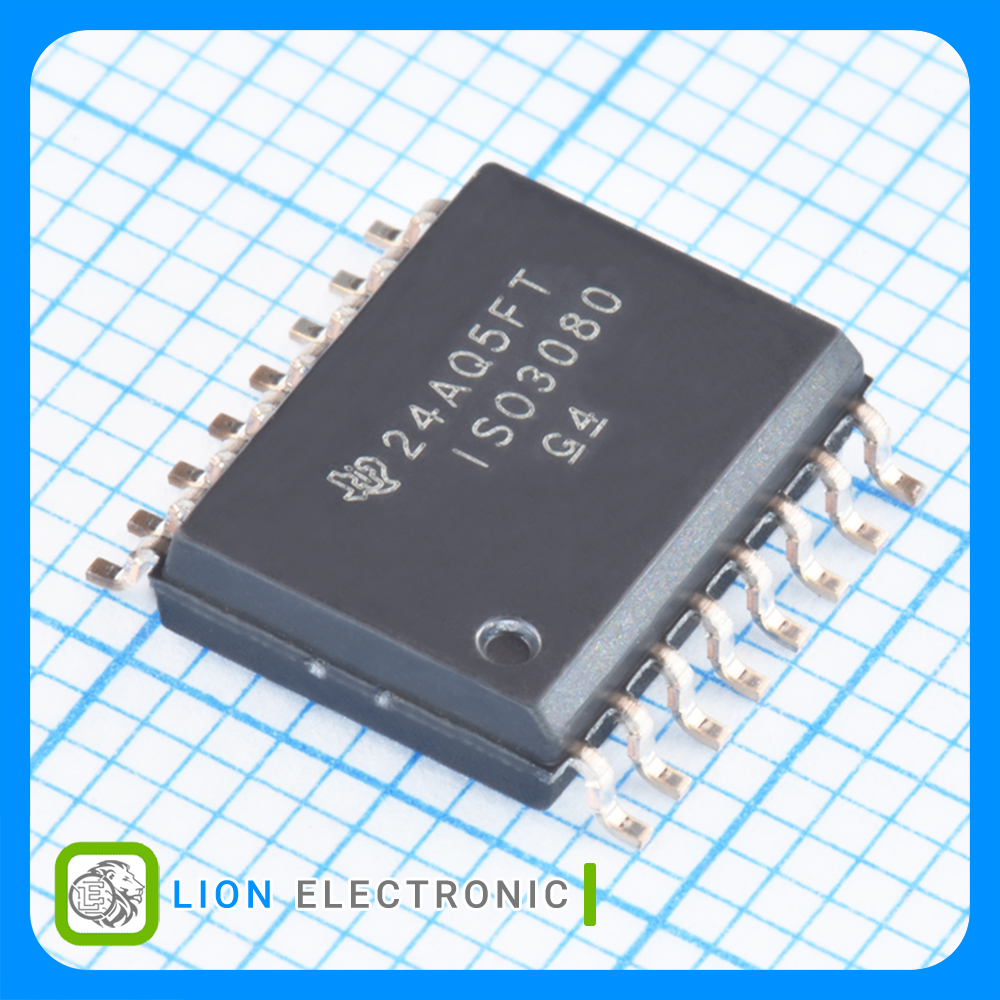

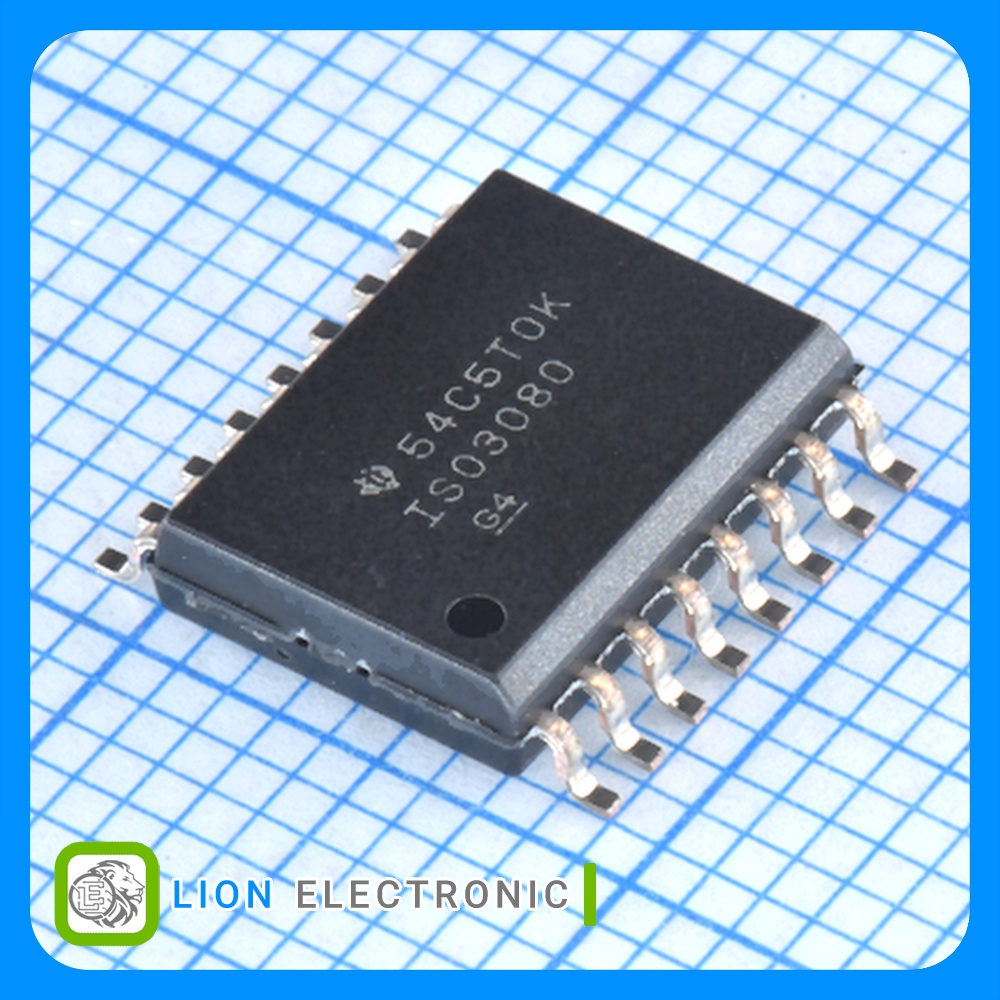

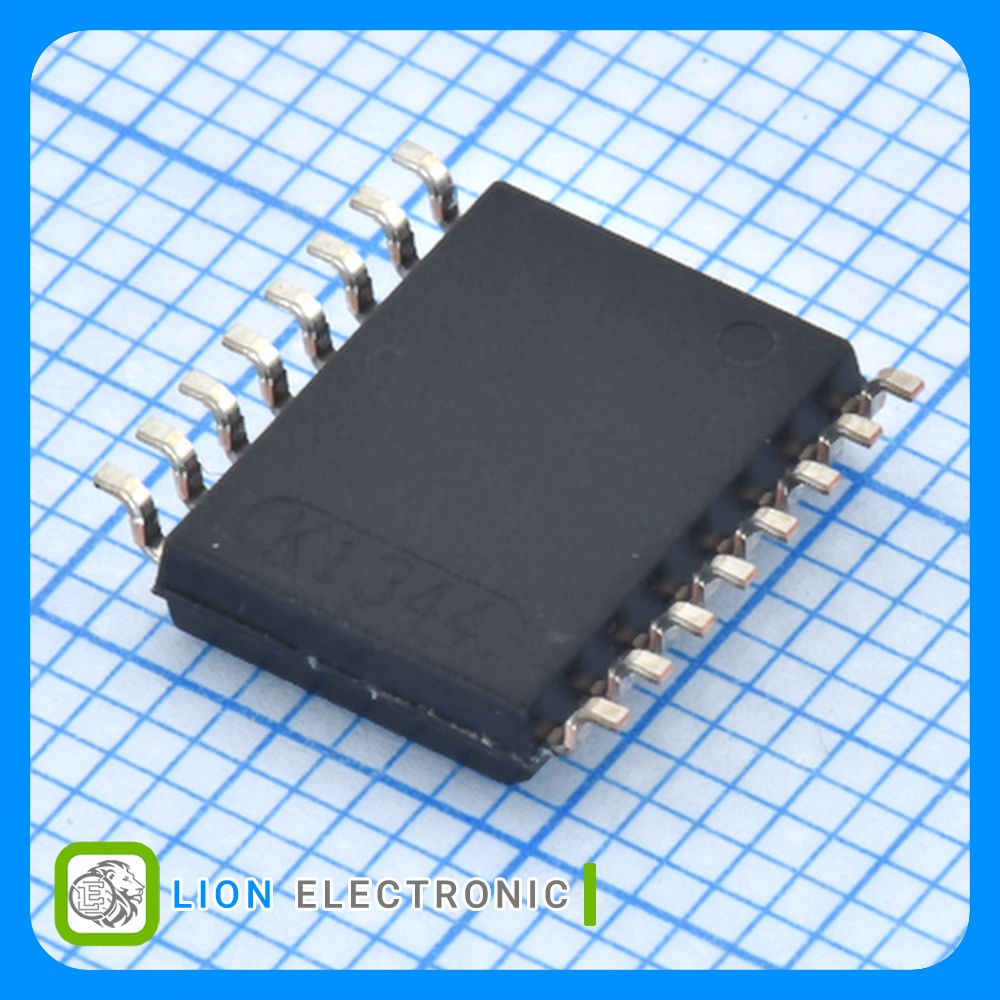

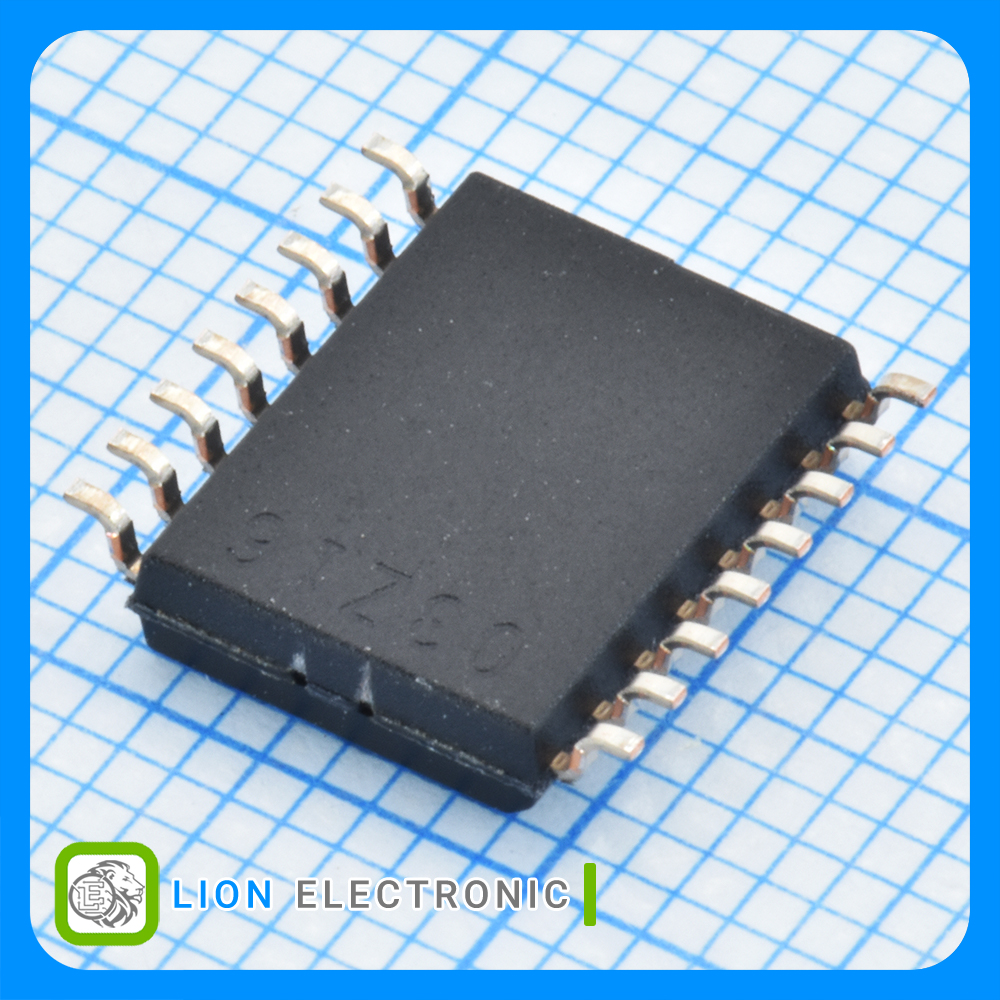

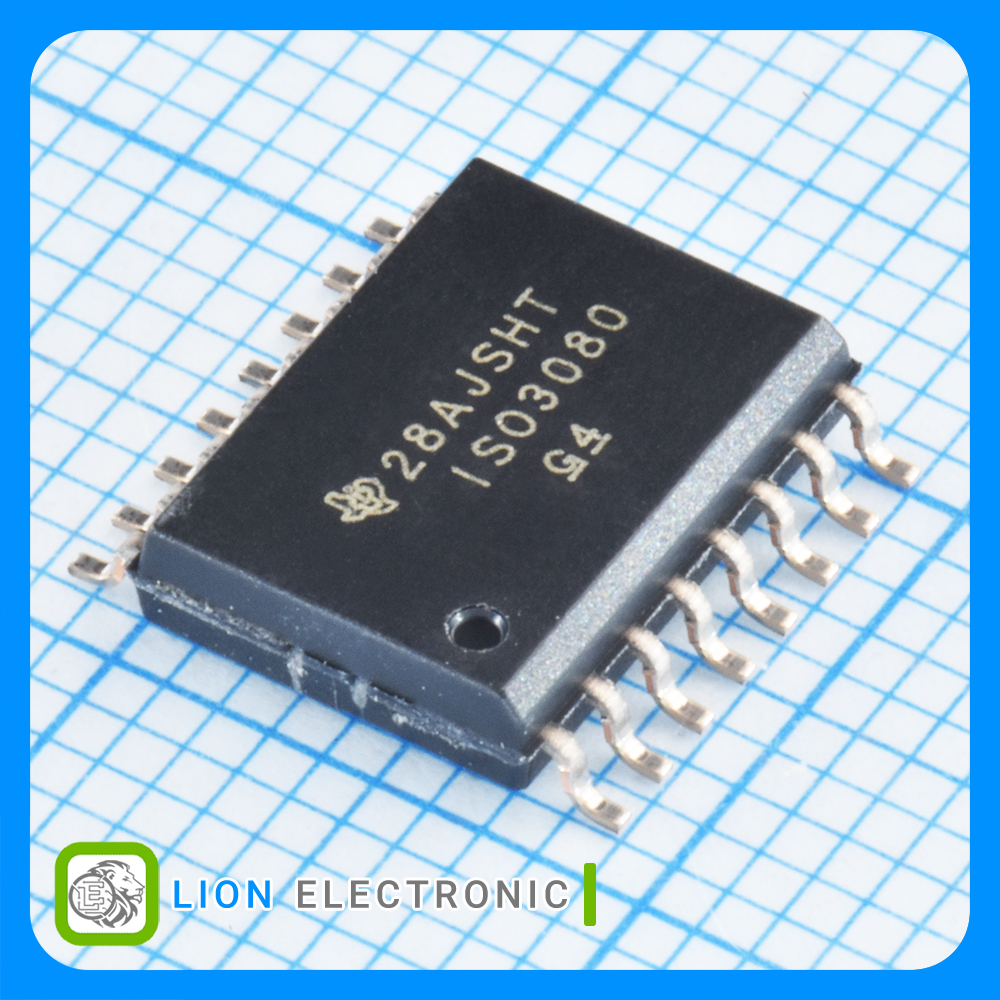

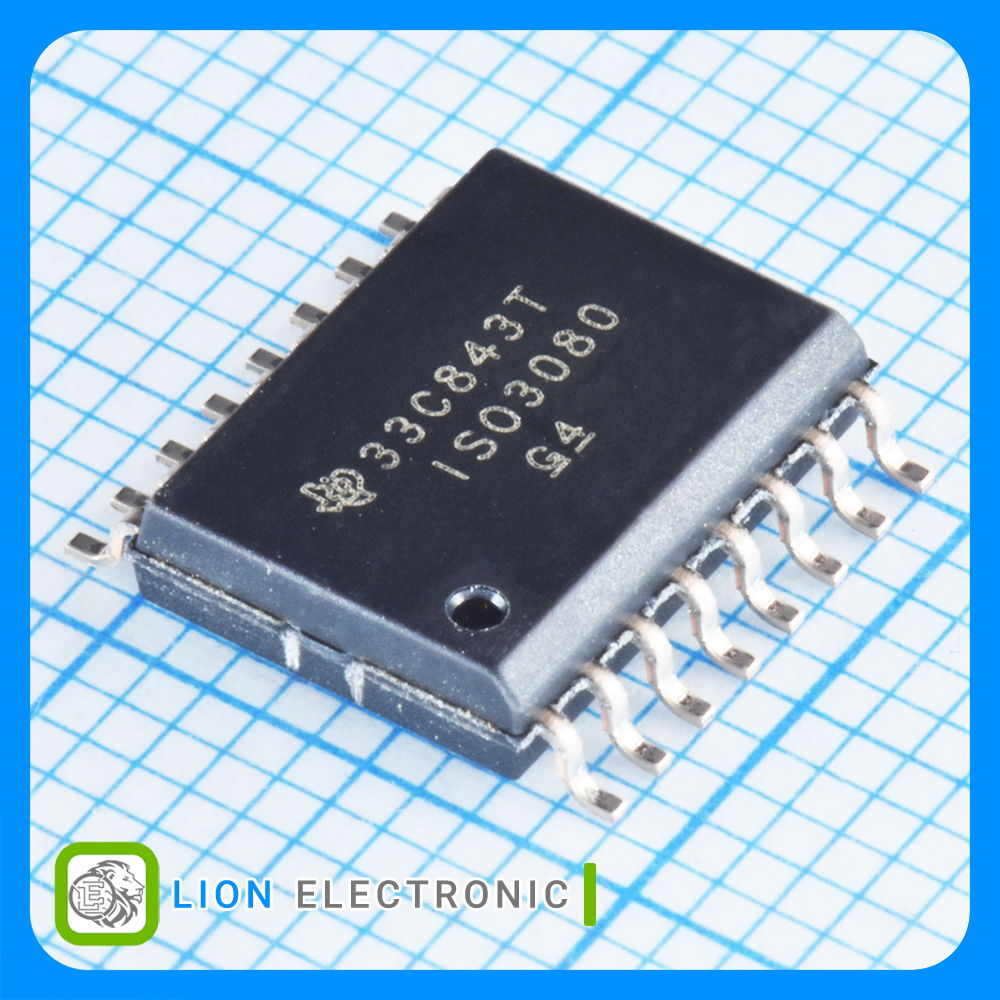

ISO3080DW
ISO3080DW
Part Number
3113
Lion Part
Datasheet
Texas Instruments Manufacture
ترنسیور RS-485 ایزوله فولاسپید با نرخ 200kb/s تمامدوطرفه با تغذیه 3.15 تا 5.5 ولت با پکیج SOIC-16
Isolated Full-Speed RS-485 Transceiver, 200kb/s, Full Duplex, 3.15V to 5.5V with SOIC-16 Package
معرفی
ترنسیور RS-485 ایزوله فولاسپید با نرخ 200kb/s تمامدوطرفه با تغذیه 3.15 تا 5.5 ولت با پکیج SOIC-16
Isolated Full-Speed RS-485 Transceiver, 200kb/s, Full Duplex, 3.15V to 5.5V with SOIC-16 Package
Specifications
- Product Type: Isolated RS-485 Interface IC
- Number of Drivers: 2
- Number of Receivers: 1
- Data Rate: 200kb/s
- Duplex: Full Duplex
- Function: Transceiver
- Supply Voltage - Min: 3.15V
- Supply Voltage - Max: 5.5V
- Operating Supply Current: 15mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات آیسی رابط ایزوله(RS485) ISO3080DW
آیسی رابط ایزوله(RS485) ISO3080DW
Part Number
Full Duplex
Duplex
2
Number of Channels
2
Number of Drivers
1
Number of Receivers
Galvanic Isolation
Isolation Type
2.5kVrms
Isolation Voltage
200kb/s
Data Rate
-40C
Minimum Operating Temperature
Unidirectional
Polarity
Tube
Packaging
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
Transceiver
Function
5.5V
Supply Voltage - Max
700ns
Propagation Delay Time
Isolated RS-485 Interface IC
Product Type
3.15V
Supply Voltage - Min
15mA
Operating Supply Current
SOIC-16
Package-Case
