TDK
معرفی
سلف 1.8 میکروهانری با جریان اشباع 2.22 آمپر و مقاومت DC برابر 28 میلیاهم سایز 5x5x2.8mm

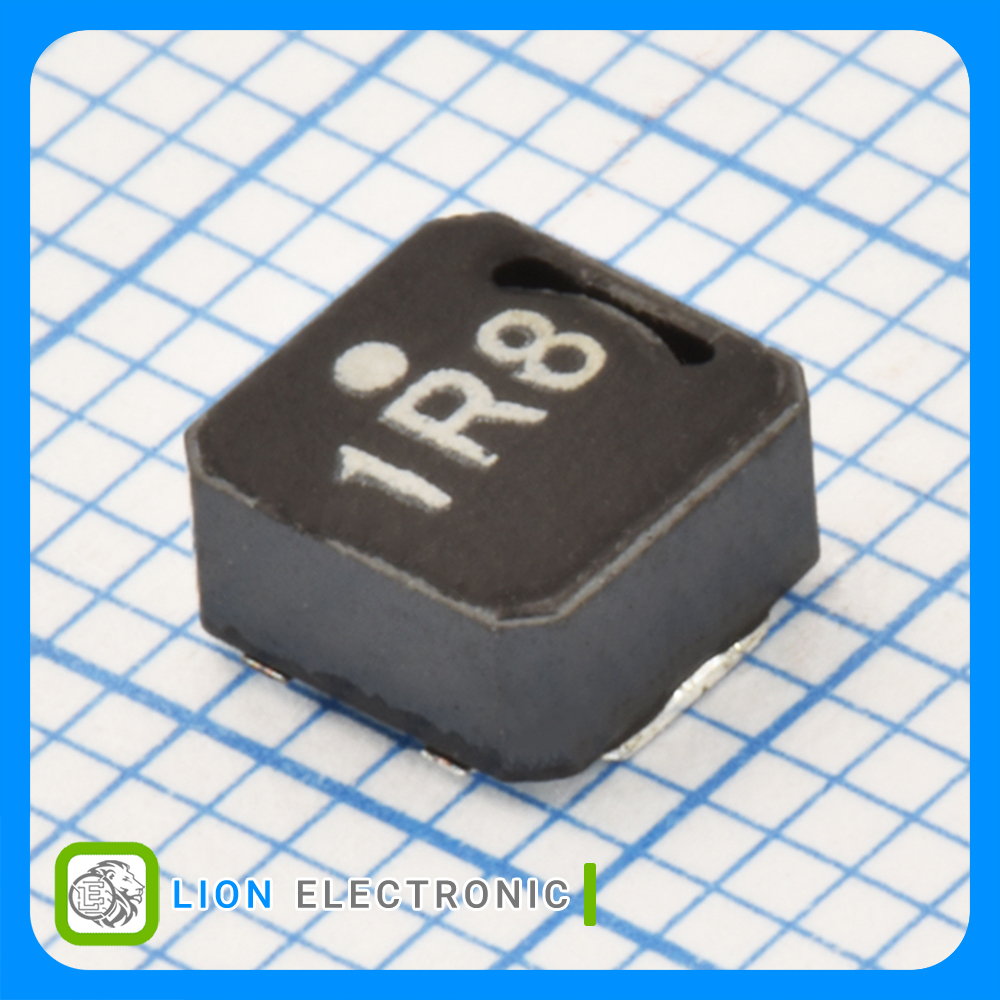

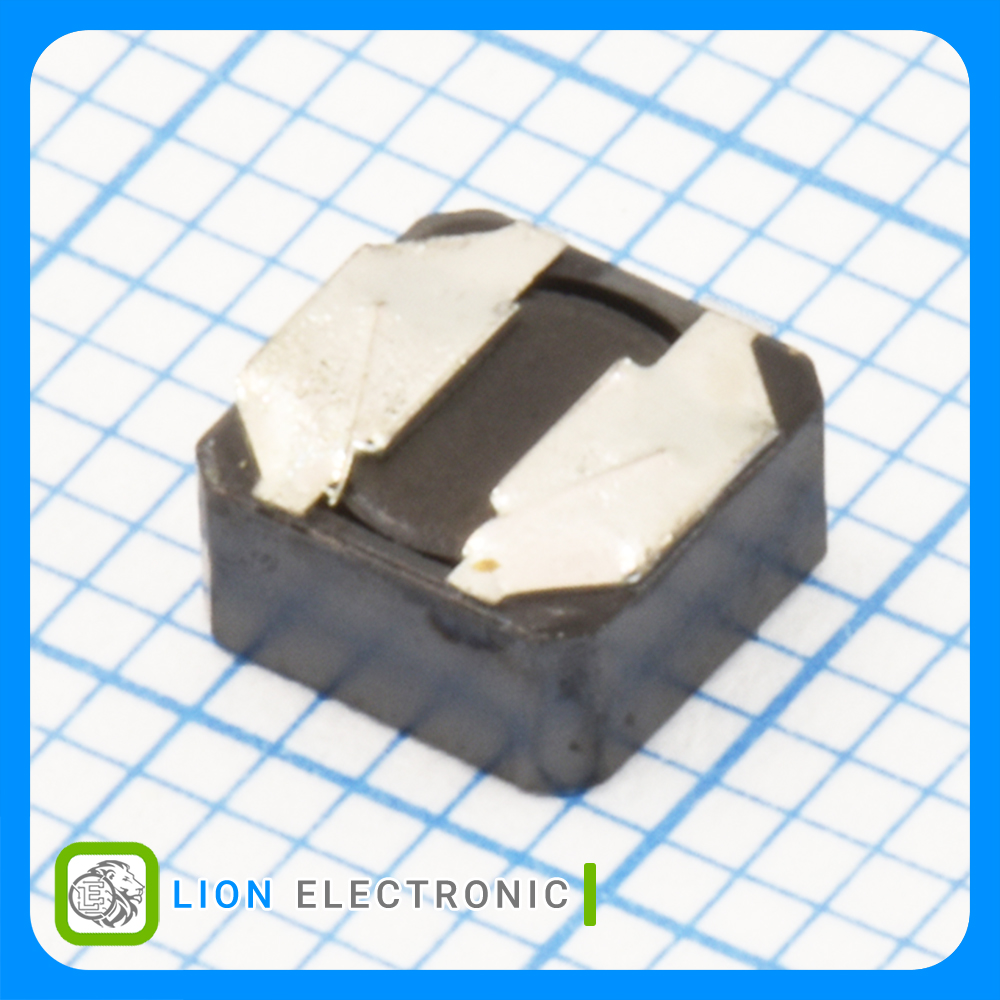

Inductor 1.8uH, 2.22A with 28mΩ and 5 x 5 x 2.8mm Package
Specifications
- Shielding: Shielded
- Inductance: 1.8uH
- Saturation Current: 2.22A
- Maximum DC Resistance: 28mΩ
- Termination style: SMD/SMT
- Package/Case: 5 x 5 x 2.8mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات سلف VLCF5028T-1R8N2R2-2

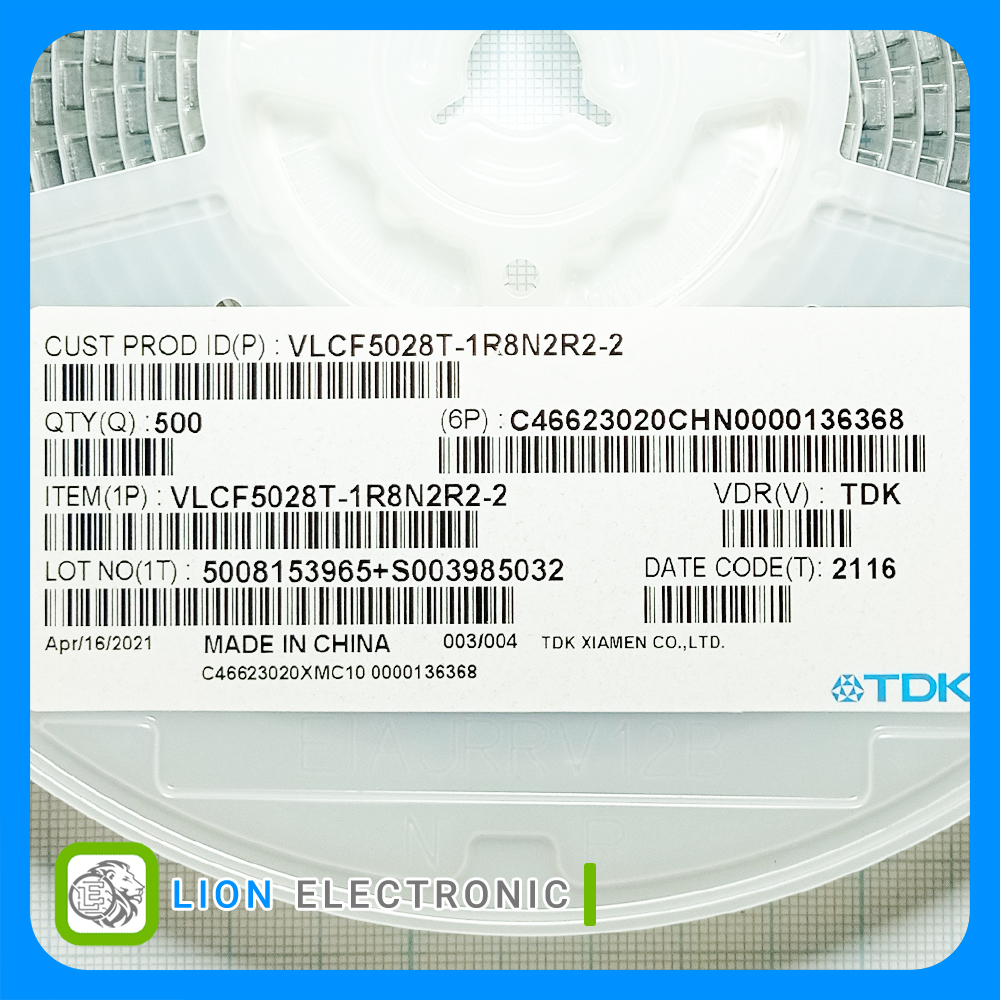

سلف VLCF5028T-1R8N2R2-2
Part Number
Shielded
Shielding
SMD/SMT
Termination style
Reel
Packaging
-40C
Minimum Operating Temperature
5 x 5 x 2.8mm
Package-Case
+105C
Maximum Operating Temperature
1.8uH
Inductance
28mΩ
Maximum DC Resistance
2.22A
Saturation Current
