TDK
معرفی

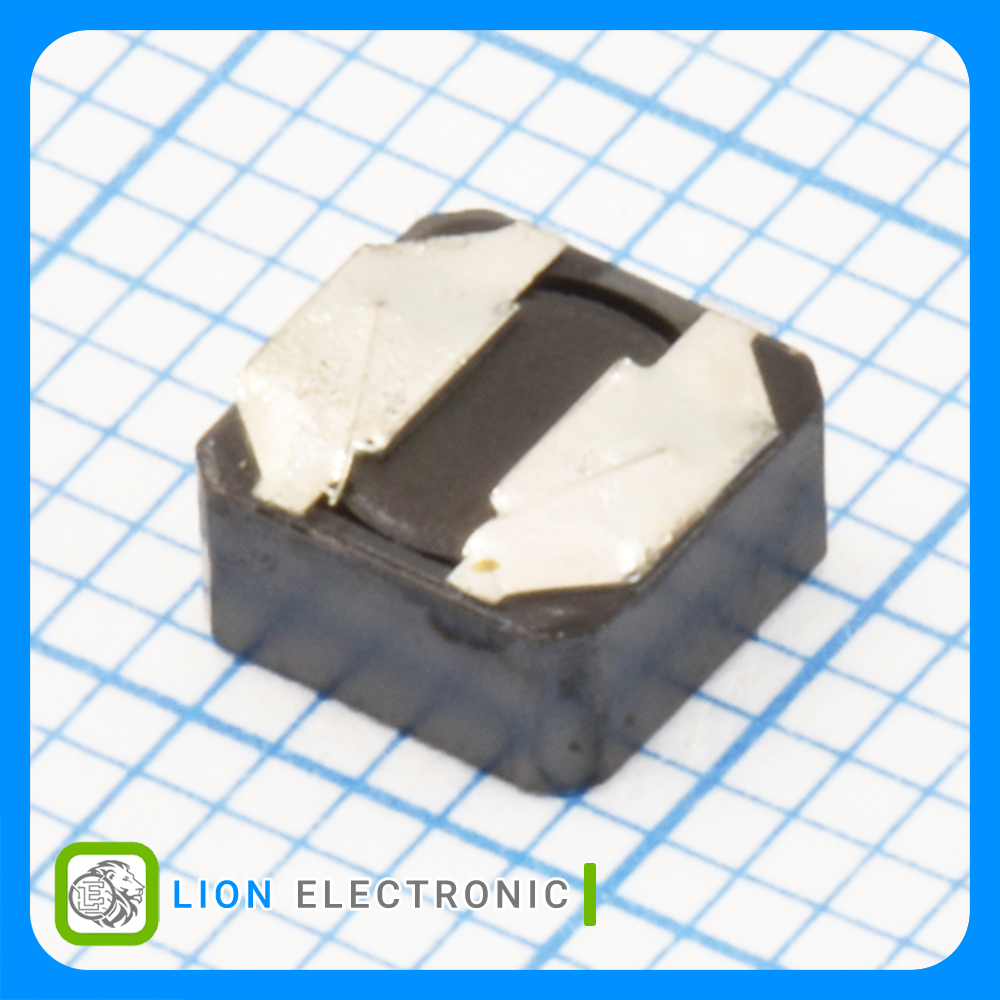

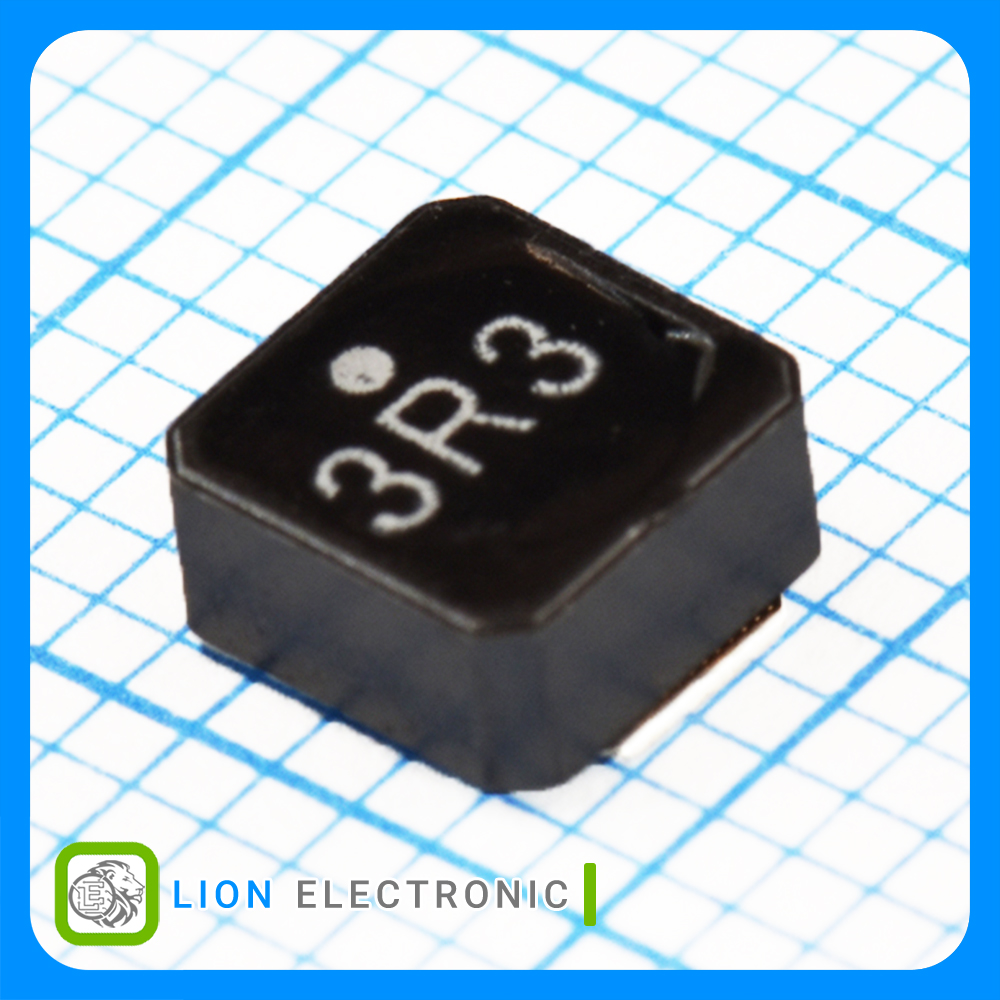

سلف 3.3 میکروهانری با جریان اشباع 1.74 آمپر و مقاومت DC 37 میلیاهم سایز 5 x 5 x 2.8mm
Inductor 3.3uH, 1.74A with 37mΩ and 5 x 5 x 2.8mm Package
Specifications
- Shielding: Shielded
- Inductance: 3.3uH
- Saturation Current: 1.74A
- Maximum DC Resistance: 37mΩ
- Termination style: SMD/SMT
- Package/Case: 5 x 5 x 2.8mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات سلف VLCF5028T-3R3N1R7-2

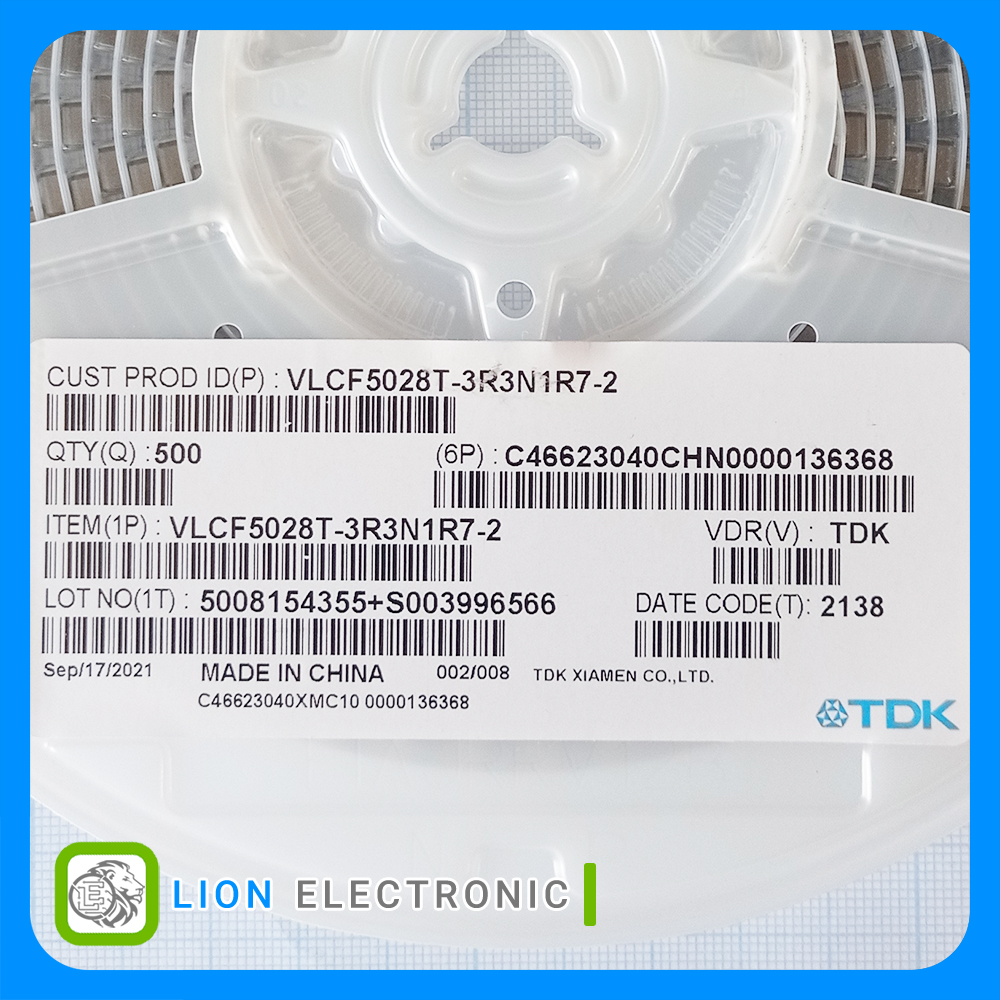

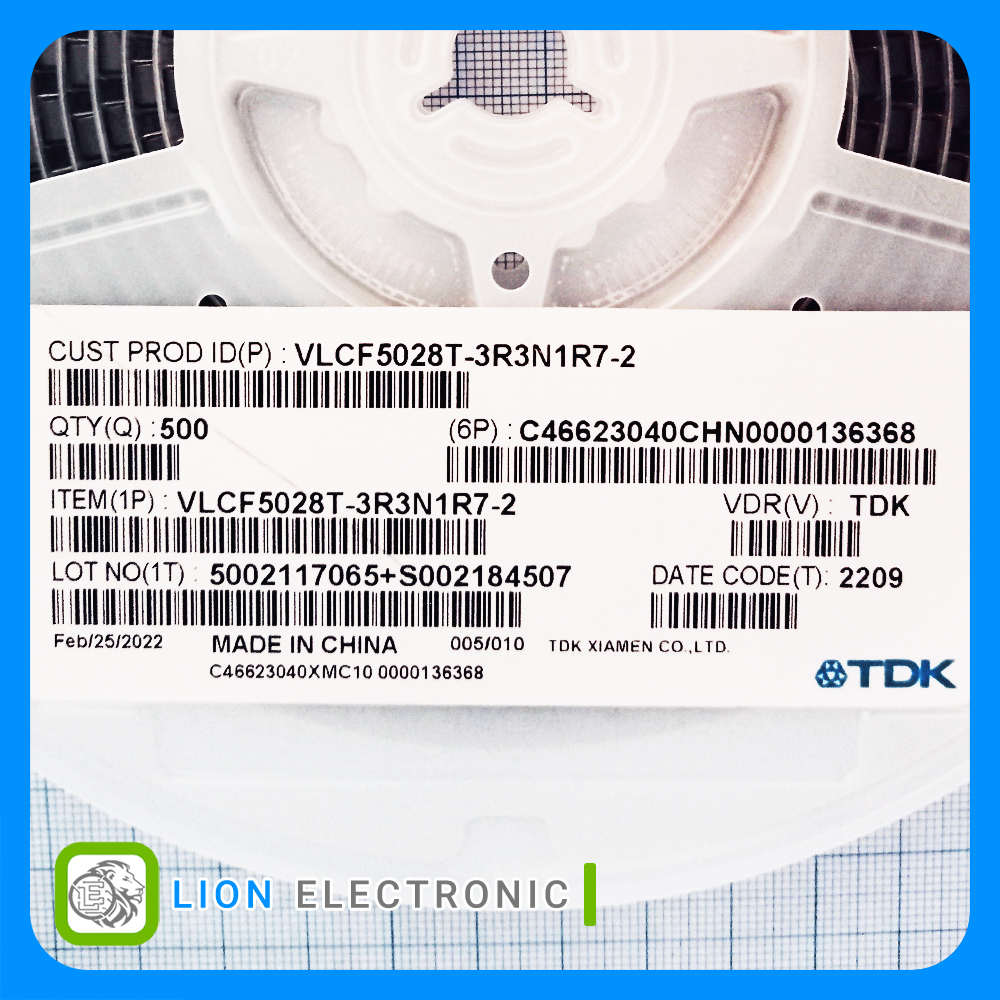

سلف VLCF5028T-3R3N1R7-2
Part Number
Shielded
Shielding
SMD/SMT
Termination style
Reel
Packaging
-40C
Minimum Operating Temperature
5 x 5 x 2.8mm
Package-Case
+105C
Maximum Operating Temperature
3.3uH
Inductance
37mΩ
Maximum DC Resistance
1.74A
Saturation Current
