TDK
معرفی
خازن ایمنی X2 با ظرفیت 100 نانوفاراد ولتاژ AC برابر 310 ولت، ولتاژ 305 ولت تلرانس 20% فاصله پایه 10 میلیمتر
Safety Capacitor X2 100nF, 310VAC, 305V with 20% Tolerance, 10mm Lead Spacing
Specifications
- Safety Rating: X2
- Capacitance: 100nF
- Voltage Rating AC: 310VAC
- Voltage Rating DC: 630VDC
- Dielectric: Polypropylene(PP)
- Tolerance: 20%
- Termination style: Through Hole
- Lead Spacing: 10mm
- Lead Style: Straight
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +110C
- Packaging: Bulk
مشخصات خازن B32921C3104M000

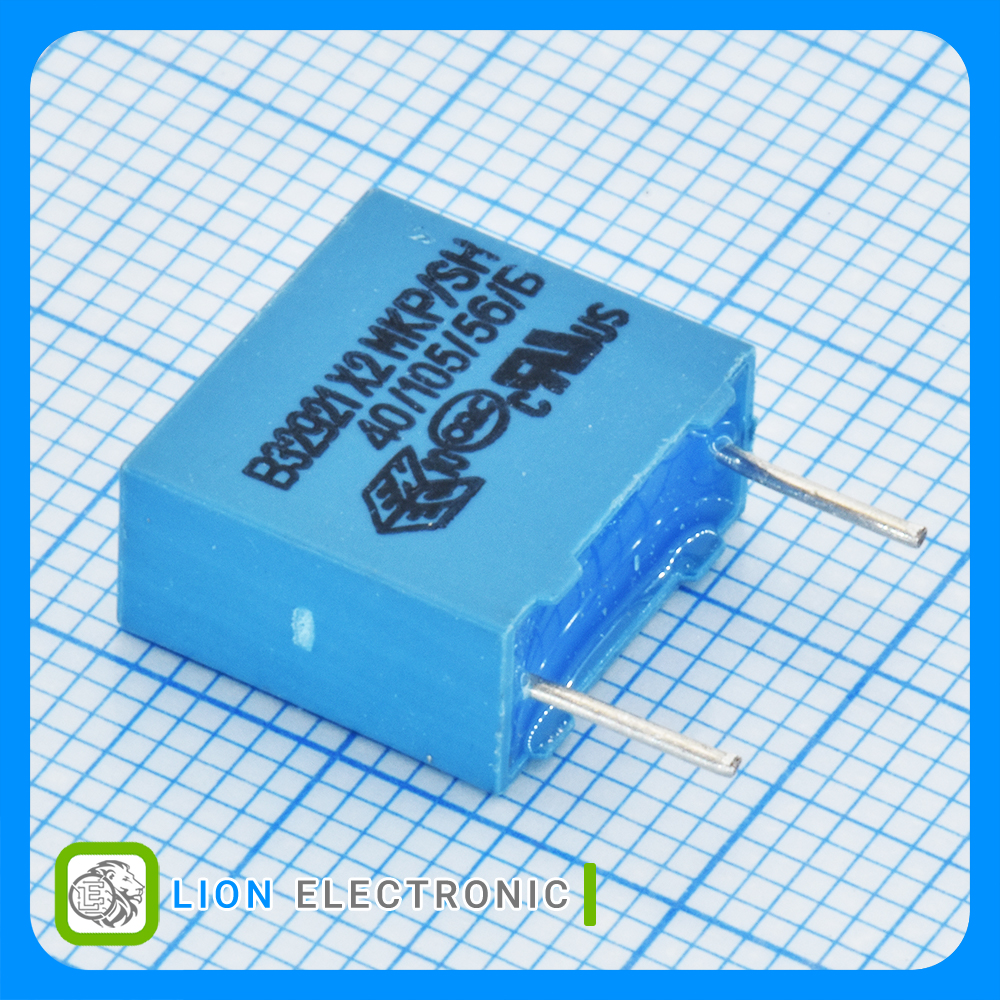

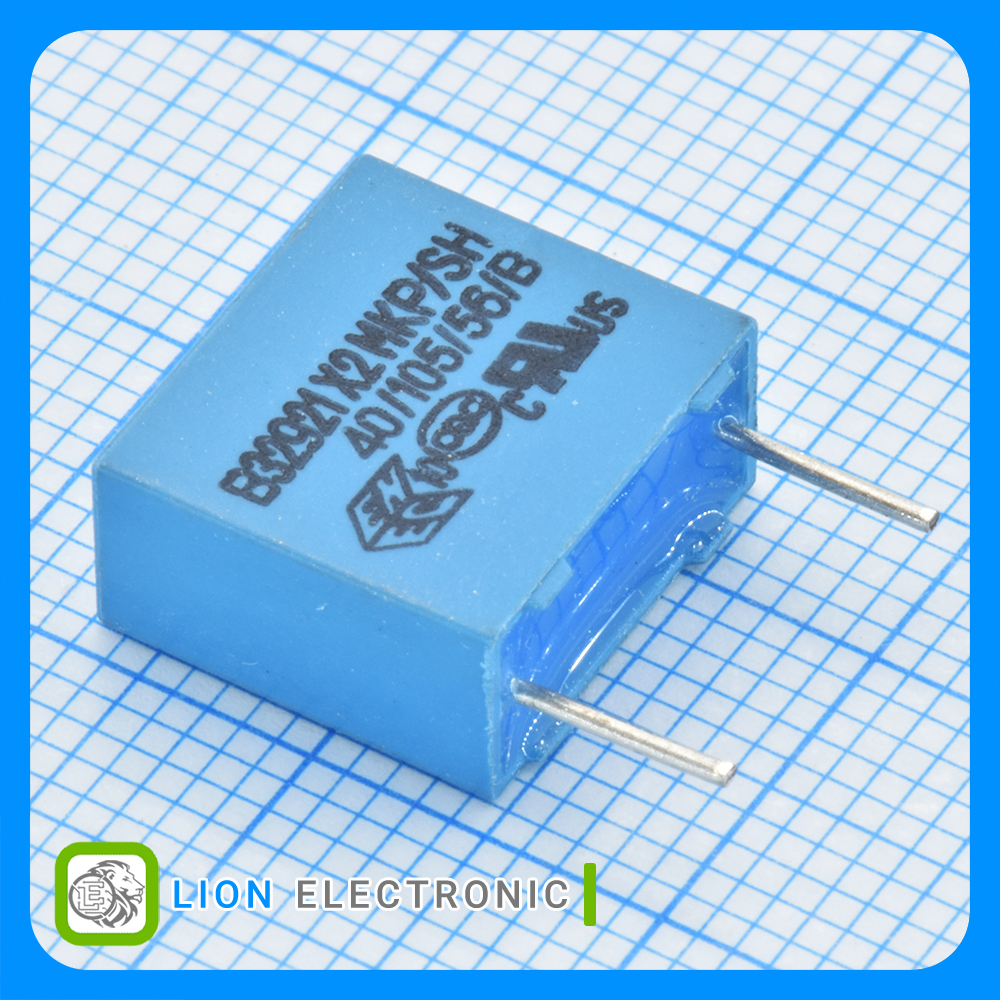

خازن B32921C3104M000
Part Number
X2
Safety Rating
Straight
Lead Style
Bulk
Packaging
Polypropylene(PP)
Dielectric
10mm
Lead Spacing
-40C
Minimum Operating Temperature
310VAC
Voltage Rating AC
Through Hole
Termination style
20%
Tolerance
+110C
Maximum Operating Temperature
630VDC
Voltage Rating DC
100nF
Capacitance
Safety Capacitors
Product Type
