TDK
معرفی
خازن ایمنی X2 با ظرفیت 150 نانوفاراد ولتاژ AC برابر 310 ولت، ولتاژ 305 ولت تلرانس 20% فاصله پایه 15 میلیمتر

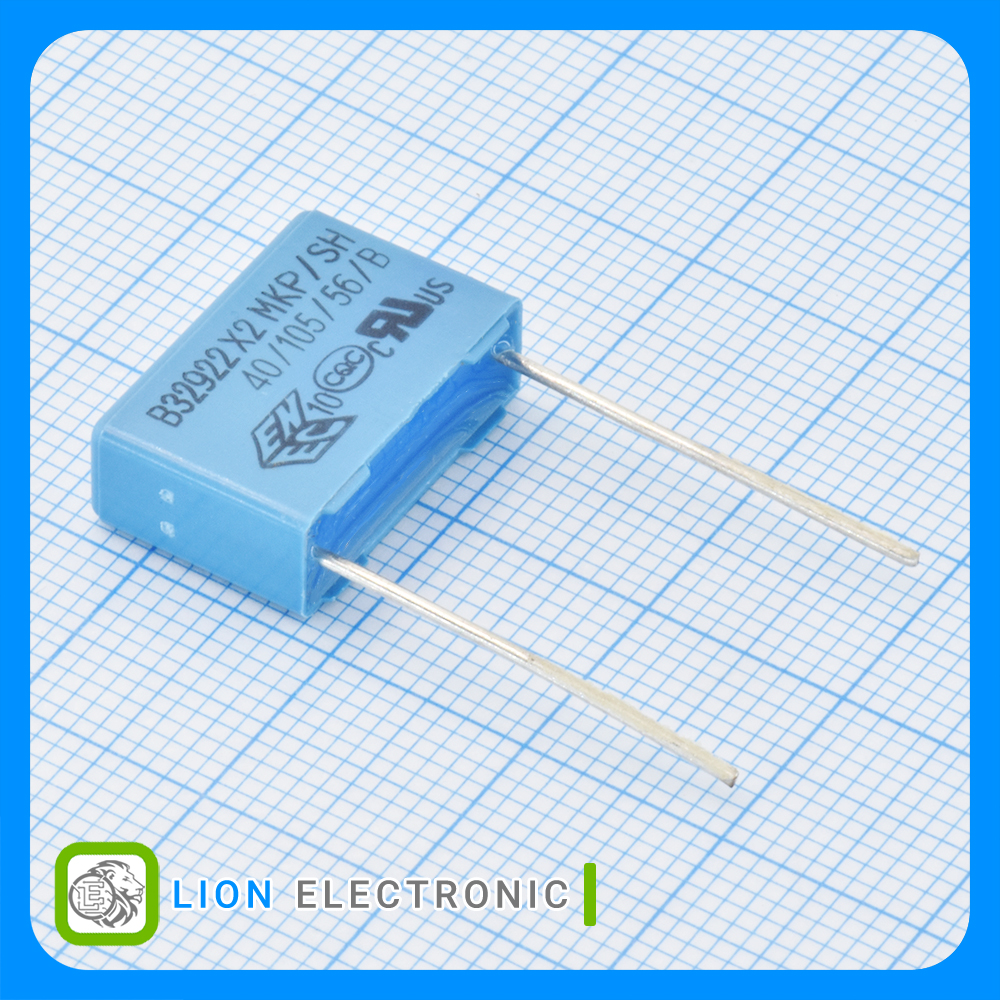

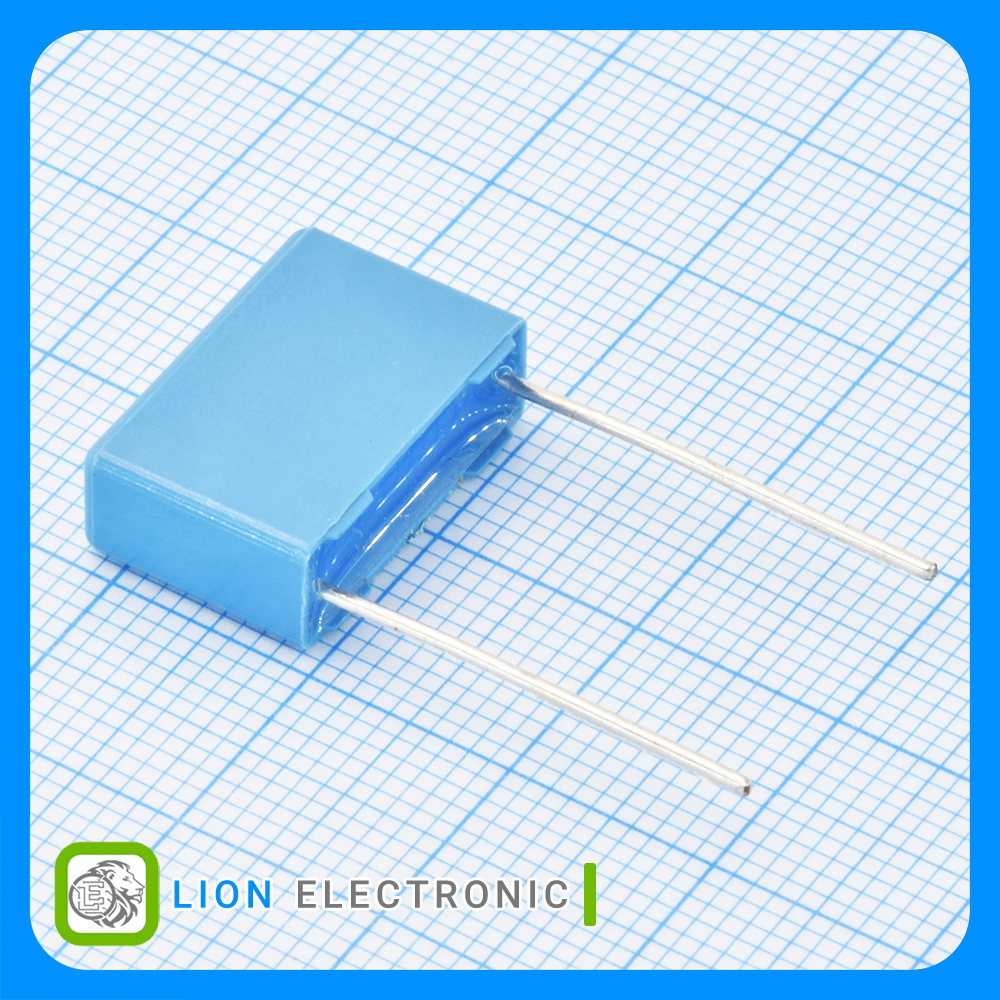

Safety Capacitor X2 150nF, 310VAC, 305V with 20% Tolerance, 15mm Lead Spacing
Specifications
- Safety Rating: X2
- Capacitance: 150nF
- Voltage Rating AC: 310VAC
- Voltage Rating DC: 630VDC
- Dielectric: Polypropylene(PP)
- Tolerance: 20%
- Termination style: Through Hole
- Lead Spacing: 15mm
- Lead Style: Straight
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +110C
- Packaging: Tape
مشخصات خازن B32922C3154M189
خازن B32922C3154M189
Part Number
X2
Safety Rating
Straight
Lead Style
Polypropylene(PP)
Dielectric
Tape
Packaging
15mm
Lead Spacing
-40C
Minimum Operating Temperature
310VAC
Voltage Rating AC
Through Hole
Termination style
20%
Tolerance
+110C
Maximum Operating Temperature
630VDC
Voltage Rating DC
150nF
Capacitance
Safety Capacitors
Product Type
