WCH
معرفی
آیسی رابط USB پل، USB به UART، مبدل باس USB به پورت سریال با نرخ 50bps تا 2Mbps با پکیج SOP-16
USB Interface IC Bridge, USB to UART, USB Bus Converter to Serial Port, 50bps to 2Mbps with SOP-16 Package
Specifications
- Standard: USB 2.0
- Type: Bridge, USB to UART
- Data Rate: 50bps to 2Mbps
- Speed: Full Speed
- Supply Voltage - Max: 5.3V
- Supply Voltage - Min: 3V
- Operating Supply Current: 7mA
- Mounting Style: SMD/SMT
- Package/Case: SOP-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات CH340G

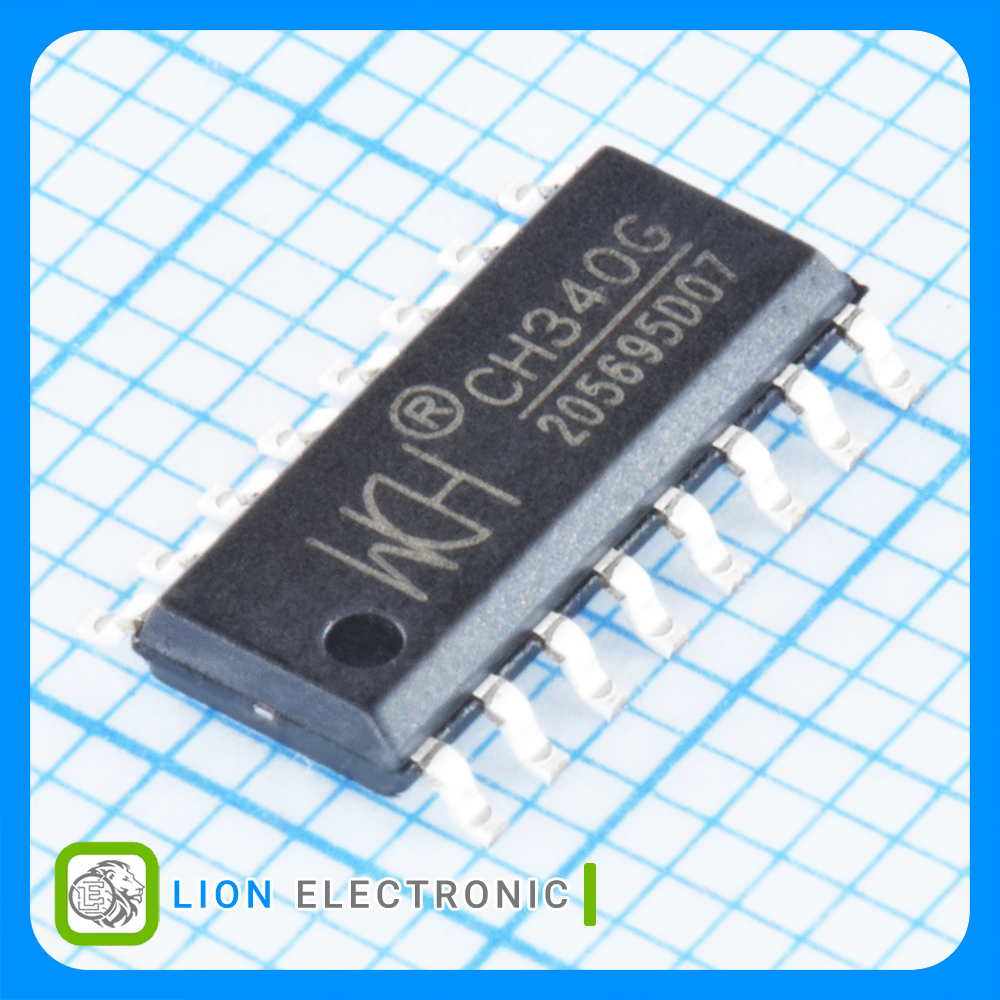

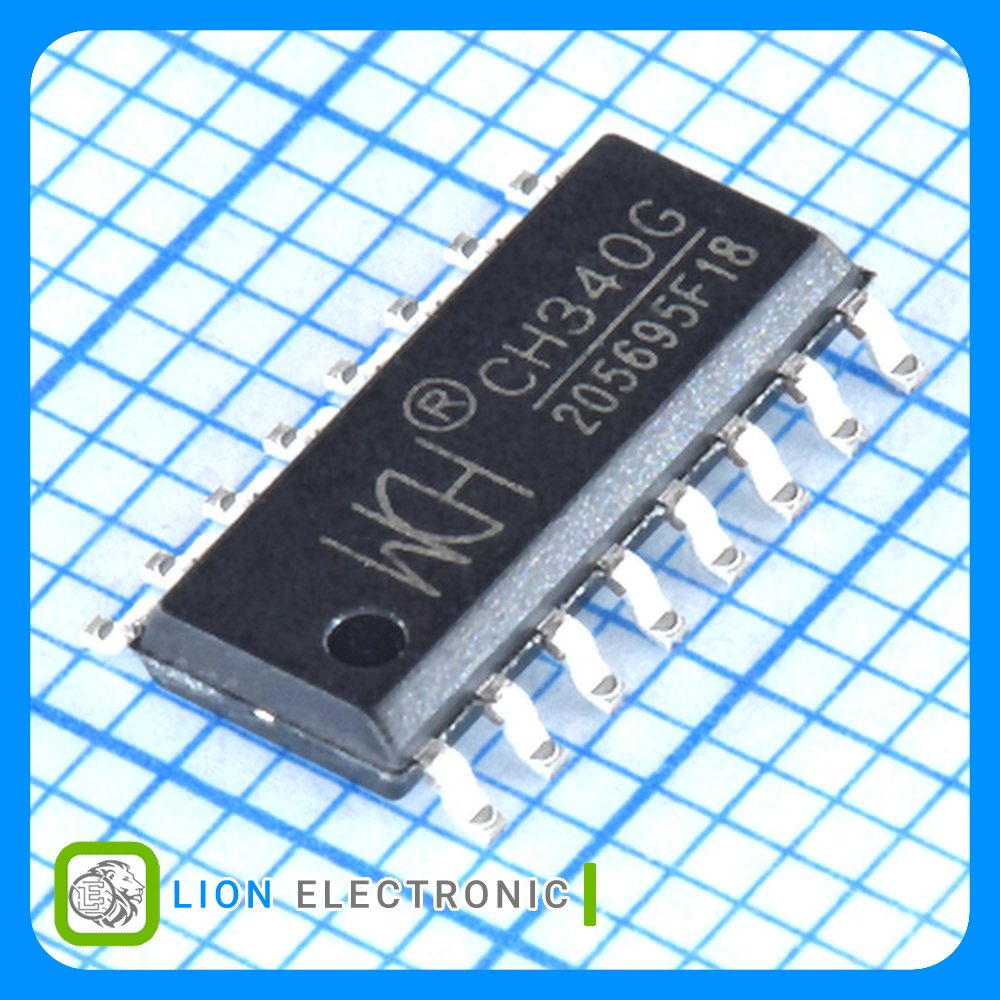

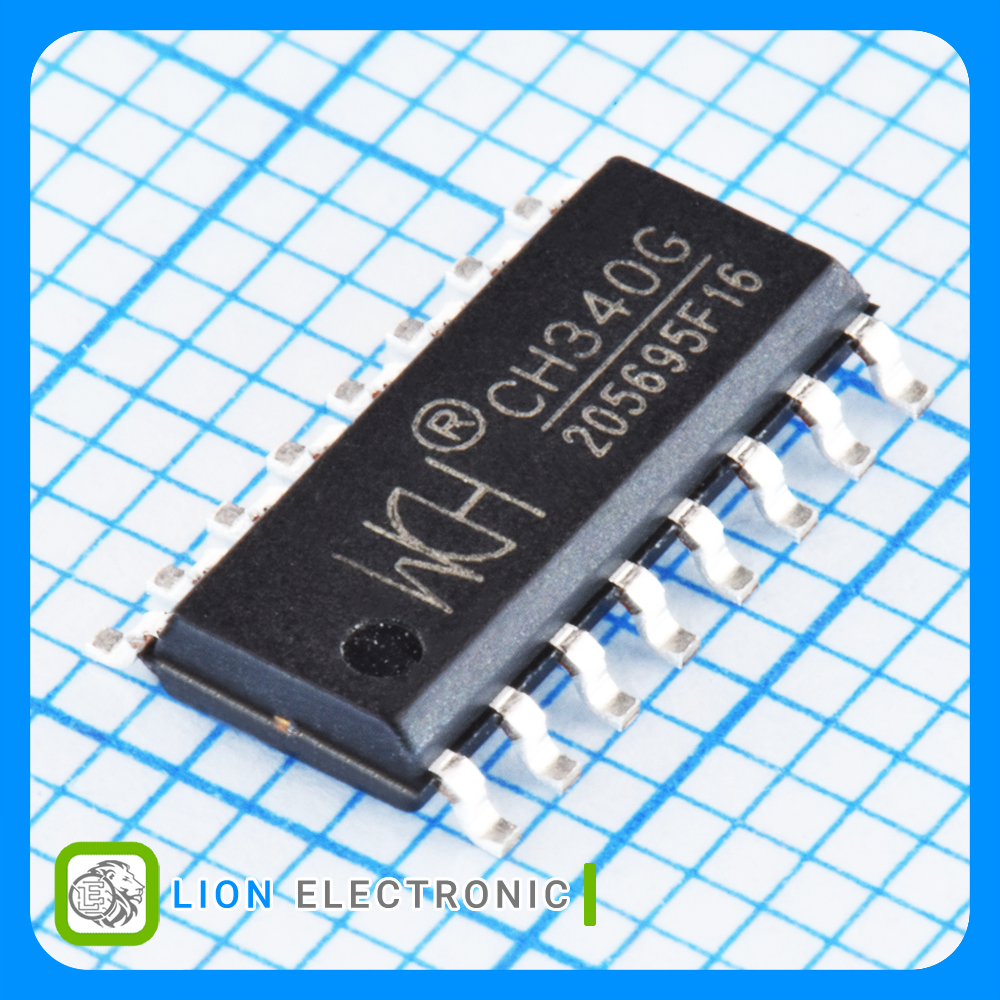

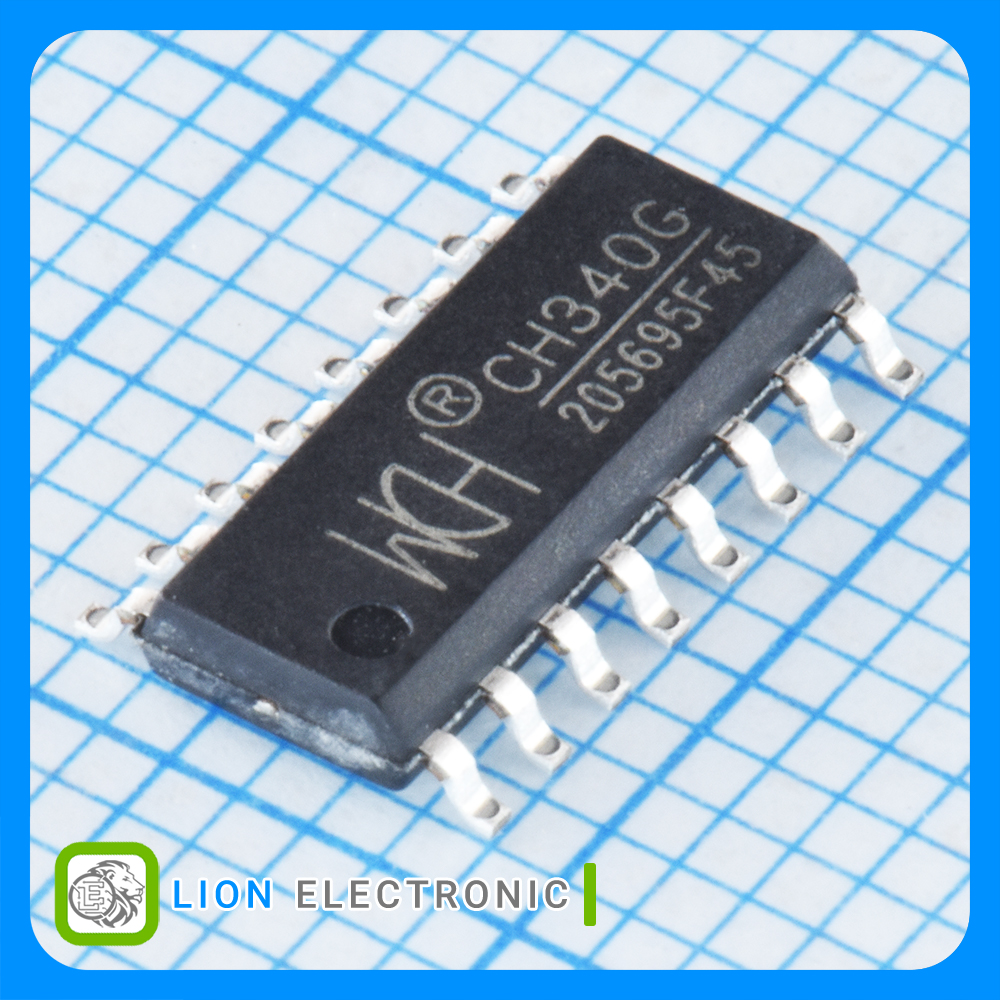

CH340G
Part Number
Full Speed
Speed
50bps to 2Mbps
Data Rate
USB 2.0
Standard
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
Bridge, USB to UART
Type
5.3V
Supply Voltage - Max
3V
Supply Voltage - Min
7mA
Operating Supply Current
SOP-16
Package-Case
