BW2.4FNX42-12B1
BW2.4FNX42-12B1
Part Number
3669
Lion Part
Datasheet
BAT WIRELESS Manufacture
آنتن برد نرم 2.4 تا 2.5 گیگاهرتز با بهره 2-3dBi امپدانس 50 اهم کانکتور IPEX-1

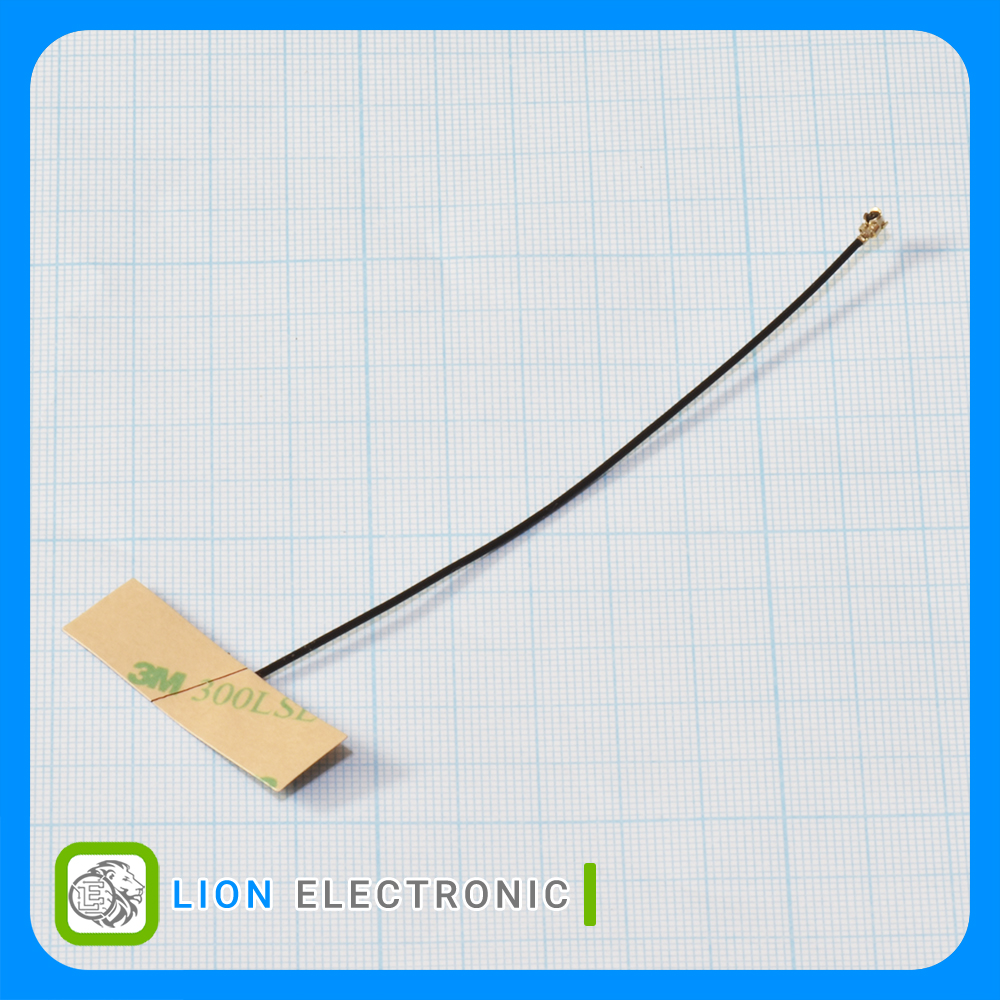

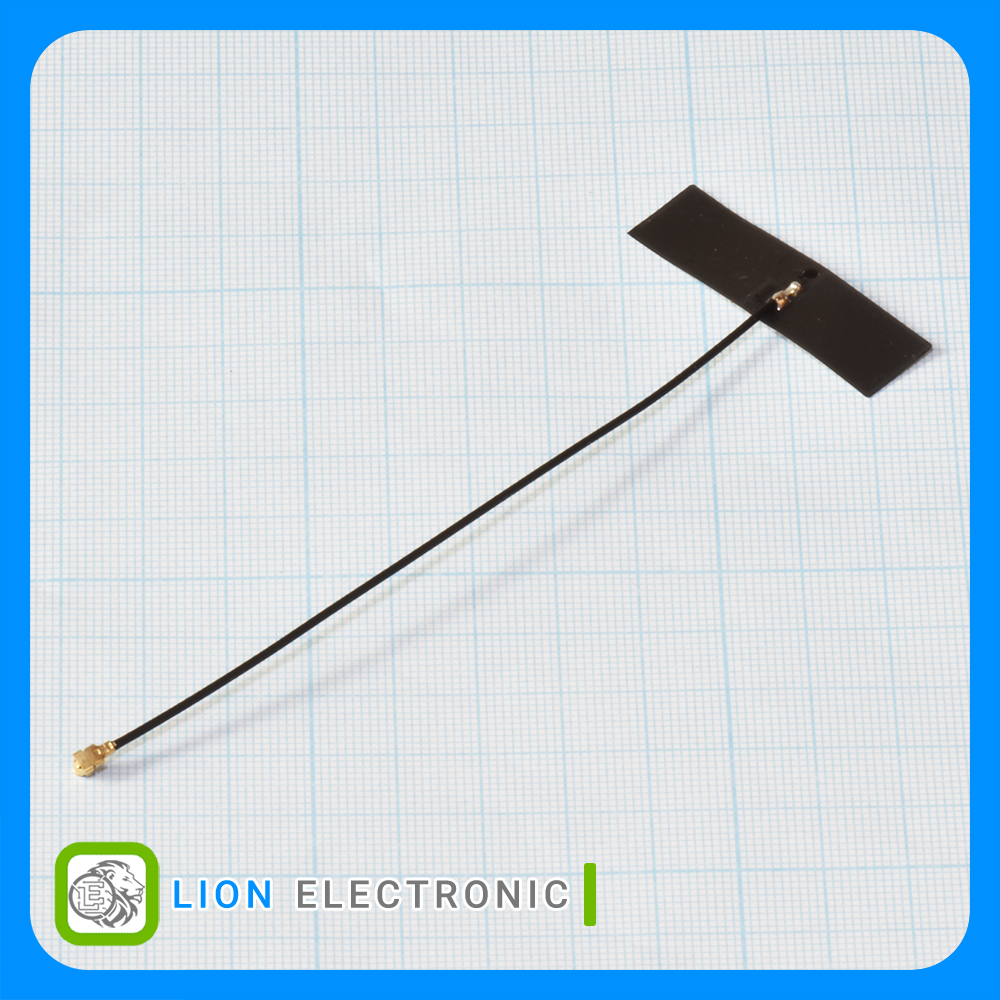

Antenna 2.4GHz - 2.5GHz, 2-3dBi with 50Ω and IPEX-1 Connector, Soft Board Antenna
معرفی
آنتن برد نرم 2.4 تا 2.5 گیگاهرتز با بهره 2-3dBi امپدانس 50 اهم کانکتور IPEX-1
Antenna 2.4GHz - 2.5GHz, 2-3dBi with 50Ω and IPEX-1 Connector, Soft Board Antenna
Specifications
- Antenna Connector Type: IPEX-1
- Application: 2.4GHz
- Frequency Range: 2.4GHz - 2.5GHz
- Gain: 2-3dBi
- Impedance: 50Ω
- Cable Length: 120mm
- Dimensions: 42mm x 12mm
- Mounting Style: Connector
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +80C
مشخصات آنتن BW2.4FNX42-12B1
آنتن BW2.4FNX42-12B1
Part Number
50Ω
Impedance
IPEX-1
Antenna Connector Type
Connector
Mounting Style
2-3dBi
Gain
-40C
Minimum Operating Temperature
+80C
Maximum Operating Temperature
120mm
Cable Length
2.4GHz - 2.5GHz
Frequency Range
42mm x 12mm
Dimensions
