BW433FNX75-35B1
BW433FNX75-35B1
Part Number
3671
Lion Part
Datasheet
BAT WIRELESS Manufacture
آنتن برد نرم 433 مگاهرتز با بهره 3dBi امپدانس 50 اهم کانکتور IPEX-1

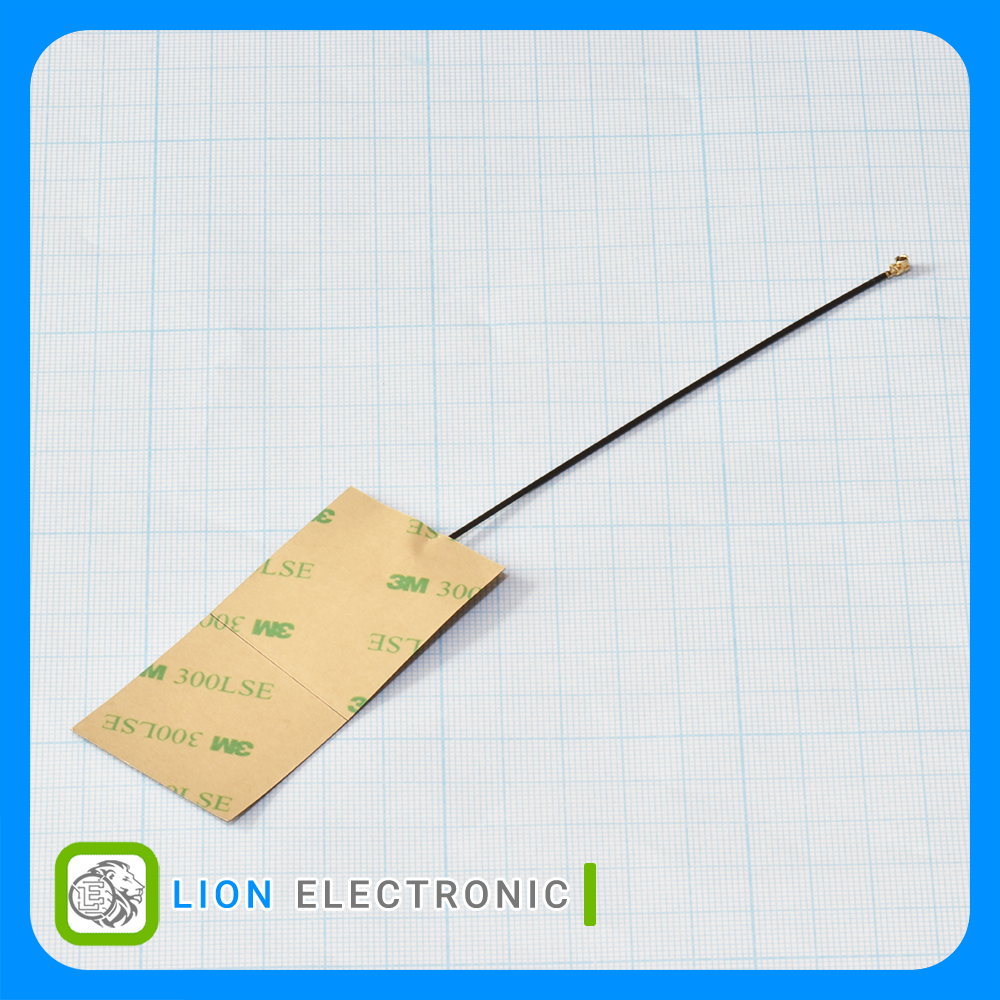

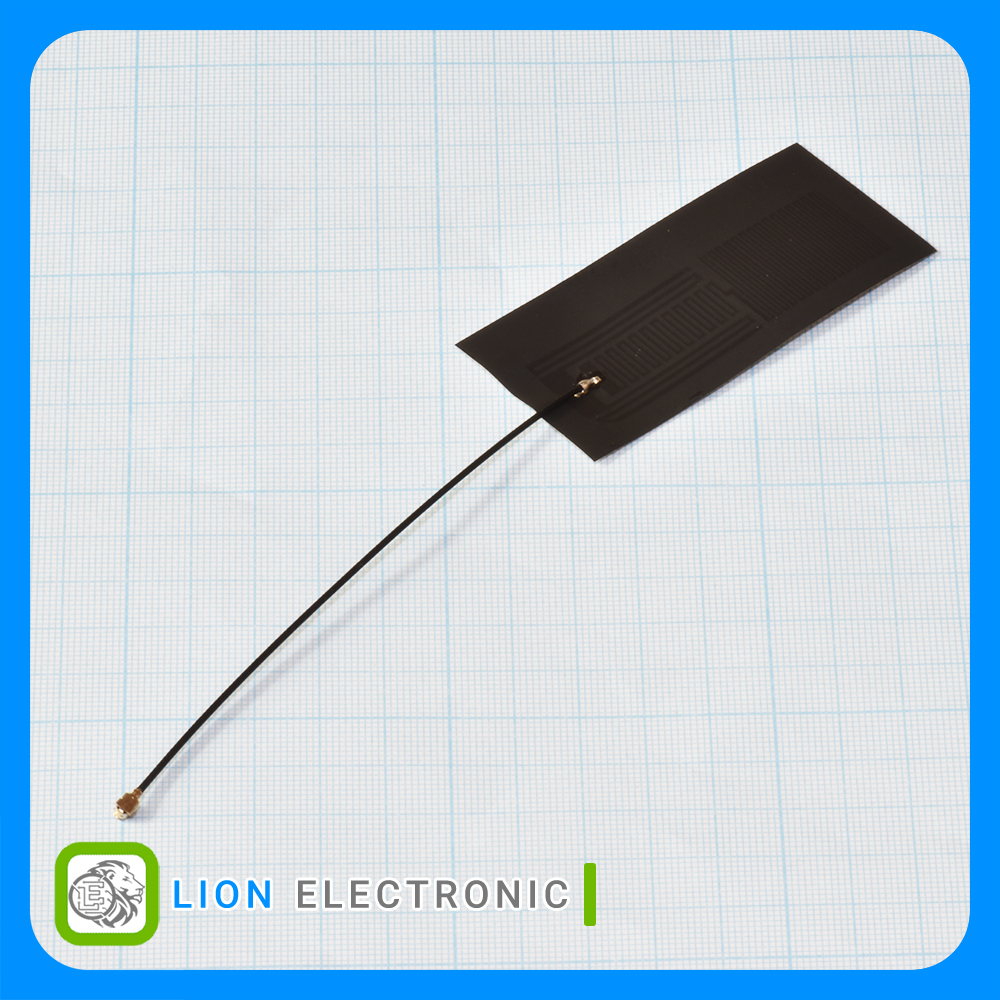

Antenna 433MHz Soft Board, 3dBi with 50Ω and IPEX-1 Connector
معرفی
آنتن برد نرم 433 مگاهرتز با بهره 3dBi امپدانس 50 اهم کانکتور IPEX-1
Antenna 433MHz Soft Board, 3dBi with 50Ω and IPEX-1 Connector
Specifications
- Antenna Connector Type: IPEX-1
- Application: 433MHz
- Frequency Range: 433MHz
- Gain: 3dBi
- Impedance: 50Ω
- Cable Length: 120mm
- Dimensions: 75mm x 35mm
- Mounting Style: Connector
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
مشخصات آنتن BW433FNX75-35B1
آنتن BW433FNX75-35B1
Part Number
433MHz
Application
50Ω
Impedance
IPEX-1
Antenna Connector Type
Connector
Mounting Style
-40C
Minimum Operating Temperature
3dBi
Gain
120mm
Cable Length
+85C
Maximum Operating Temperature
433MHz
Frequency Range
75mm x 35mm
Dimensions
