سلف 1.5 میکروهانری با جریان اشباع 11.5 آمپر و مقاومت DC 10.7 میلیاهم سایز 6530 (7.1mm x 6.5mm x 3mm)

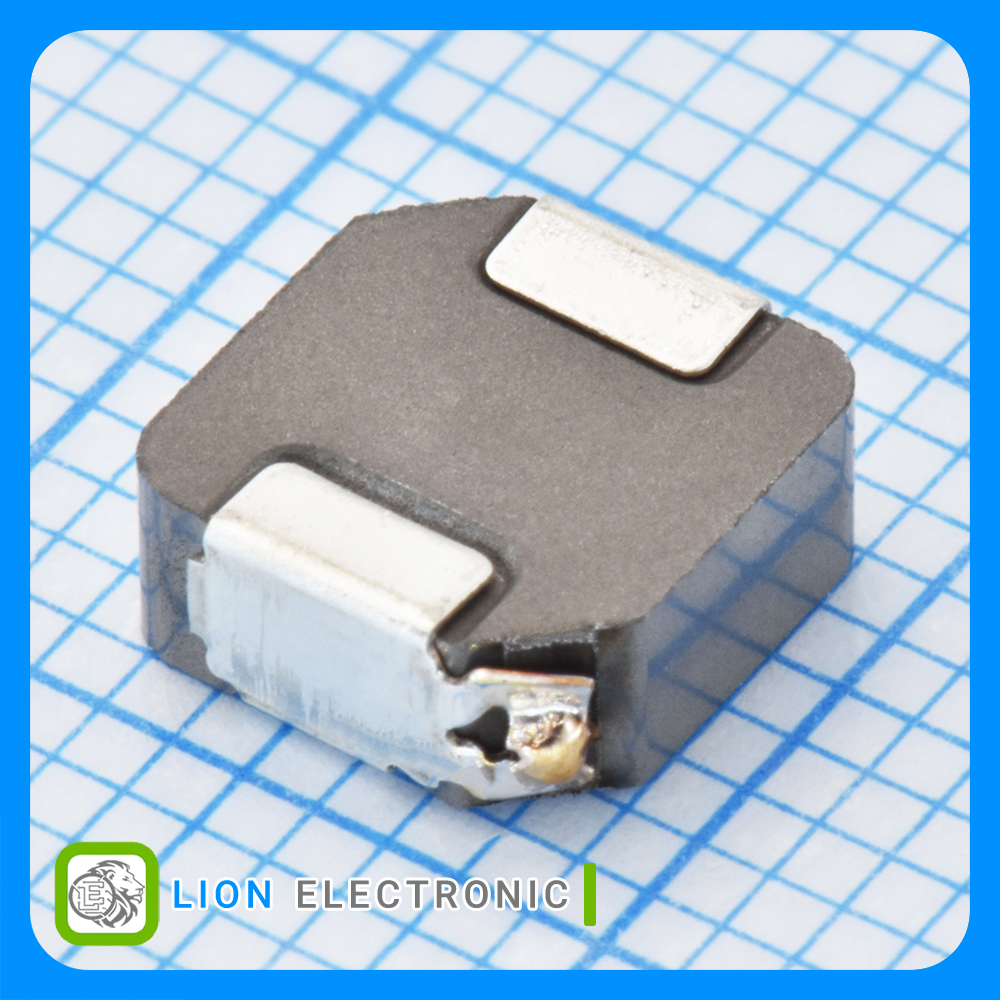

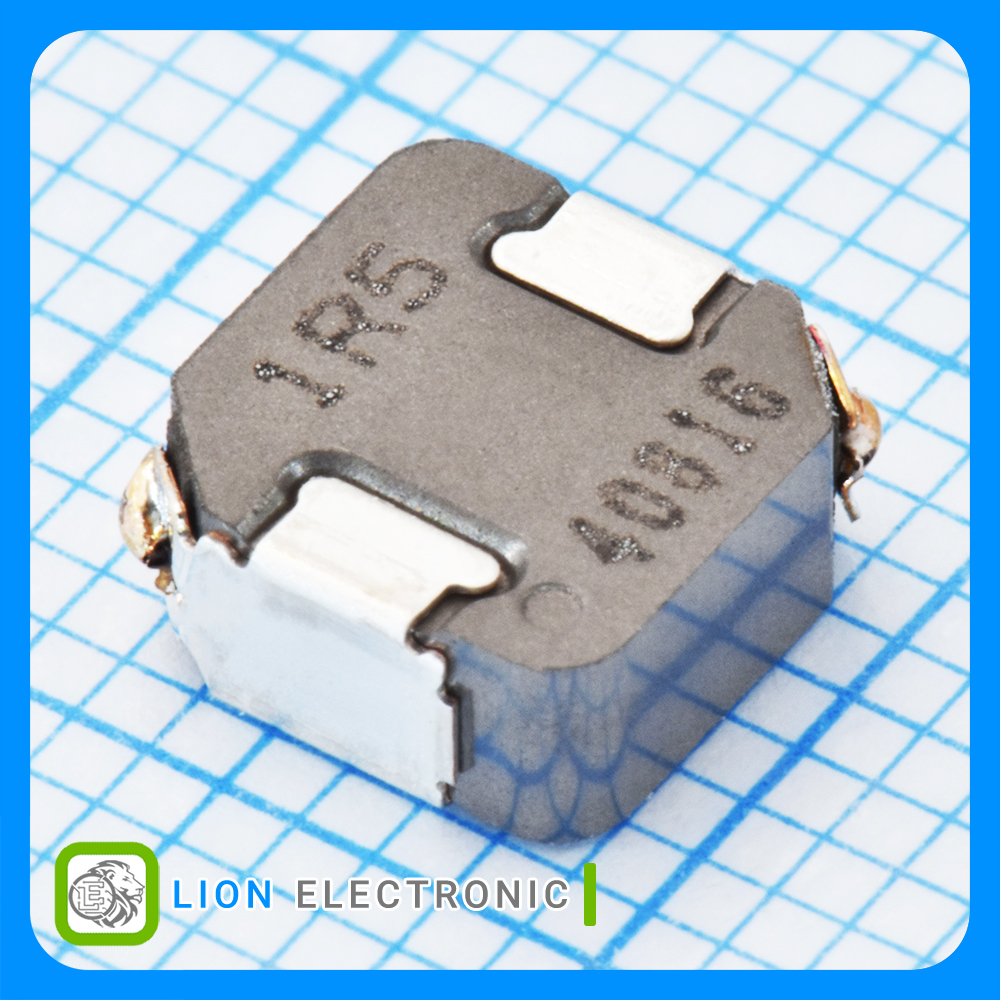

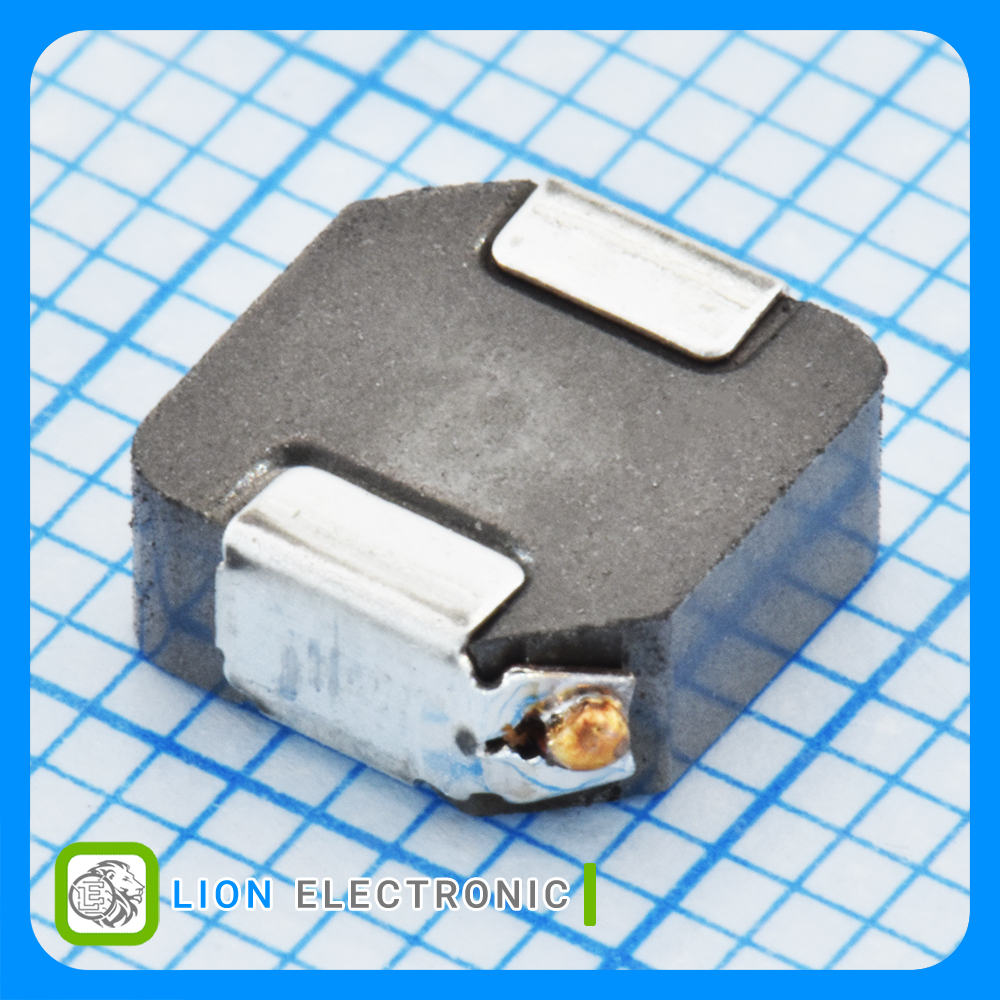

Inductor 1.5uH, 11.5A with 10.7mΩ, 6530 Size (7.1mm x 6.5mm x 3mm Package)
Specifications
- Shielding: Shielded
- Inductance: 1.5uH
- Saturation Current: 11.5A
- Maximum DC Resistance: 10.7mΩ
- Termination style: SMD/SMT
- Package/Case: 7.1mm x 6.5mm x 3mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات سلف SPM6530T-1R5M100

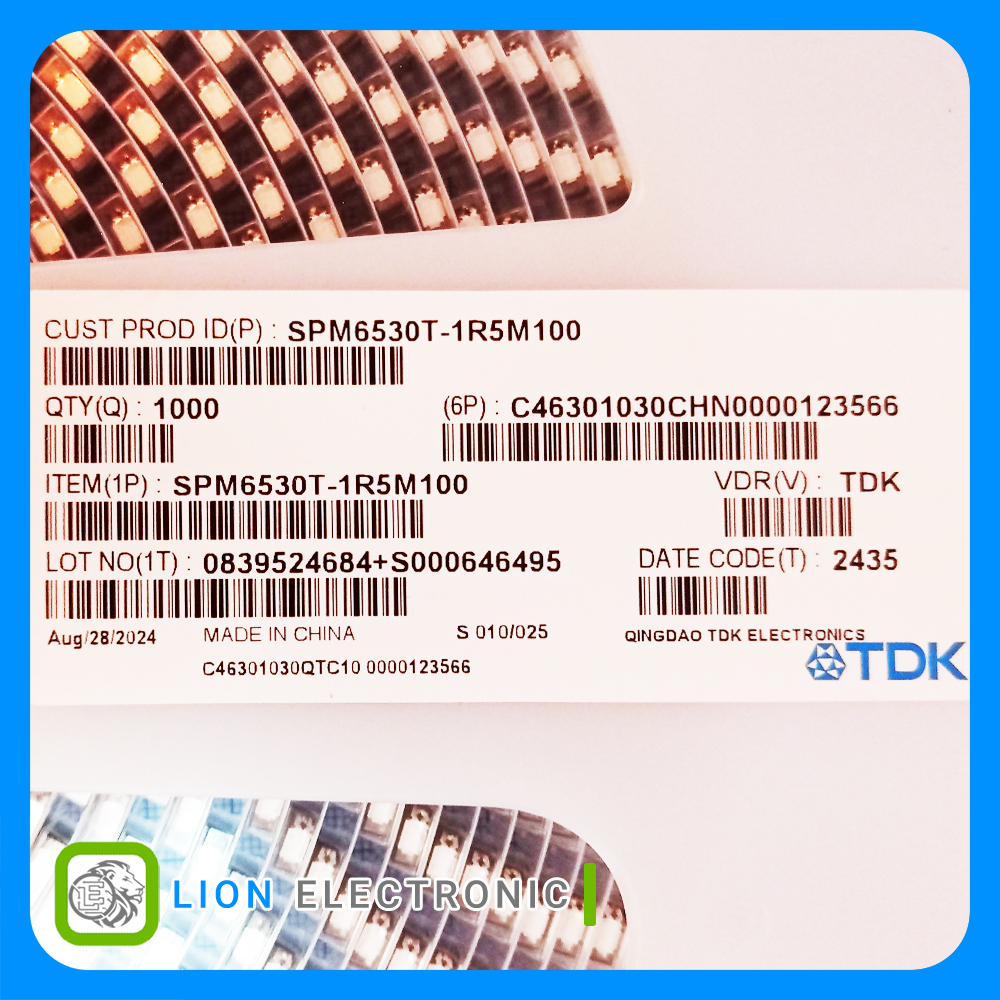

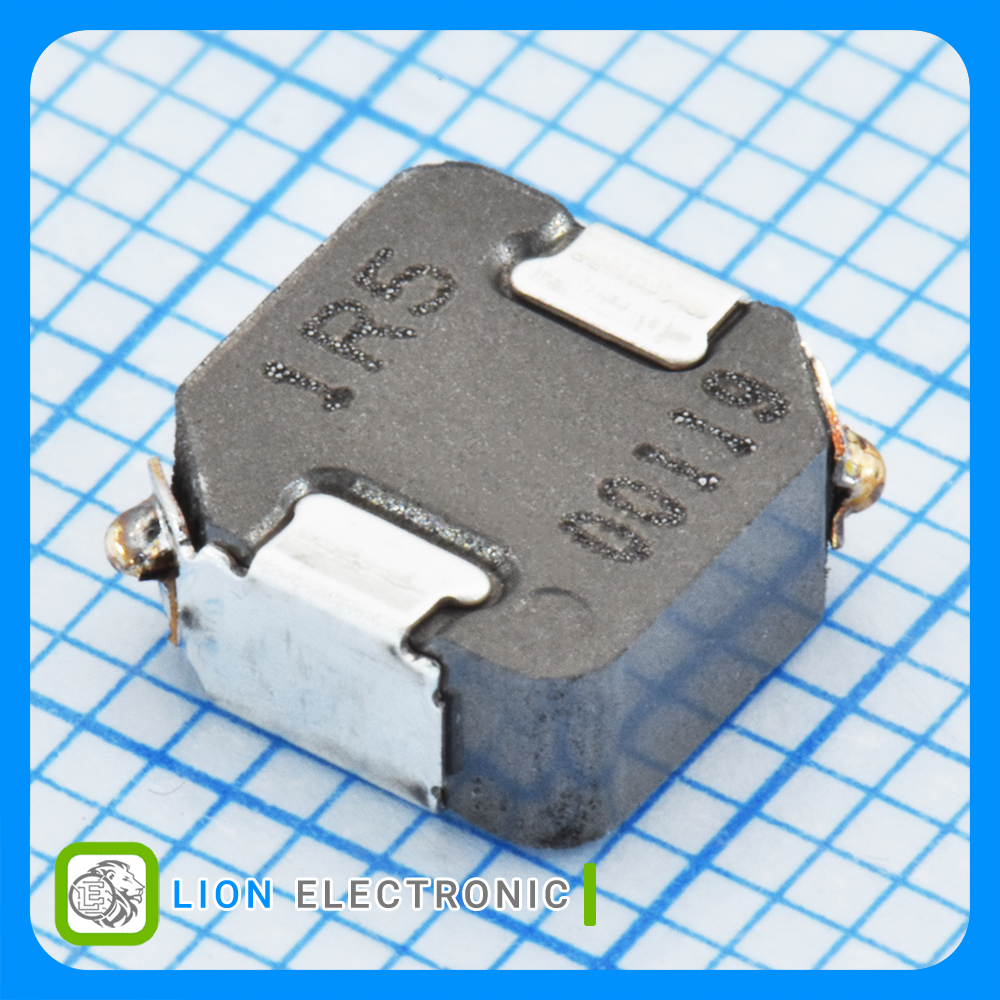

سلف SPM6530T-1R5M100
Part Number
Shielded
Shielding
SMD/SMT
Termination style
Reel
Packaging
-40C
Minimum Operating Temperature
10.7mΩ
Maximum DC Resistance
+125C
Maximum Operating Temperature
1.5uH
Inductance
7.1mm x 6.5mm x 3mm
Package-Case
11.5A
Saturation Current
