2450AT18A100E
2450AT18A100E
Part Number
4429
Lion Part
Datasheet
Johanson Technology Manufacture
آنتن چیپ 1206 با بهره 0.5dBi محدوده 2.4 تا 2.5 گیگاهرتز امپدانس 50 اهم توان 2 وات کانکتور لحیمی

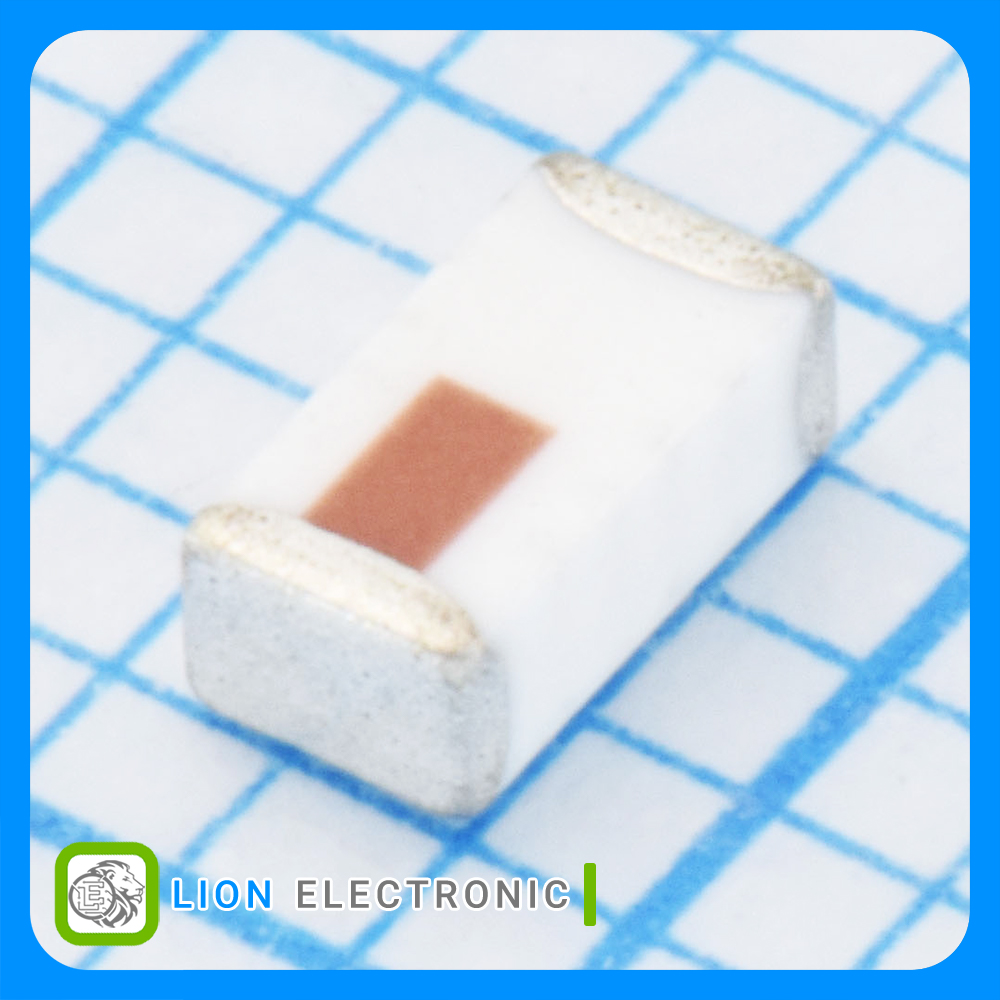

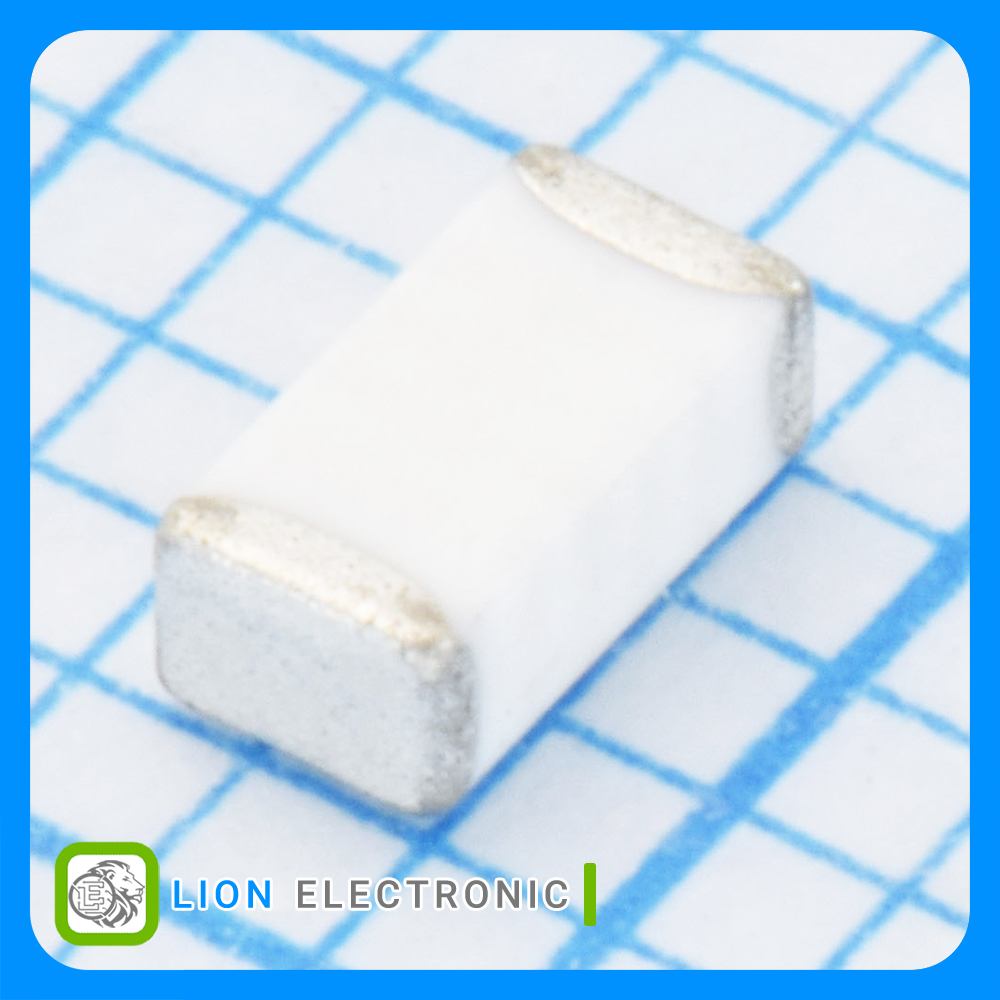

1206 Chip Antenna 2.4GHz - 2.5GHz, 0.5dBi, 2W, 50Ω, Installation by soldering Connector
معرفی
آنتن چیپ 1206 با بهره 0.5dBi محدوده 2.4 تا 2.5 گیگاهرتز امپدانس 50 اهم توان 2 وات کانکتور لحیمی
1206 Chip Antenna 2.4GHz - 2.5GHz, 0.5dBi, 2W, 50Ω, Installation by soldering Connector
Specifications
- Antenna Connector Type: Installation by soldering
- Application: 2.4GHz
- Frequency Range: 2.4GHz - 2.5GHz
- Gain: 0.5dBi
- Impedance: 50Ω
- Cable Length: None
- Dimensions: 3.2mm x 1.6mm x 1.3mm
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
مشخصات 2450AT18A100E
2450AT18A100E
Part Number
0.5dBi
Gain
Installation by soldering
Antenna Connector Type
3.2mm x 1.6mm x 1.3mm
Dimensions
50Ω
Impedance
2.4GHz
Application
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
None
Cable Length
+125C
Maximum Operating Temperature
2.4GHz - 2.5GHz
Frequency Range
