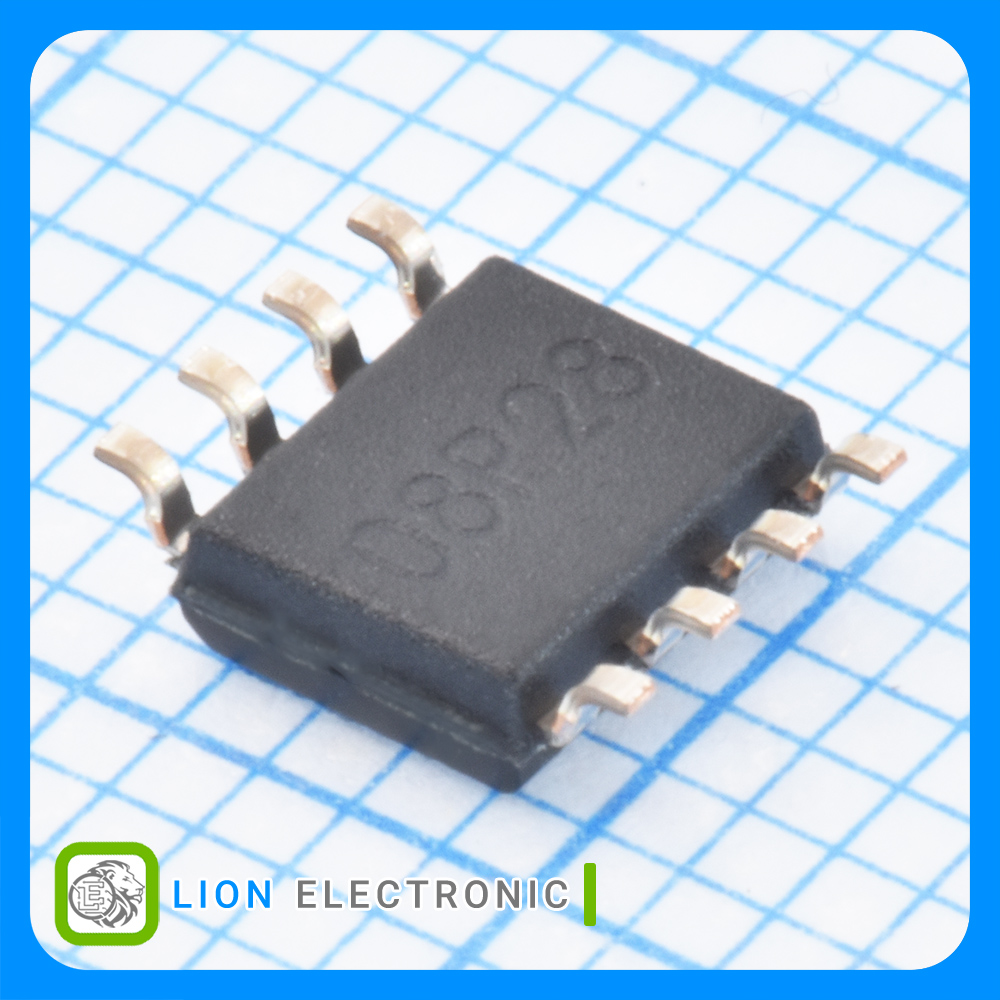

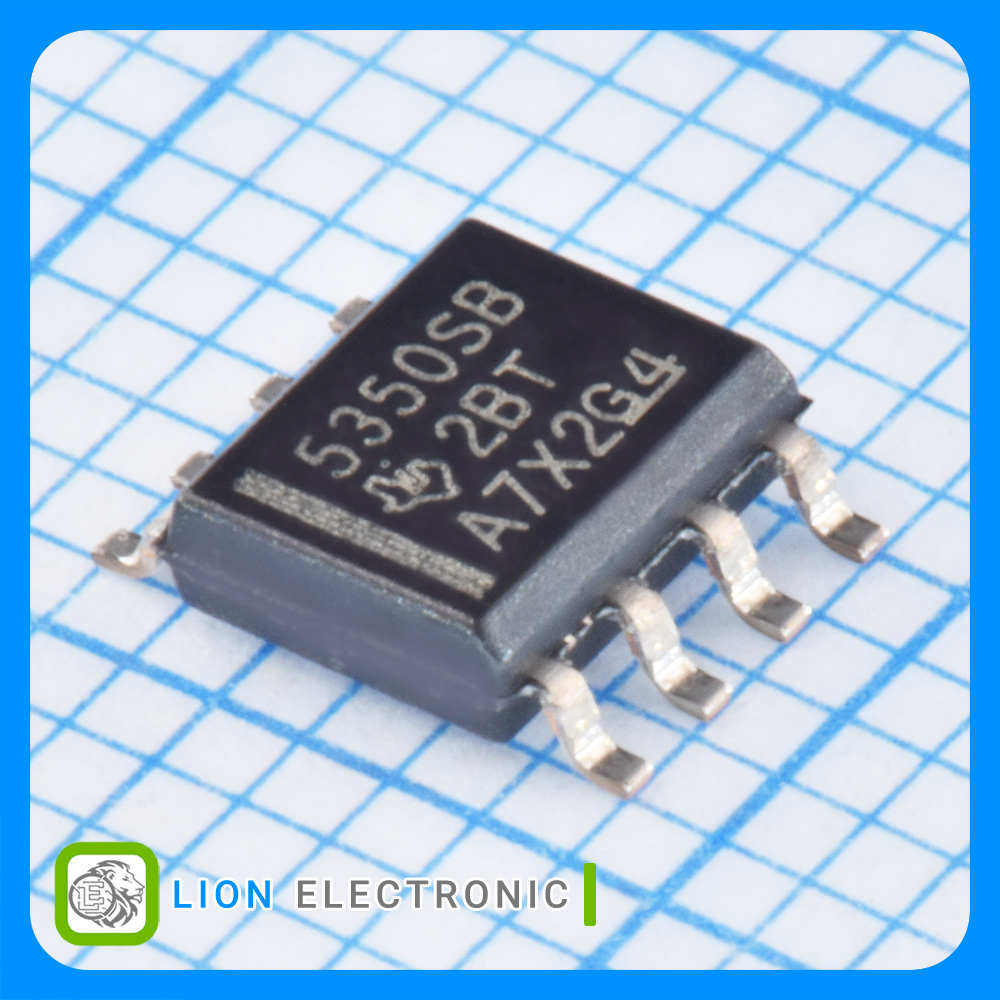

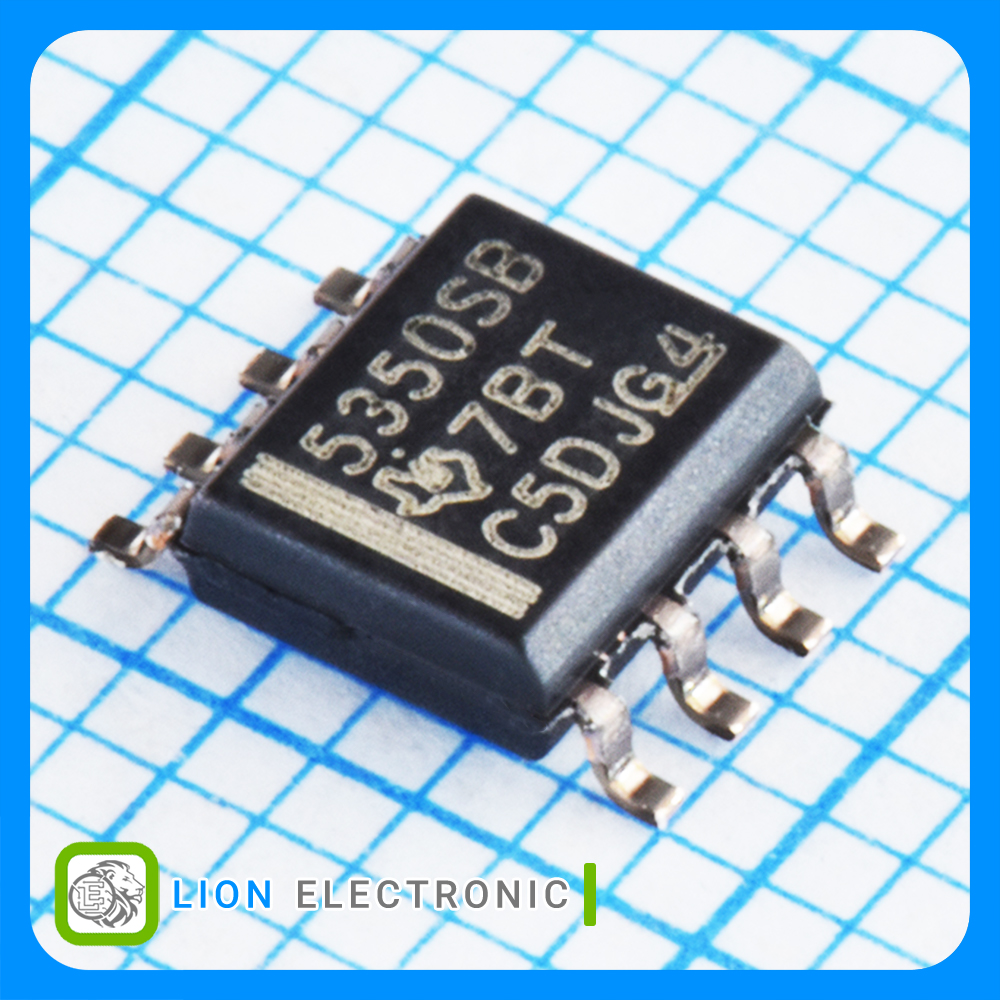

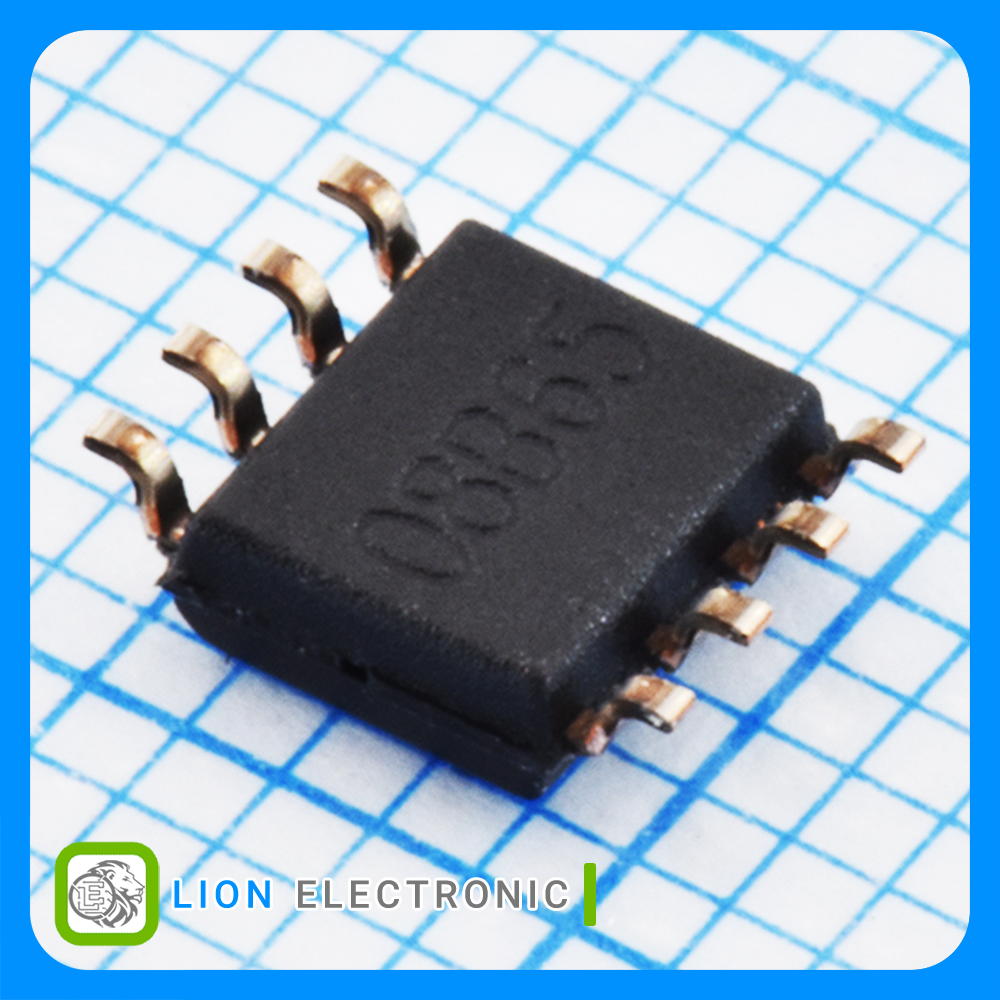

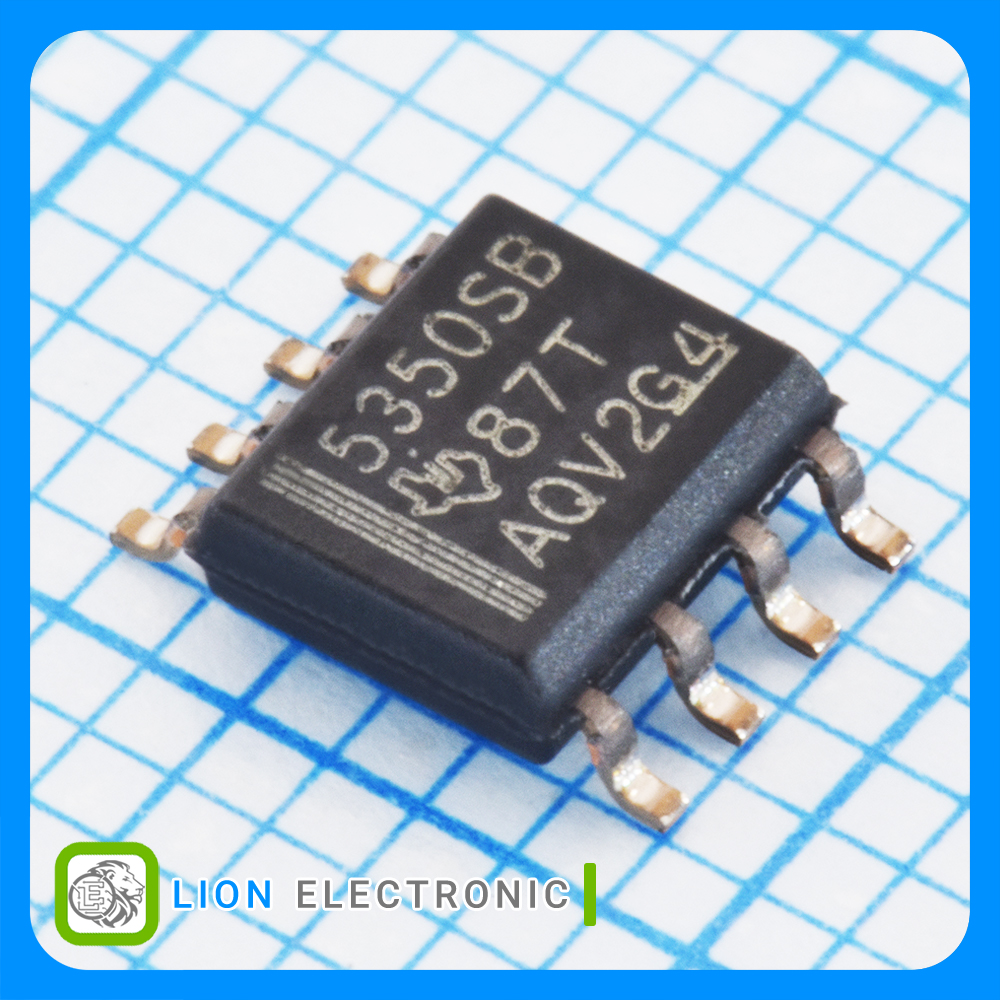

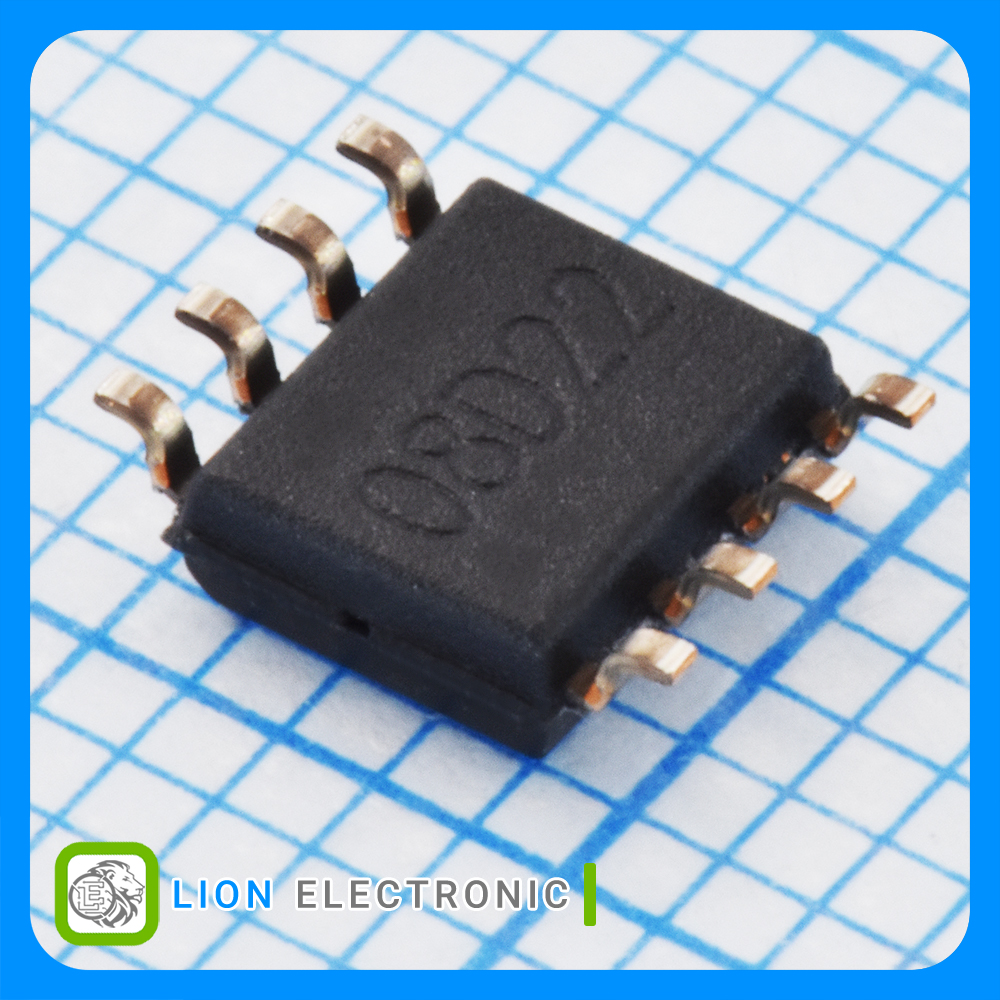

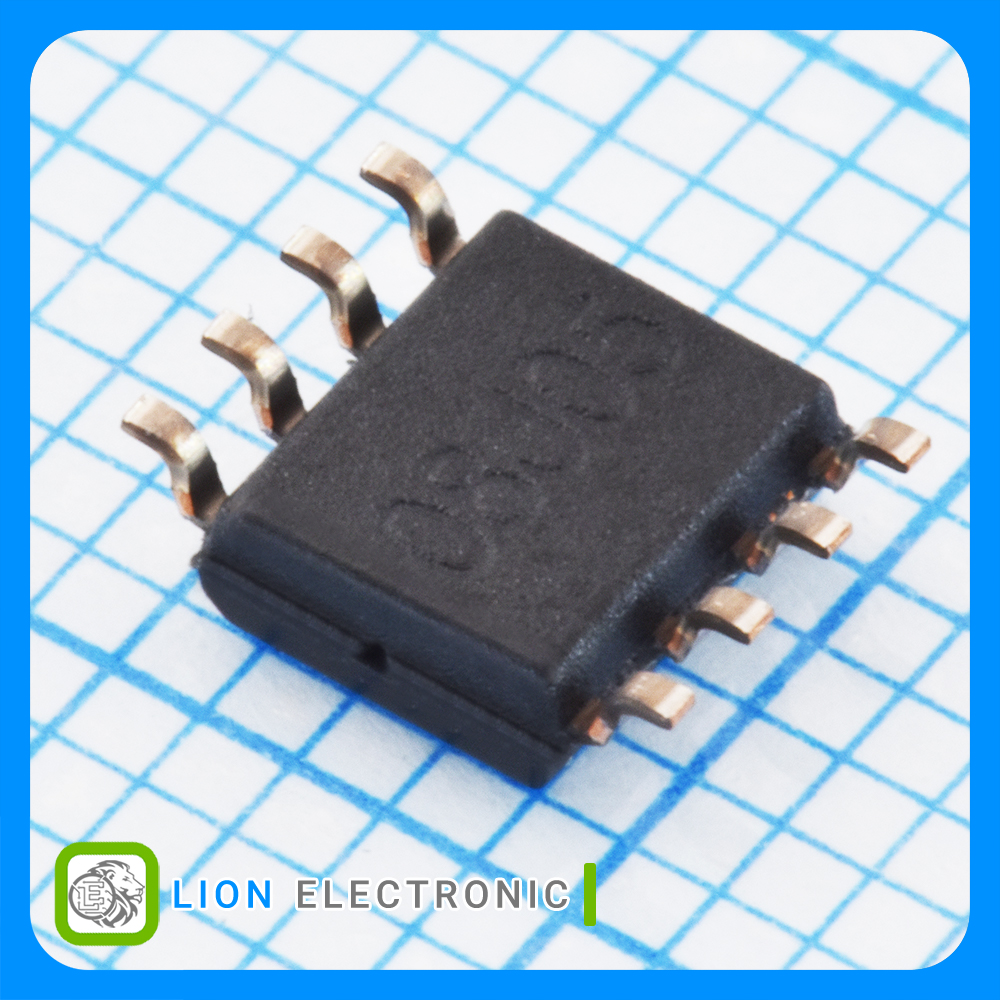

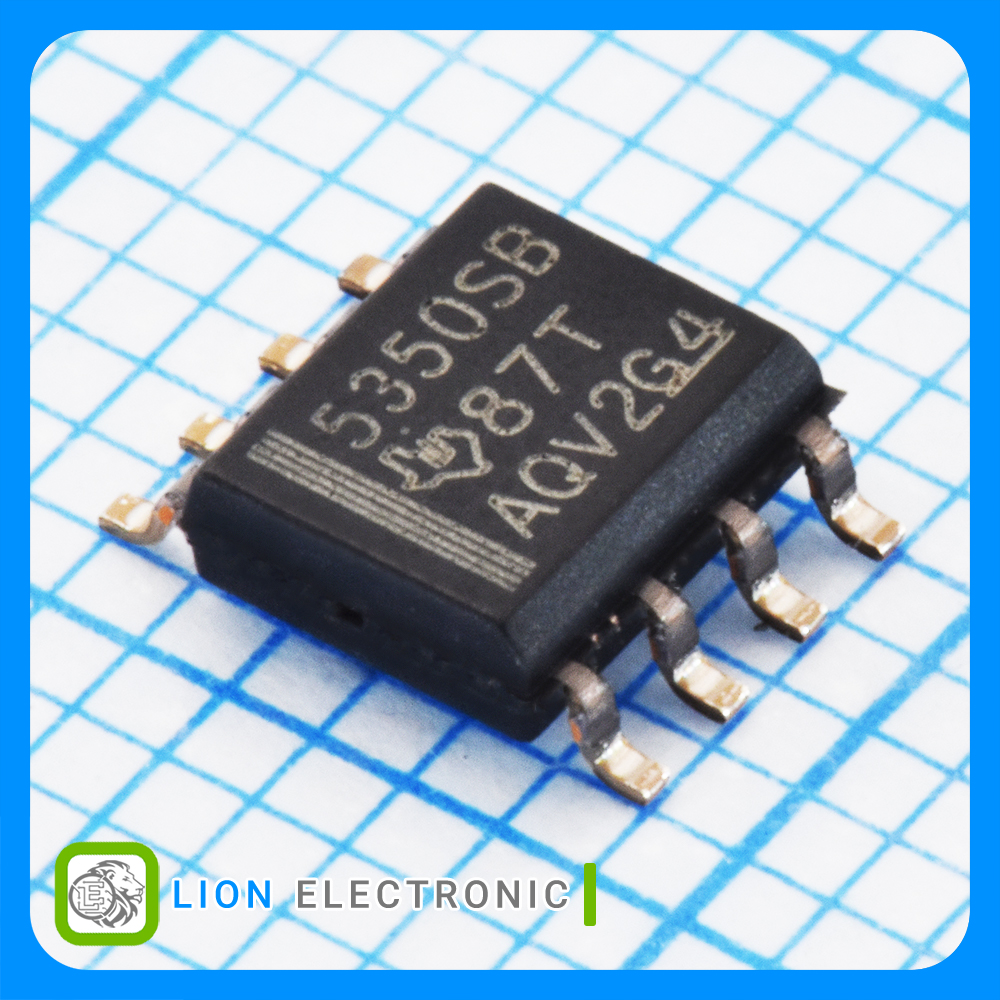

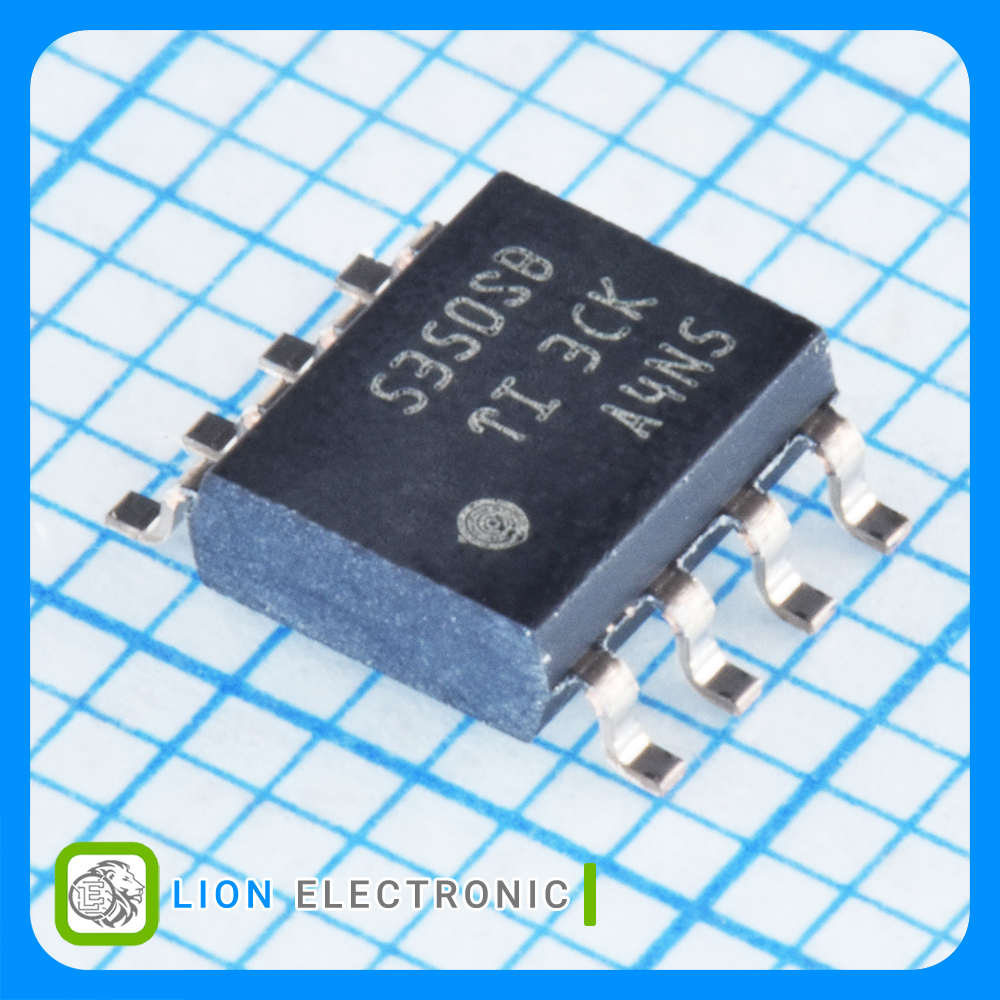

UCC5350SBDR
UCC5350SBDR
Part Number
4475
Lion Part
Datasheet
Texas Instruments Manufacture
گیت درایور ایزوله 5 آمپر تک کاناله با ایزولاسیون 3.5 کیلوولت RMS، ولتاژ گیت 15 ولت با پکیج SOIC-8
Isolated Gate Driver 5A, 3.5kVrms Isolation, 15V Gate Drive with SOIC-8 Package
معرفی
گیت درایور ایزوله 5 آمپر تک کاناله با ایزولاسیون 3.5 کیلوولت RMS، ولتاژ گیت 15 ولت با پکیج SOIC-8
Isolated Gate Driver 5A, 3.5kVrms Isolation, 15V Gate Drive with SOIC-8 Package
Specifications
- Type: Optically Isolated Gate Driver
- Number of Channels: 1
- Rise Time: 10ns
- Fall Time: 10ns
- Propagation Delay - Max: 100ns
- Peak Output Current: 5A
- Isolation Voltage: 3.5kVrms
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات گیت درایور UCC5350SBDR
گیت درایور UCC5350SBDR
Part Number
1
Number of Drivers
1
Number of Channels
1
Number of Outputs
Reel
Packaging
5A
Peak Output Current
-40C
Minimum Operating Temperature
3.5kVrms
Isolation Voltage
SMD/SMT
Mounting Style
10ns
Rise Time
10ns
Fall Time
+125C
Maximum Operating Temperature
100ns
Propagation Delay - Max
Inverting, Non-Inverting
Configuration
15V
Supply Voltage - Max
3V
Supply Voltage - Min
N/A
If - Forward Current
Isolated Gate Drivers
Product
Optically Isolated Gate Driver
Type
5A
Output Current
1.67mA
Operating Supply Current
SOIC-8
Package-Case
