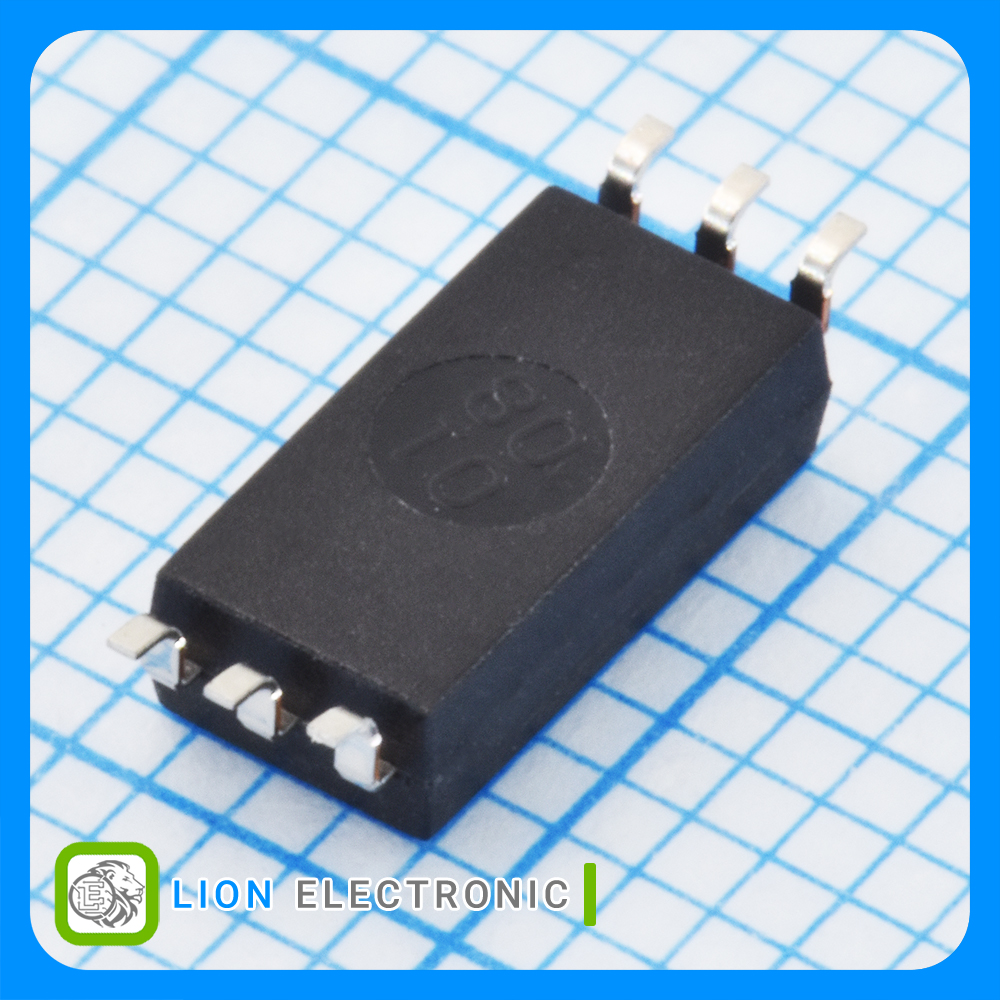

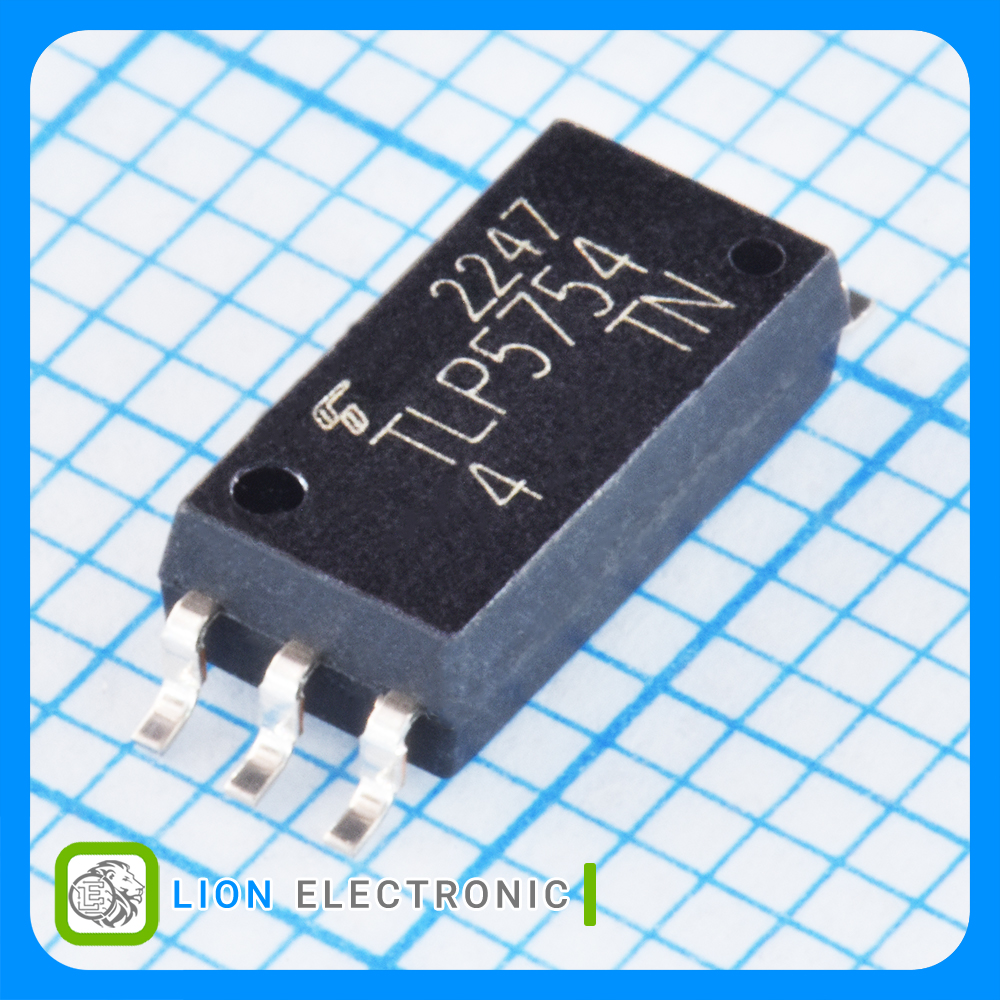

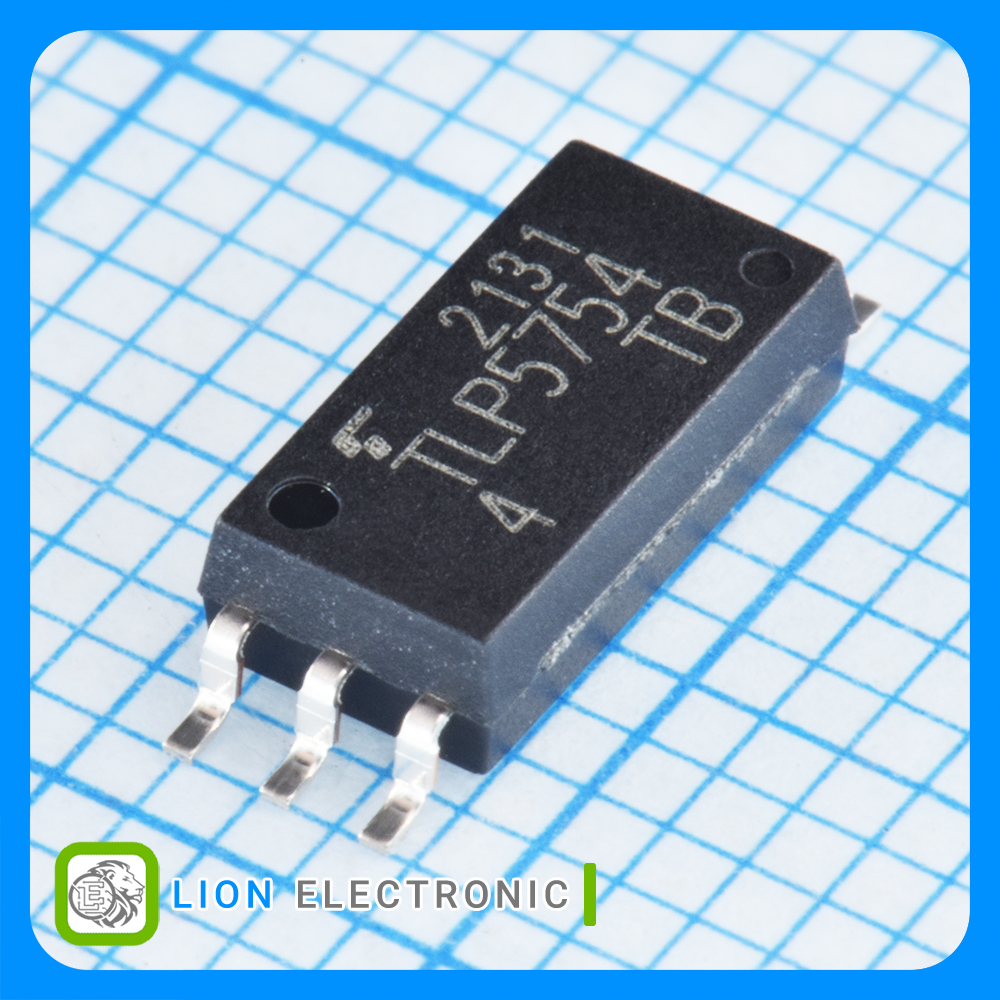

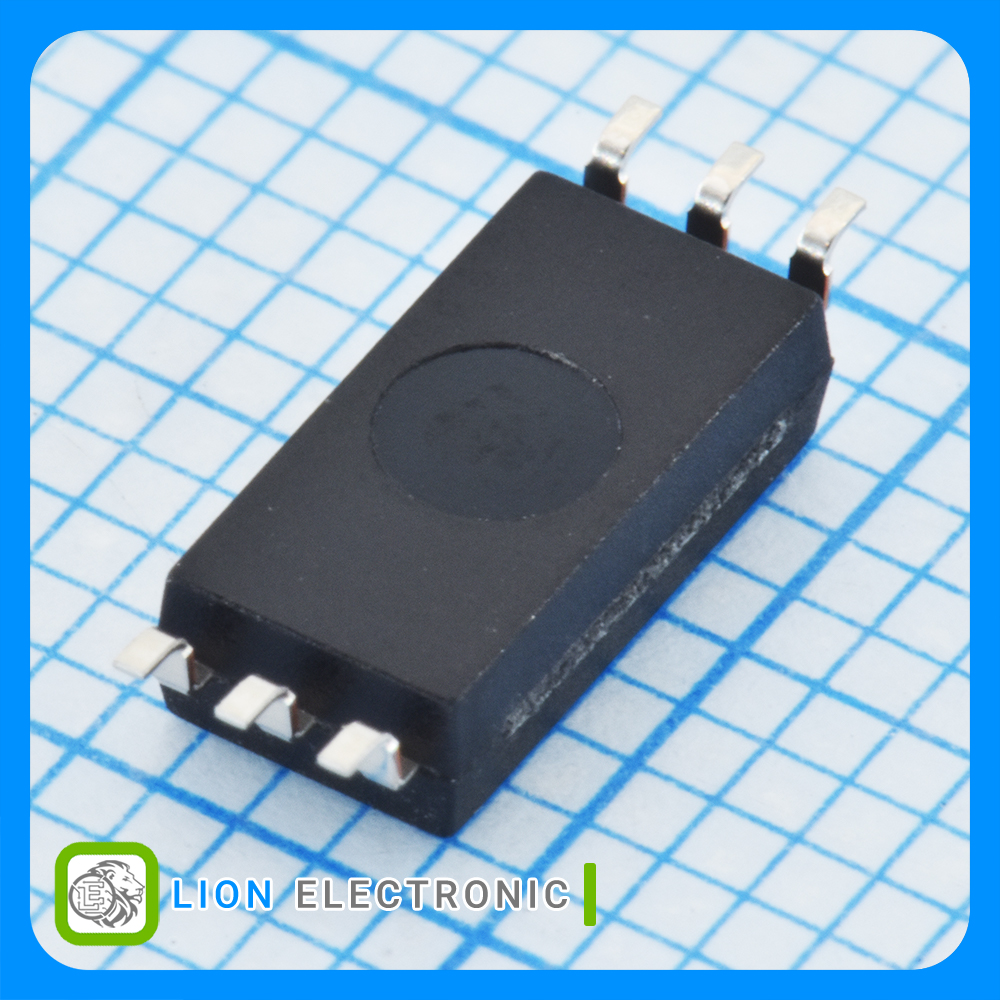

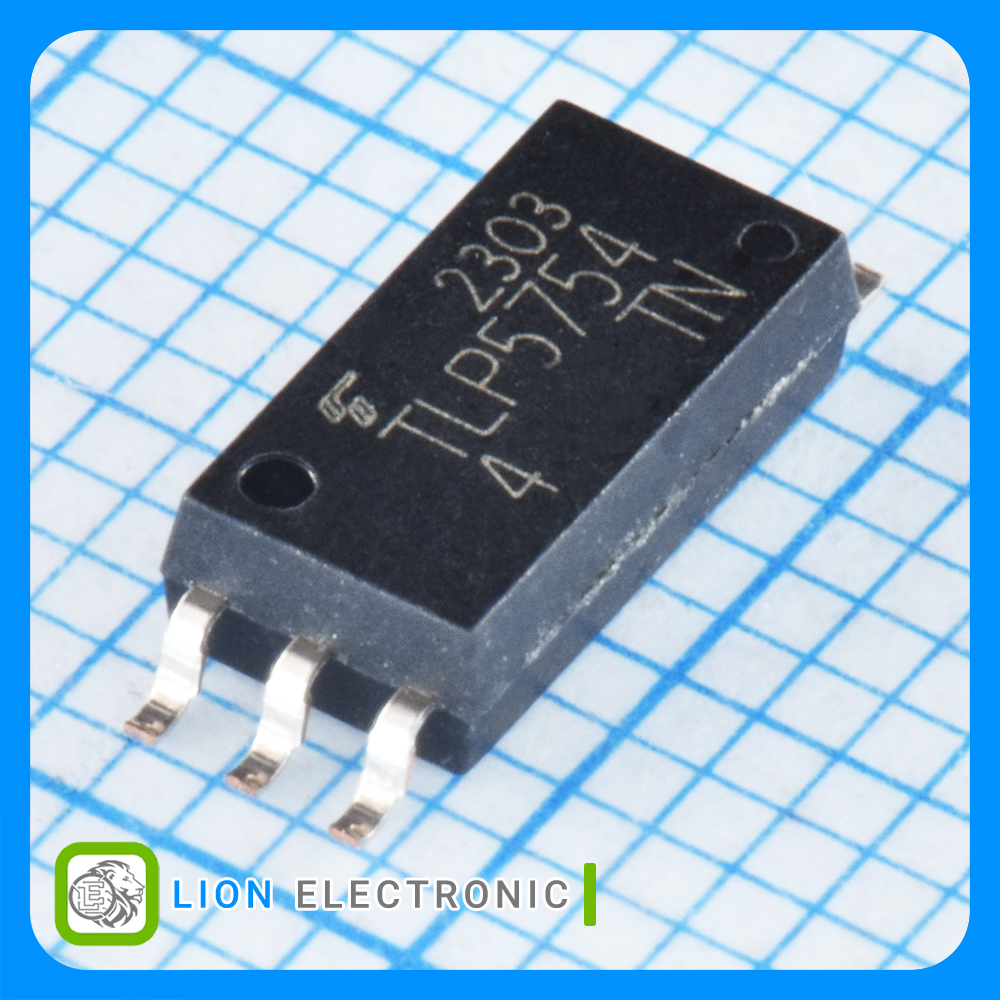

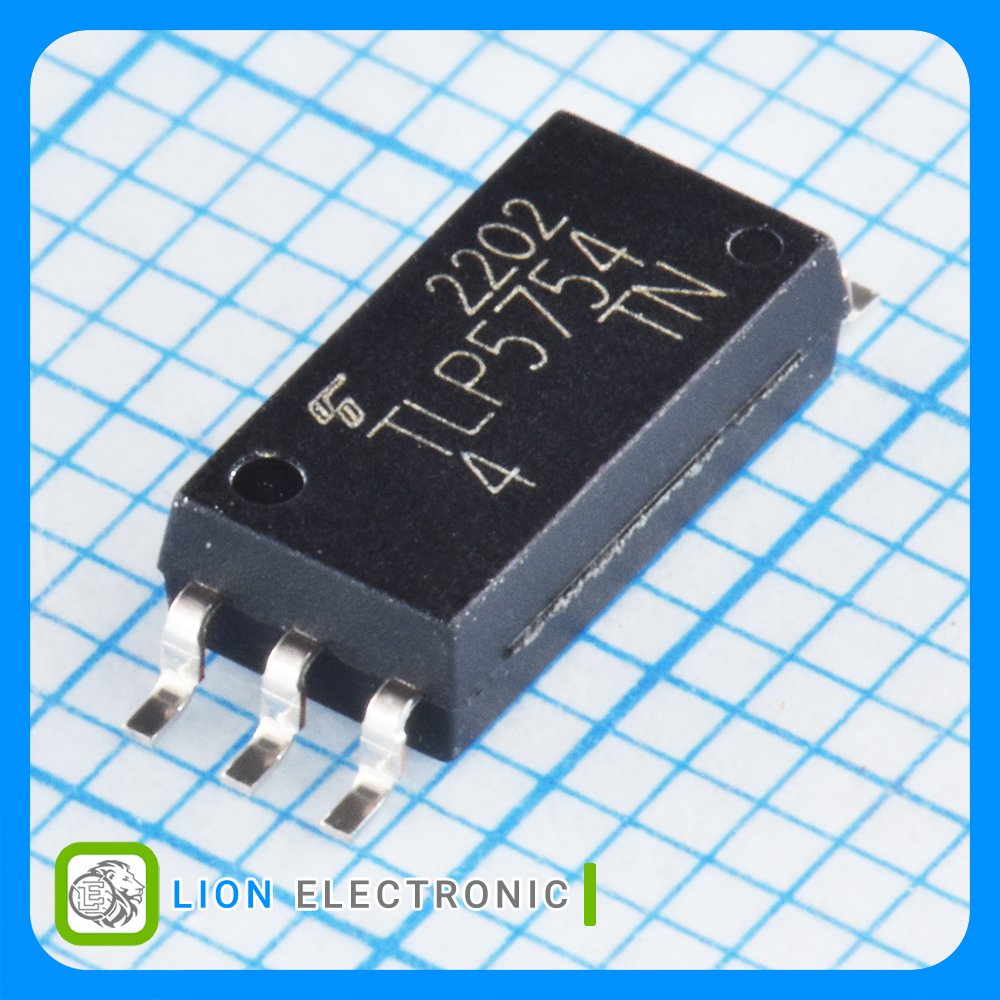

TLP5754(D4-TP,E(T
TLP5754(D4-TP,E(T
Part Number
5758
Lion Part
Datasheet
TOSHIBA Manufacture
گیت درایور ایزوله نوری TLP5754 تک کاناله ±4 آمپر با ایزولاسیون 5 کیلوولت RMS، شامل LED مادون‌قرمز و فوتودتکتور پرسرعت با پکیج SO-6
TLP5754 Isolated Gate Driver ±4A, 5kVrms Isolation, Consists of an Infrared LED and Integrated High-gain, High-speed Photodetector, with SO-6 Package
معرفی
گیت درایور ایزوله نوری TLP5754 تک کاناله ±4 آمپر با ایزولاسیون 5 کیلوولت RMS، شامل LED مادون‌قرمز و فوتودتکتور پرسرعت با پکیج SO-6
TLP5754 Isolated Gate Driver ±4A, 5kVrms Isolation, Consists of an Infrared LED and Integrated High-gain, High-speed Photodetector, with SO-6 Package
Specifications
- Type: Optically Isolated Gate Driver
- Number of Channels: 1
- Rise Time: 15ns
- Fall Time: 8ns
- Propagation Delay - Max: 150ns
- Peak Output Current: ±4A
- If - Forward Current: 15mA
- Isolation Voltage: 5kVrms
- Mounting Style: SMD/SMT
- Package/Case: SO-6
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +110C
- Packaging: Reel
مشخصات گیت درایور ایزوله TLP5754(D4-TP,E(T
گیت درایور ایزوله TLP5754(D4-TP,E(T
Part Number
1
Number of Channels
Reel
Packaging
±4A
Peak Output Current
-40C
Minimum Operating Temperature
15mA
If - Forward Current
SMD/SMT
Mounting Style
8ns
Fall Time
5kVrms
Isolation Voltage
+110C
Maximum Operating Temperature
15ns
Rise Time
150ns
Propagation Delay - Max
Optically Isolated Gate Driver
Type
SO-6
Package-Case
