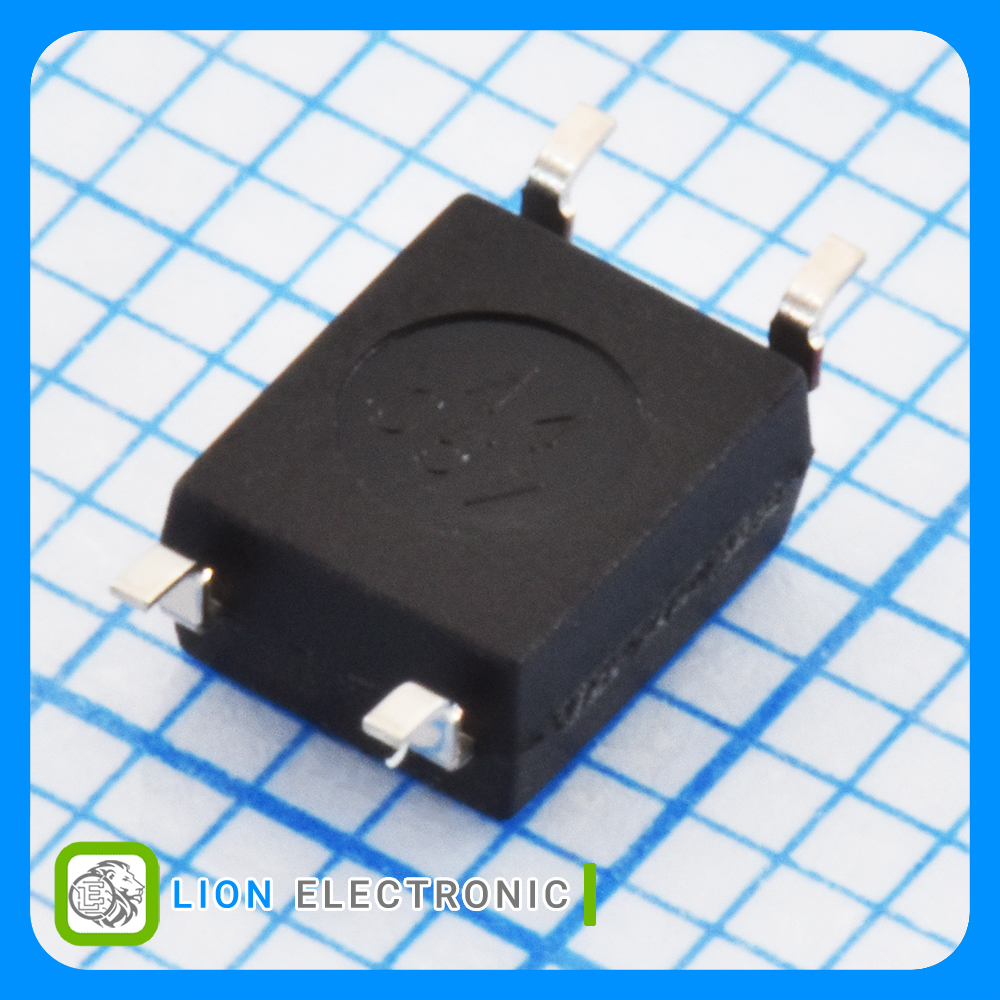

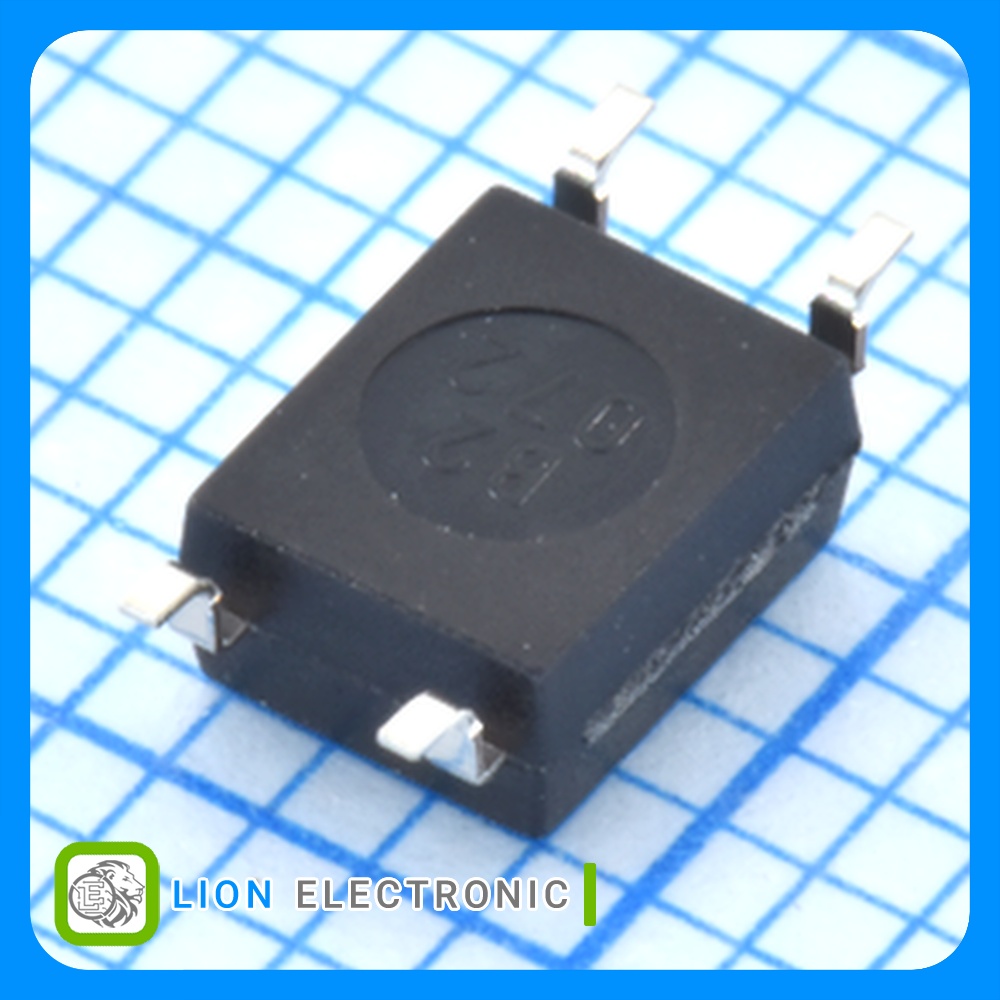

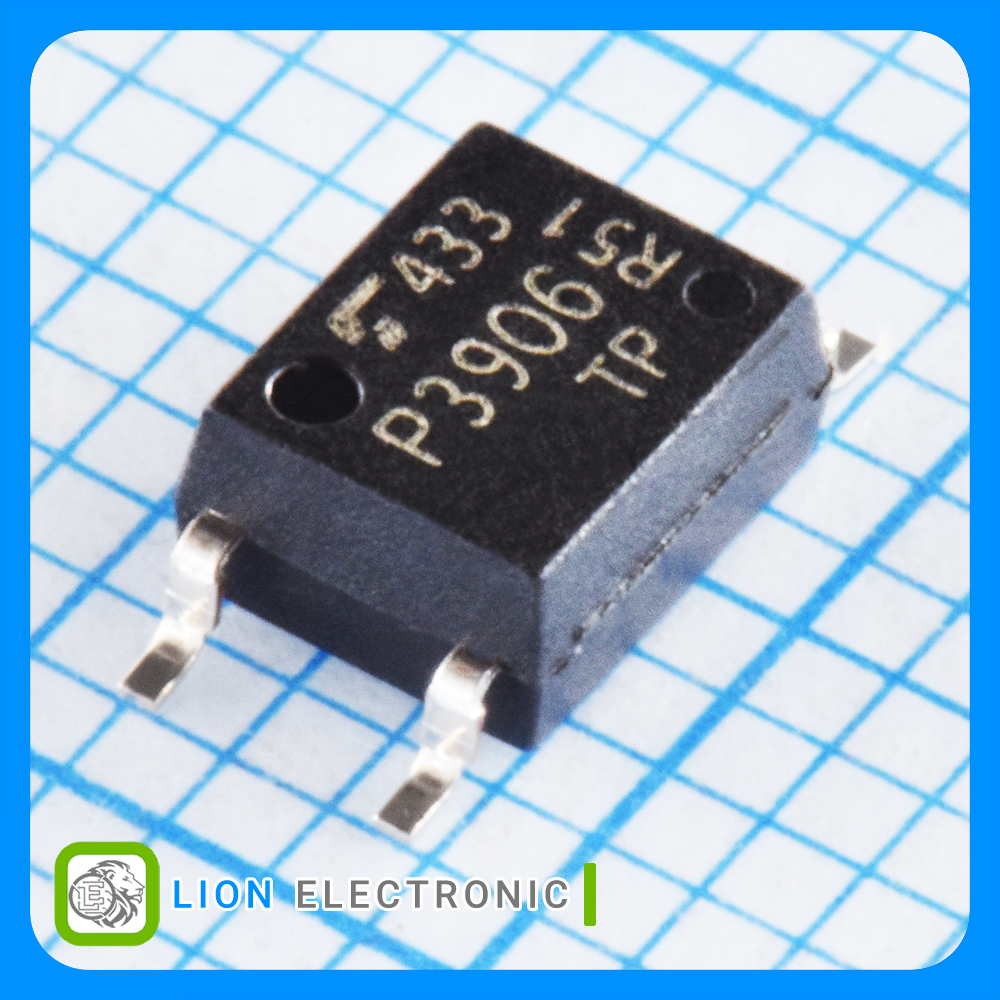

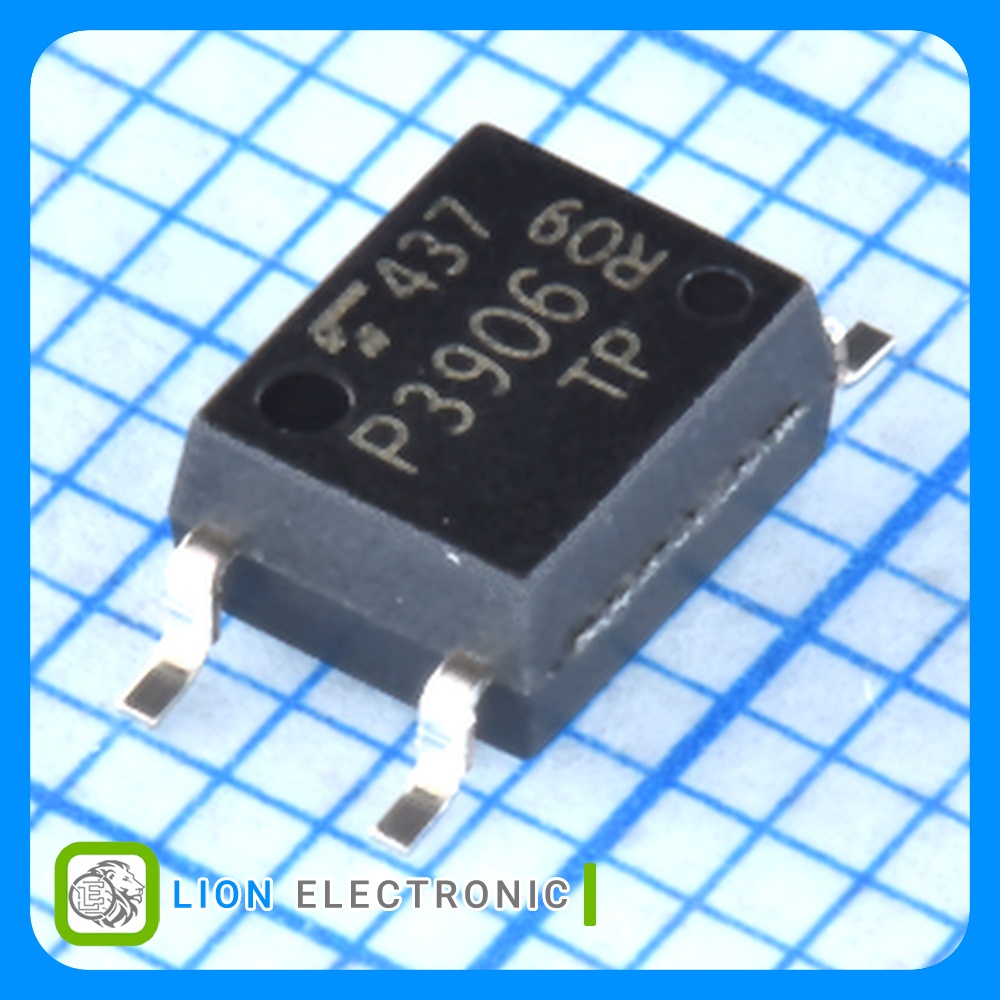

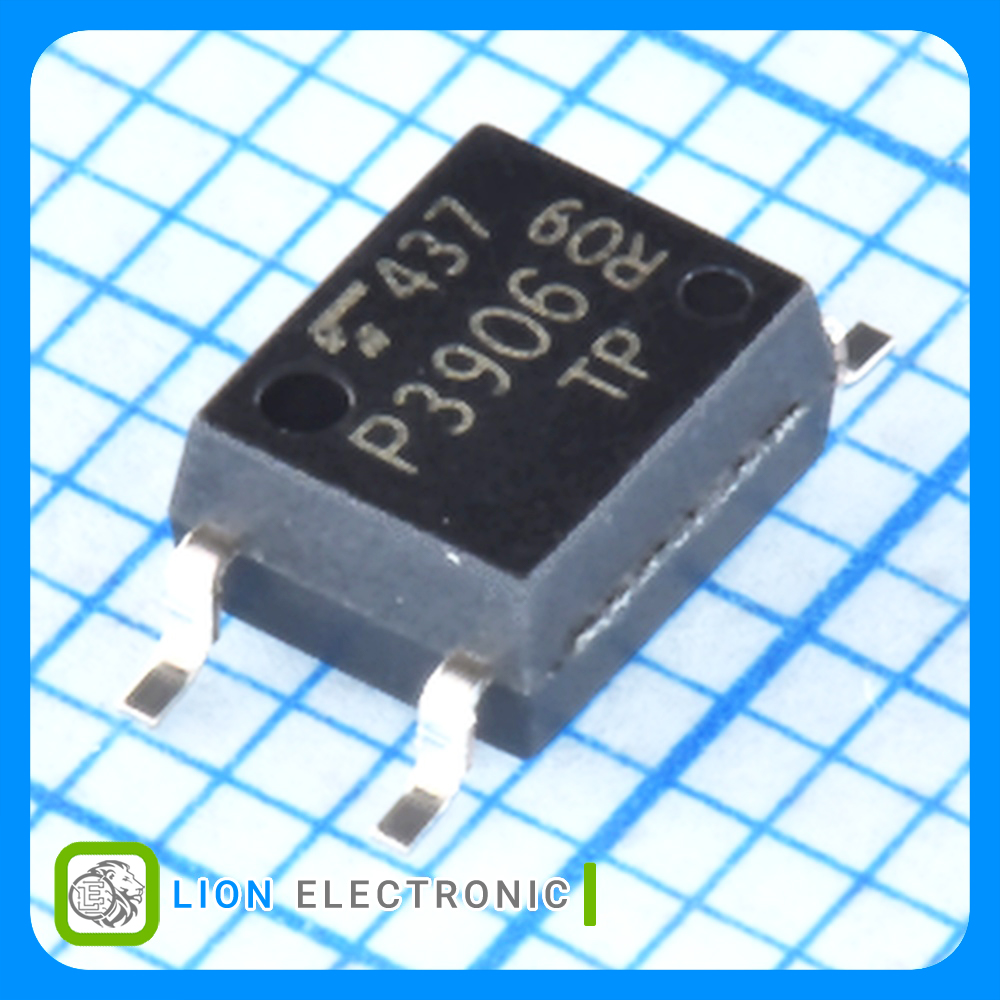

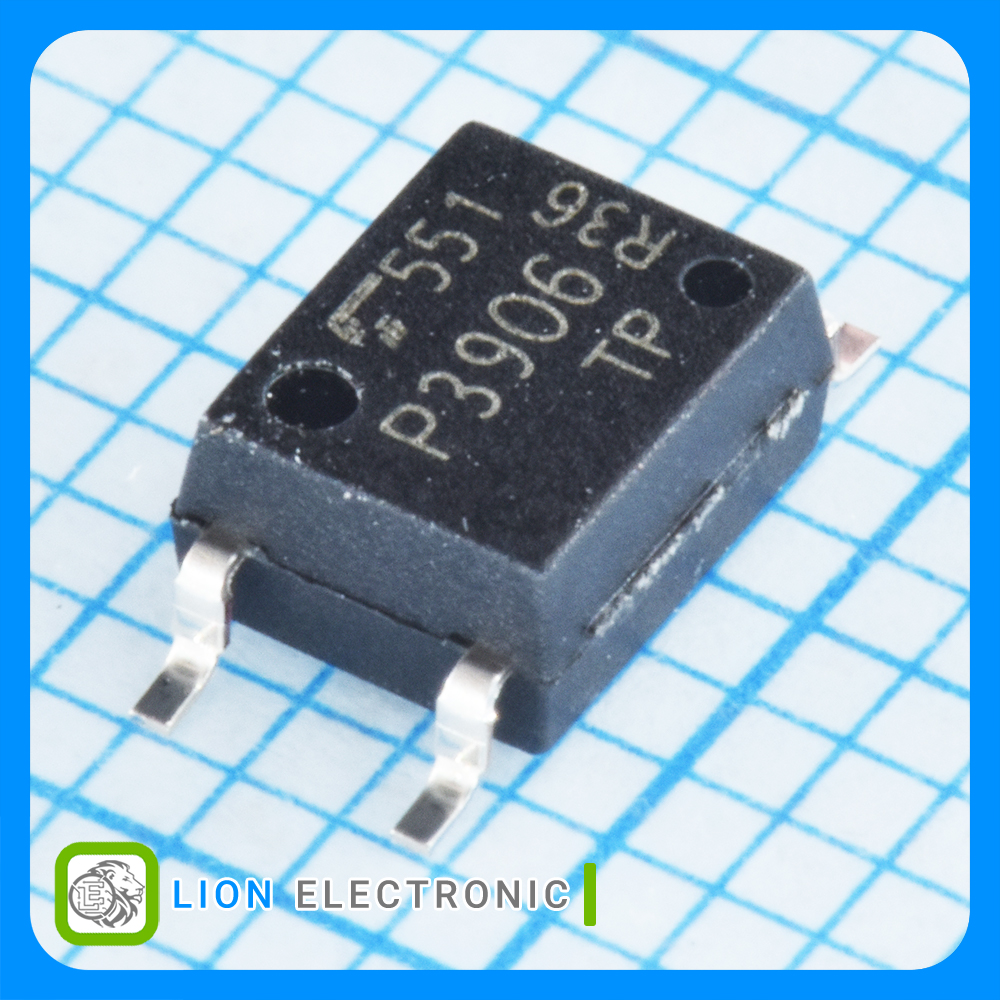

TLP3906(TPL,E
TLP3906(TPL,E
Part Number
6199
Lion Part
Datasheet
TOSHIBA Manufacture
گیت درایور ایزوله نوری 10 میلی‌آمپر تک کاناله با ایزولاسیون 3.75 کیلوولت RMS، اپتوکوپلر شامل LED مادون‌قرمز و آرایه فتودیود نوری با پکیج SO-6 4pin
Isolated Gate Driver 10mA, 3.75kVrms Isolation, Photocoupler in the SO6 Package that Consists of an Infrared Light Emitting Diode Optically Coupled to a Photodiode Array, with SO-6 4pin Package
معرفی
گیت درایور ایزوله نوری 10 میلی‌آمپر تک کاناله با ایزولاسیون 3.75 کیلوولت RMS، اپتوکوپلر شامل LED مادون‌قرمز و آرایه فتودیود نوری با پکیج SO-6 4pin
Isolated Gate Driver 10mA, 3.75kVrms Isolation, Photocoupler in the SO6 Package that Consists of an Infrared Light Emitting Diode Optically Coupled to a Photodiode Array, with SO-6 4pin Package
Specifications
- Type: Optically Isolated Gate Driver
- Number of Channels: 1
- Rise Time: 200ns
- Fall Time: 300ns
- Peak Output Current: 10mA
- If - Forward Current: 30mA
- Isolation Voltage: 3.75kVrms
- Mounting Style: SMD/SMT
- Package/Case: SO-6 4pin
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات TLP3906(TPL,E
TLP3906(TPL,E
Part Number
10mA
Peak Output Current
1
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
3.75kVrms
Isolation Voltage
30mA
If - Forward Current
+125C
Maximum Operating Temperature
200ns
Rise Time
N/A
Propagation Delay - Max
300ns
Fall Time
Optically Isolated Gate Driver
Type
SO-6 (4-pin)
Package-Case
