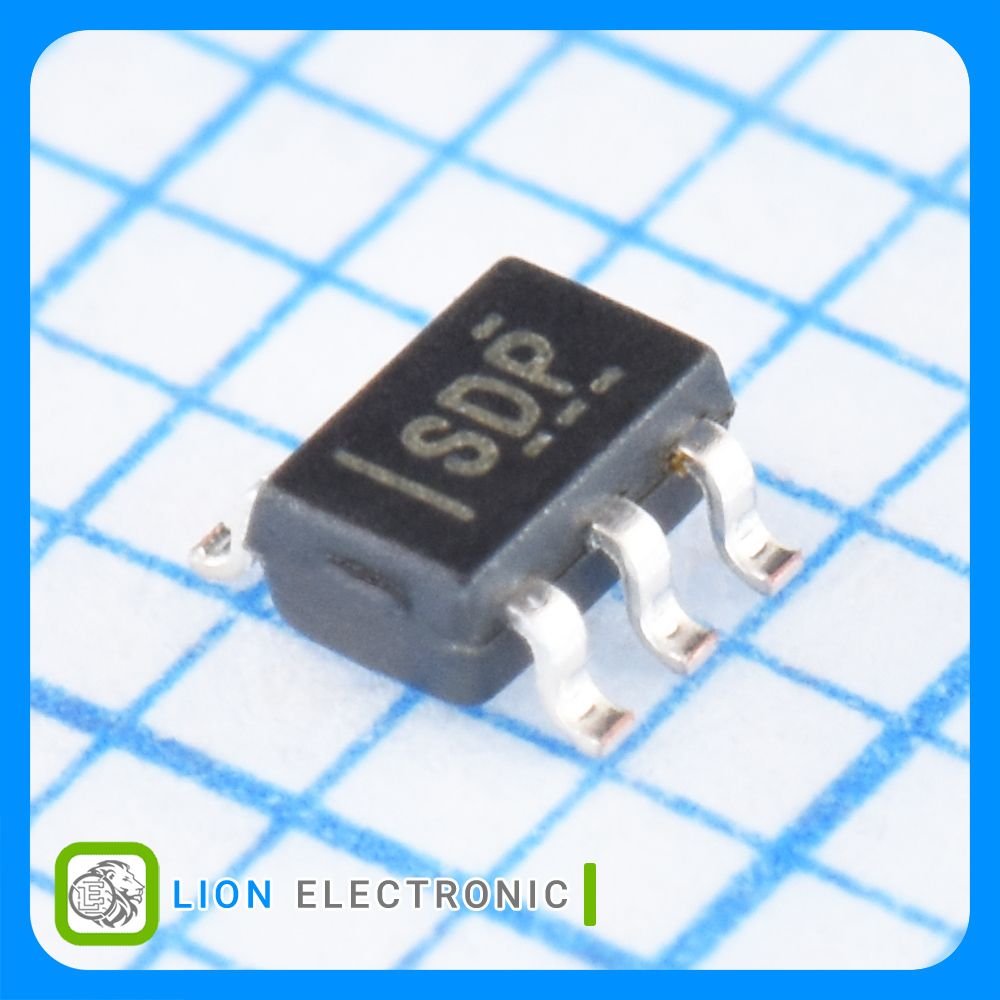

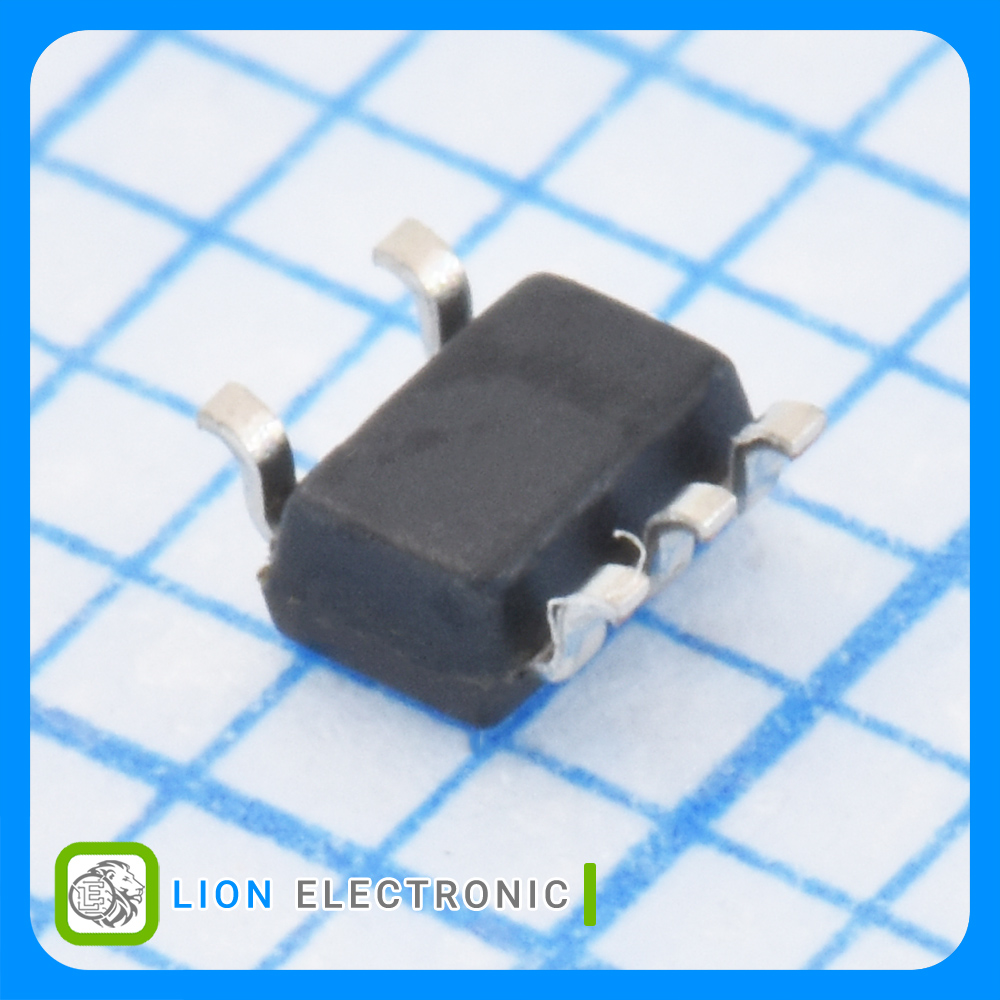

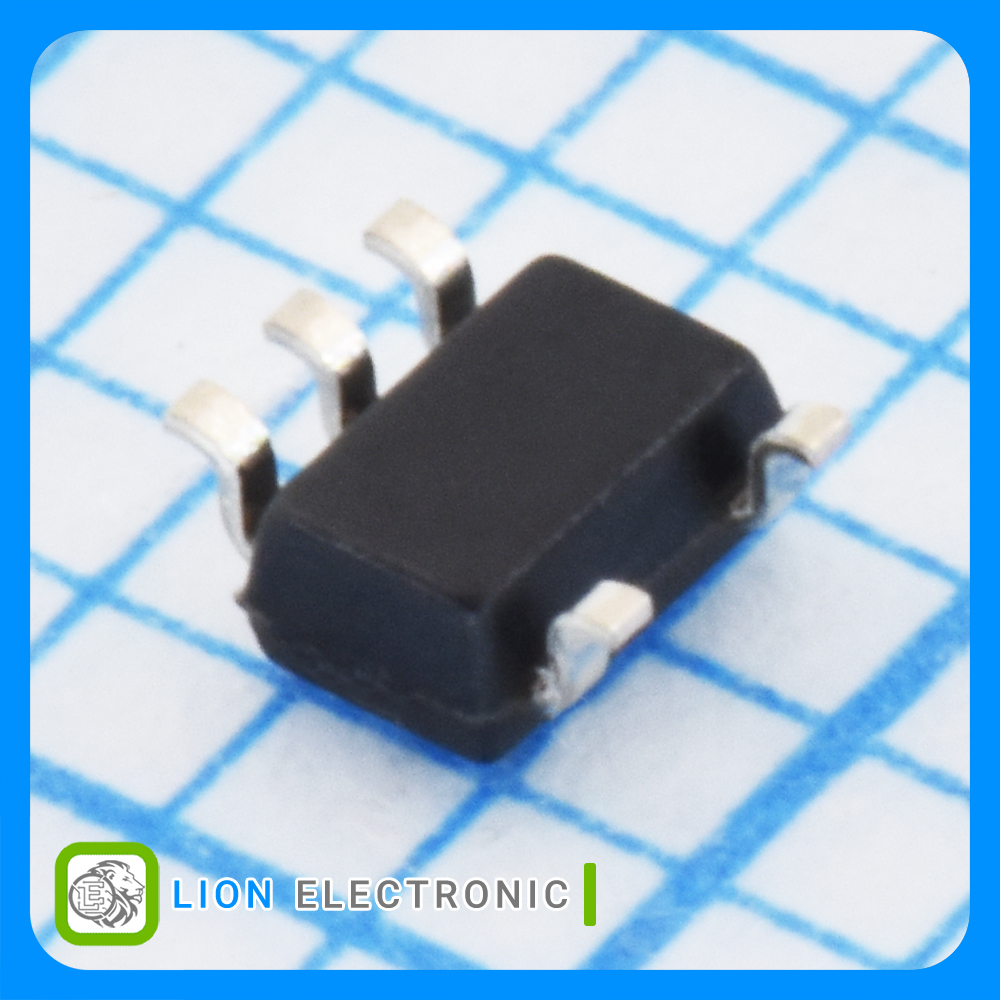

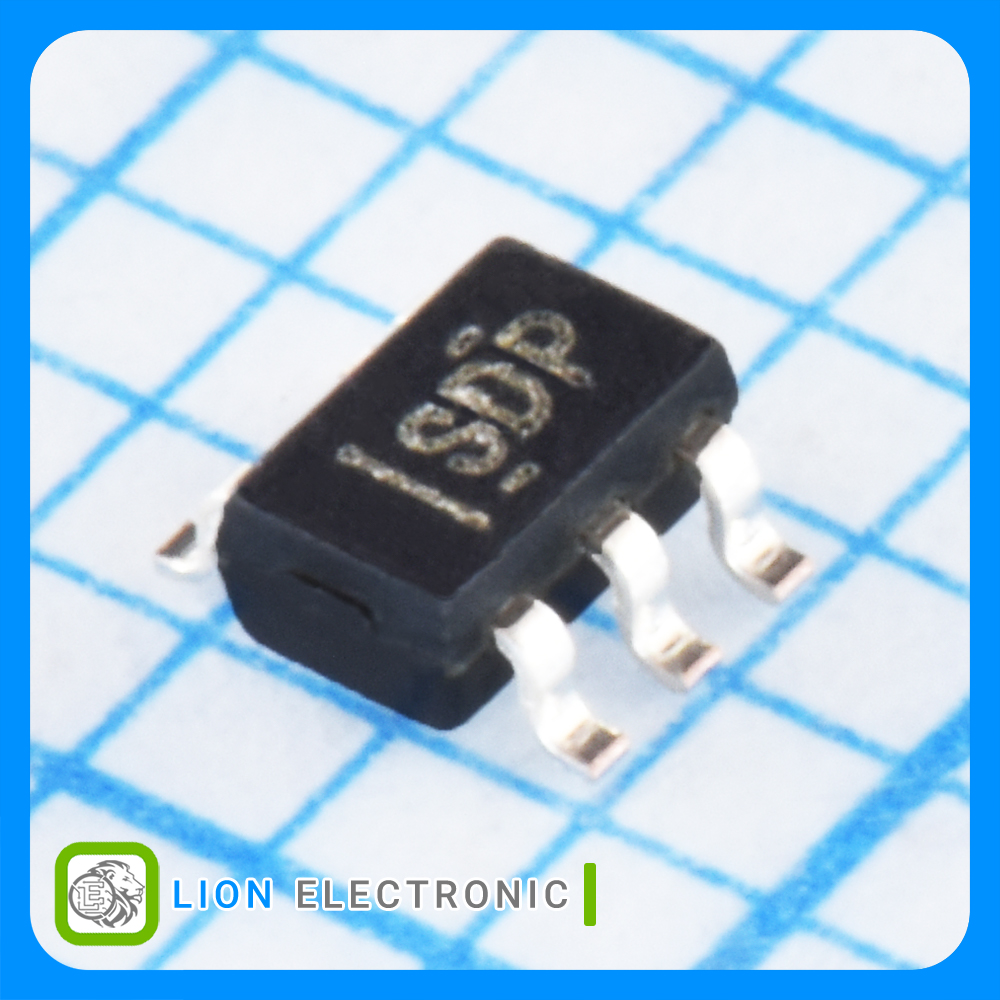

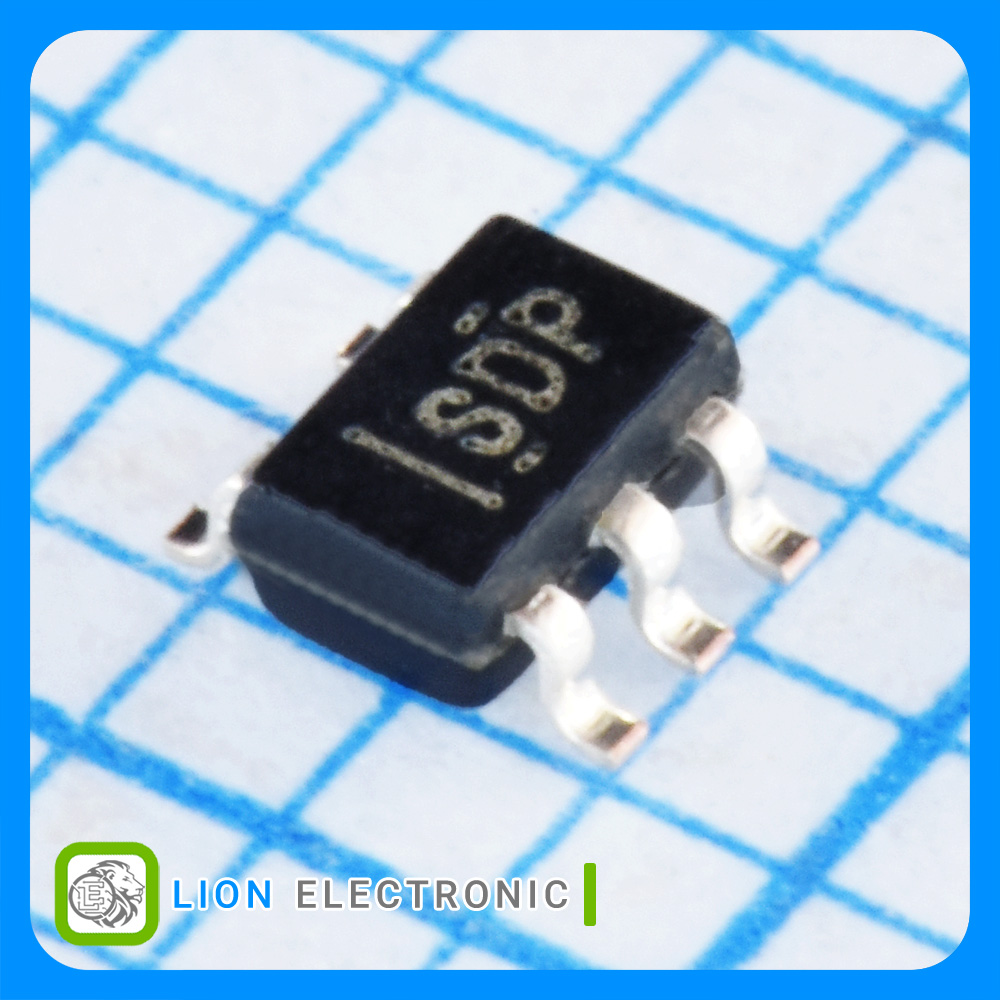

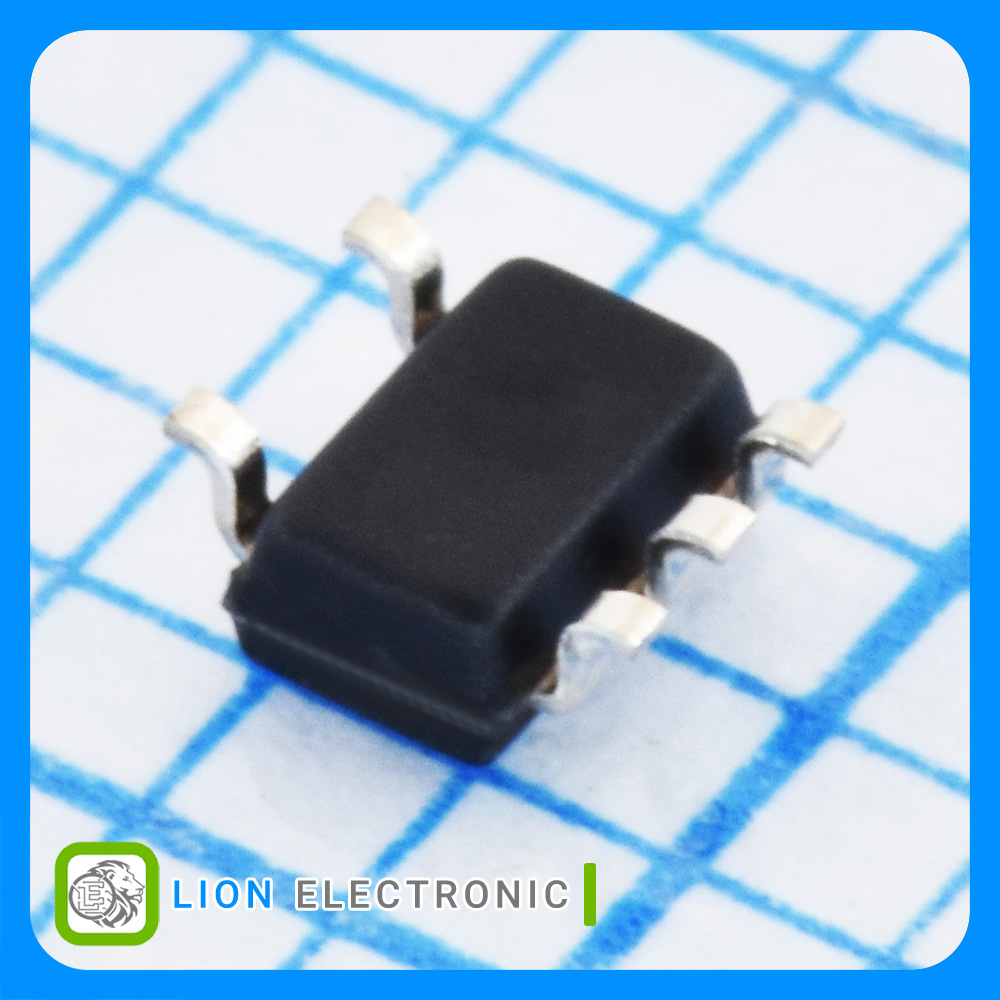

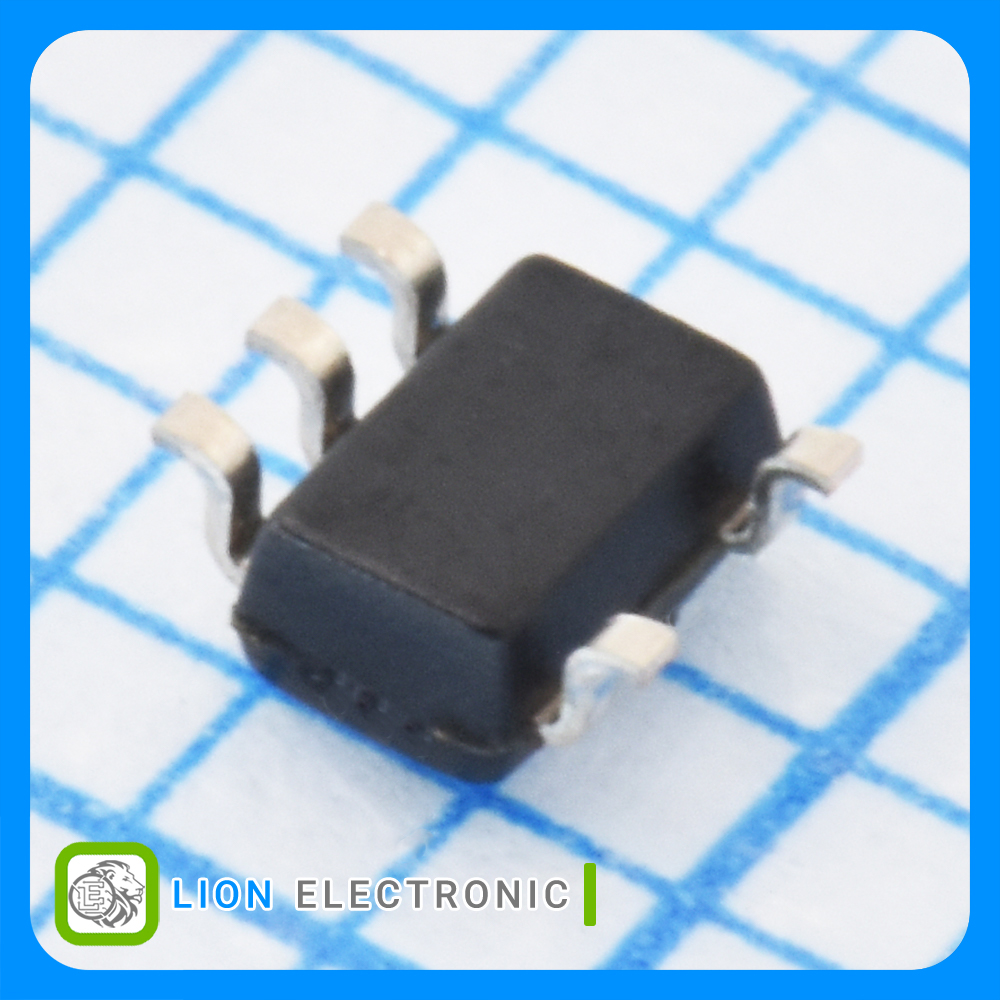

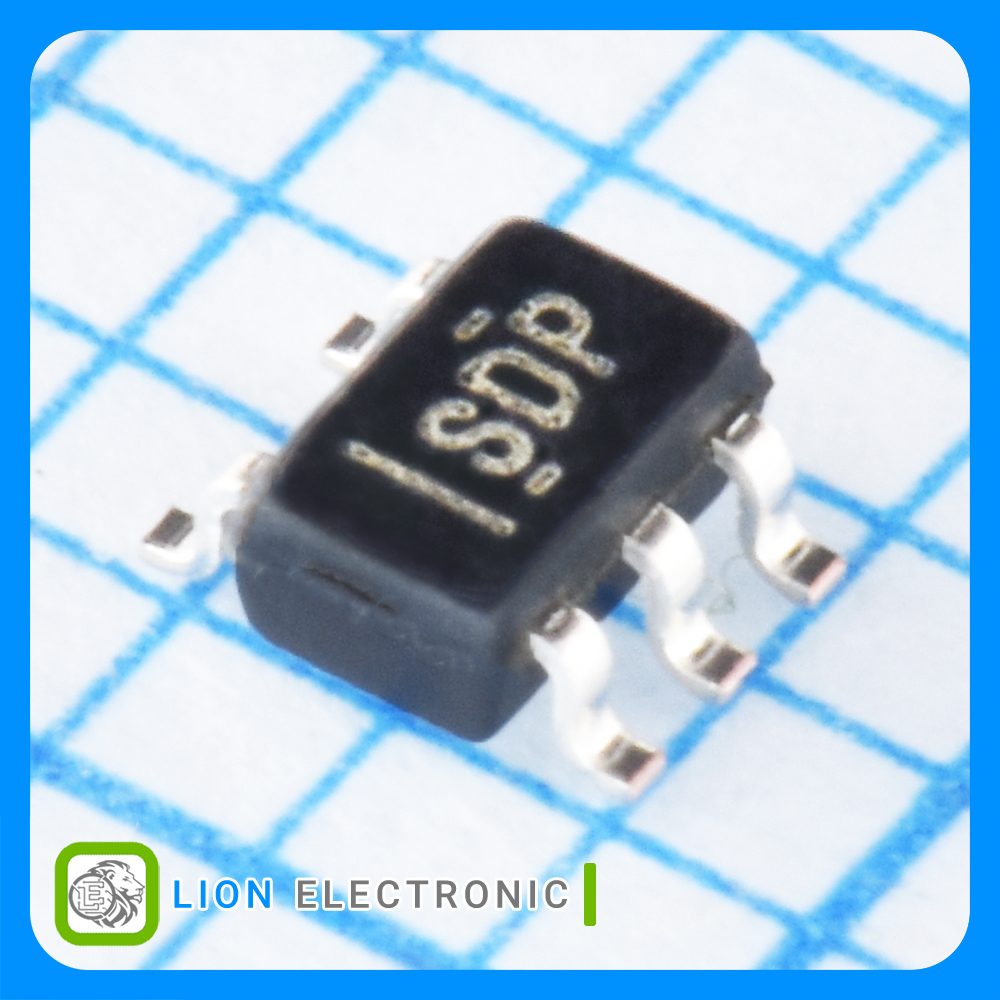

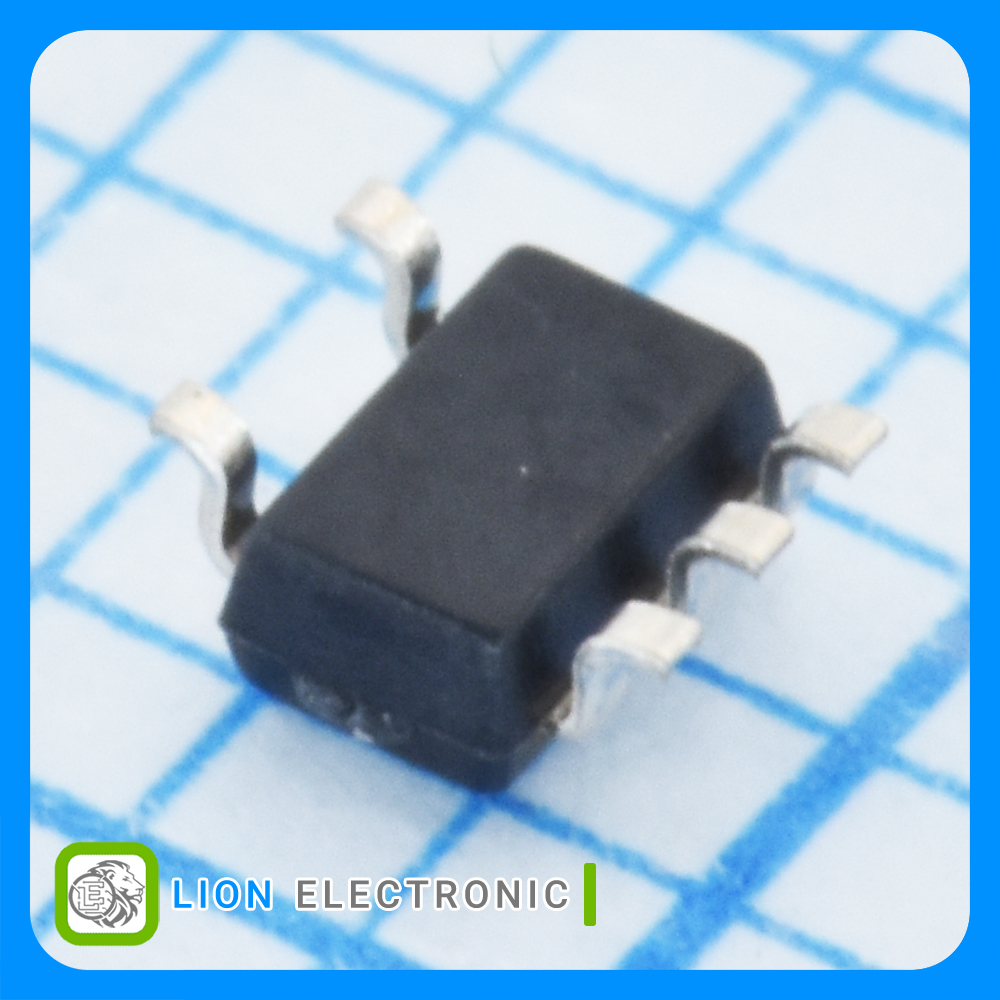

TLV3201AIDCKT
TLV3201AIDCKT
Part Number
4630
Lion Part
Datasheet
Texas Instruments Manufacture
مقایسهکننده آنالوگ 1 کاناله همهمنظوره، 40ns، خروجی Push-Pull، microPOWER، آفست 1 میلیولت با پکیج SC-70-5
Analog Comparator 1 Channel General Purpose, 40ns, microPOWER, Push-Pull Output, 1mV with SC-70-5 Package
معرفی
مقایسهکننده آنالوگ 1 کاناله همهمنظوره، 40ns، خروجی Push-Pull، microPOWER، آفست 1 میلیولت با پکیج SC-70-5
Analog Comparator 1 Channel General Purpose, 40ns, microPOWER, Push-Pull Output, 1mV with SC-70-5 Package
Specifications
- Number of Channels: 1
- Comparator Type: General Purpose
- Response Time: 40ns
- Output Current per Channel: 60mA
- Ib - Input Bias Current: 50pA
- Vos - Input Offset Voltage: 1mV
- Output Type: Push-Pull
- Supply Voltage - Min: 2.7V
- Supply Voltage - Max: 5.5V
- Operating Supply Current: 40uA
- Mounting Style: SMD/SMT
- Package/Case: SC-70-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات مقایسه کننده آنالوگ TLV3201AIDCKT

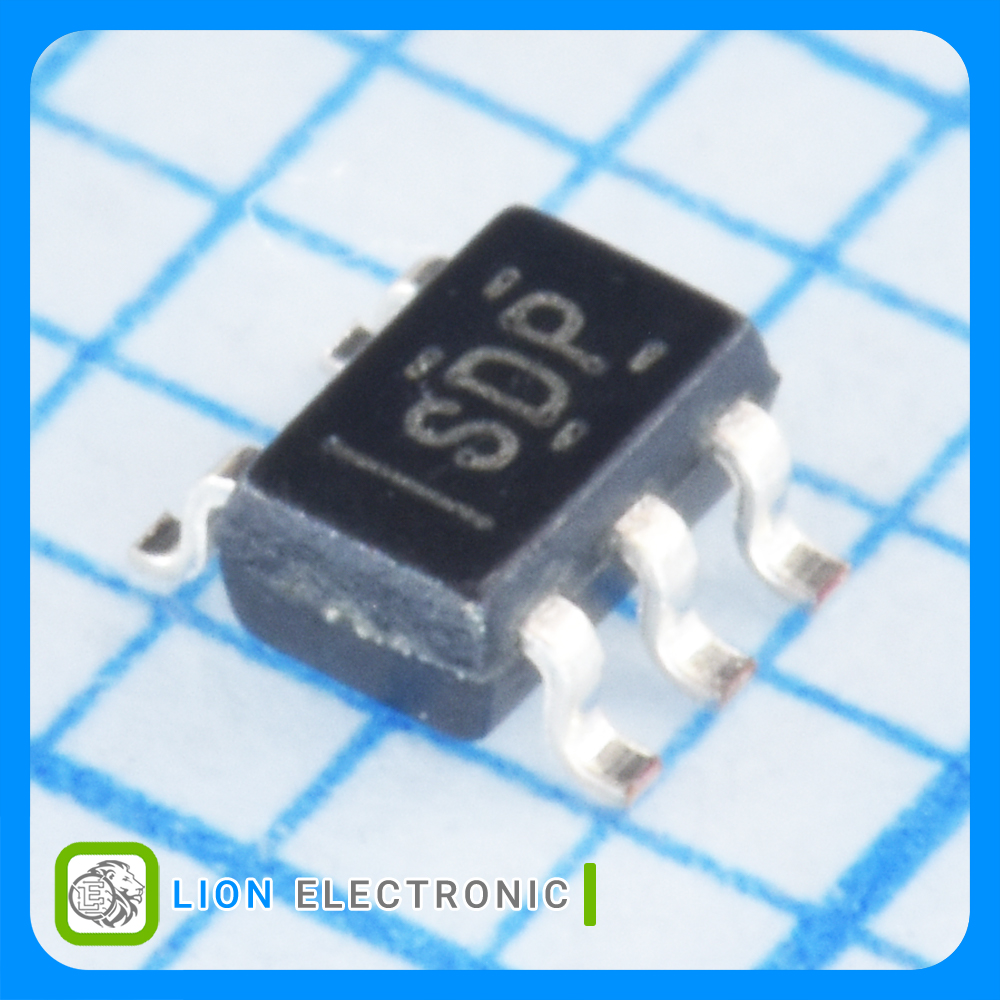

مقایسه کننده آنالوگ TLV3201AIDCKT
Part Number
1
Number of Channels
General Purpose
Comparator Type
40ns
Response Time
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
50pA
Ib - Input Bias Current
5.5V
Supply Voltage - Max
Push-Pull
Output Type
60mA
Output Current per Channel
40uA
Operating Supply Current
2.7V
Supply Voltage - Min
1mV
Vos - Input Offset Voltage
SC-70-5
Package-Case
