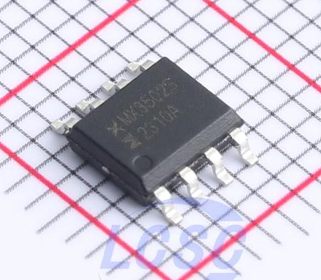

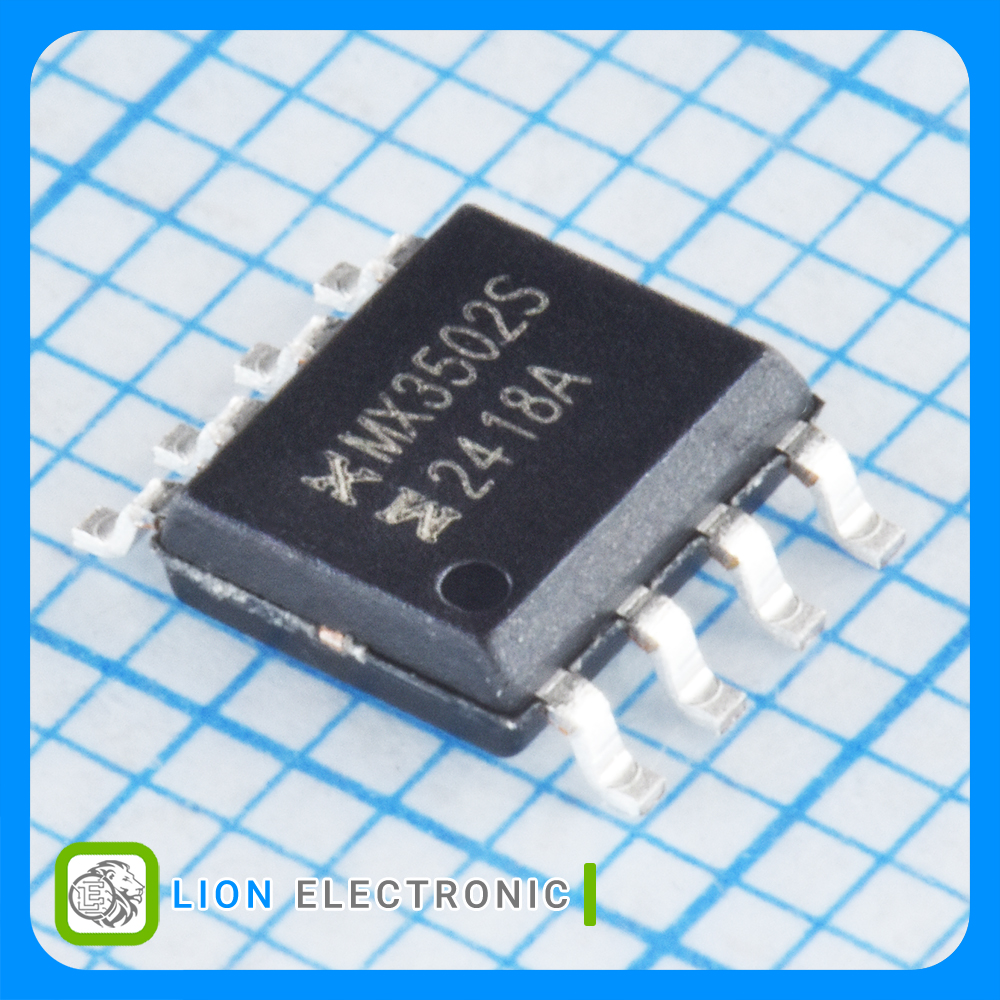

MX3502S
MX3502S
Part Number
6753
Lion Part
Datasheet
Wuxi Maxinmicro Manufacture
مقایسهکننده آنالوگ 2 کاناله تفاضلی ریل به ریل سرعت 4.5ns خروجی پوش-پول CMOS آفست ±1 میلیولت با پکیج SOP-8L
High Speed Analog Comparator 2 Channel Differential Rail to Rail, 4.5ns, Push Pull CMOS Output Stage, ±1mV with SOP-8L Package
معرفی
مقایسهکننده آنالوگ 2 کاناله تفاضلی ریل به ریل سرعت 4.5ns خروجی پوش-پول CMOS آفست ±1 میلیولت با پکیج SOP-8L
High Speed Analog Comparator 2 Channel Differential Rail to Rail, 4.5ns, Push Pull CMOS Output Stage, ±1mV with SOP-8L Package
Specifications
- Number of Channels: 2
- Comparator Type: Differential
- Response Time: 4.5ns
- Output Current per Channel: 70mA
- Ib - Input Bias Current: 2pA
- Vos - Input Offset Voltage: ±1mV
- Output Type: Push-Pull
- Supply Voltage - Min: 2.7V
- Supply Voltage - Max: 5.5V
- Operating Supply Current: 3.2mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات MX3502S
MX3502S
Part Number
Differential
Comparator Type
4.5ns
Response Time
2
Number of Channels
-55C
Minimum Operating Temperature
Reel
Packaging
2pA
Ib - Input Bias Current
SMD/SMT
Mounting Style
+150C
Maximum Operating Temperature
5.5V
Supply Voltage - Max
Push-Pull
Output Type
70mA
Output Current per Channel
2.7V
Supply Voltage - Min
±1mV
Vos - Input Offset Voltage
3.2mA
Operating Supply Current
SOIC-8
Package-Case
