TAI-TECH
معرفی

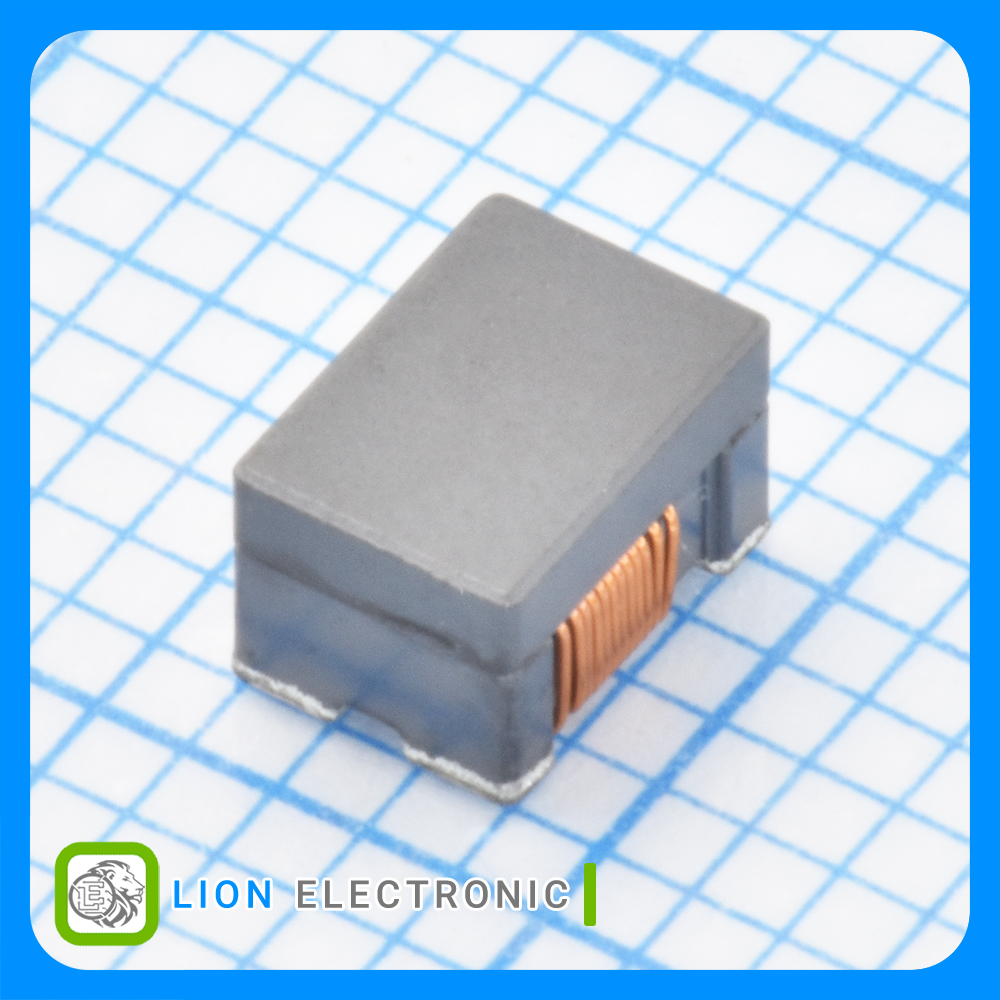

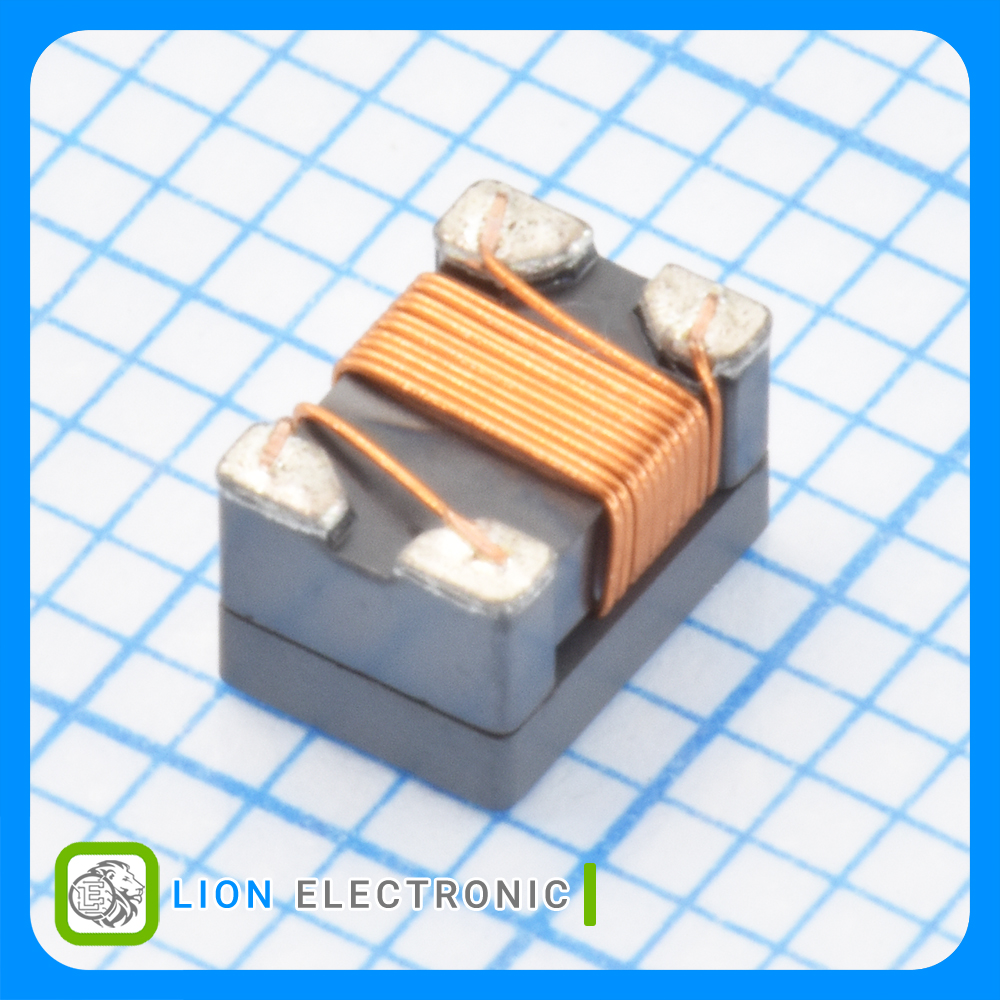

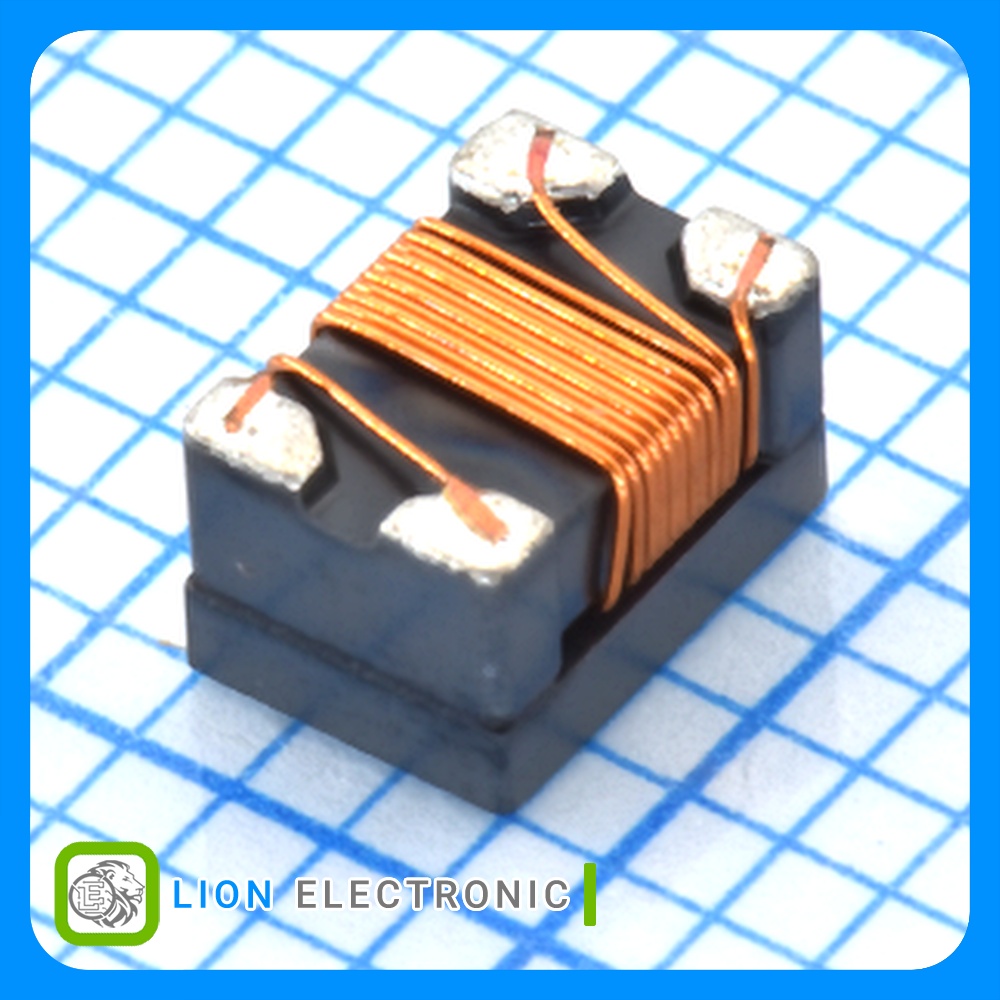

چوکفیلتر مد مشترک 2 کاناله، مقاومت DC 240mΩ با ابعاد 4.5x3.2x2.8mm
Common Mode Chokes / Filters 2 Channel, 240mΩ with 4.5x3.2x2.8mm Size
Specifications
- Product: Common Mode Filters
- Number of Channels: 2
- Self Resonant Frequency: 100MHz
- Inductance: 1.5uH
- Impedance: 1kΩ
- Maximum DC Current: 1A
- Maximum DC Resistance: 240mΩ
- Termination style: SMD/SMT
- Mounting Style: SMD/SMT
- Package/Case: 4.5x3.2x2.8mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات فیلتر کامان مد WCM4532F2SF-102T10

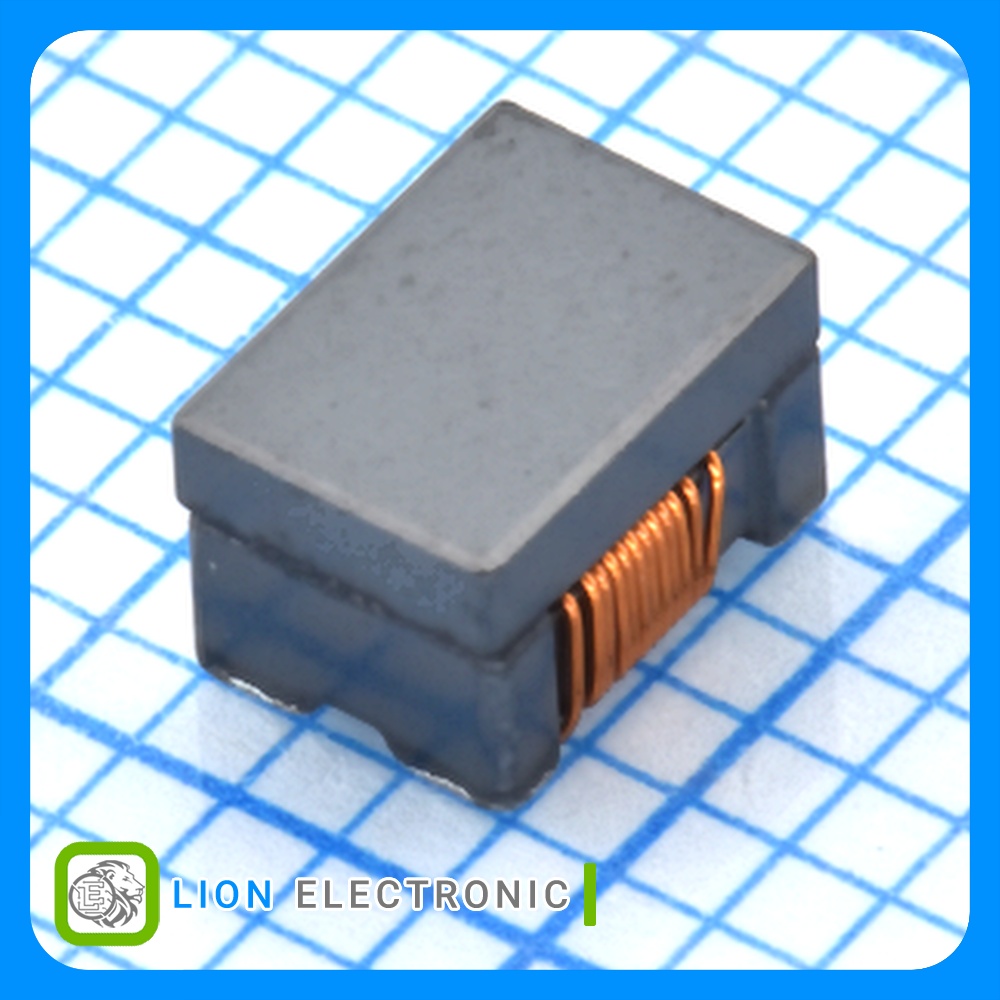

فیلتر کامان مد WCM4532F2SF-102T10
Part Number
2
Number of Channels
Reel
Packaging
SMD/SMT
Termination style
-40C
Minimum Operating Temperature
100MHz
Self Resonant Frequency
SMD/SMT
Mounting Style
4.5x3.2x2.8mm
Package-Case
1kΩ
Impedance
+125C
Maximum Operating Temperature
1.5uH
Inductance
Common Mode Filters
Product
1A
Maximum DC Current
240mΩ
Maximum DC Resistance
