TAI-TECH
معرفی
سلف 4.7 میکروهانری با جریان اشباع 28 آمپر و مقاومت DC برابر 8.4 میلیاهم سایز 12.5x12.5mm، سایز 13.5 در 12.5 میلیمتر
Inductor 4.7uH, 28A with 8.4mΩ and 12.5 x 12.5mm Package, 13.5mm x 12.5mm
Specifications
- Shielding: Shielded
- Inductance: 4.7uH
- Saturation Current: 28A
- Maximum DC Resistance: 8.4mΩ
- Termination style: SMD/SMT
- Package/Case: 12.5 x 12.5mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات سلف TMPC1265HP-4R7MG-D

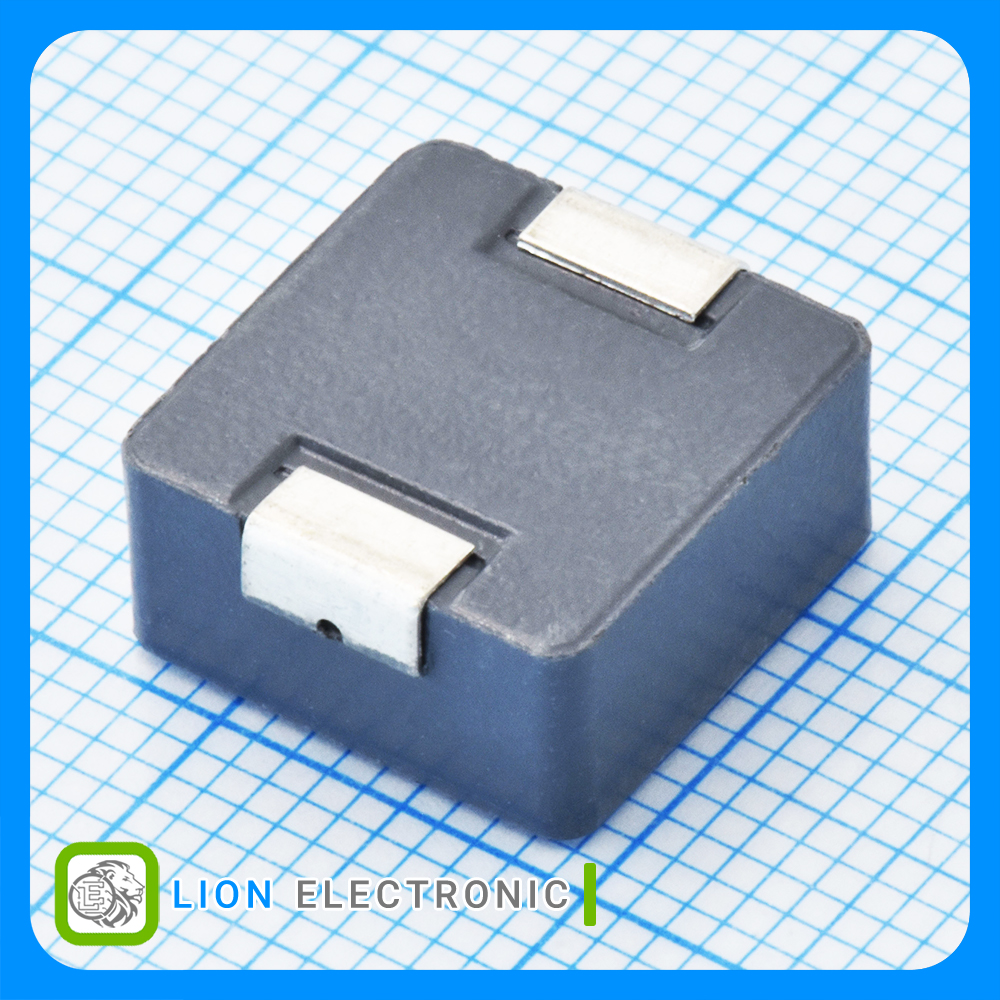

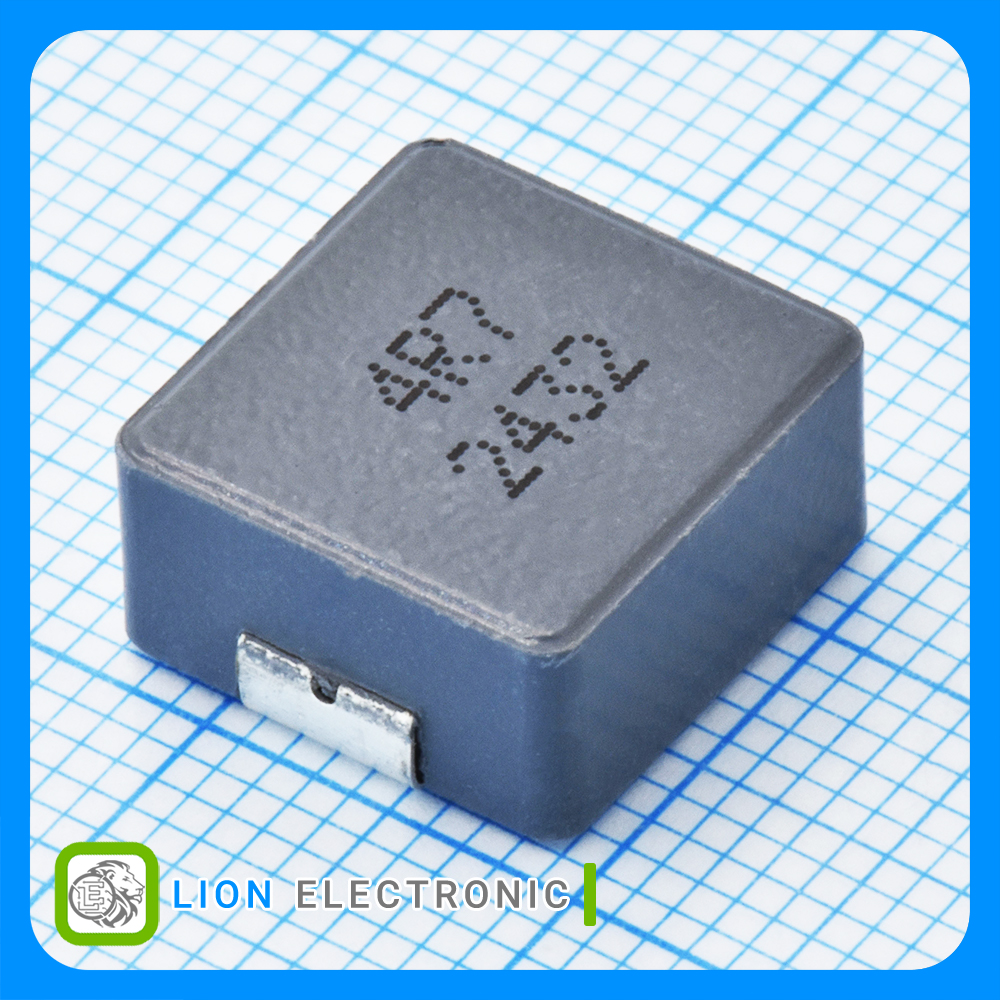

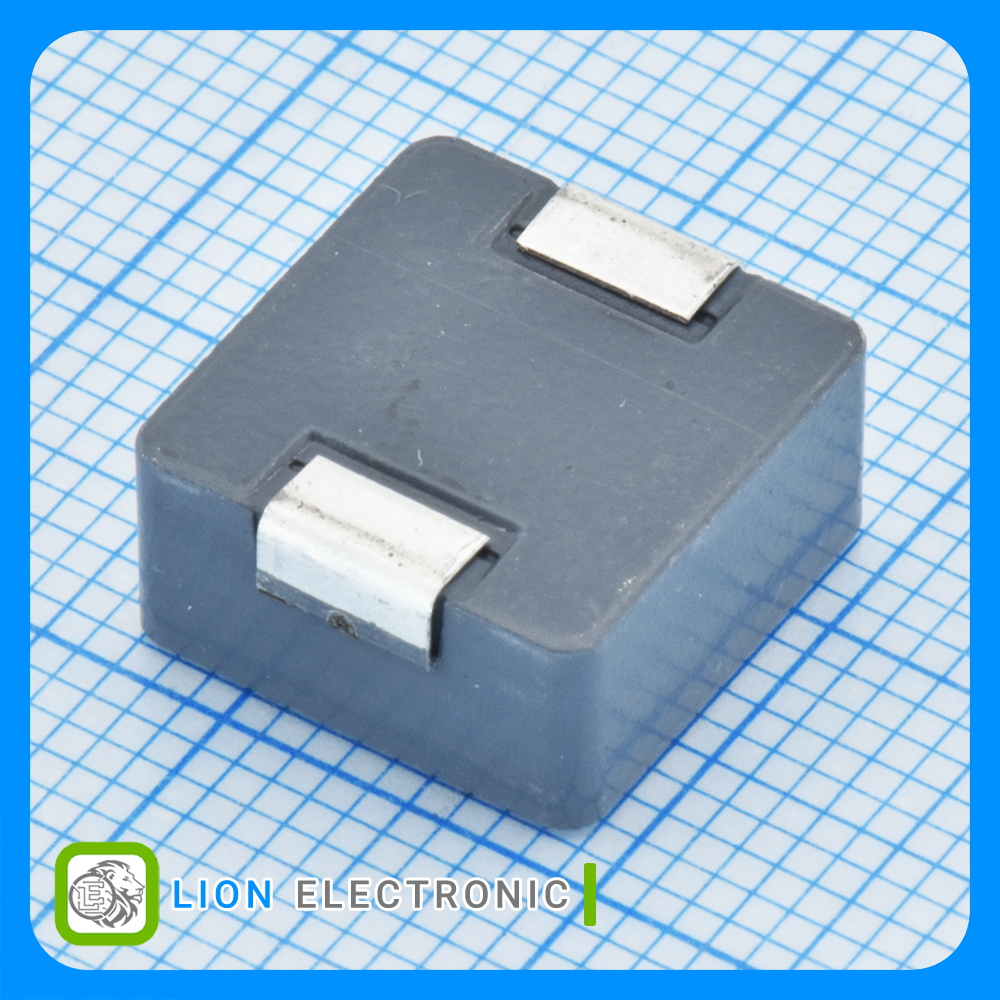

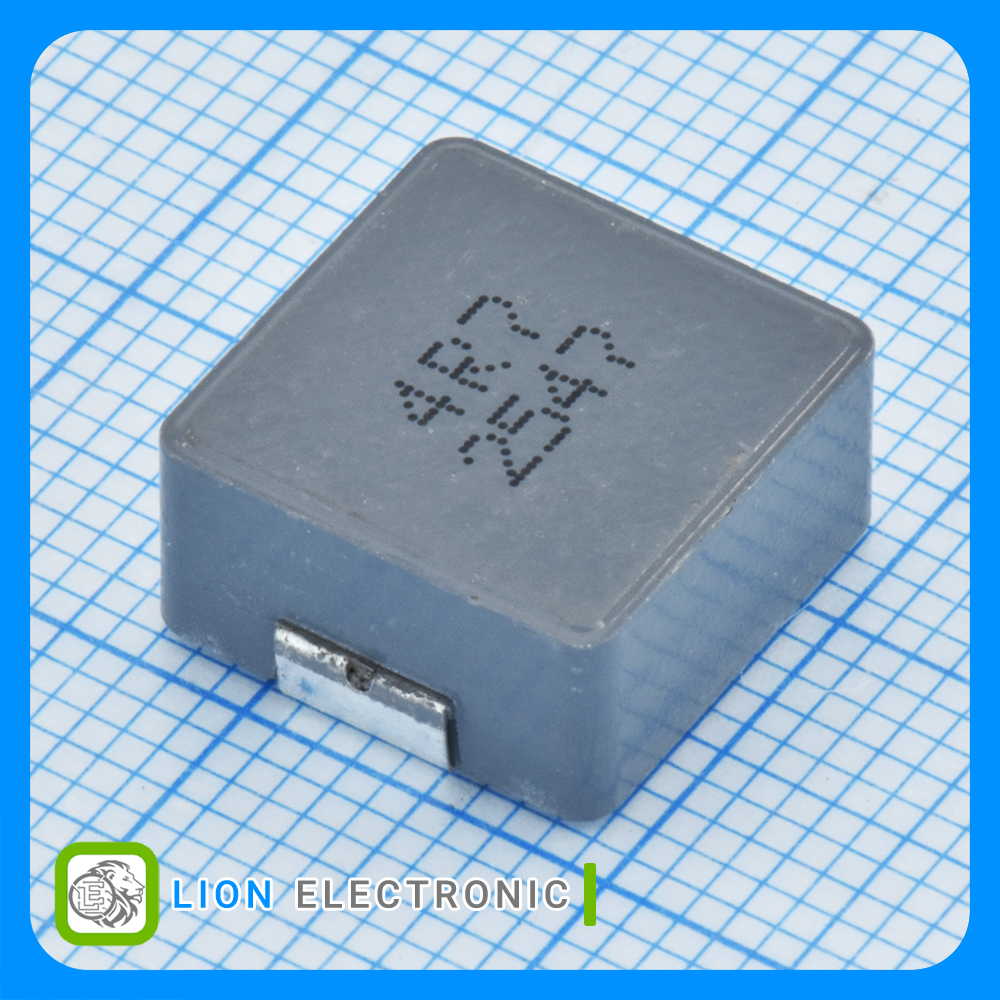

سلف TMPC1265HP-4R7MG-D
Part Number
Shielded
Shielding
SMD/SMT
Termination style
Reel
Packaging
-40C
Minimum Operating Temperature
8.4mΩ
Maximum DC Resistance
+125C
Maximum Operating Temperature
12.5 x 12.5mm
Package-Case
4.7uH
Inductance
28A
Saturation Current
