Anaren
معرفی

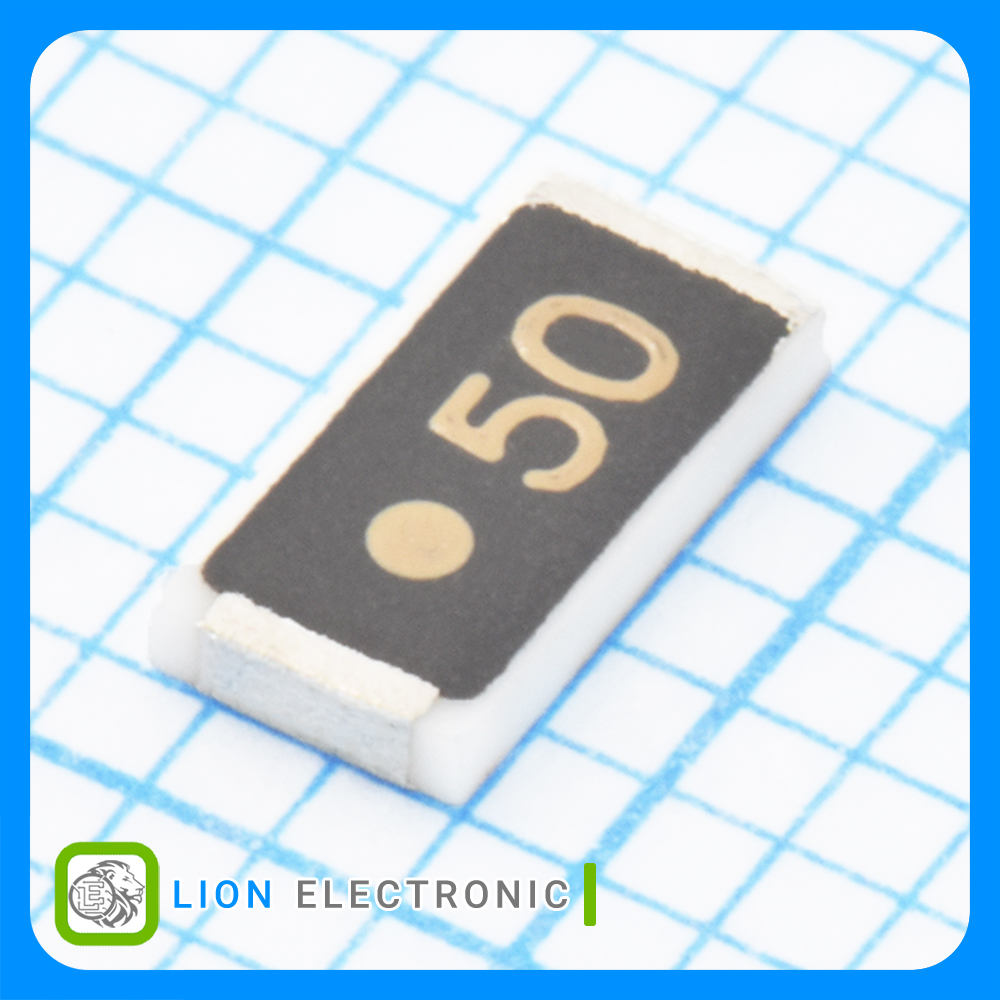

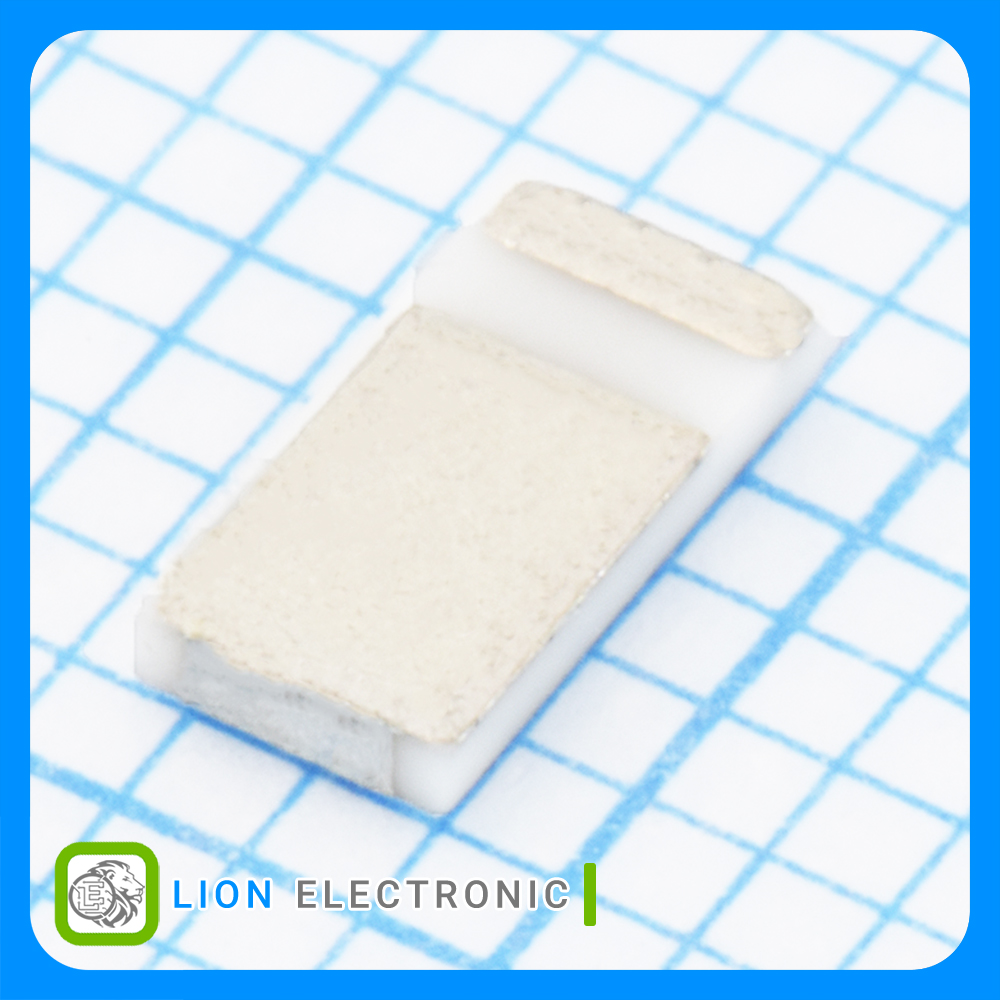

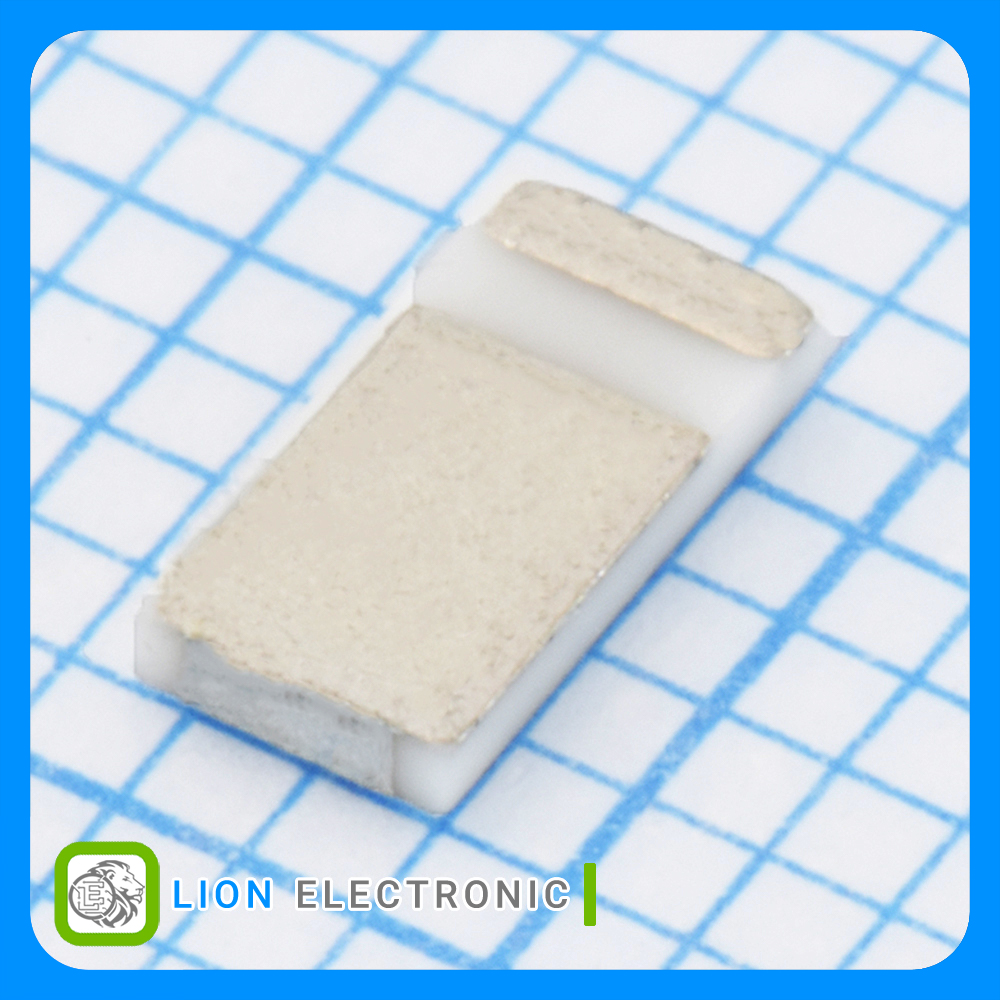

مقاومت 50 اهم مخصوص لود RF با توان 10 وات تا فرکانس 3 گیگاهرتز، تلرانس 2% با VSWR کم
RF Load Resistor 50Ω, 10Watts, DC-3.0GHz Frequency, ±2% with Low VSWR, 5.08x2.54mm Package
Specifications
- Antenna Connector Type: Installation by soldering
- Application: RF Resistors
- Frequency Range: 3GHz
- Impedance: 50Ω
- Cable Length: None
- Dimensions: 5.08x2.54mm
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
مشخصات مقاومت C10A50Z4

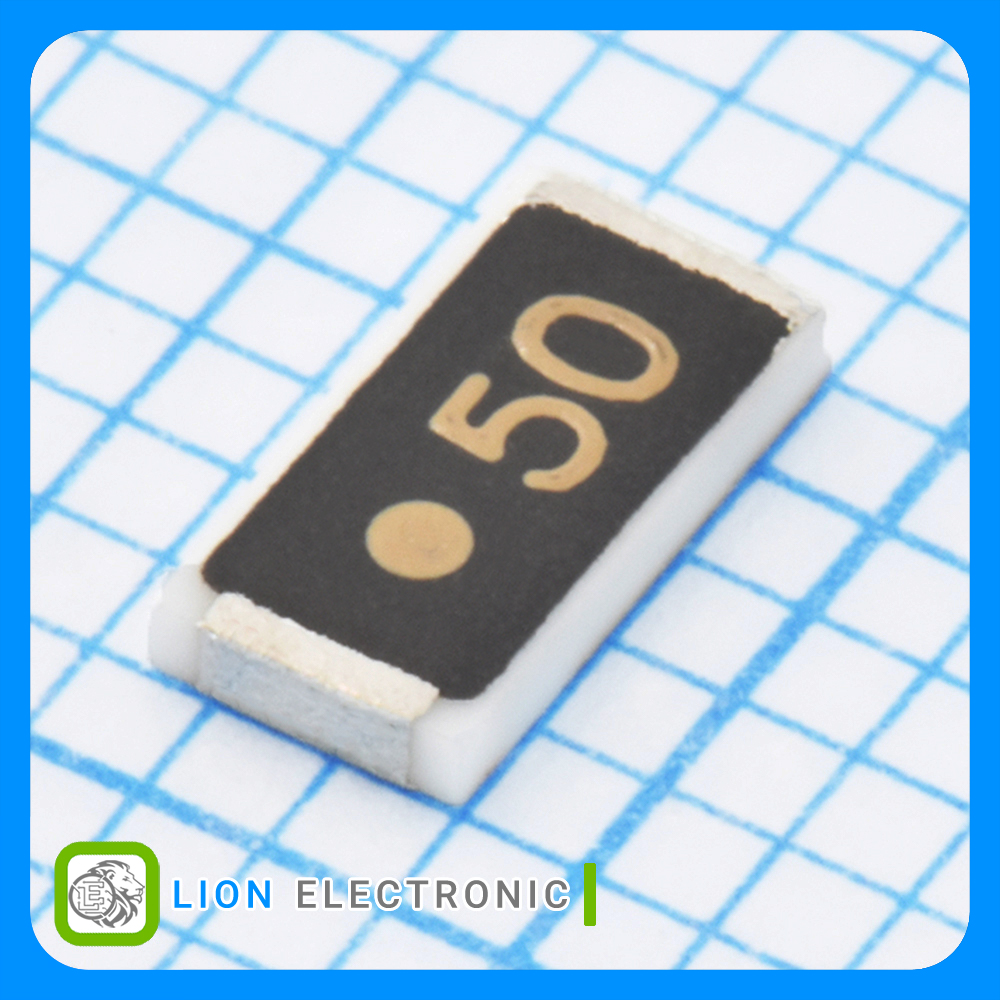

مقاومت C10A50Z4
Part Number
Installation by soldering
Antenna Connector Type
50Ω
Impedance
5.08x2.54mm
Dimensions
-55C
Minimum Operating Temperature
SMD/SMT
Mounting Style
RF Resistors
Application
None
Cable Length
+125C
Maximum Operating Temperature
N/A
Gain
3GHz
Frequency Range
