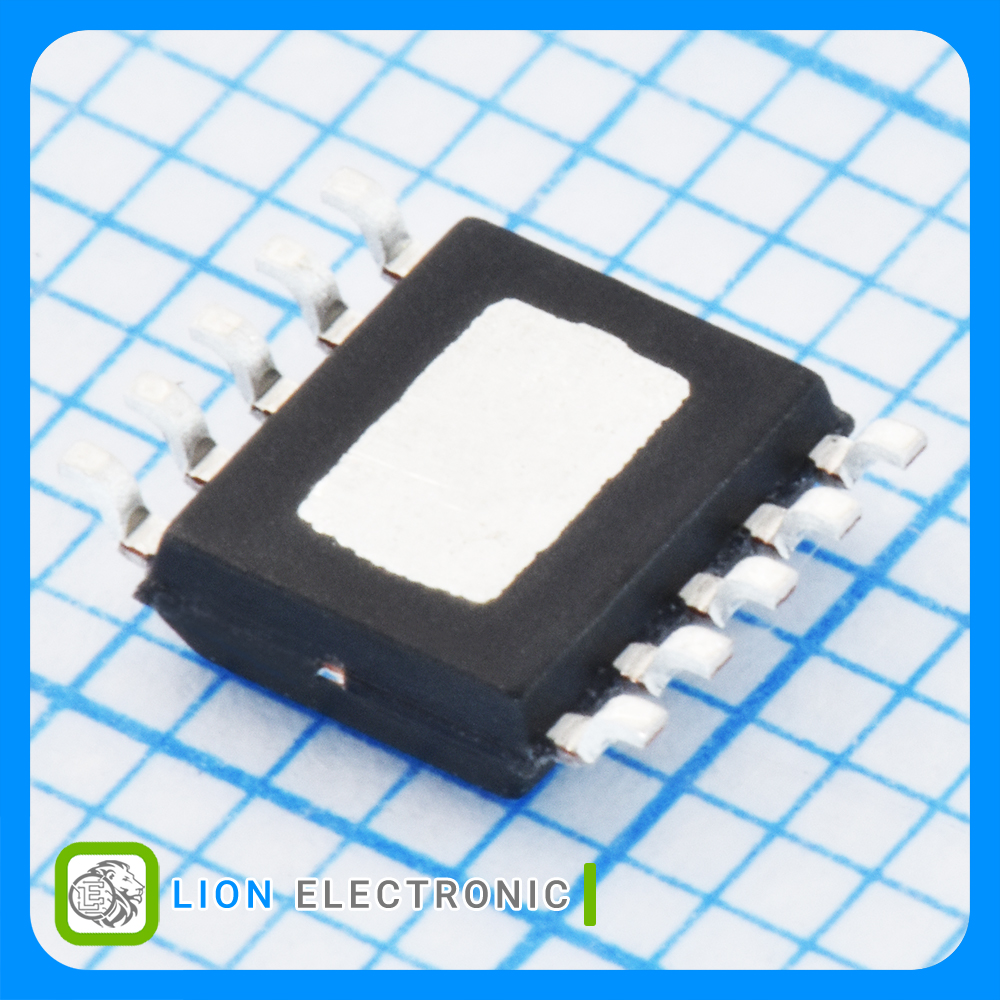

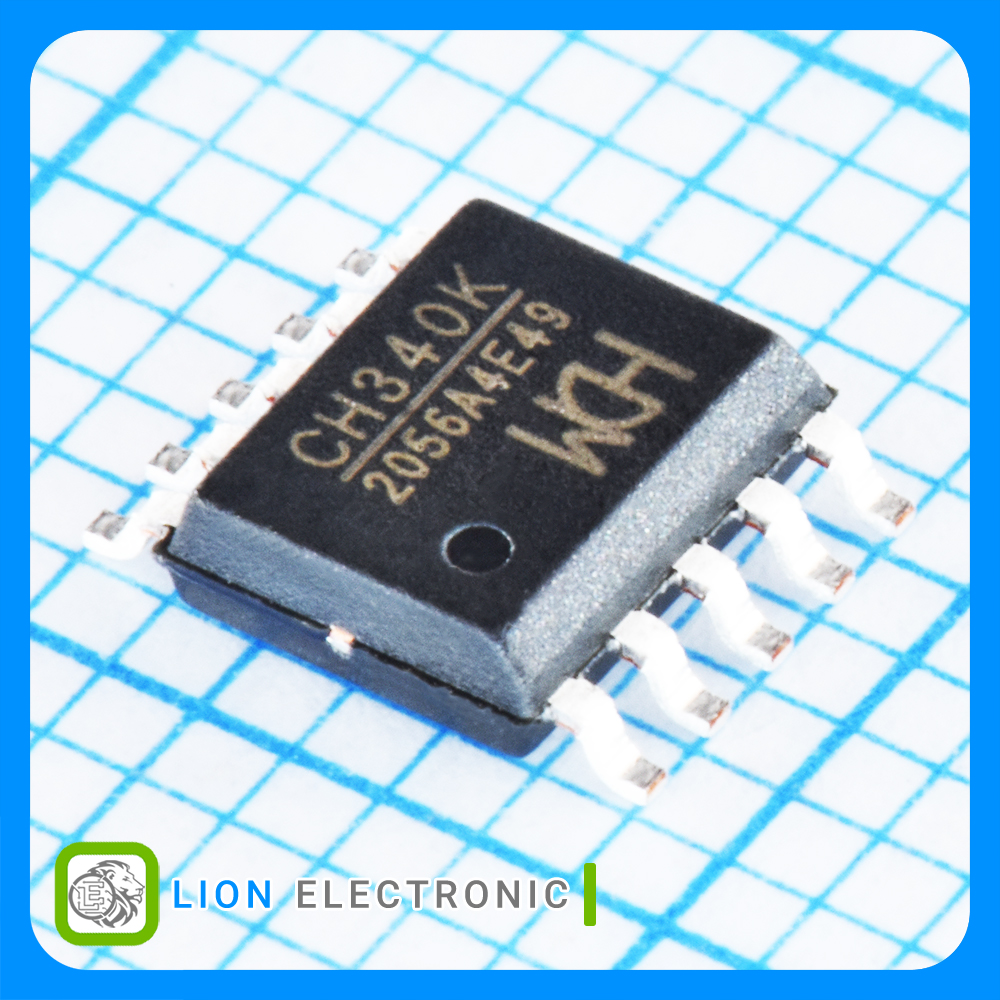

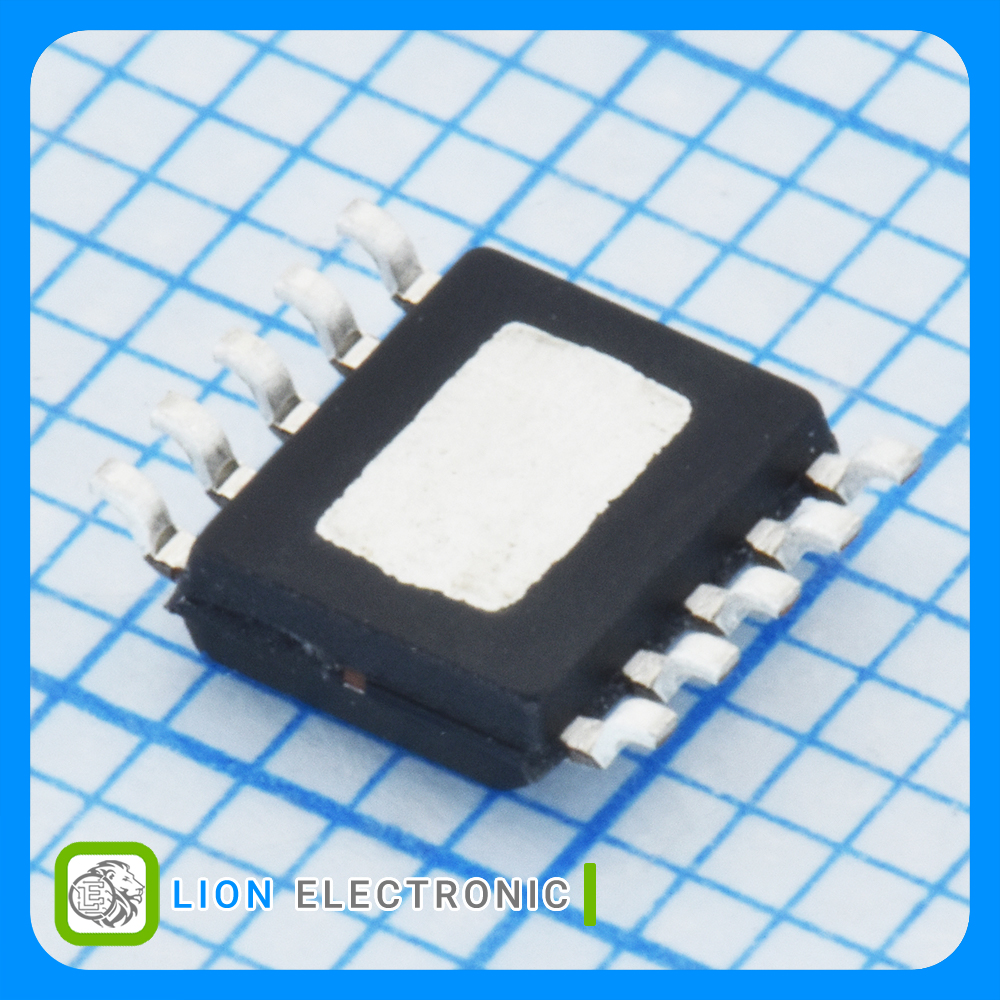

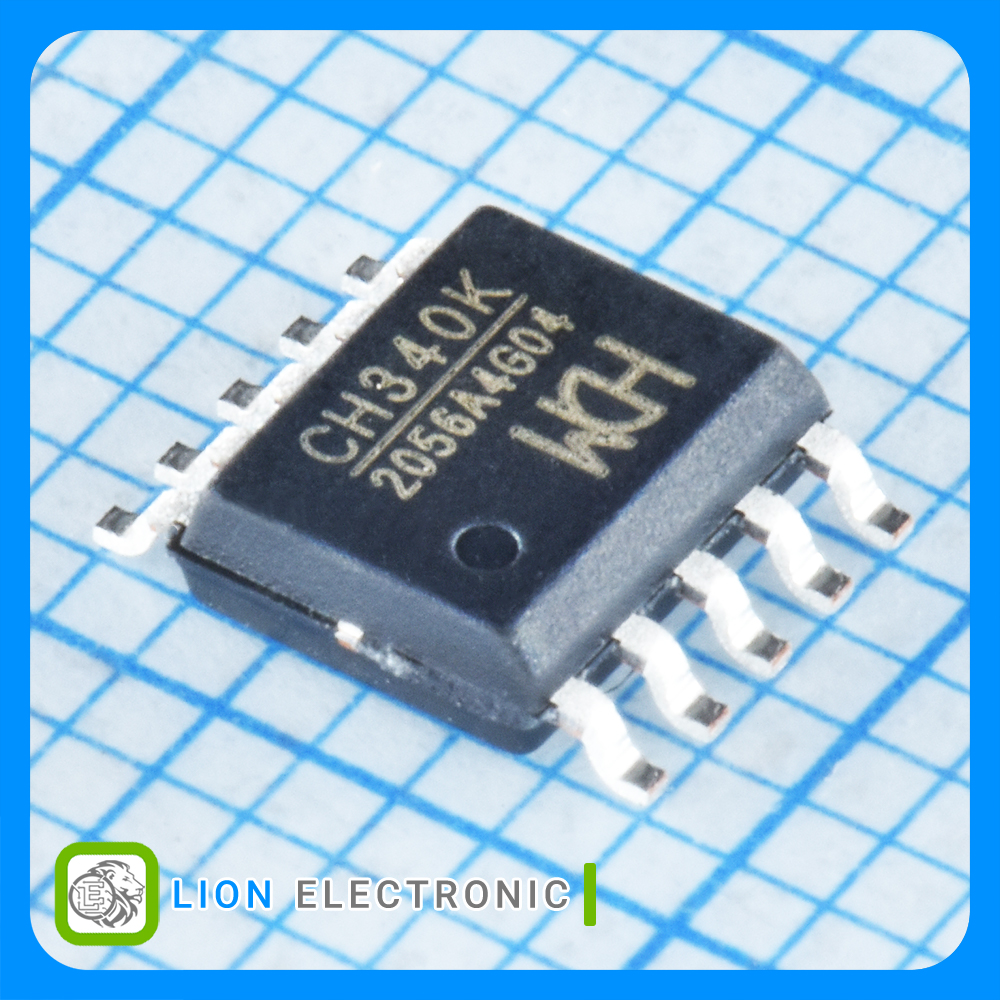

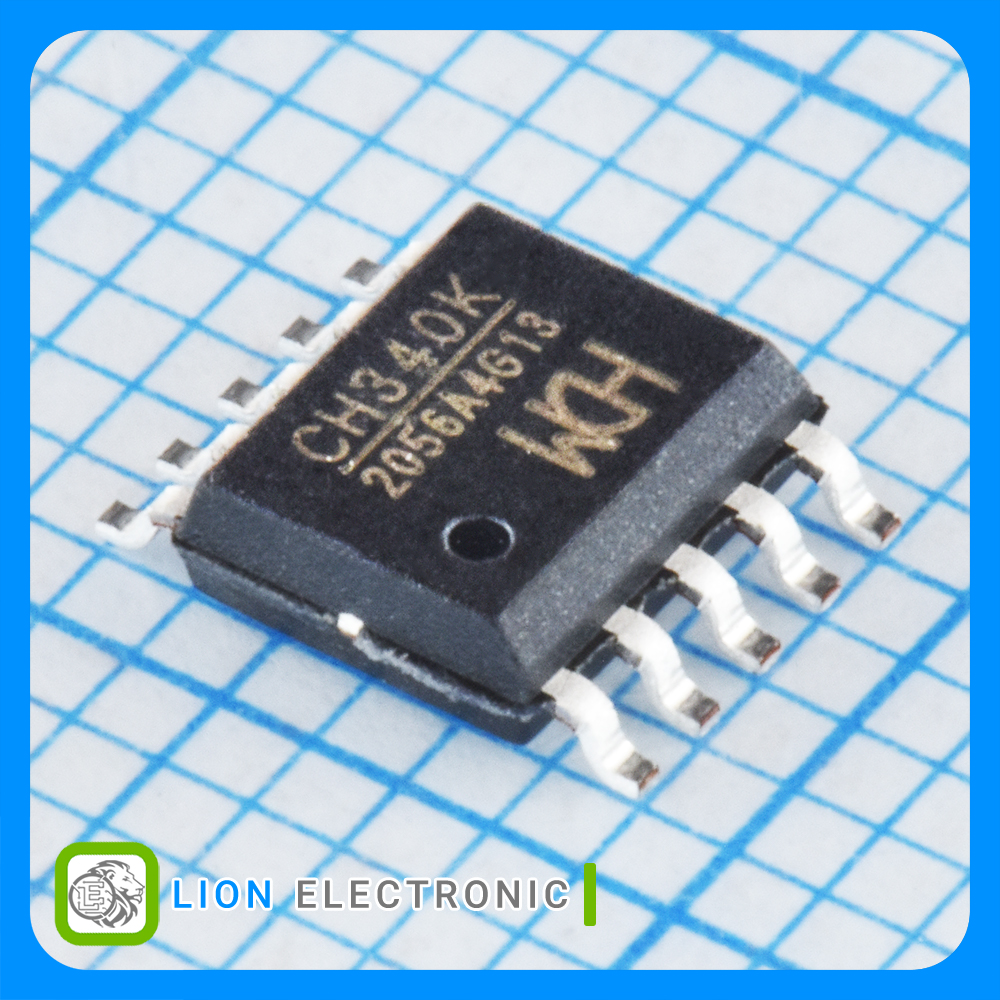

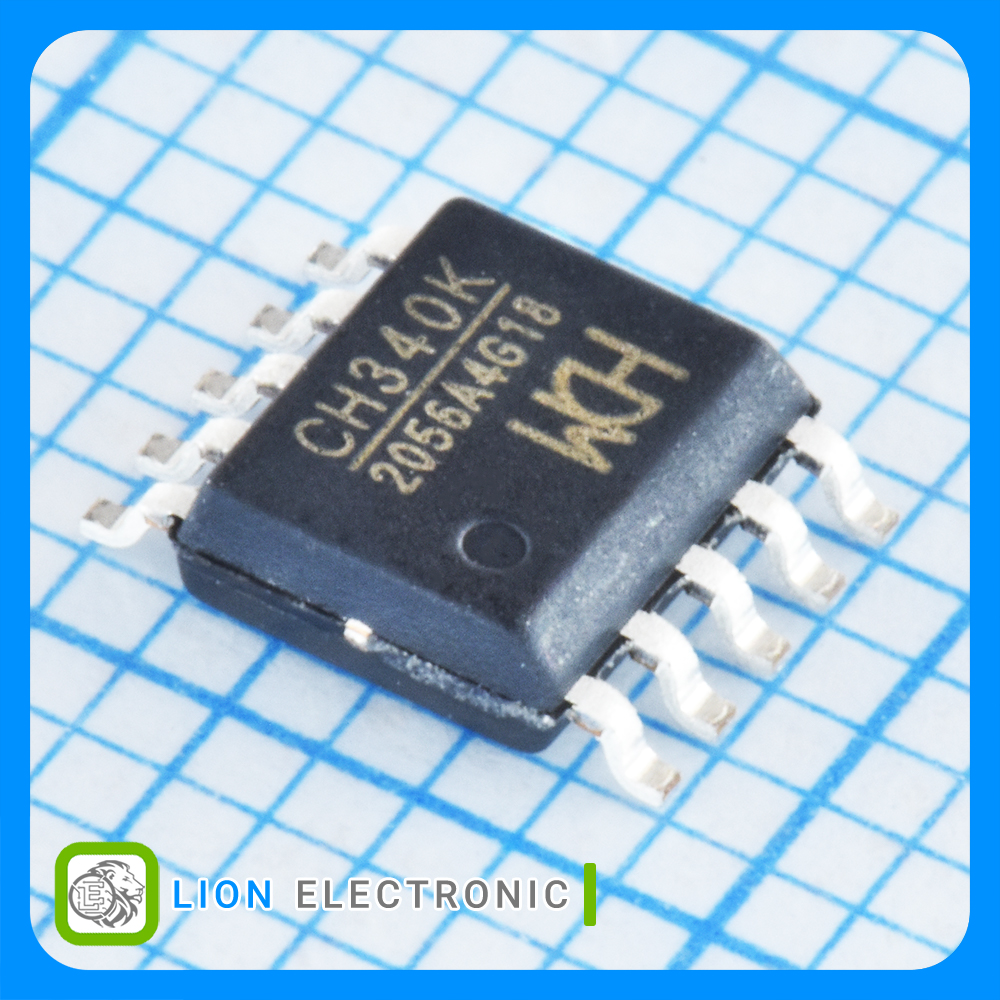

CH340K
CH340K
Part Number
4957
Lion Part
Datasheet
WCH Manufacture
آیسی رابط USB پل, USB to UART با نرخ 50 بیت بر ثانیه تا 2 مگابیت بر ثانیه با پکیج ESSOP-10، مبدل USB به پورت سریال یا پرینتر
CH340 USB Interface IC Bridge, USB to UART, 50bps to 2Mbps with ESSOP-10 Package, USB Bus Converter Chip Which Converts USB to Serial Port or Printer Port
معرفی
آیسی رابط USB پل, USB to UART با نرخ 50 بیت بر ثانیه تا 2 مگابیت بر ثانیه با پکیج ESSOP-10، مبدل USB به پورت سریال یا پرینتر
CH340 USB Interface IC Bridge, USB to UART, 50bps to 2Mbps with ESSOP-10 Package, USB Bus Converter Chip Which Converts USB to Serial Port or Printer Port
Specifications
- Standard: USB 2.0
- Type: Bridge, USB to UART
- Data Rate: 50bps to 2Mbps
- Speed: Full Speed
- Supply Voltage - Max: 5.3V
- Supply Voltage - Min: 4V
- Operating Supply Current: 7mA
- Mounting Style: SMD/SMT
- Package/Case: ESSOP-10
- Minimum Operating Temperature: -20C
- Maximum Operating Temperature: +70C
- Packaging: Reel
مشخصات CH340K
CH340K
Part Number
50bps to 2Mbps
Data Rate
Full Speed
Speed
USB 2.0
Standard
+70C
Maximum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
-20C
Minimum Operating Temperature
Bridge, USB to UART
Type
5.3V
Supply Voltage - Max
4V
Supply Voltage - Min
ESSOP-10
Package-Case
7mA
Operating Supply Current
