MD1705
MD1705
Part Number
4981
Lion Part
Datasheet
Rainsun microwave Tech Manufacture
آنتن چیپ چندلایه باند بسیار عریض 800 تا 2.1 گیگاهرتز با بهره 1dBi امپدانس 50 اهم کانکتور لحیمی

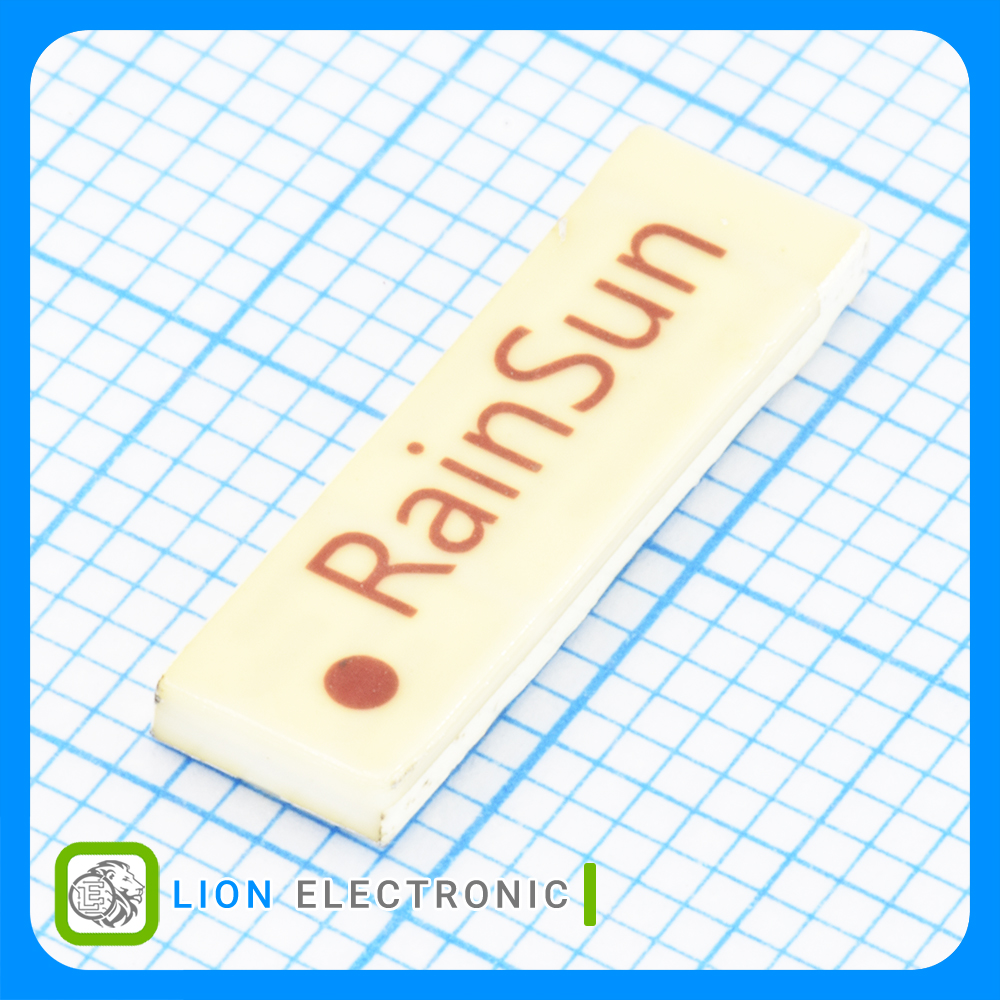

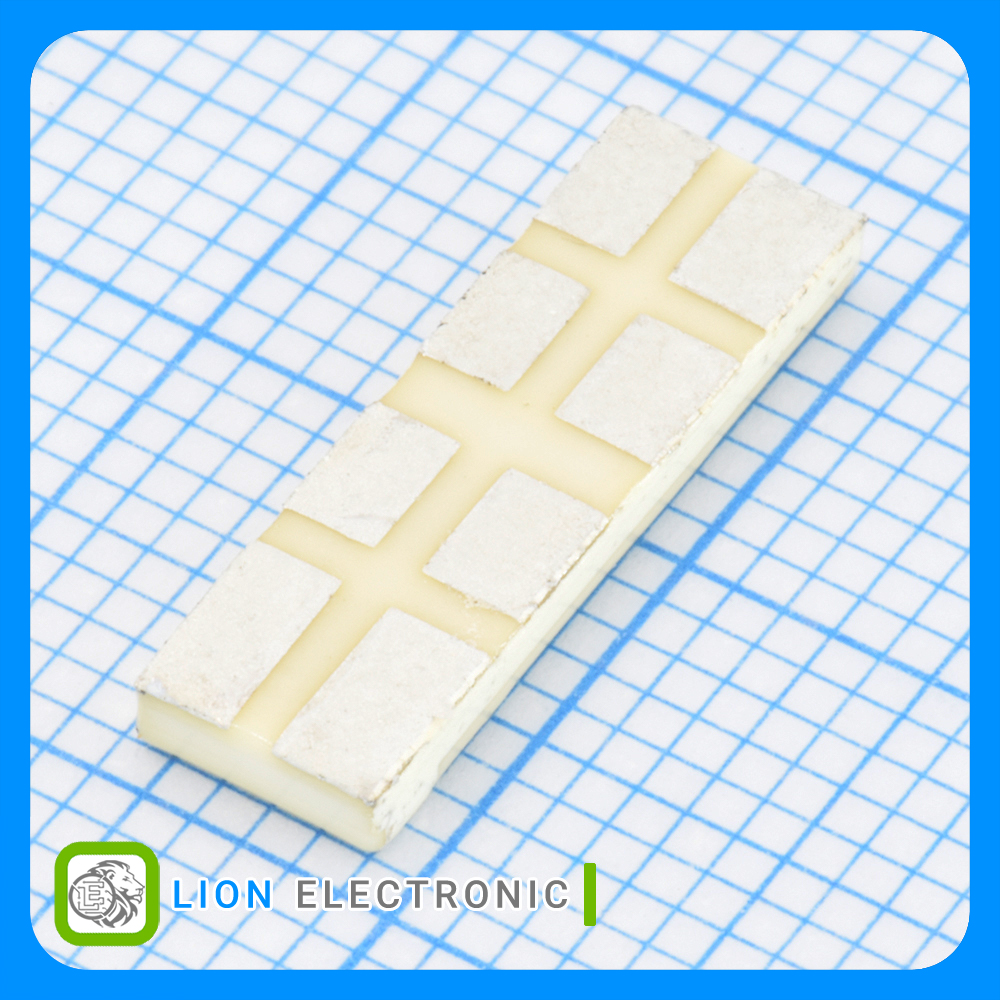

Multilayer Chip Antenna for Extra Wide Band, 800MHz - 2.1GHz, 1dBi with 50Ω and Installation by soldering Connector
معرفی
آنتن چیپ چندلایه باند بسیار عریض 800 تا 2.1 گیگاهرتز با بهره 1dBi امپدانس 50 اهم کانکتور لحیمی
Multilayer Chip Antenna for Extra Wide Band, 800MHz - 2.1GHz, 1dBi with 50Ω and Installation by soldering Connector
Specifications
- Antenna Connector Type: Installation by soldering
- Application: 2G/3G/4G
- Frequency Range: 800MHz - 2.1GHz
- Gain: 1dBi
- Impedance: 50Ω
- Cable Length: None
- Dimensions: 17mm x 5mm x1.63mm
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
مشخصات آنتن MD1705

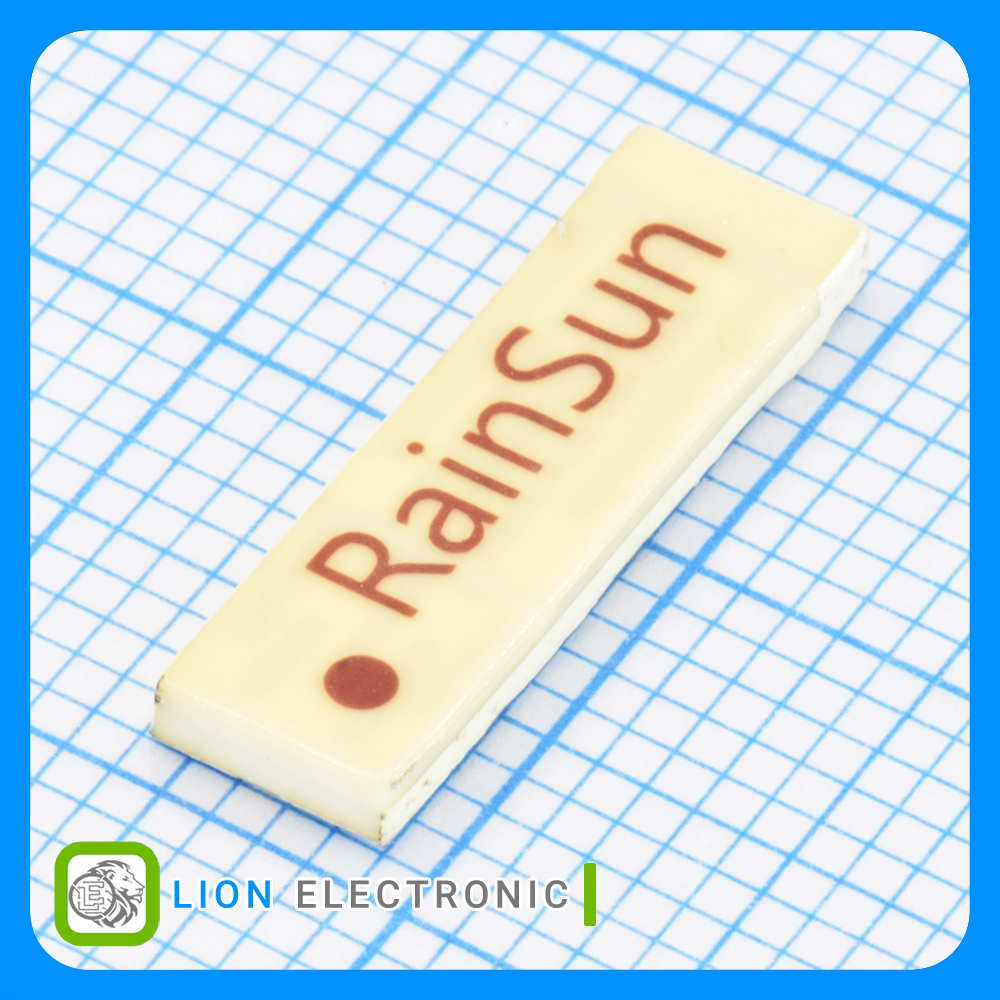

آنتن MD1705
Part Number
Installation by soldering
Antenna Connector Type
1dBi
Gain
50Ω
Impedance
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
2G/3G/4G
Application
+85C
Maximum Operating Temperature
None
Cable Length
800MHz - 2.1GHz
Frequency Range
17mm x 5mm x1.63mm
Dimensions
